Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

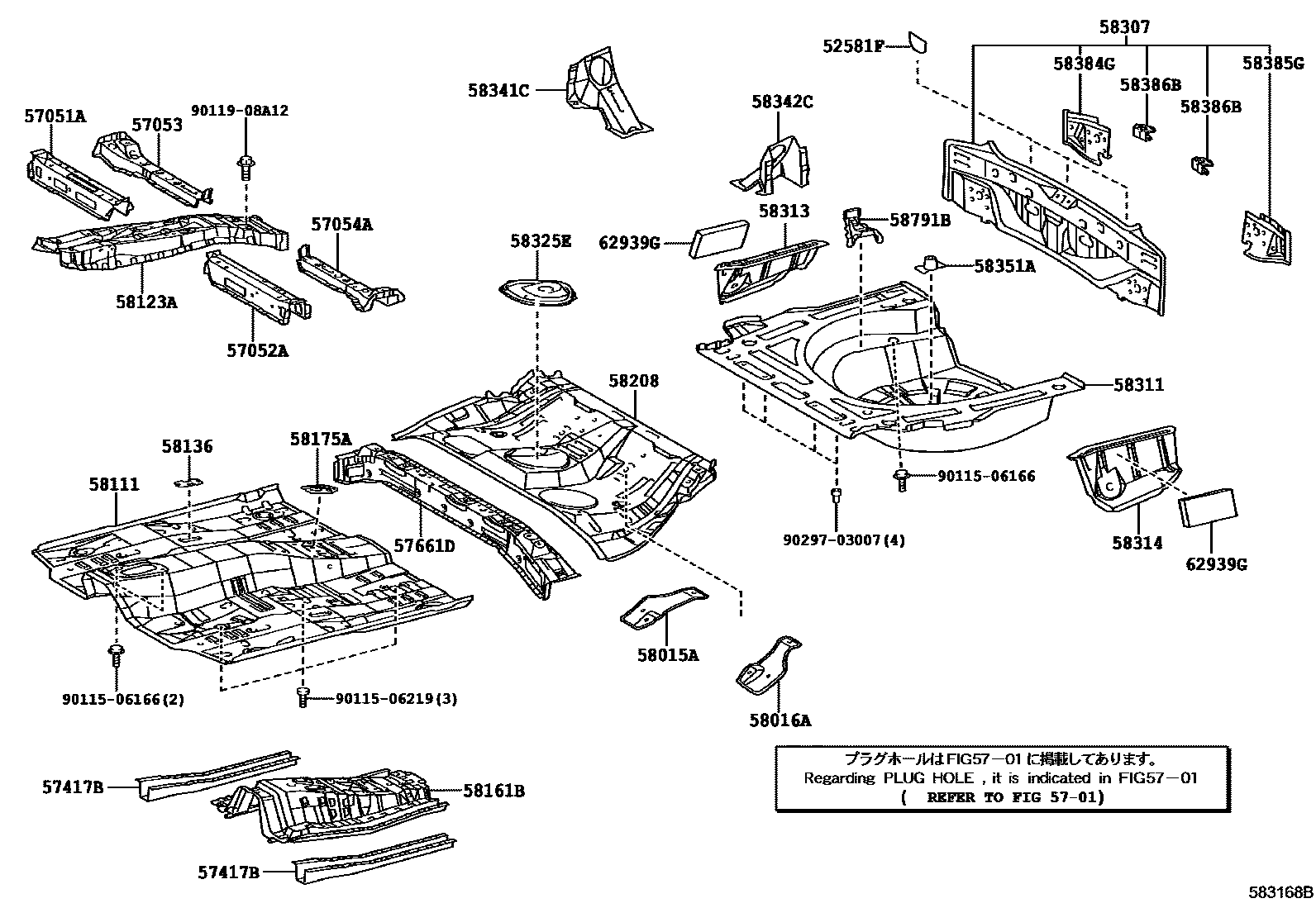

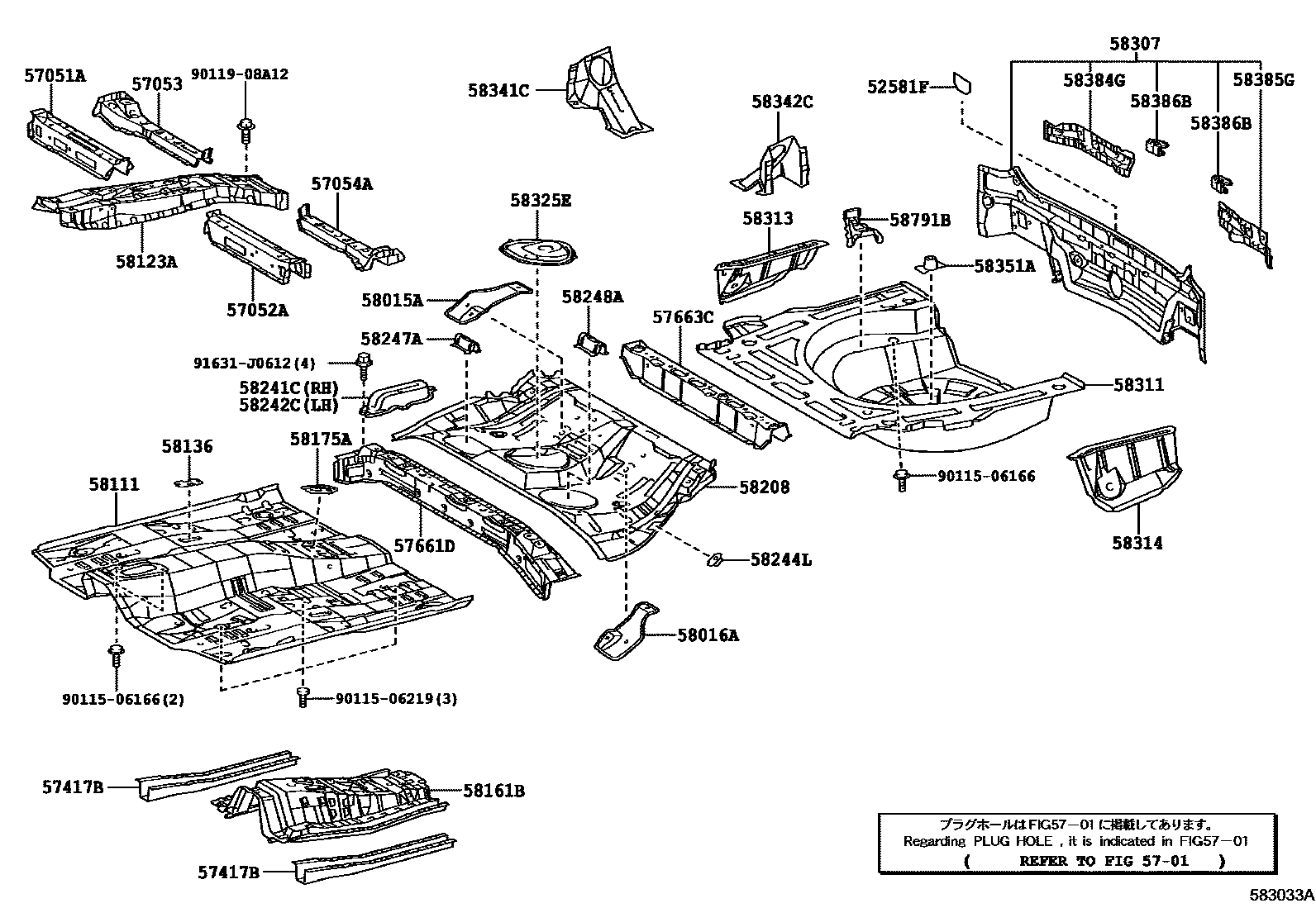

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52581F | rear bumper protector | 52581-13030 |
| 57051A | Front floor right cross member sub-assembly | 57051-12070 · 57051-12071 |
| 57052A | Front floor left cross member sub-assembly | 57052-12020 · 57052-12021 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-12020 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-12020 |
| 57417B | Front underfloor reinforcement | 57417-12120 |
| 57661D | rear floor front cross member | 57407-12150 · 57407-12151 · 57407-12152 · 57407-13140 · 57407-13141 |
| 57663C | Rear floor center cross member | 57663-13080 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12110 · 58015-13050 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-12080 · 58016-13050 |
| 58111 | front floor pan | 58111-12916 · 58111-12918 |
| 58123A | shift lever bracket | 58013-12140 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58161B | Seat belt anchor to floor pan reinforcement | 57805-12160 · 57805-12161 |
| 58175A | No. 1 parking brake base reinforcement | 58176-12030 |
| 58208 | central floor base | 58211-12939 · 58211-12940 · 58211-13320 |
| 58241C | Floor right panel | 58241-13020 |
| 58242C | Floor left panel | 58242-13020 |
| 58244L | Rear right seat cushion mounting bracket | 58244-13030 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-12080 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-12080 |
| 58307 | Body lower back panel sub-assembly | 58307-12B20 · 58307-12B30 · 58307-13180 |
| 58311 | rear floor pan | 58311-12270 · 58311-13310 |
| 58313 | Rear floor right panel | 58313-12290 · 58313-12330 |
| 58314 | rear floor left panel | 58314-12290 · 58314-12330 |
| 58325E | Rear floor access hole cover | 58325-12150 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-12020 · 58341-13040 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-12020 · 58342-13040 |
| 58351A | Spare tire rack bracket | 58351-33010 |
| 58384G | Body lower back panel upper right corner panel | 58384-12210 · 58384-13090 |
| 58385G | Body lower back panel upper left corner panel | 58385-12190 · 58385-13070 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-12020 |
| 58791B | jack bracket | 58791-12200 |
| 62939G | Side ventilation silencers | 62939-12030 |
