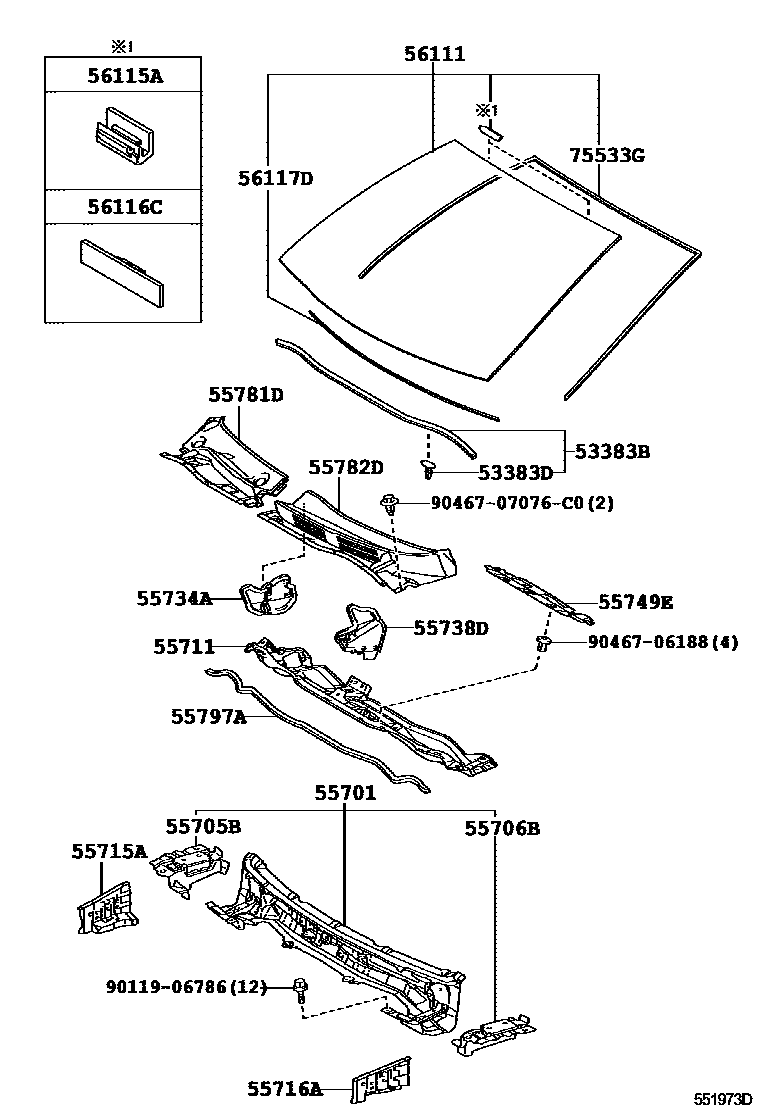

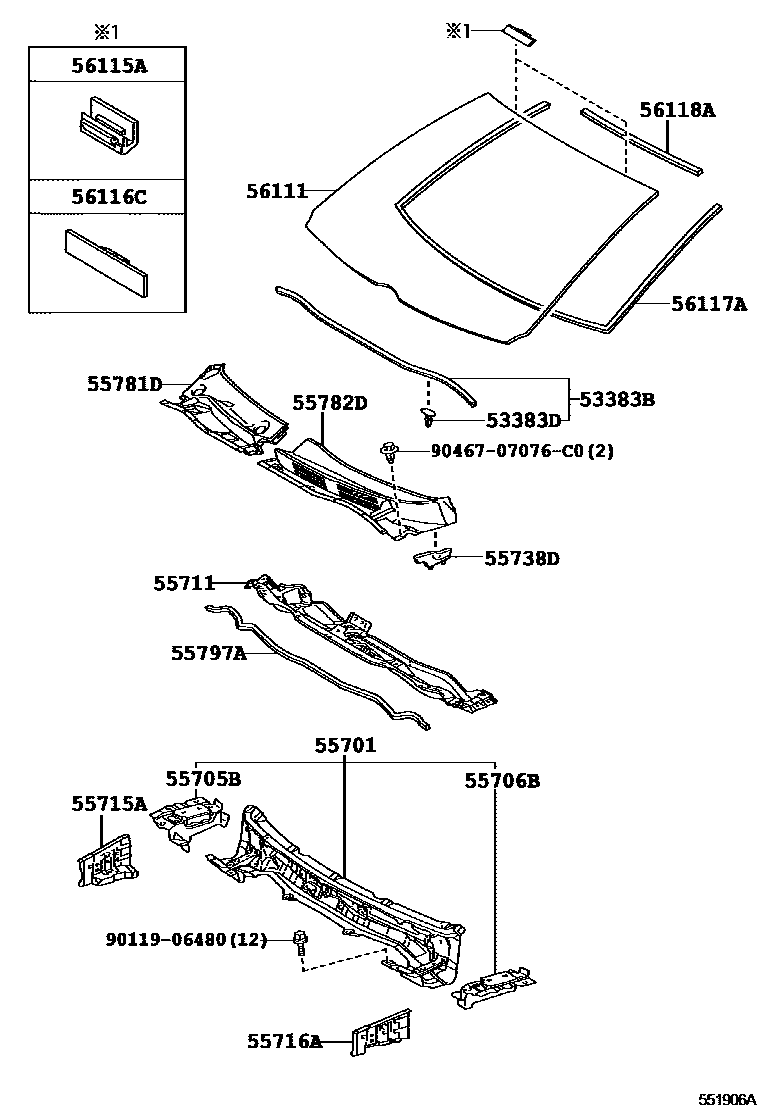

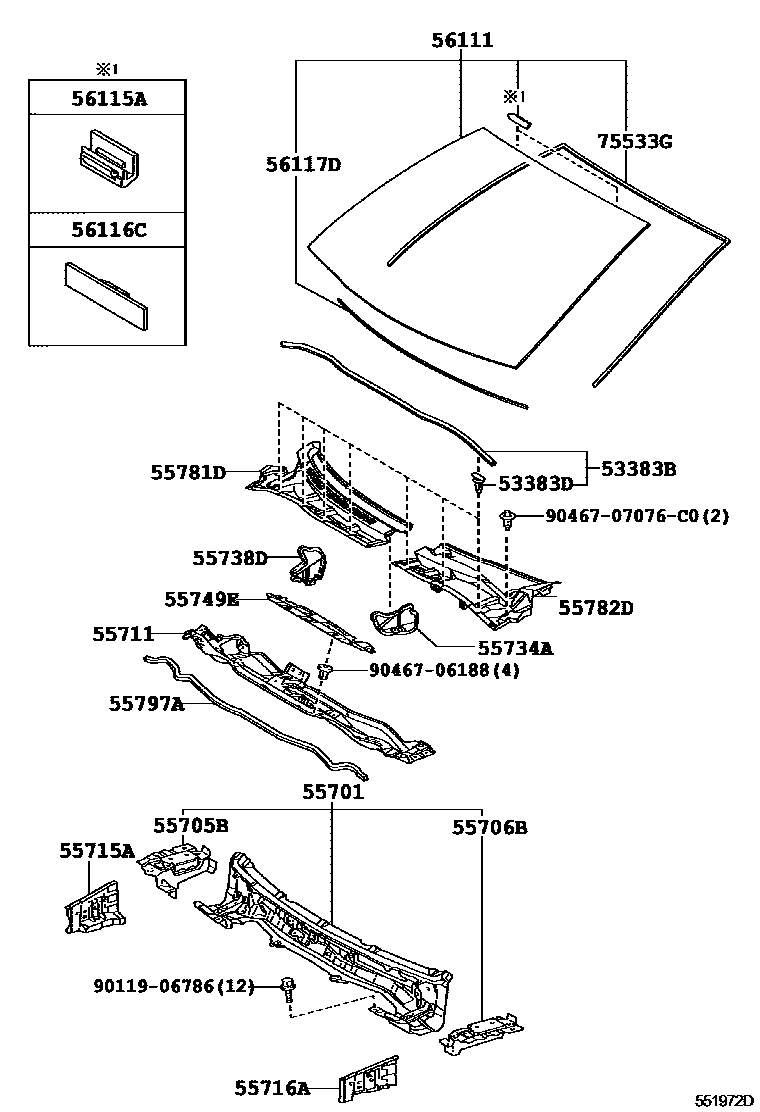

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-12160 · 53383-12170 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 · 67867-52030 |
| 55701 | Front apron sub-assembly | 55700-12B10 · 55700-12B20 · 55700-12B30 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-12090 · 55705-12100 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-12100 · 55706-12110 |
| 55711 | Front outer panel | 55701-12A41 · 55701-12A80 |
| 55715A | From cowl upper cover to fender right stay | 55715-12110 |
| 55716A | From cowl upper cover to fender left stay | 55716-12110 |
| 55734A | Right waterproof cover | 55734-12160 · 55734-12170 |
| 55738D | No. 2 heater duct splash guard seal | 55737-12090 · 55737-12100 · 55738-12140 |
| 55749E | Front wall upper cover No. 2 heat insulation panel | 55749-12080 |
| 55781D | Ventilation grille on right front apron | 55708-12330 · 55708-12350 · 55708-12360 · 55708-12361 |
| 55782D | Ventilation grille on left front apron | 55709-12110 · 55709-12120 · 55709-12130 · 55709-12131 · 55709-12132 |
| 55797A | Front wall pumping device seal | 55737-74010 · 55797-12040 · 55797-13020 |
| 56111 | windshield | 56101-12240 · 56101-12420 · 56101-12421 · 56101-12422 · 56101-12430 · 56101-12431 · 56101-12432 · 56101-12440 · 56101-12441 · 56101-12442 · 56101-12450 · 56101-12451 · 56101-12452 · 56101-12460 · 56101-12461 · 56101-12462 · 56101-12470 · 56101-12471 · 56101-12472 · 56101-12510 · 56101-12520 · 56101-12530 |
| 56115A | Windshield block No. 1 | 56115-30100 · 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-12310 |
| 56117D | windshield adhesive seal | 56117-12300 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56118-12070 |
| 75533G | Windshield outer protective strip | 75531-12690 |
