Toyota COROLLA 仪表板和手套箱 — Figure 5501

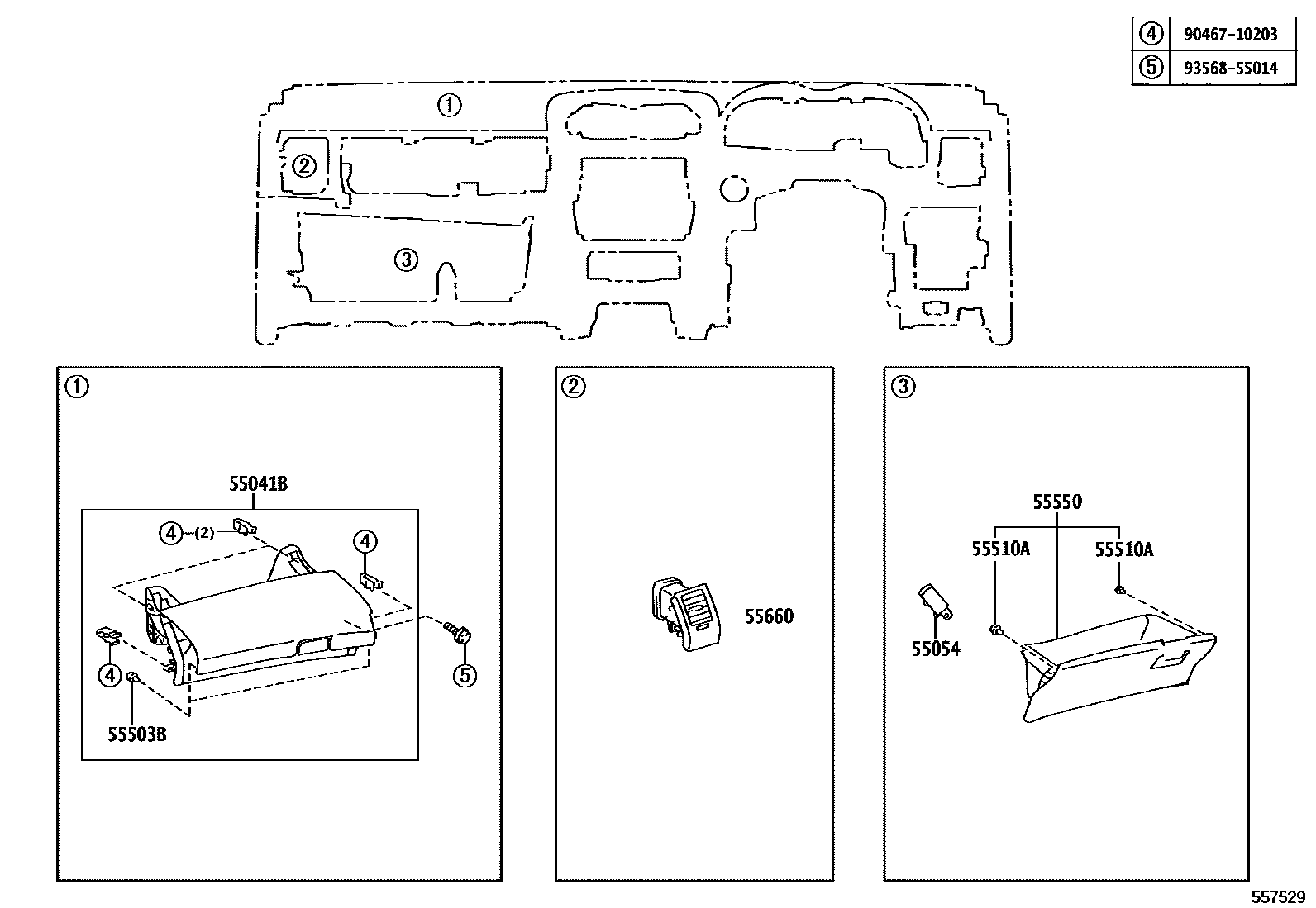

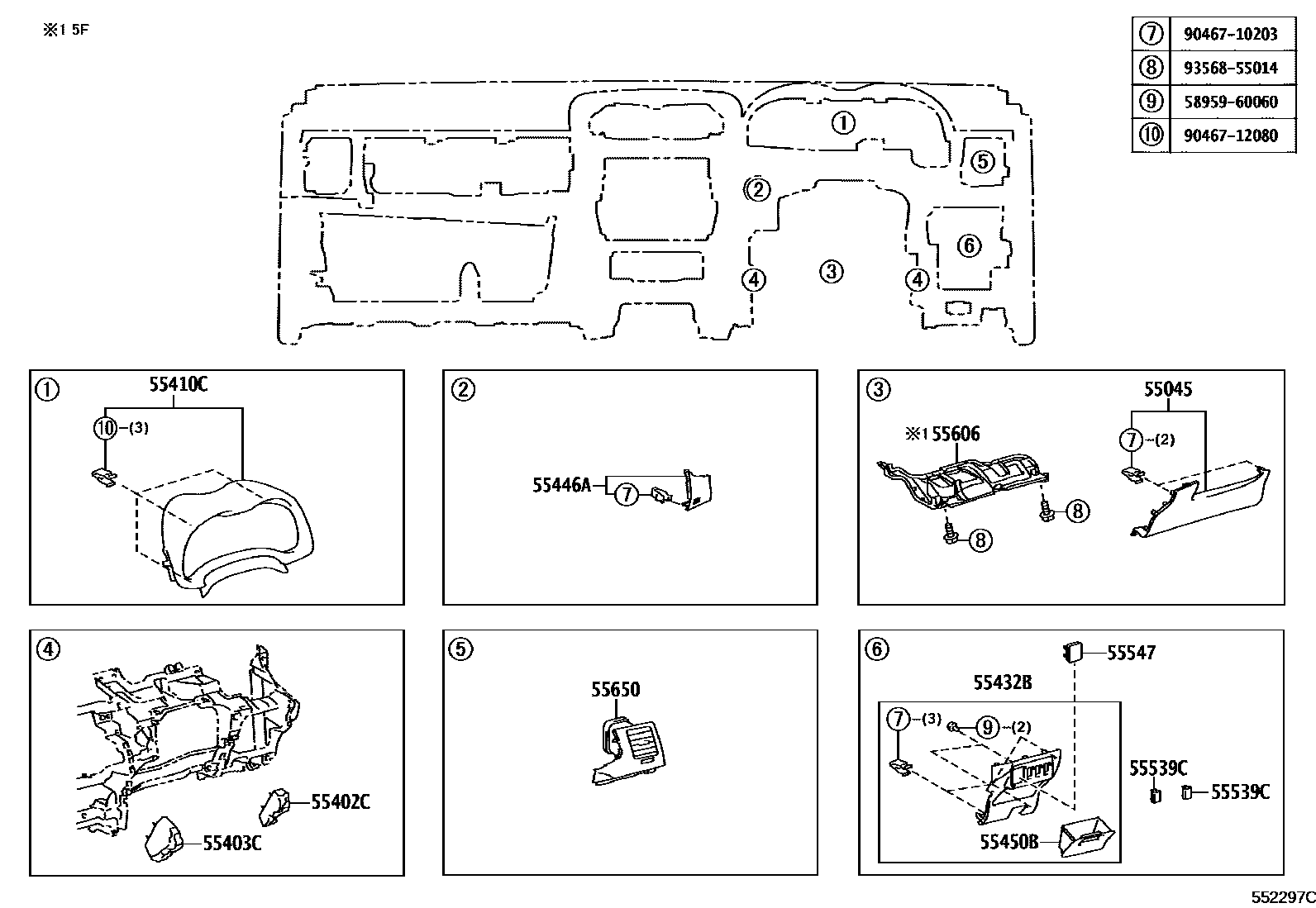

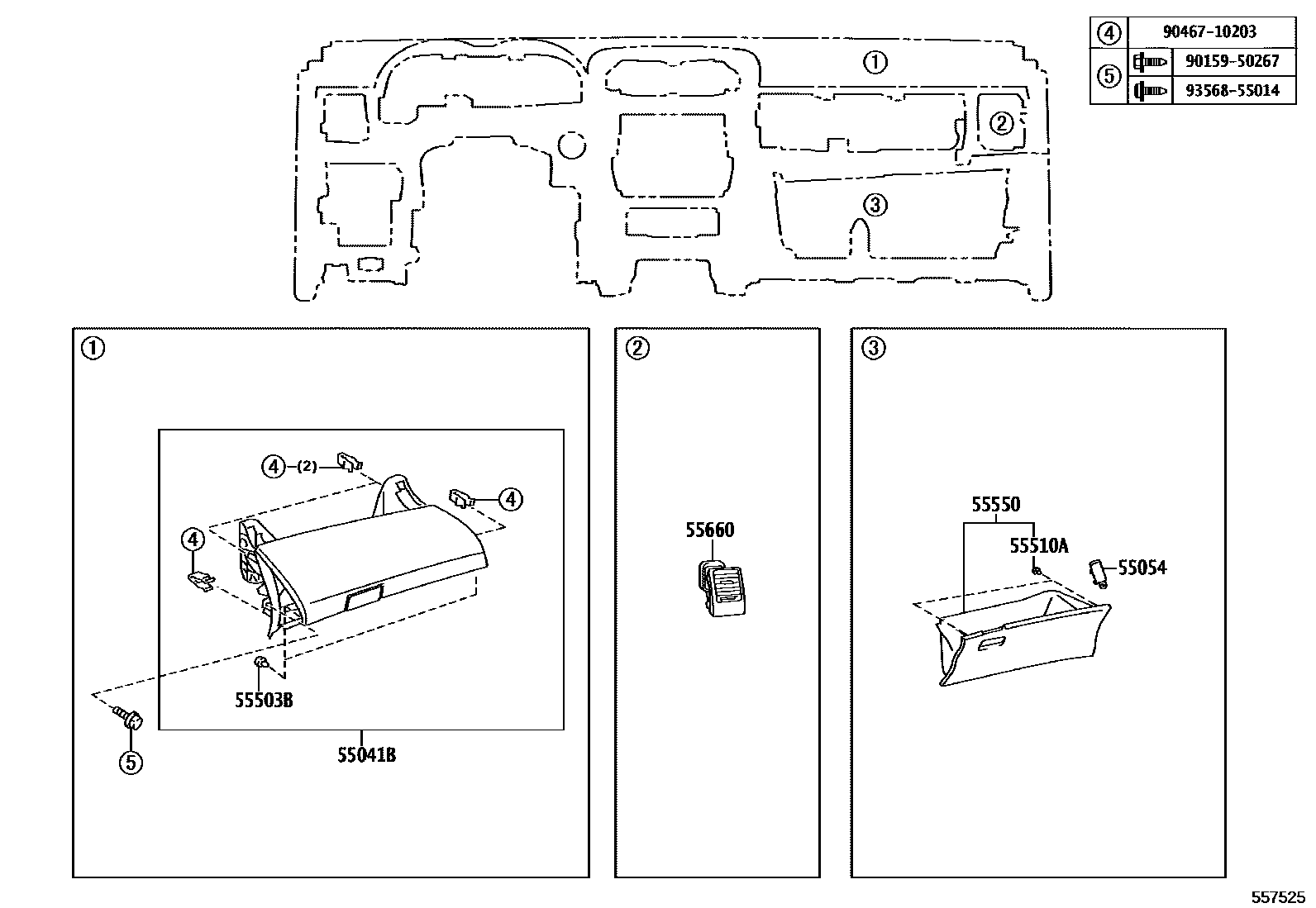

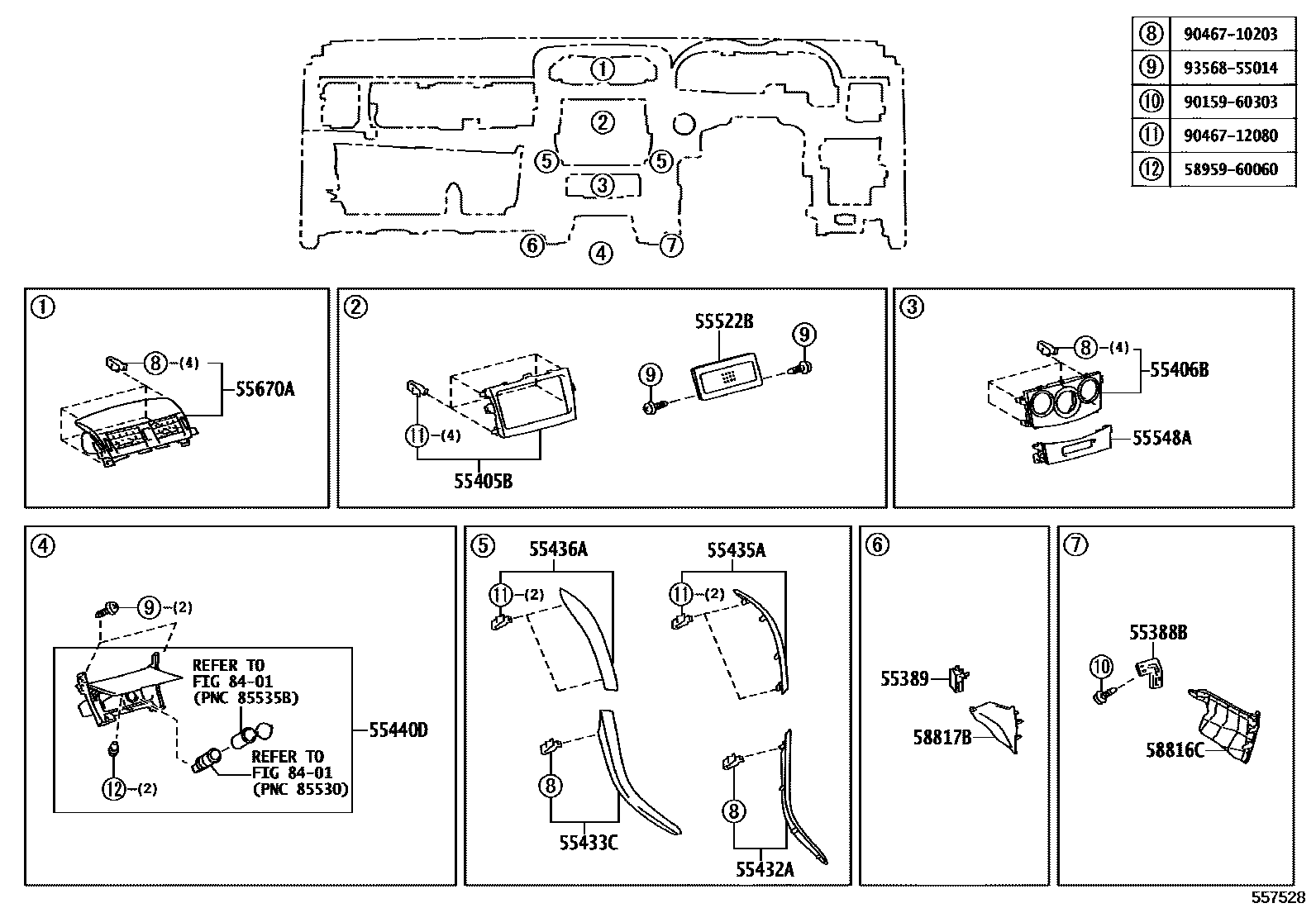

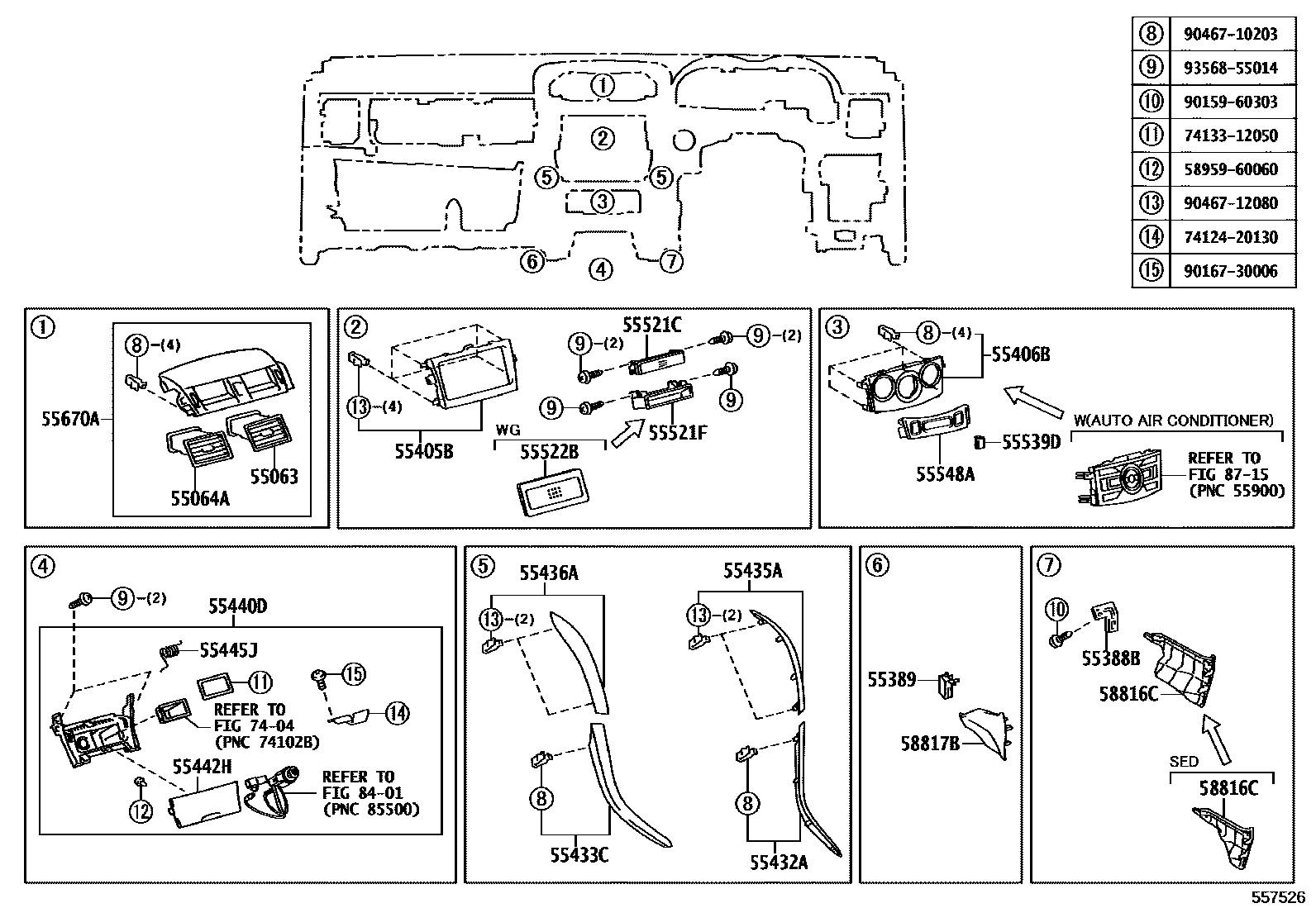

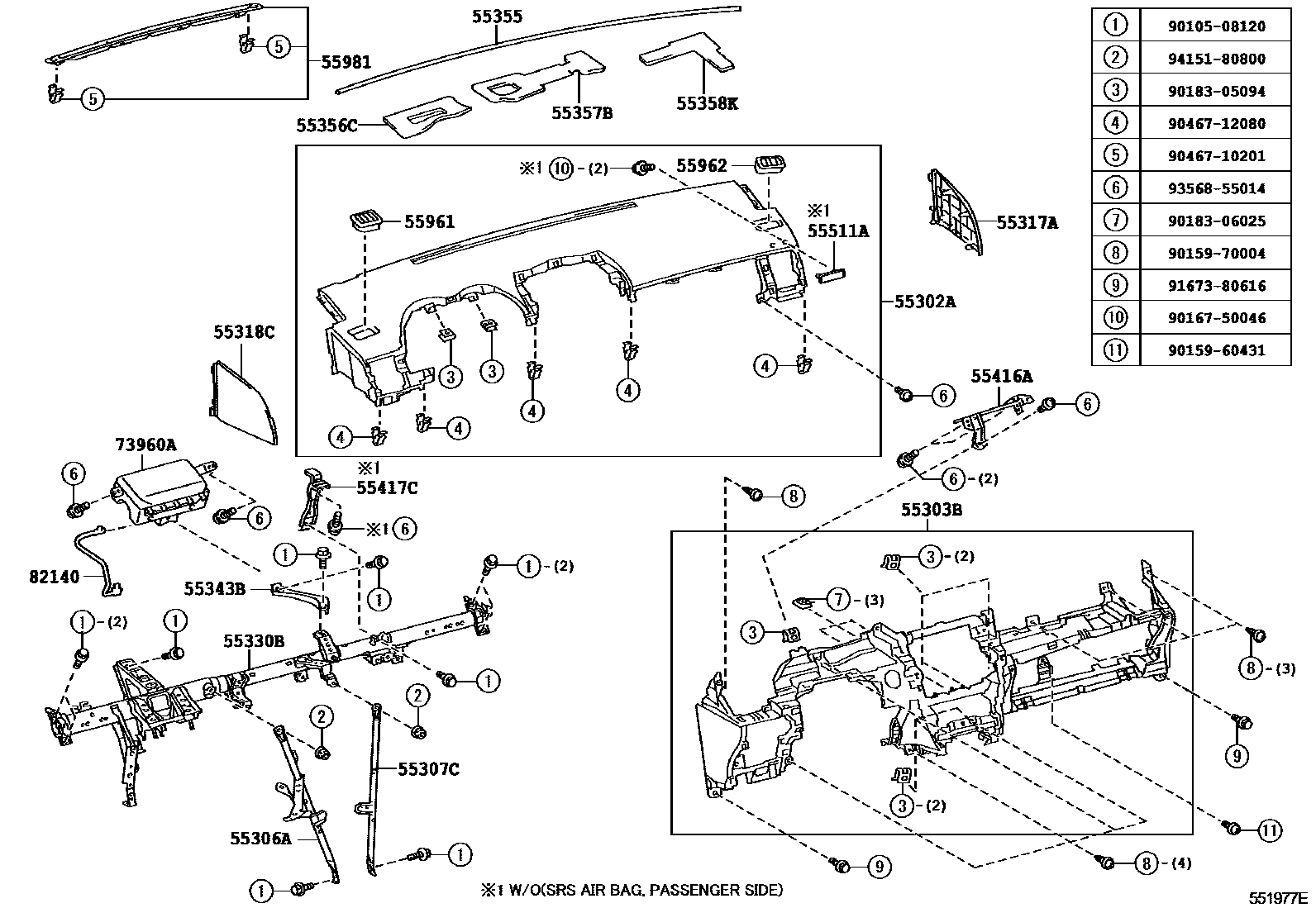

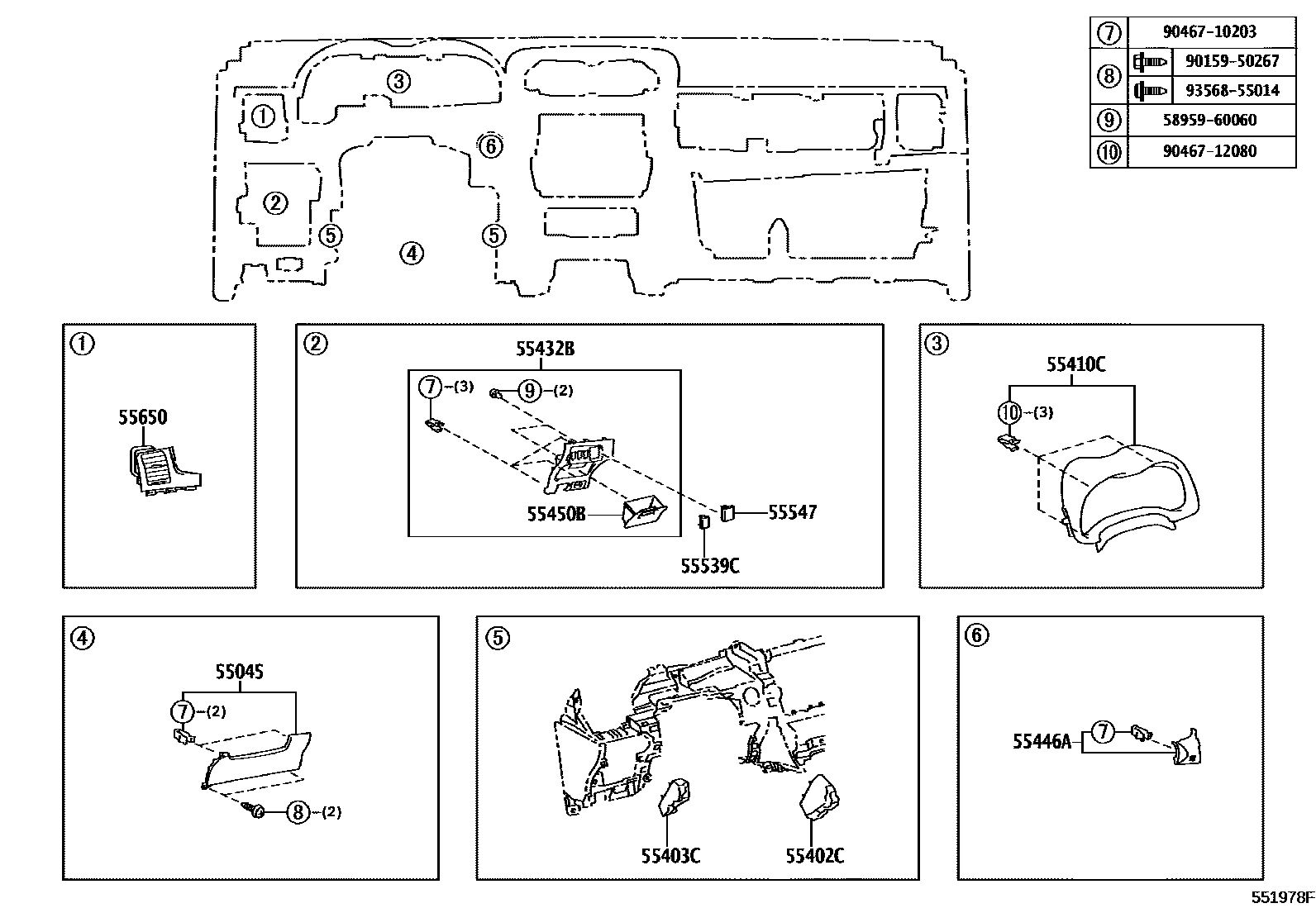

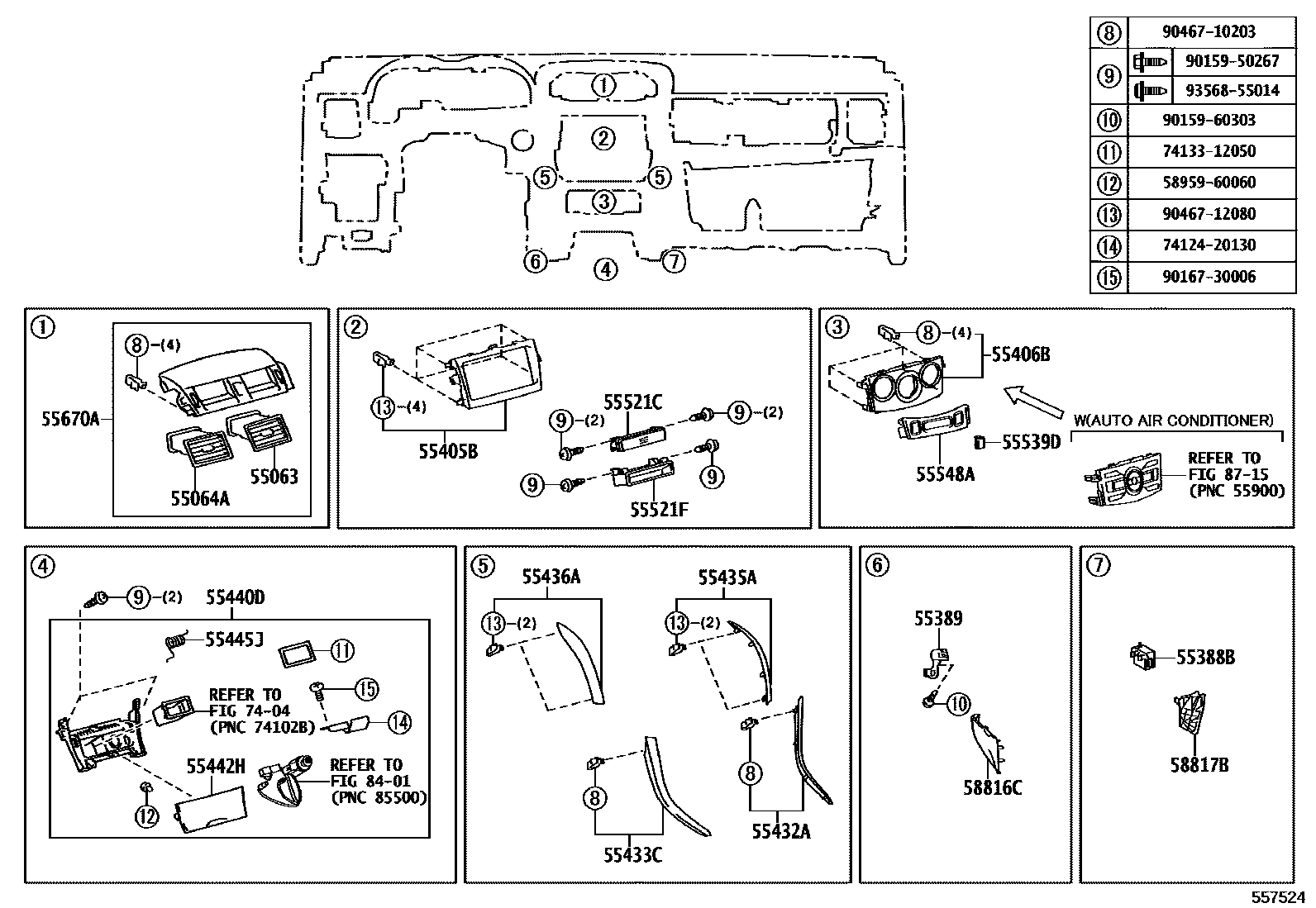

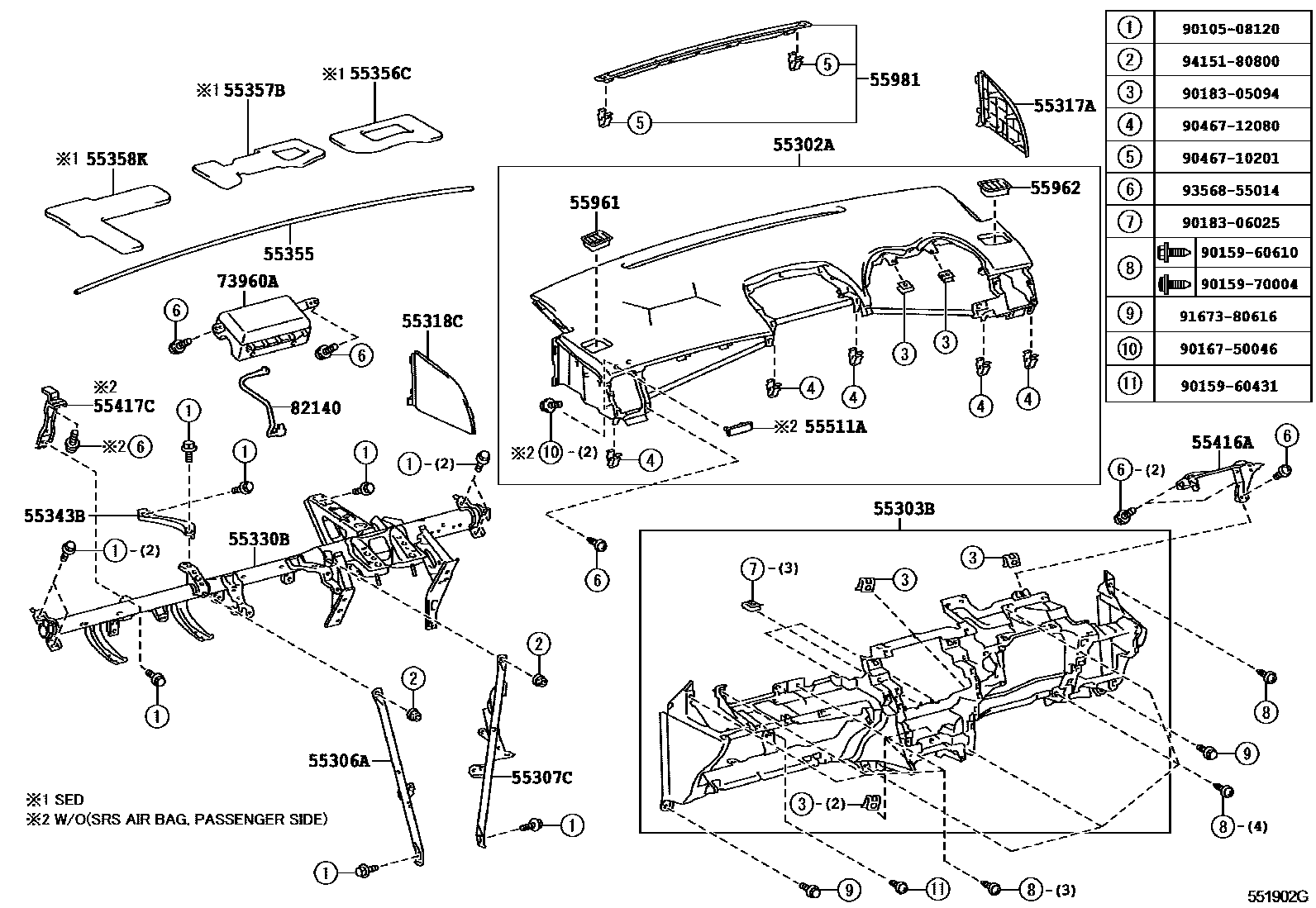

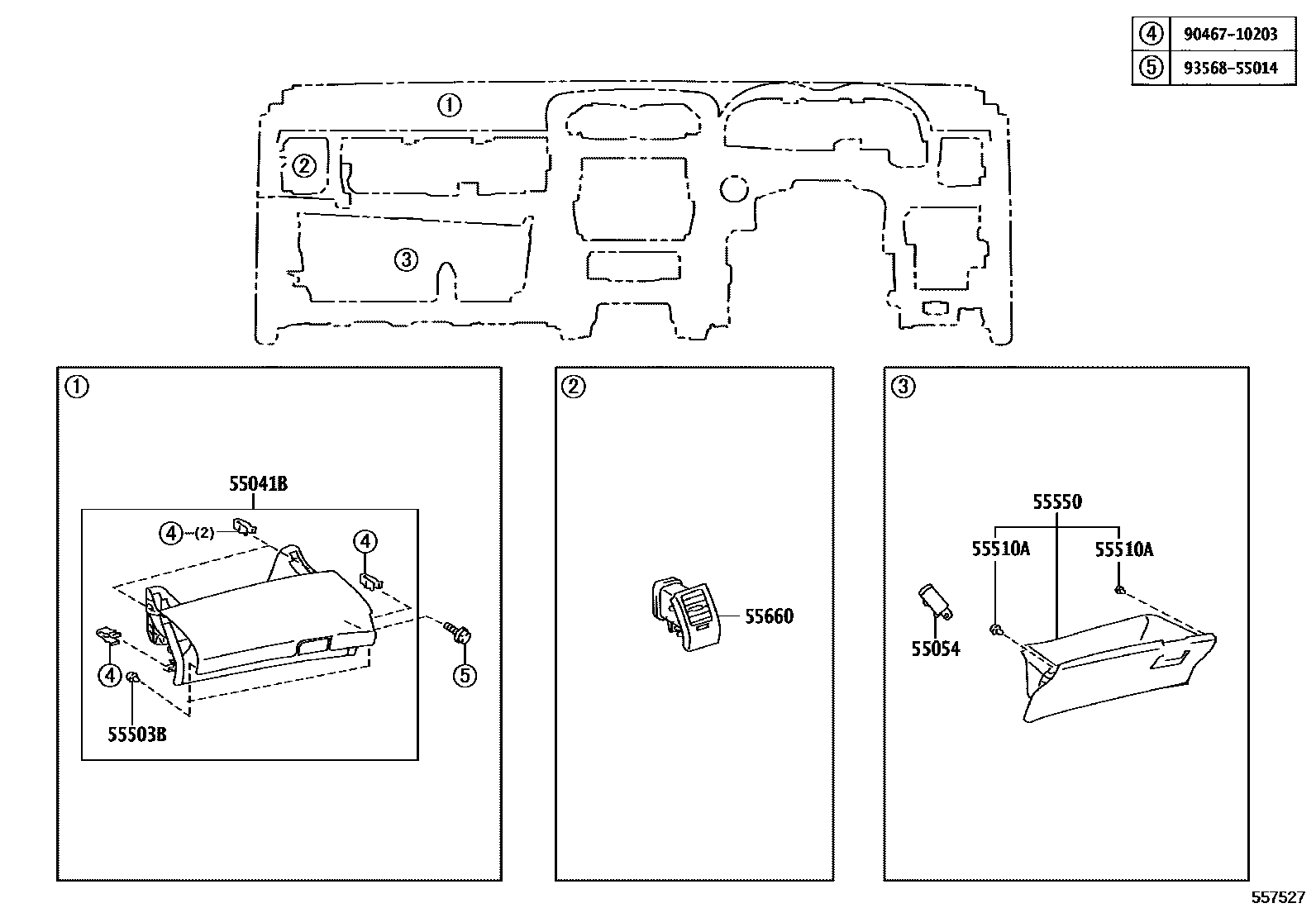

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 11 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12030 |
| 55063 | Instrument panel No. 3 air regulator sub-assembly | 55063-12170 · 55063-12171 · 55063-12180 · 55063-12181 |
| 55064A | Instrument panel No. 4 air regulator sub-assembly | 55064-12130 · 55064-12131 · 55064-12140 · 55064-12141 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12370 · 55306-12380 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12320 · 55307-12330 |
| 55330B | Instrument panel reinforcement assembly | 55330-12700 · 55330-12720 · 55330-12750 · 55330-12760 |
| 55343B | Center bracket (dashboard to cowl) | 55343-12070 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-12110 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-12150 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-12090 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-12080 |
| 55388B | Mounting bracket on the right side of the console | 55388-42010 · 55389-42020 |
| 55389 | Console left side mounting bracket | 55388-42020 · 55389-12040 |
| 55402C | Dashboard lower right pad sub-assembly | 55402-12020 · 55402-12030 |
| 55403C | Instrument panel lower left pad sub-assembly | 55403-12070 · 55403-12080 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-12A31 · 55405-12A71 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-12440 · 55406-12480 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-12070 · 55416-12080 |
| 55417C | Instrument panel pad No. 3 bracket | 55417-12020 |
| 55432A | Dashboard lower right decorative panel | 55432-12480 |
| 55433C | Instrument panel lower left decorative panel | 55433-12220 |
| 55435A | Dashboard right end decorative panel | 55435-12120 |
| 55436A | Instrument panel left end decorative panel | 55436-12090 |
| 55440D | Dashboard storage box assembly | 55440-12100 · 55440-12110 · 55440-12140 · 55440-12150 · 55440-12160 · 55440-12220 · 55440-12221 |
| 55442H | Dashboard storage box cover | 55442-12100 · 55442-12140 · 55442-12150 · 55442-12160 |
| 55445J | Dashboard storage box spring | 55445-12100 · 55445-12130 |
| 55503B | Cushion pad (for glove box) | 58959-60060 |
| 55510A | Cushion (for glovebox lid) | 55557-53030 |
| 55521C | stereo system hole cover | 55521-12190 |
| 55521F | Stereo system hole cover No. 2 | 55521-16030 · 55521-52020 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55548A | Dashboard hole cover | 55548-12100 · 55548-12110 · 55548-12160 · 55548-12170 · 55548-12180 · 55548-12190 · 55548-12210 · 55548-12290 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-12090 |
| 55670A | Instrument panel central air register assembly | 55670-12390 · 55670-12391 · 55670-12400 · 55670-12401 · 55670-12440 · 55670-12450 · 55670-12610 · 55670-12611 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-12110 · 55981-12130 · 55981-12140 · 55981-12150 · 55981-12160 · 55981-12170 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-12120 · 73960-12140 |
| 82140 | Instrument panel wiring harness assembly | 82140-1A200 |
