Toyota COROLLA radiator grille — Figure 5301

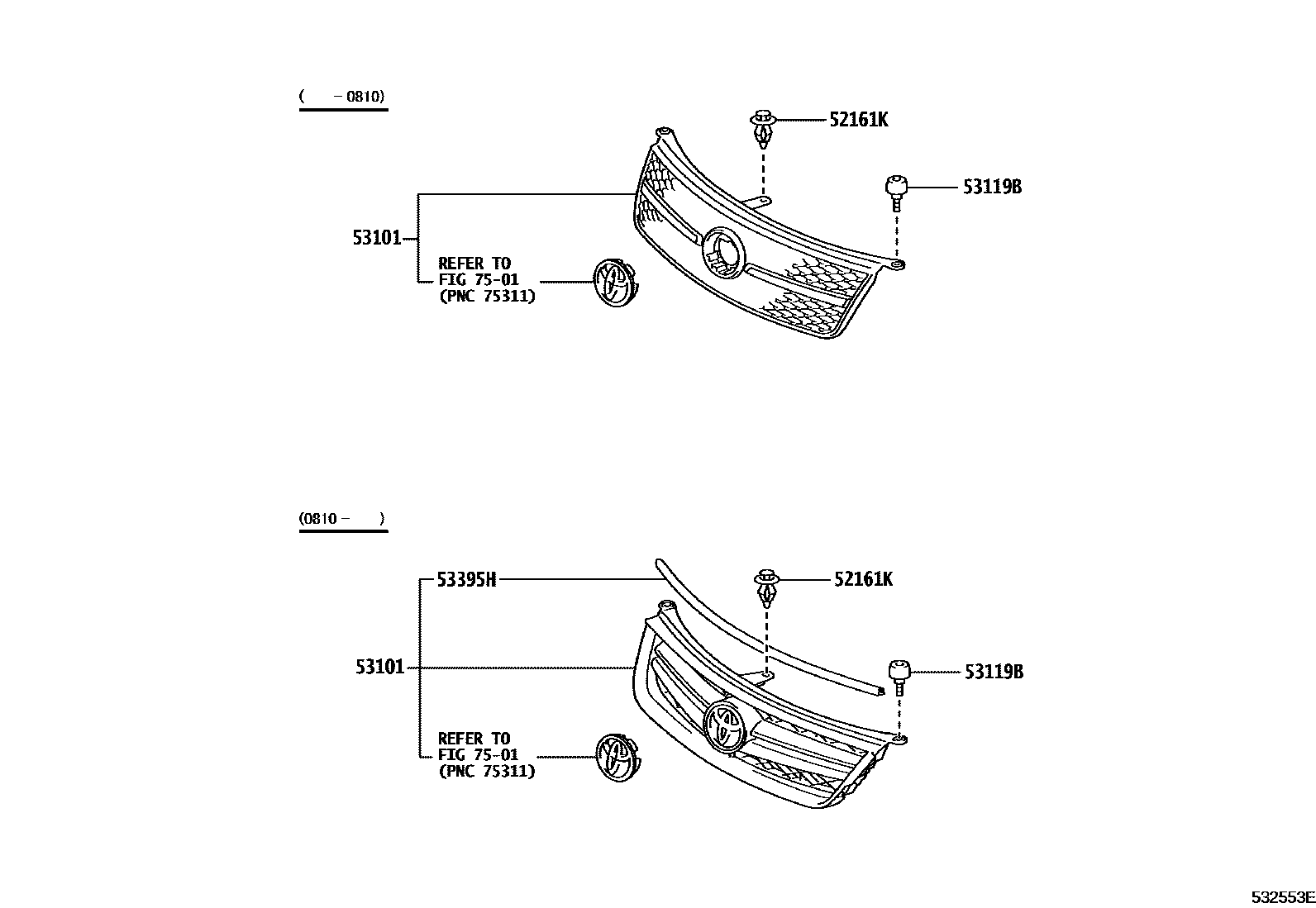

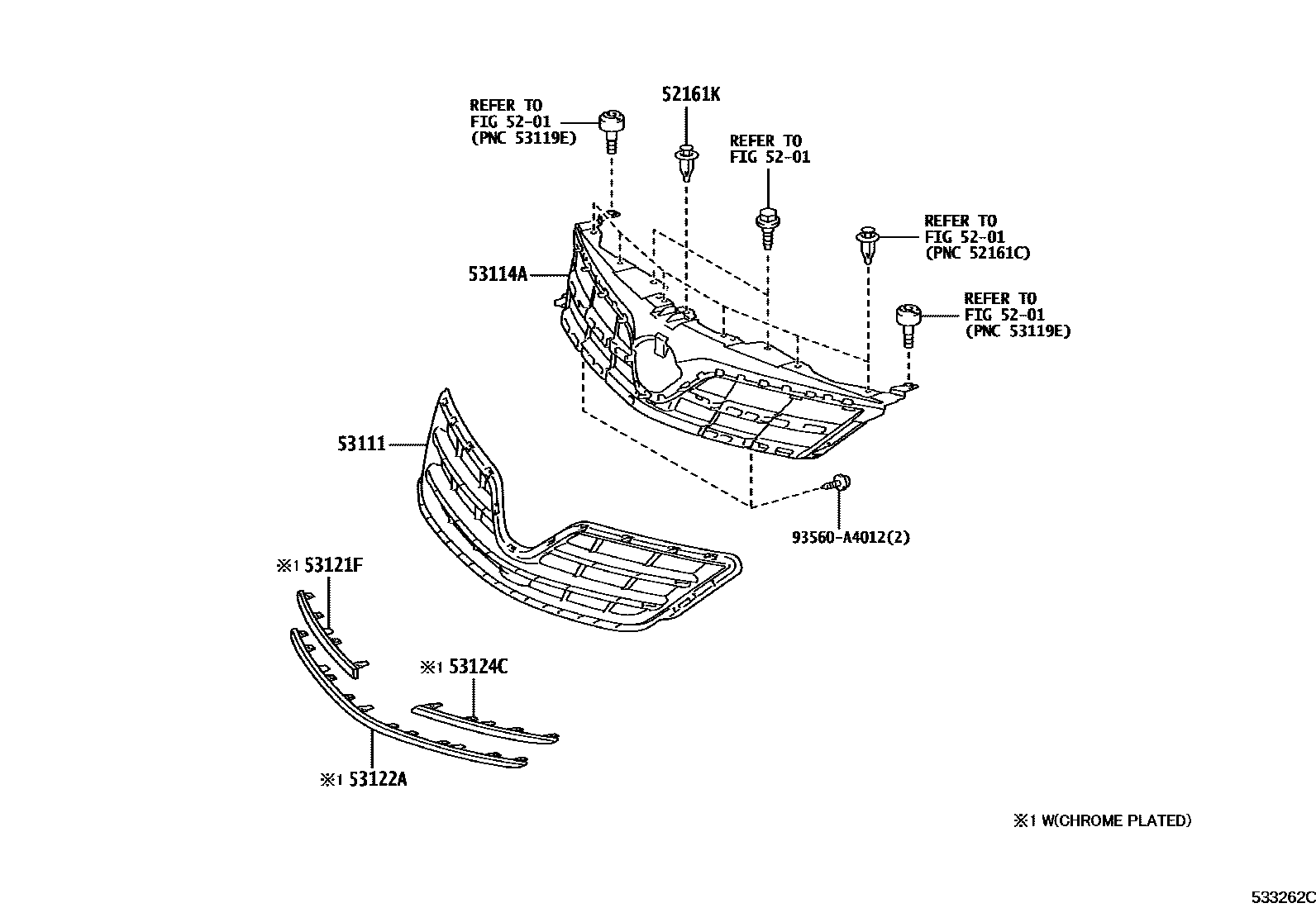

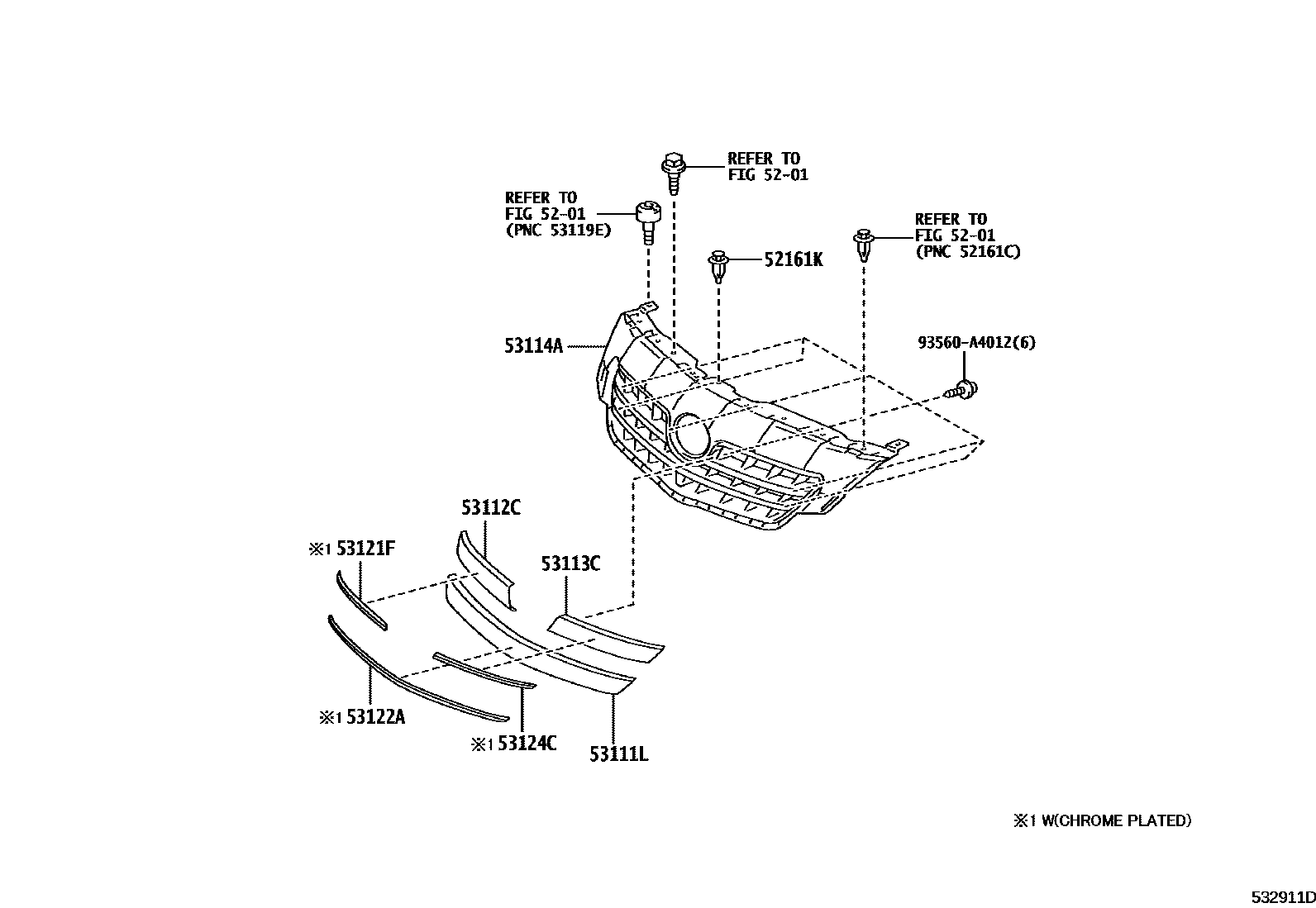

Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53101-13200 · 53101-13220 |
| 53111 | radiator grille | 53111-12C40 |
| 53111L | Central radiator grille sub-assembly | 53111-12B40 · 53111-12B50 |
| 53112C | Lower right radiator grille | 53112-12150 · 53112-12160 |
| 53113C | Lower left radiator grille | 53113-12110 · 53113-12120 |
| 53114A | inner radiator grille | 53114-12110 · 53114-12160 |
| 53119B | Radiator grille protector | 53119-12150 · 53119-42020 |
| 53121F | Radiator grille upper right protective strip | 53121-12180 · 53121-12200 |
| 53122A | Radiator grille lower protective strip | 53122-12170 · 53122-12180 |
| 53124C | Radiator grille upper left protective strip | 53124-12030 · 53124-12050 |
| 53395H | Engine cover to radiator grille seal | 53395-13010 |
