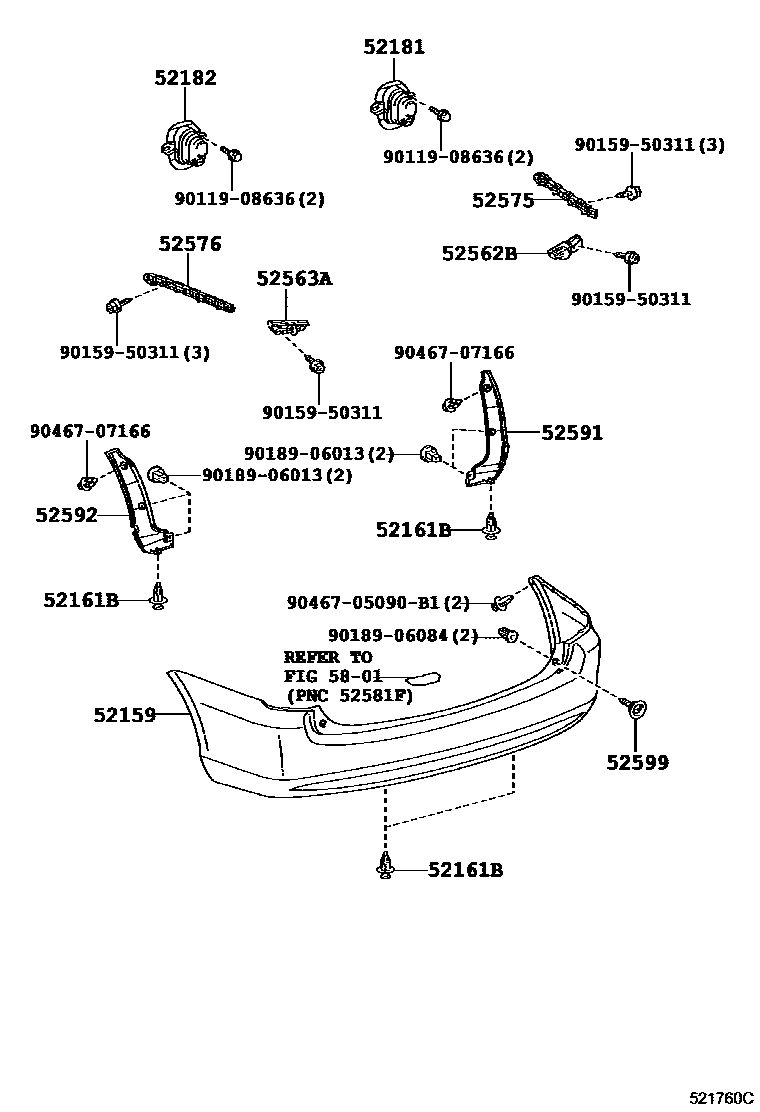

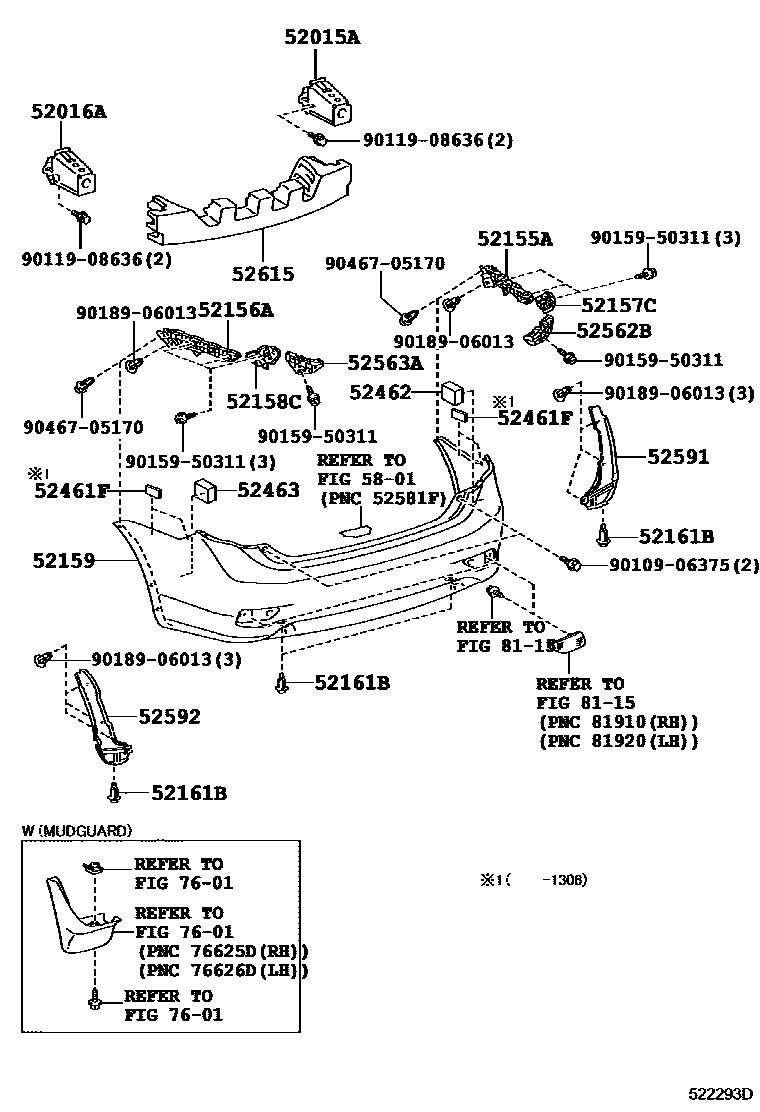

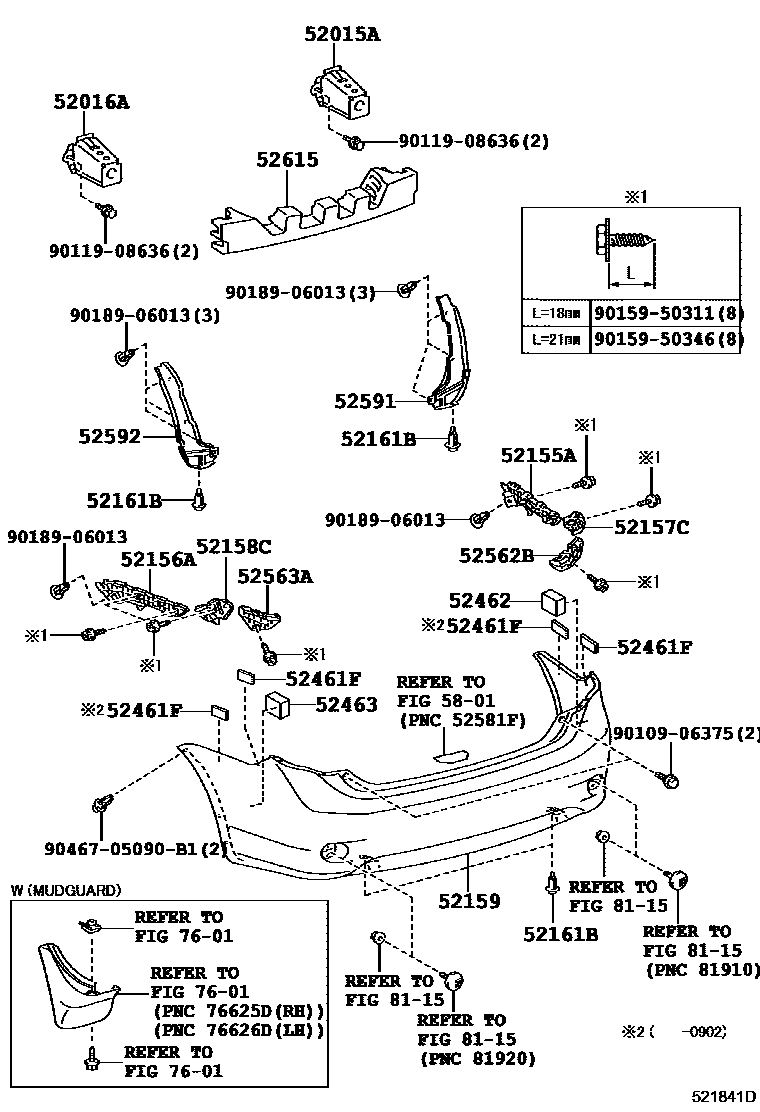

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12360 |
| 52016A | Rear bumper left arm sub-assembly | 52015-12360 |
| 52155A | Rear bumper right side bracket | 52155-12320 |
| 52156A | Rear bumper left bracket | 52156-12290 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-12160 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-12090 |
| 52159 | rear bumper cover | 52159-12934 · 52159-12941 · 52159-13918 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52181 | Rear bumper right arm | 52181-12440 |
| 52182 | Rear bumper left arm | 52181-12440 |
| 52461F | rear bumper lining | 52461-12030 |
| 52462 | Rear bumper right side lining | 52462-12100 · 52462-12110 |
| 52463 | Rear bumper left lining | 52462-12100 · 52462-12110 |
| 52562B | Rear bumper upper right fixing bracket | 52562-12120 · 52562-12130 · 52562-13060 |
| 52563A | Rear bumper upper left fixing bracket | 52563-12040 · 52563-12090 · 52563-13030 |
| 52575 | Rear bumper right side fixing bracket | 52575-13060 |
| 52576 | Rear bumper left side fixing bracket | 52576-13060 |
| 52591 | Rear bumper right seal | 52591-12210 · 52591-12230 |
| 52592 | Rear bumper left seal | 52592-12130 · 52592-12150 |
| 52599 | Rear bumper upper retainer | 52599-68030 |
| 52615 | Rear bumper energy absorber | 52615-12160 |
