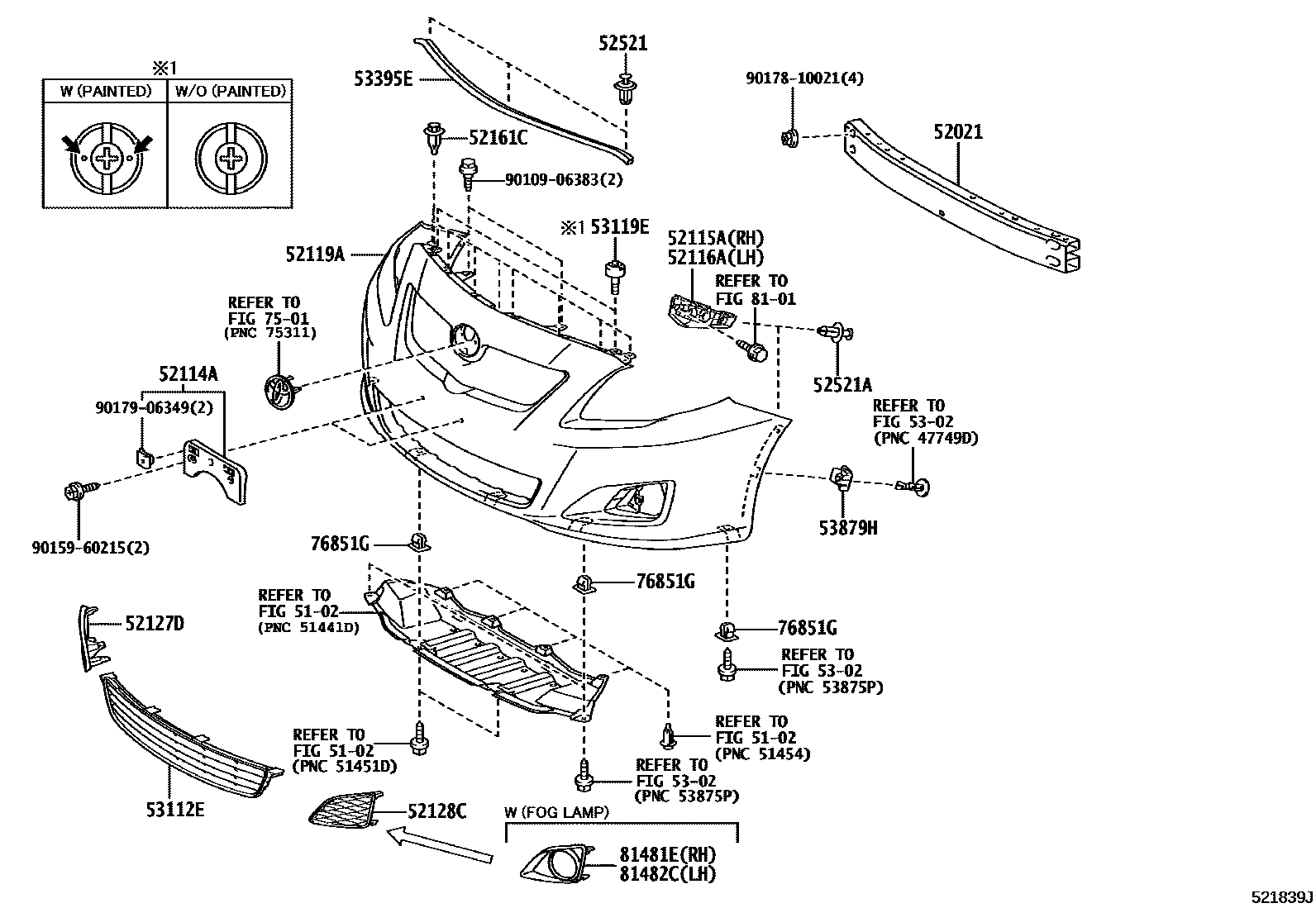

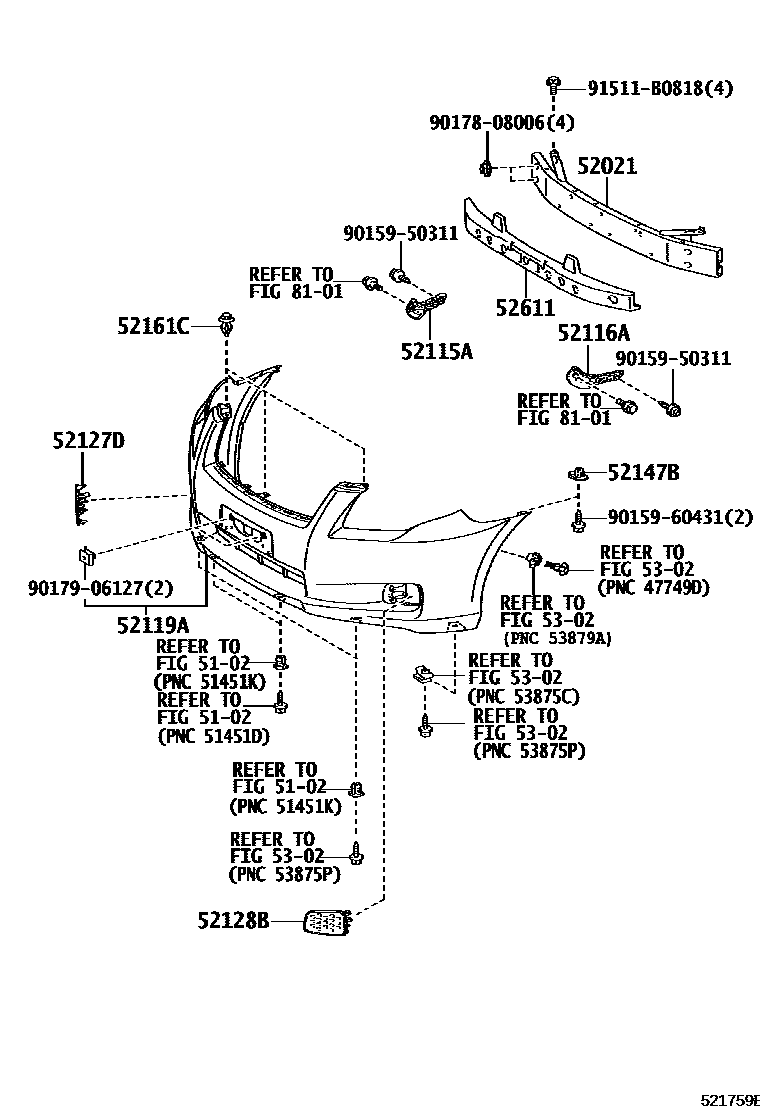

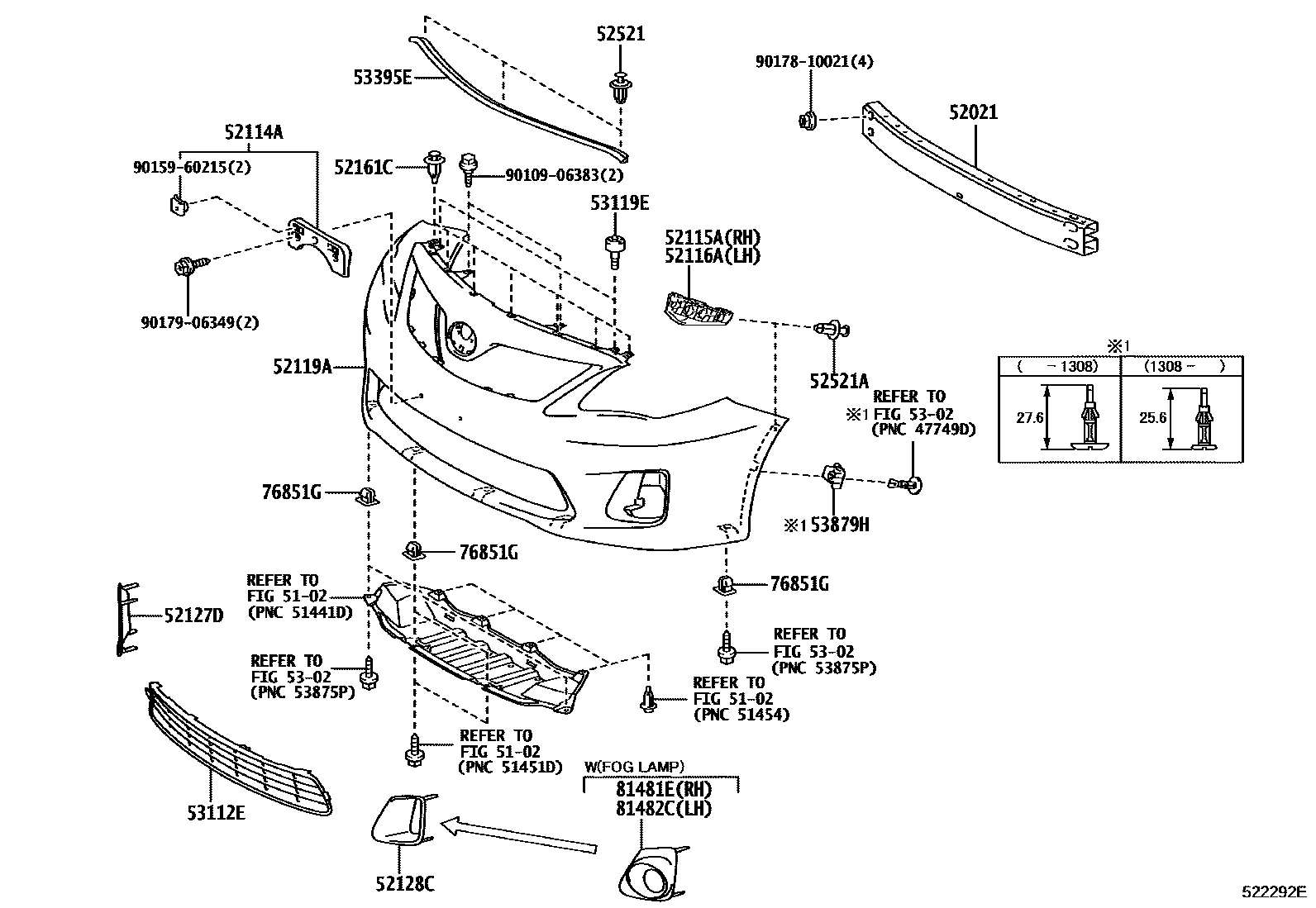

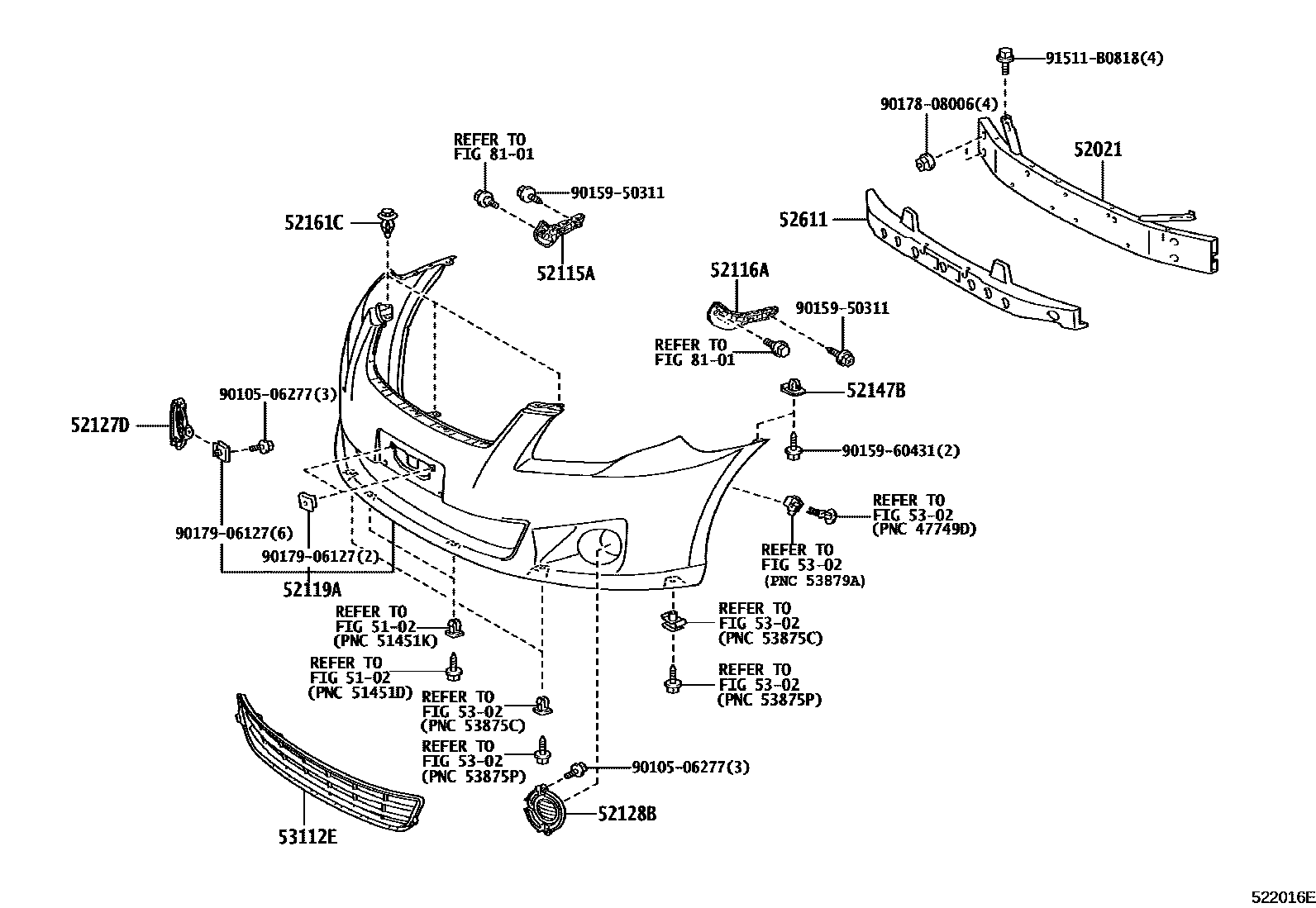

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12260 · 52021-12261 · 52021-12340 · 52131-12290 |
| 52114A | Front bumper extension mounting bracket | 52114-12130 · 52114-12180 |
| 52115A | Front bumper right side bracket | 52115-12430 · 52115-12440 · 52115-12460 |
| 52116A | Front bumper left bracket | 52116-12390 · 52116-12400 · 52116-12420 |
| 52119A | front bumper cover | 52119-12946 · 52119-12947 · 52119-12964 · 52119-12965 · 52119-13957 · 52119-13965 |
| 52127D | Front bumper right hole cover | 52127-12240 · 52127-12241 · 52127-13100 · 81481-12080 · 81481-12170 |
| 52128B | Front bumper left hole cover | 52128-12160 · 52128-12161 · 52128-13140 |
| 52128C | Front bumper left hole cover | 81482-12060 · 81482-12120 |
| 52147B | Front bumper mounting bracket | 52147-12230 |
| 52161C | front bumper insert | 52161-16010 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52611 | front bumper energy absorber | 52611-12200 · 52611-13020 |
| 53112E | No. 1 radiator lower grille | 53112-12210 · 53112-12230 · 53112-13040 |
| 53119E | Radiator grille protector | 53119-12170 · 53119-42020 |
| 53395E | Engine cover to front end plate seal | 53395-12050 |
| 53879H | Front fender lining fixing parts | 53879-50020 · 53879-58010 |
| 76851G | No. 1 screw seal | 90189-06193 |
| 81481E | Right fog light cover | 81481-12090 · 81481-12180 |
| 81482C | Left fog light cover | 81482-12070 · 81482-12130 |
