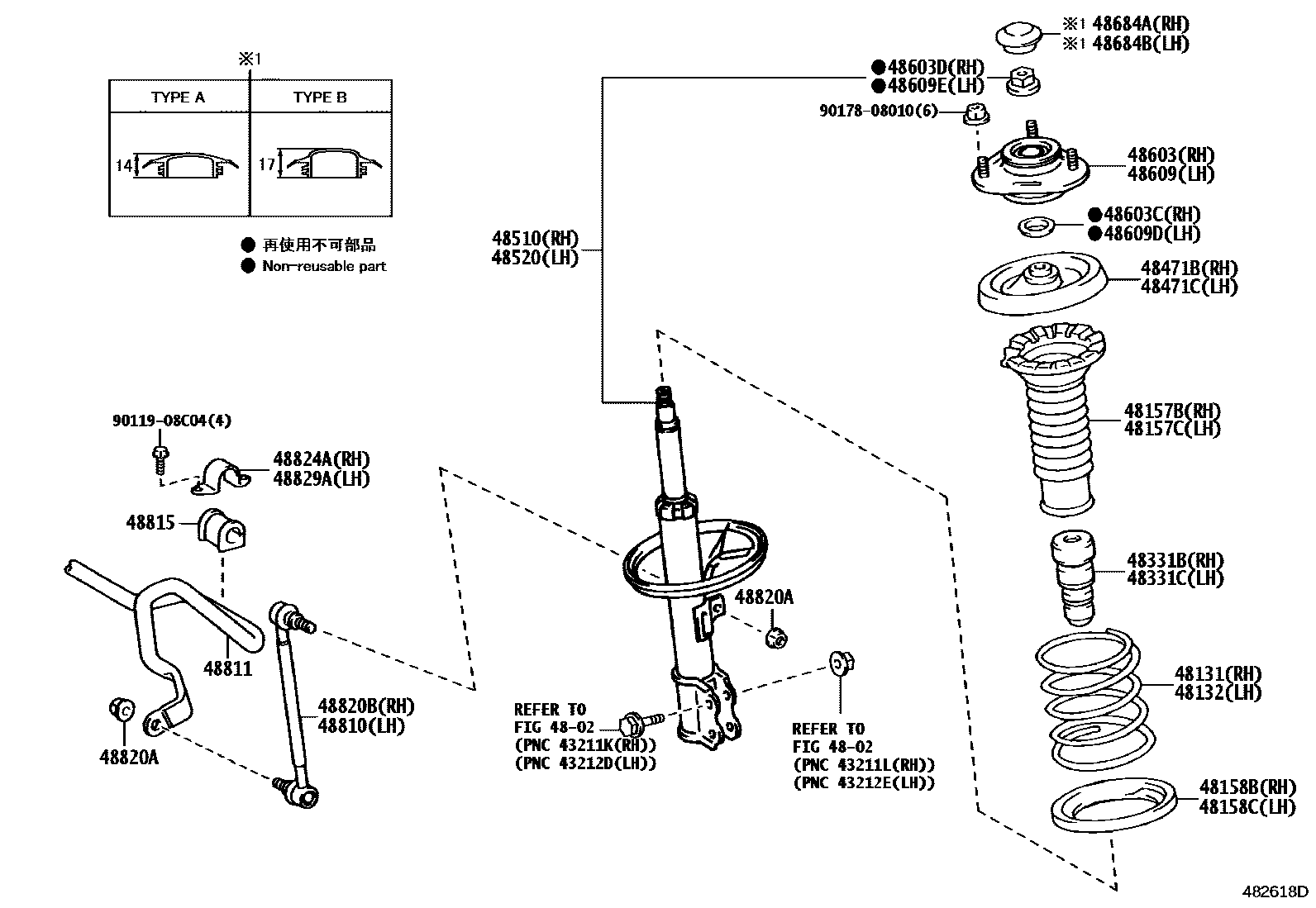

Toyota COROLLA Front Spring & Shock Absorber — Figure 4803
Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-12A90 · 48131-12B00 · 48131-12C20 · 48131-12C21 · 48131-12C30 · 48131-12C31 · 48131-12C40 · 48131-12C41 · 48131-12C50 · 48131-12C51 · 48131-12C60 · 48131-12C61 · 48131-12C70 · 48131-12C71 · 48131-12C80 · 48131-12C81 · 48131-12C90 · 48131-12C91 |
| 48132 | Left front coil spring | 48131-12A90 · 48131-12B00 · 48131-12C20 · 48131-12C21 · 48131-12C30 · 48131-12C31 · 48131-12C40 · 48131-12C41 · 48131-12C50 · 48131-12C51 · 48131-12C60 · 48131-12C61 · 48131-12C70 · 48131-12C71 · 48131-12C80 · 48131-12C81 · 48131-12C90 · 48131-12C91 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-12080 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-12080 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-47010 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-47010 |
| 48331B | Right front spring buffer block | 48331-12200 · 48331-12210 |
| 48331C | Left front spring buffer block | 48331-12200 · 48331-12210 |
| 48471B | Front coil spring upper right seat | 48044-12110 |
| 48471C | Front coil spring upper left seat | 48044-12110 |
| 48510 | Right front shock absorber assembly | 48510-80341 · 48510-80381 · 48510-80382 · 48510-80383 |
| 48520 | Left front shock absorber assembly | 48520-80112 · 48520-80140 · 48520-80141 · 48520-80142 |
| 48603 | Right front suspension bearing sub-assembly | 48609-12520 · 48609-12530 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-14015 |
| 48609 | Left front suspension bearing sub-assembly | 48609-12520 · 48609-12530 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-52010 · 48684-74010 |
| 48684B | Left front suspension support dust cover | 48684-52010 · 48684-74010 |
| 48810 | Left front stabilizer bar link assembly | 48820-47010 |
| 48811 | front stabilizer bar | 48811-12A30 · 48811-12A60 · 48811-12A70 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-12340 · 48815-12360 |
| 48820A | Nut (for front stabilizer bar link) | 90179-12151 |
| 48820B | Right front stabilizer bar link assembly | 48820-47010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-26210 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-26210 |
