Toyota COROLLA 前桥控制臂和转向节 — Figure 4802

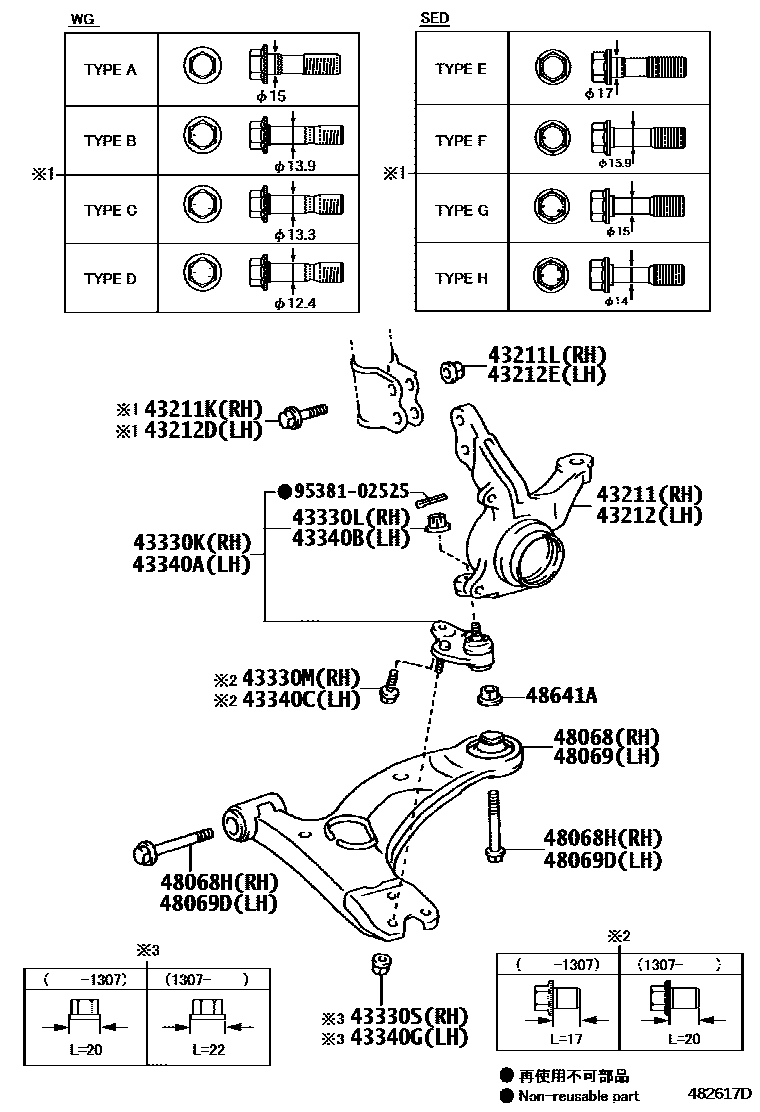

Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-12480 · 43211-12490 · 43211-12500 |
| 43211K | Bolt (for right steering knuckle) | 90105-15001 · 90105-15004 · 90105-15005 · 90105-15006 · 90105-17008 · 90105-17009 · 90105-17010 · 90105-17011 |
| 43211L | Nut (for right steering knuckle) | 90178-17002 · 90179-15006 |
| 43212 | left steering knuckle | 43212-12430 · 43212-12440 · 43212-12450 |
| 43212D | Bolt (for left steering knuckle) | 90105-15001 · 90105-15004 · 90105-15005 · 90105-15006 · 90105-17008 · 90105-17009 · 90105-17010 · 90105-17011 |
| 43212E | Nut (for left steering knuckle) | 90178-17002 · 90179-15006 |
| 43330K | Right front lower ball joint assembly | 43330-19115 · 43330-29425 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-14003 |
| 43330M | Bolt (for right front lower ball joint) | 90105-12336 · 90105-12346 |
| 43330S | Nut (for right front lower ball joint) | 90178-12015 · 90178-12019 |
| 43340A | Left front lower ball joint assembly | 43330-19115 · 43330-29425 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-14003 |
| 43340C | Bolt (for left front lower ball joint) | 90105-12336 · 90105-12346 |
| 43340G | Nut (for left front lower ball joint) | 90178-12015 · 90178-12019 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-12290 · 48068-13010 |
| 48068H | Bolt (for right front suspension No. 1 lower arm) | 90119-14086 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-12290 · 48069-13010 |
| 48069D | Bolt (for left front suspension No. 1 lower arm) | 90119-14086 |
| 48641A | Nut (for suspension lower arm shaft) | 90179-14068 |
