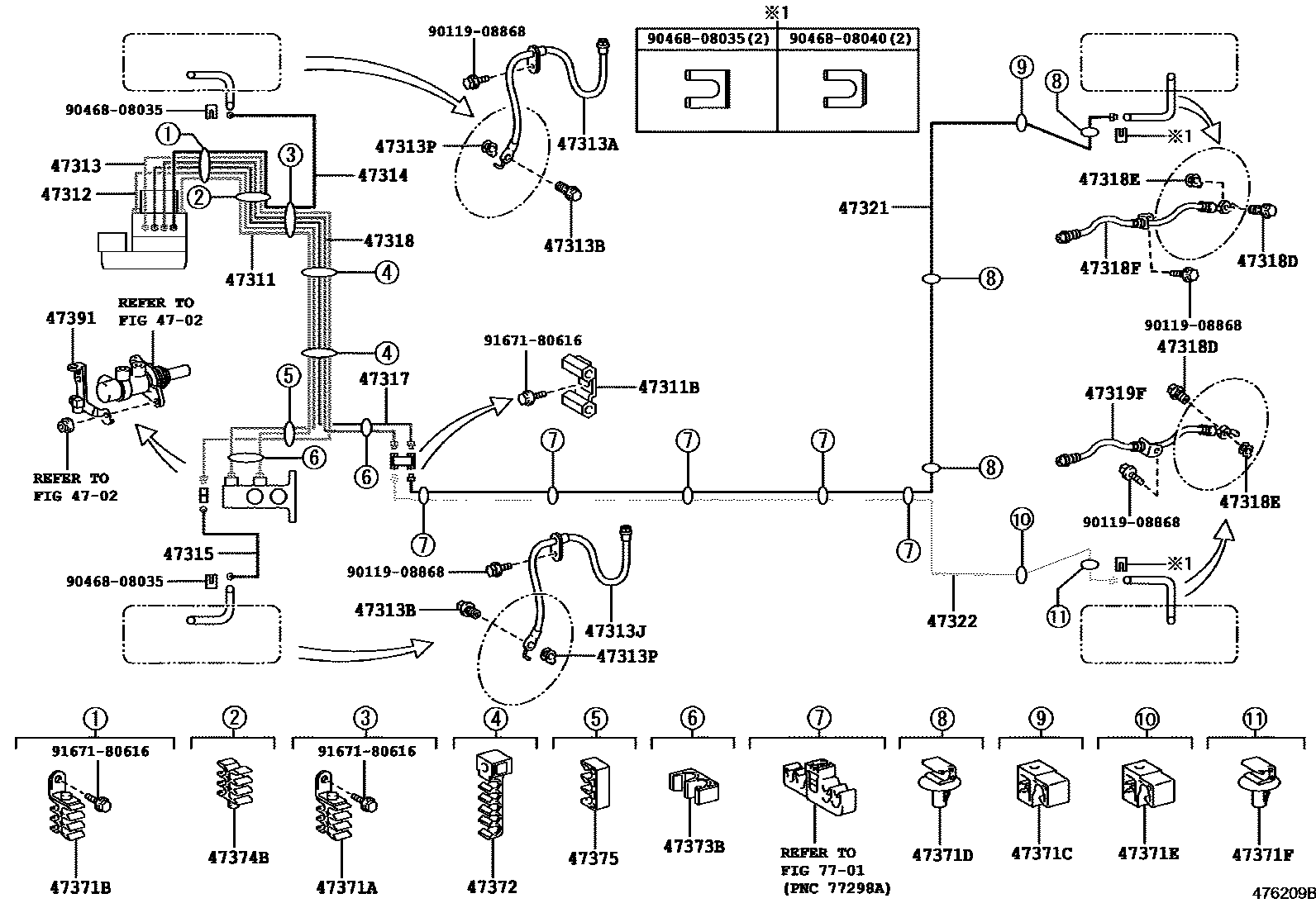

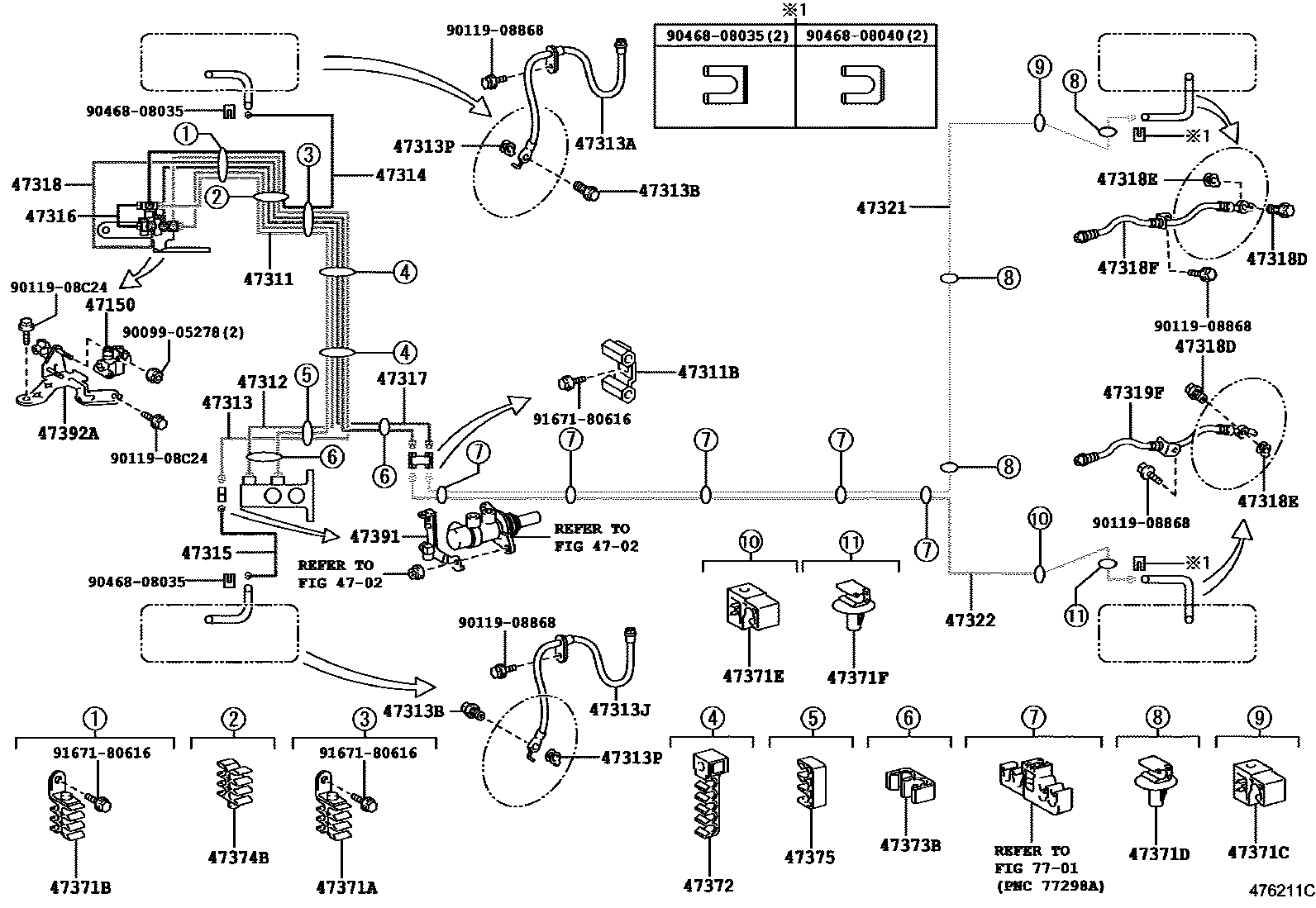

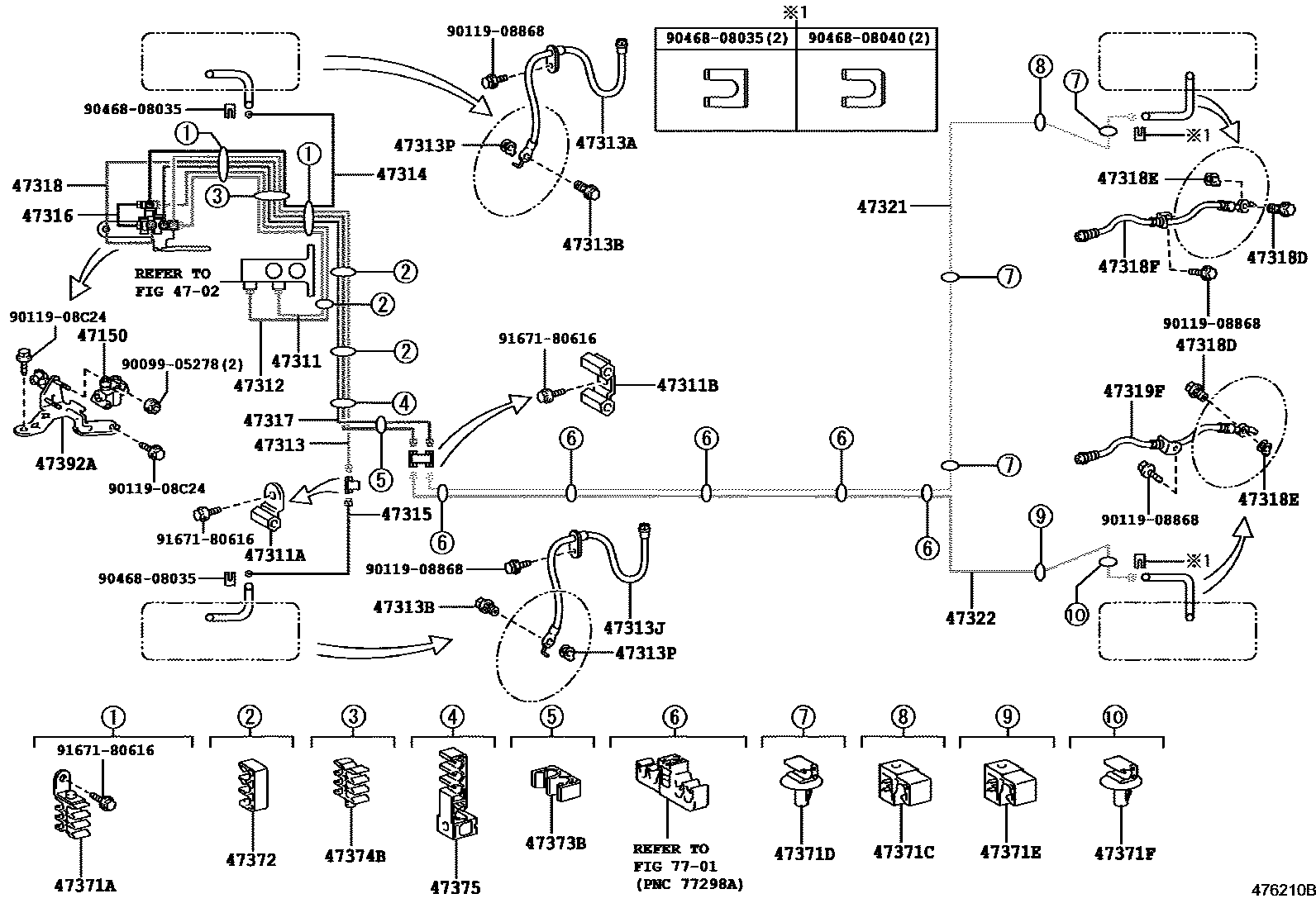

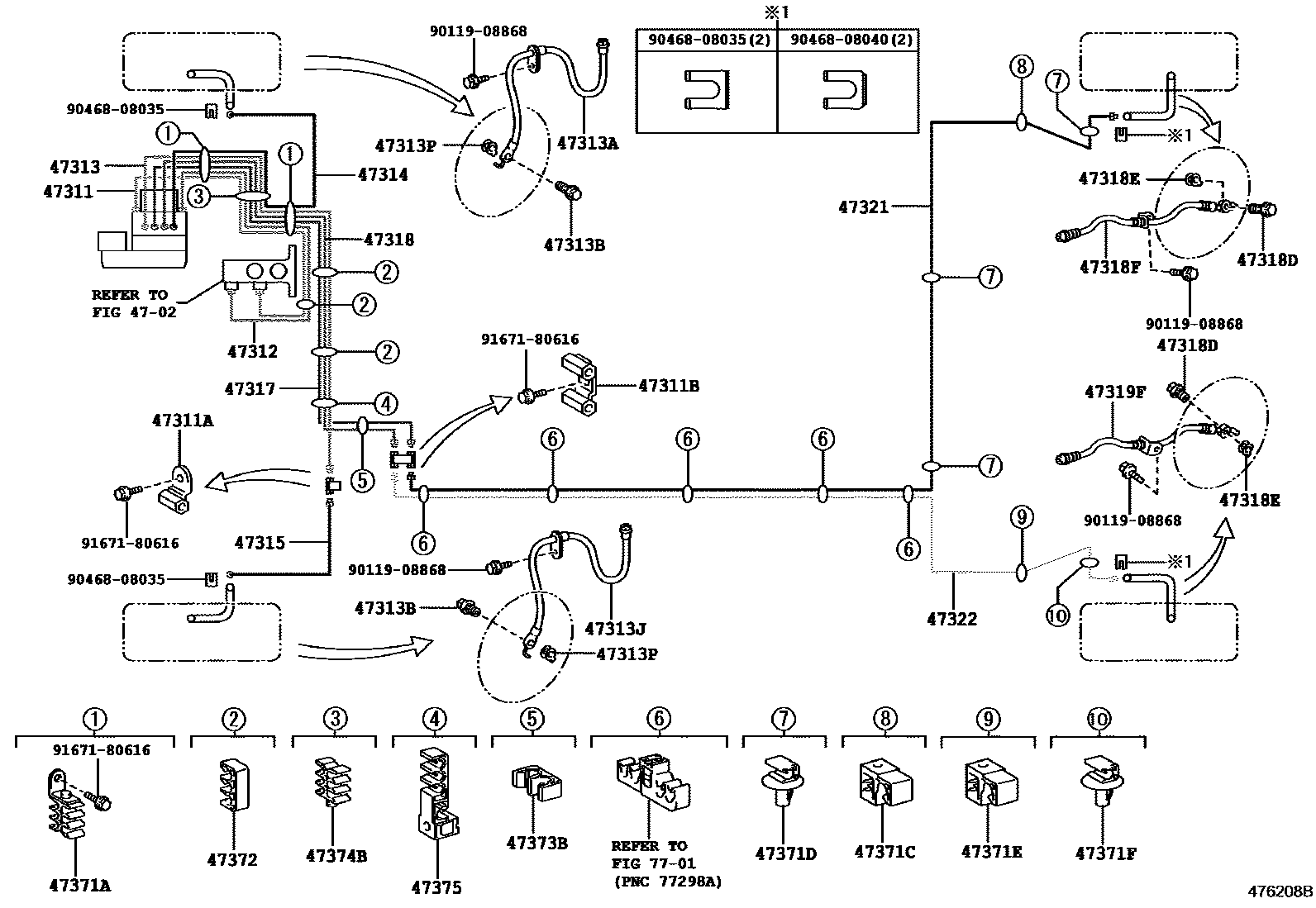

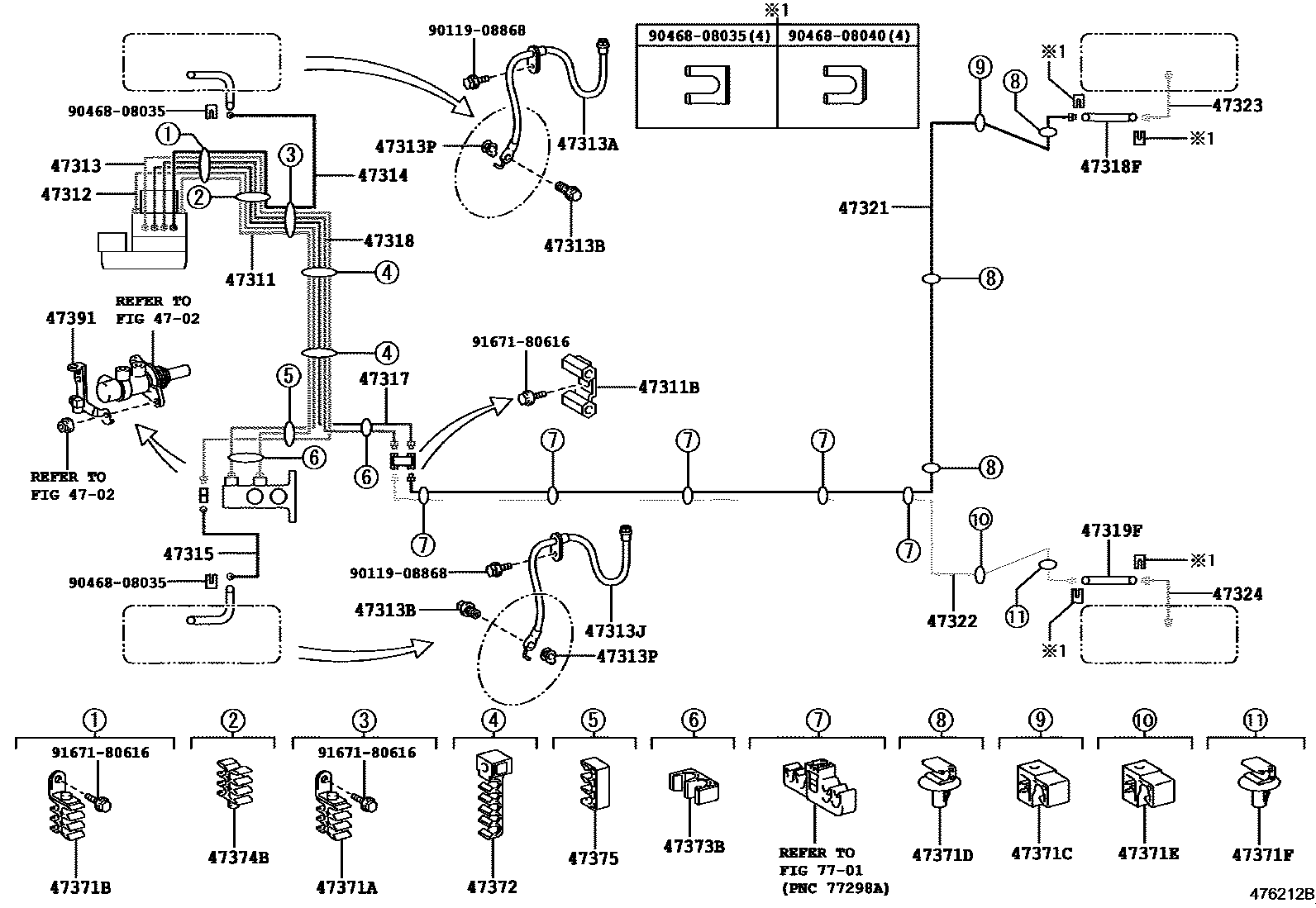

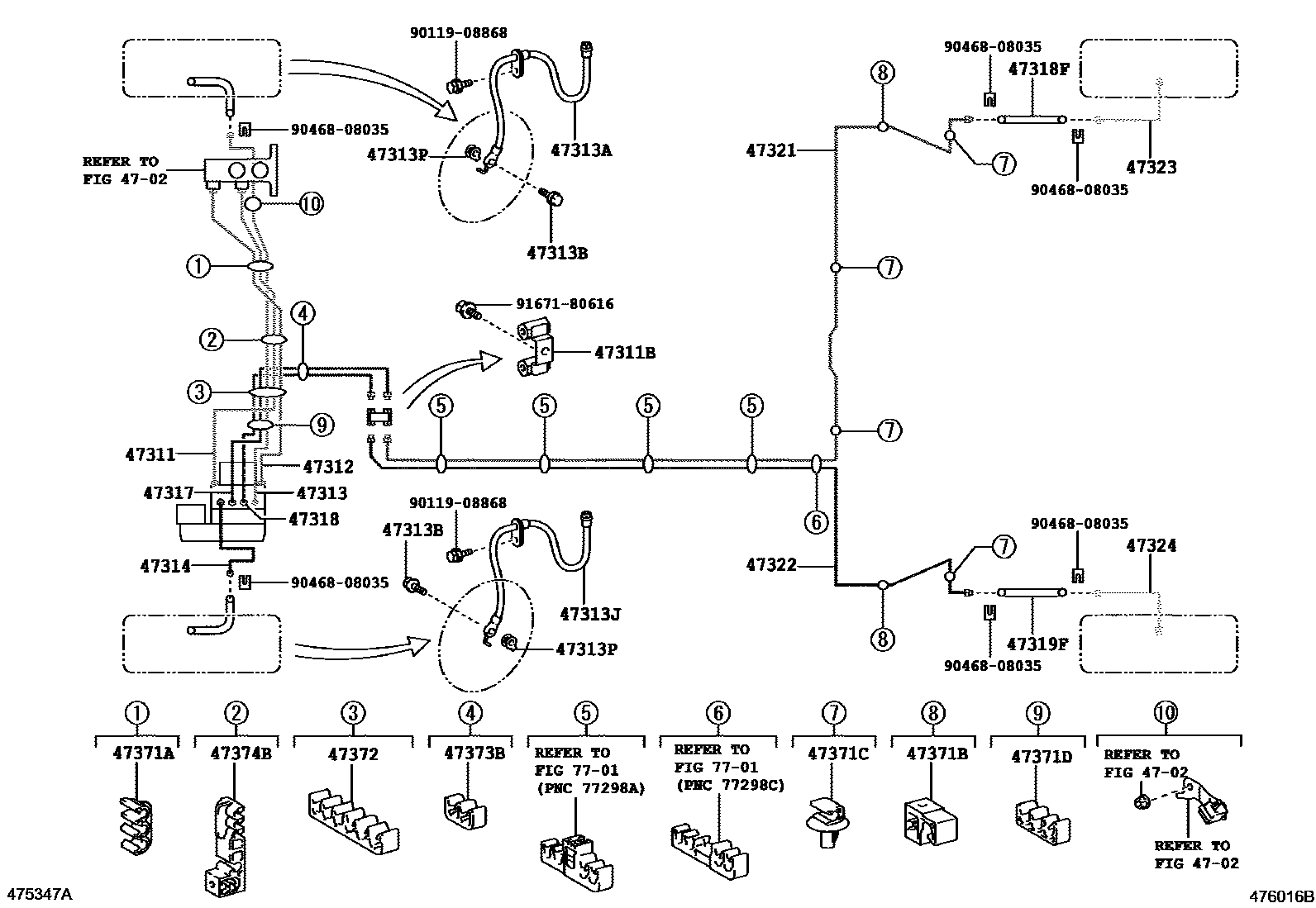

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 8 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

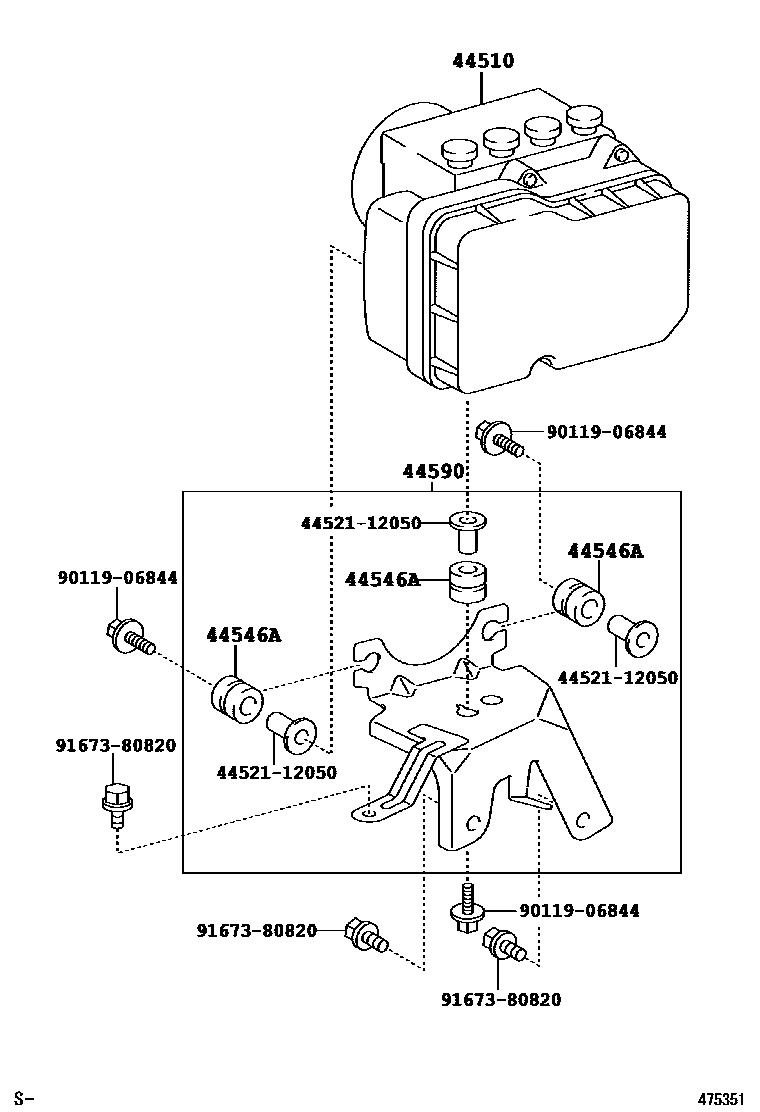

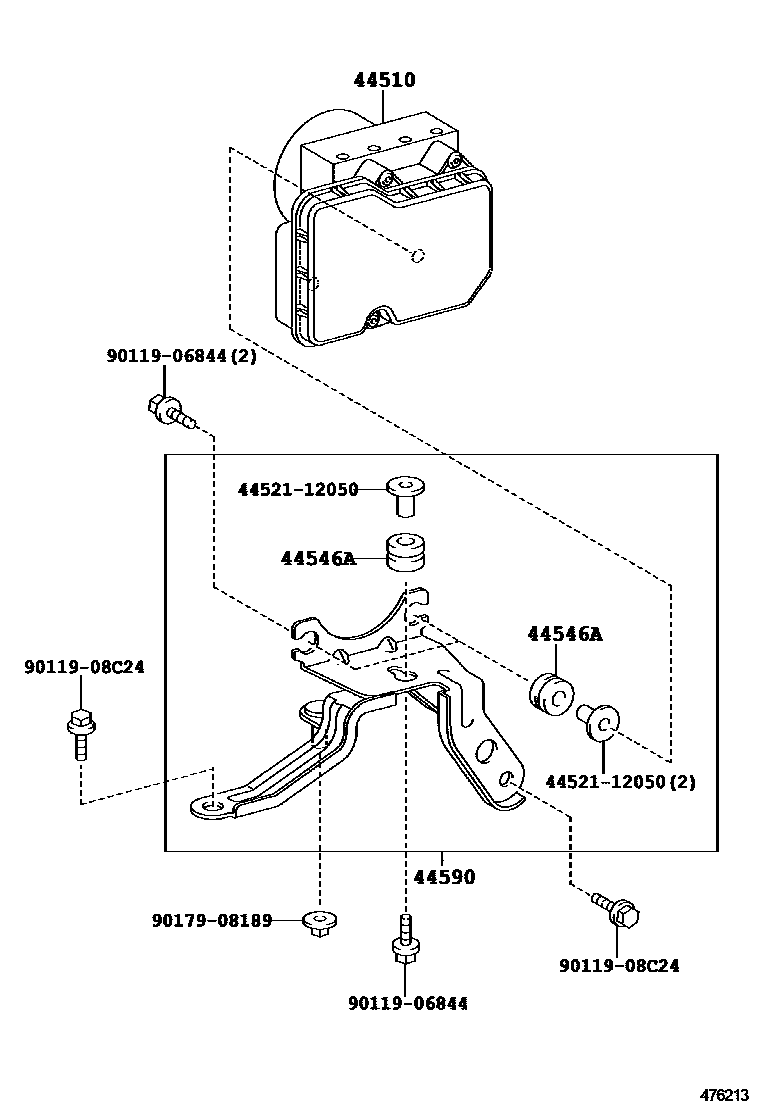

| 44510 | brake actuator assembly | 44050-12330 · 44050-12340 · 44050-12620 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-12140 · 44590-12160 |
| 47150 | Proportional valve assembly | 47150-12240 |
| 47311 | No. 1 front brake pipe | 47311-12A50 · 47311-12A70 · 47311-12A80 · 47311-12B00 · 47311-12B10 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10272 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47312 | No. 2 front brake pipe | 47312-12580 · 47312-12600 · 47312-12610 · 47312-12630 · 47312-12640 |
| 47313 | No. 3 front brake pipe | 47313-12750 · 47313-12770 · 47313-12780 · 47313-12800 · 47313-12810 |
| 47313A | No. 1 front flexible hose | 90947-02E63 · 90947-02E76 · 90947-02G77 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02E64 · 90947-02E78 · 90947-02G78 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-12630 · 47314-12650 · 47314-12660 · 47314-12680 · 47314-12690 |
| 47315 | No. 5 front brake pipe | 47315-12610 · 47315-12620 |
| 47316 | No. 6 front brake pipe | 47316-12370 |
| 47317 | No. 7 front brake pipe | 47317-12390 · 47317-12410 · 47317-12420 · 47317-12440 · 47317-12450 · 47317-12500 · 47317-12501 · 47317-12510 · 47317-12511 |
| 47318 | No. 8 front brake pipe | 47318-12530 · 47318-12550 · 47318-12560 · 47318-12580 · 47318-12590 · 47318-12640 · 47318-12650 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02E75 · 90947-02E79 · 90947-02F35 |
| 47319F | Left rear flexible hose | 90947-02E75 · 90947-02E80 · 90947-02F36 |
| 47321 | No. 1 rear brake pipe | 47321-12330 · 47321-12350 |
| 47322 | No. 2 rear brake pipe | 47322-12480 · 47322-12510 |
| 47323 | No. 3 rear brake pipe | 47323-12290 · 47323-12310 · 47323-63020 |
| 47324 | No. 4 rear brake pipe | 47324-12250 · 47324-12270 · 47324-63020 |
| 47371A | No. 1 brake pipe clamp | 47371-12240 · 90464-00868 · 90949-04050 |
| 47371B | No. 6 brake pipe clamp | 47371-12240 · 90949-01C82 |
| 47371C | No. 7 brake pipe clamp | 90949-01C82 · 90949-01D17 |
| 47371D | No. 8 brake pipe clamp | 90464-00857 · 90949-01D17 |
| 47371E | No. 9 brake pipe clamp | 90949-01C82 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47372 | No. 2 brake pipe clamp | 90464-00857 · 90464-00890 · 90949-01D28 |
| 47373B | No. 3 brake pipe clamp | 90464-00904 · 90949-01972 |
| 47374B | No. 4 brake pipe clamp | 90949-01C51 · 90949-01C77 |
| 47375 | No. 5 brake pipe clamp | 90464-00857 · 90949-01D27 |
| 47391 | Brake pipe joint | 47391-12050 |
| 47392A | No. 2 brake pipe joint | 47391-12040 |
