Toyota COROLLA 制动助力器和真空管 — Figure 4703

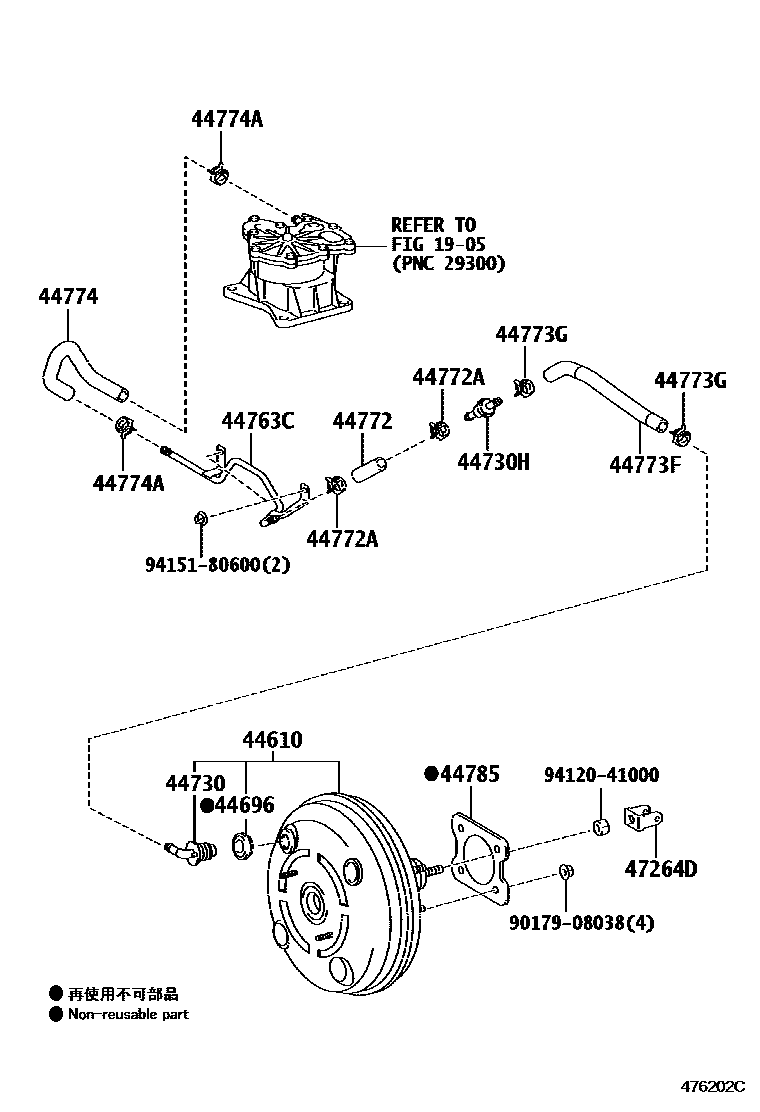

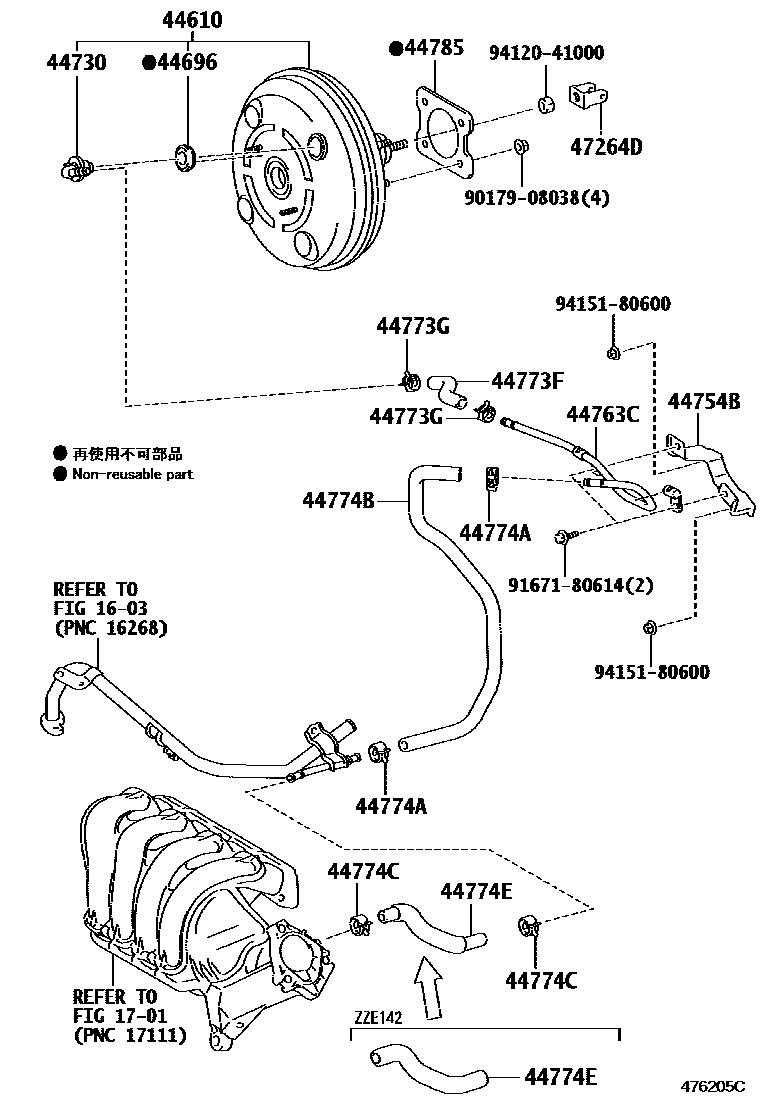

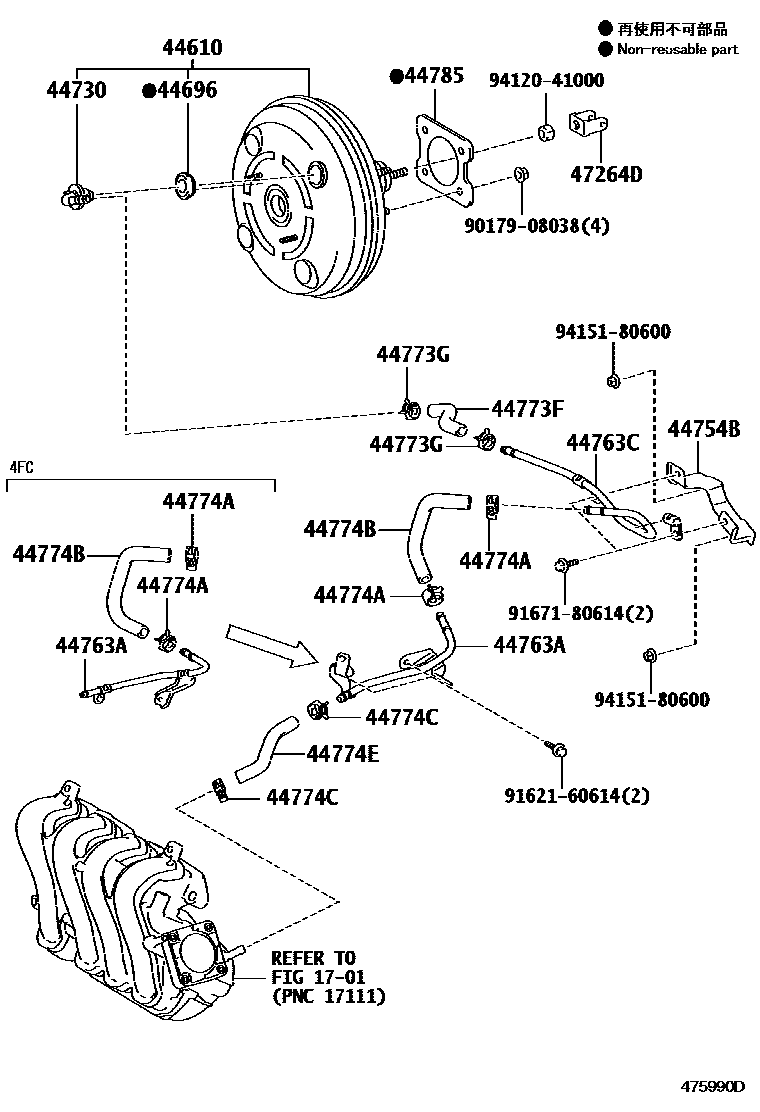

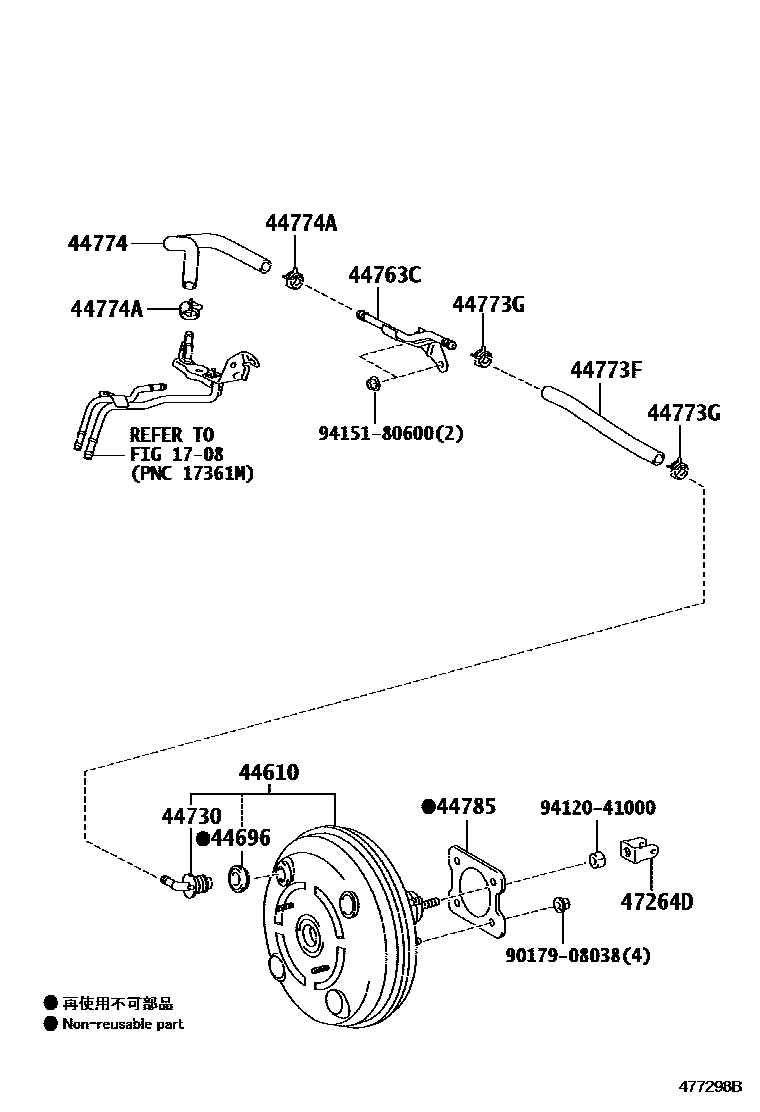

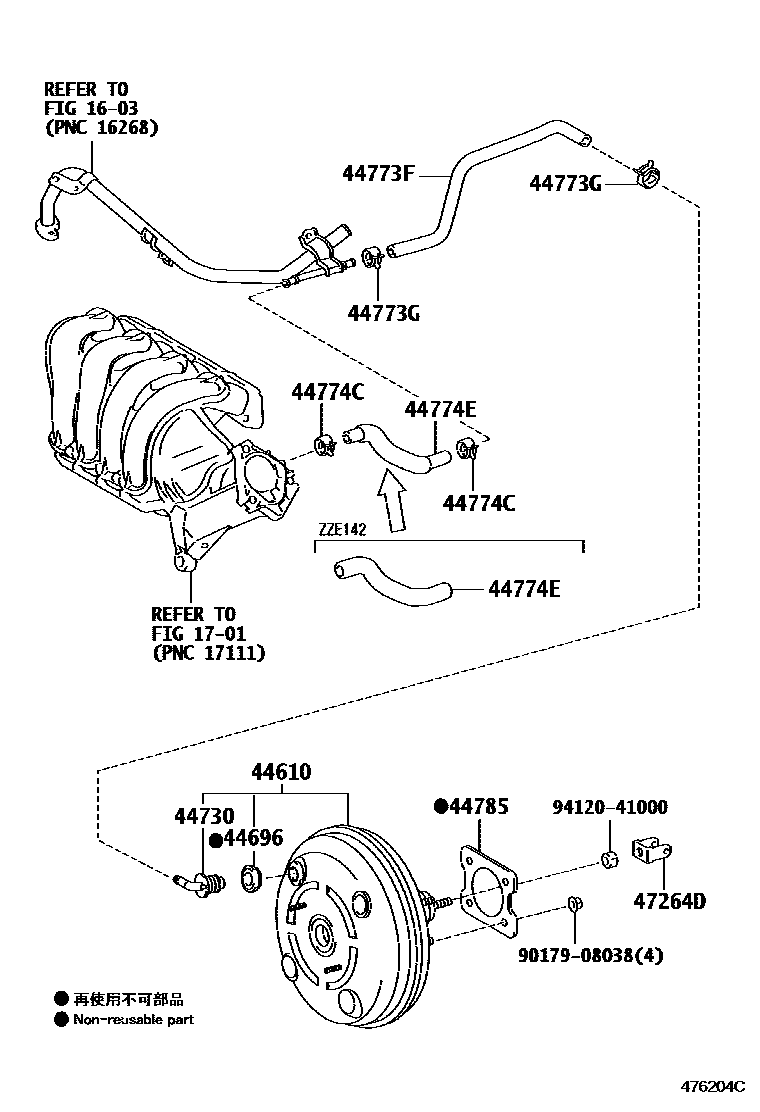

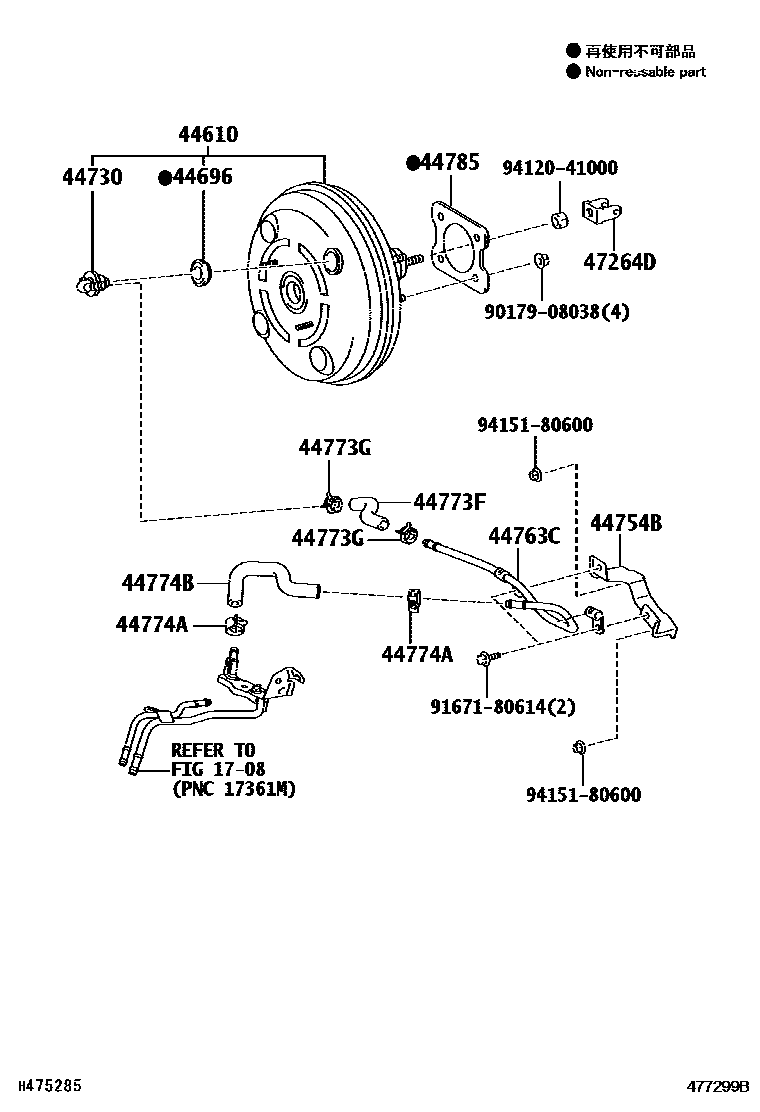

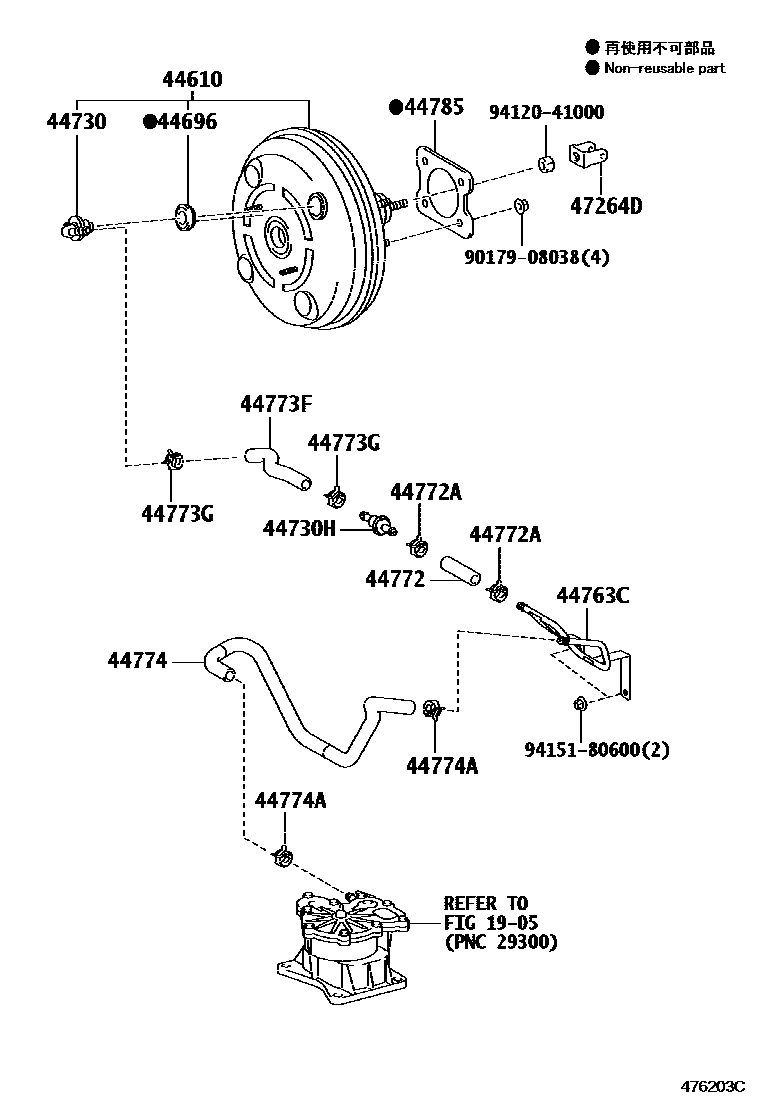

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 7 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-12A30 · 44610-12A31 · 44610-12C90 · 44610-12C91 · 44610-12D00 · 44610-12D01 · 44610-12D20 · 44610-12D21 · 44610-12D30 · 44610-12D31 · 44610-12D40 · 44610-12D41 · 44610-12E20 · 44610-12E21 · 44610-12E30 · 44610-12E31 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 · 44730-20170 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-35010 |
| 44754B | Vacuum tube holder | 44754-12040 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-52030 · 44763-52080 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-12460 · 44763-12490 · 44763-12500 · 44763-12510 |
| 44772 | Hoses (check valve to connector tube) | 44772-12670 |
| 44772A | Clip (for check valve to connector tube) | 96133-41500 |
| 44773F | Hoses (connector to check valve) | 44773-12820 · 44773-12830 · 44773-12840 · 44773-12850 · 44773-12860 |
| 44773G | Clamp (for connector to one-way valve hose) | 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-12670 · 44774-12700 · 44774-12720 |
| 44774A | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44774B | Hoses (joints to connector tubes) | 44774-12640 · 44774-12650 · 44774-12660 · 44774-12680 |
| 44774C | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44774E | Hoses (joints to connector tubes) | 44774-12470 · 44774-20310 · 44774-52070 · 95446-09130 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63020 · 47264-68010 |
