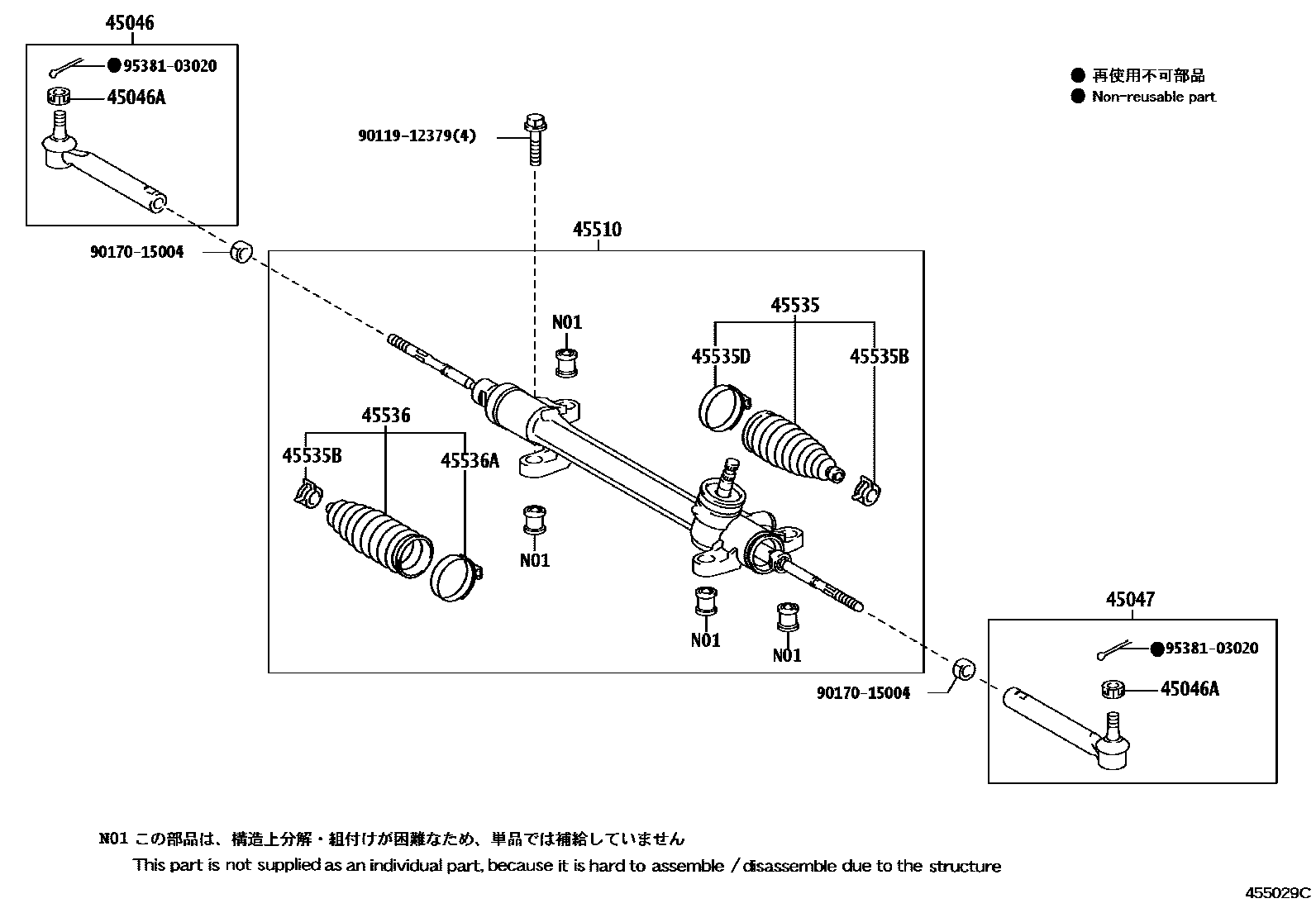

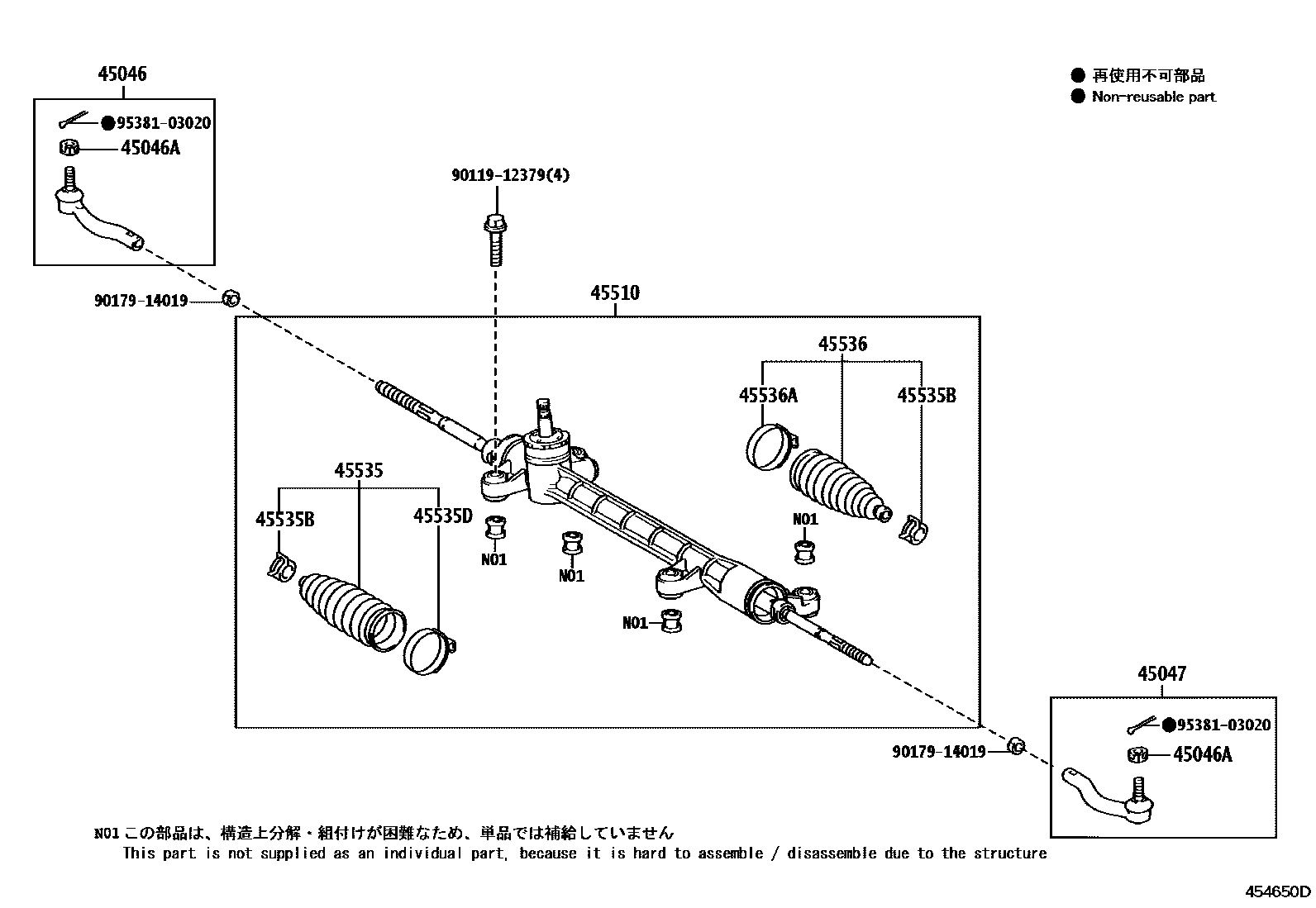

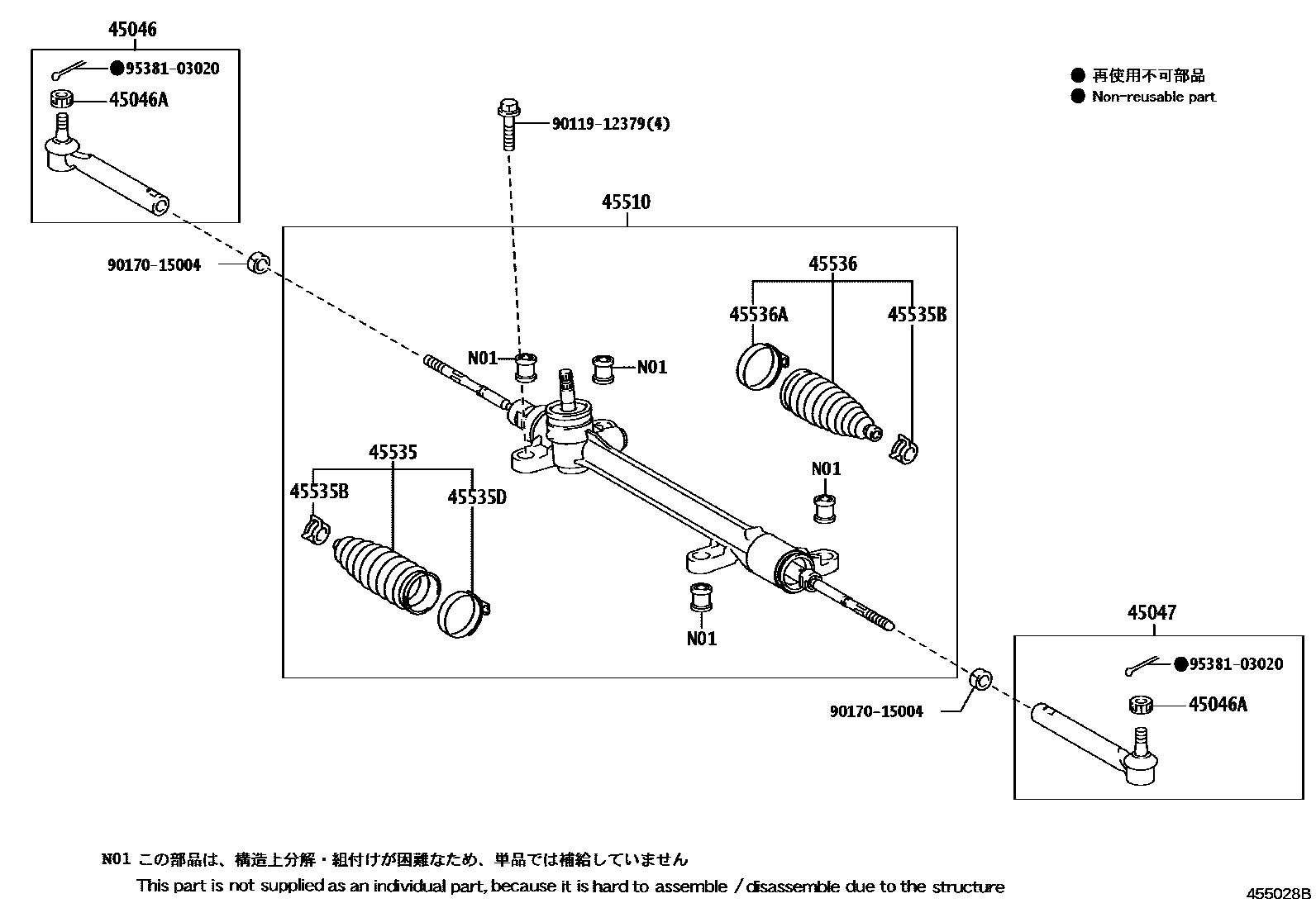

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-19265 · 45046-19425 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19425 · 45047-19115 |
| 45510 | Steering gear assembly | 45510-12420 · 45510-12450 · 45510-12451 · 45510-12460 · 45510-12461 · 45510-12630 |
| 45535 | No. 1 steering rack dust cover | 45535-29015 · 45535-59025 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-52010 |
| 45536 | No. 2 steering rack dust cover | 45535-29015 · 45535-59025 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-52010 |
