Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 2 images and 5 PNC and OE references.

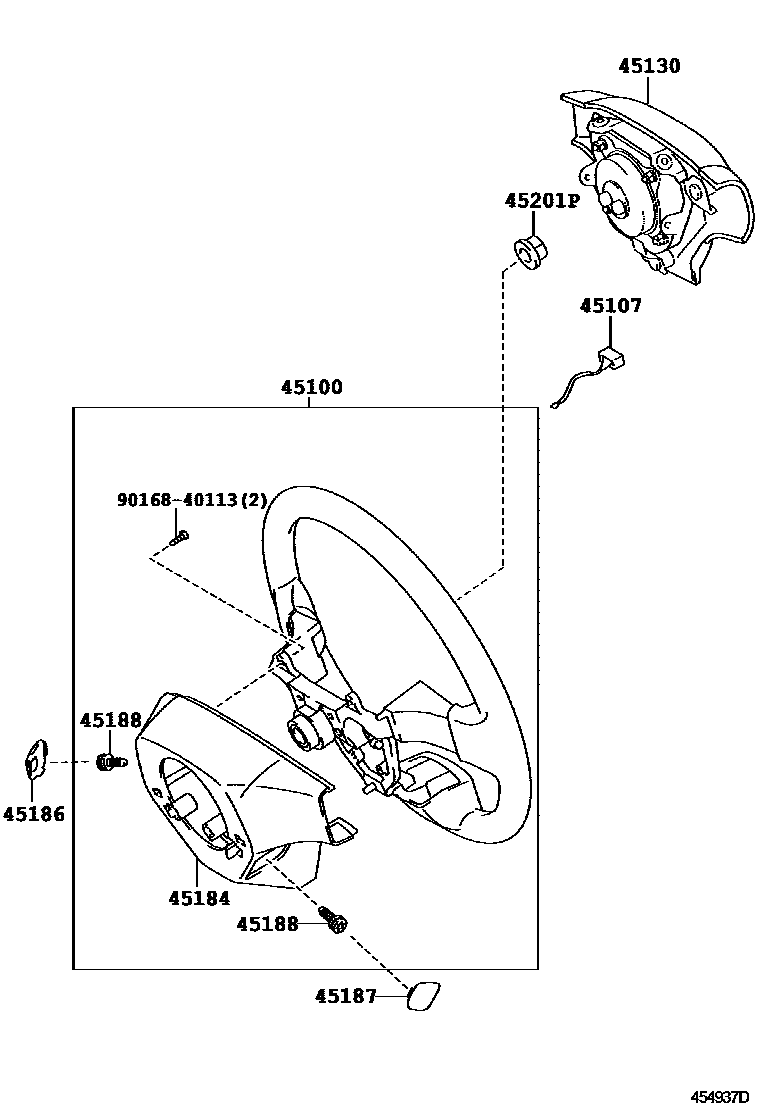

Toyota COROLLA Steering Wheel EPC diagram — 454937D
Steering Wheel — 454937D (200704 – 999999)

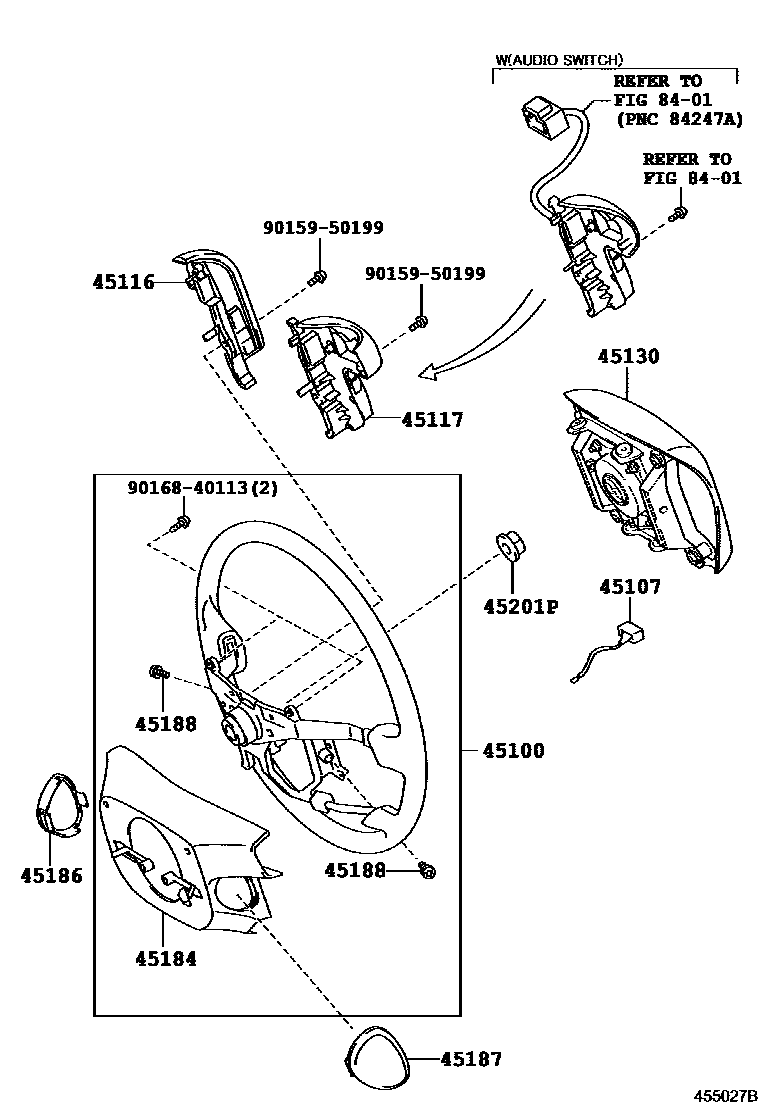

Toyota COROLLA Steering Wheel EPC diagram — 455027B
Steering Wheel — 455027B (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-28030 · 45107-48010 · 45107-52010
45116No. 1 steering wheel decorative parts45116-33010
45117No. 2 steering wheel decorative parts45117-33020
45188Steering wheel trim cover fixing screws45188-60010
45201PSteering wheel fixing nut90179-12071
