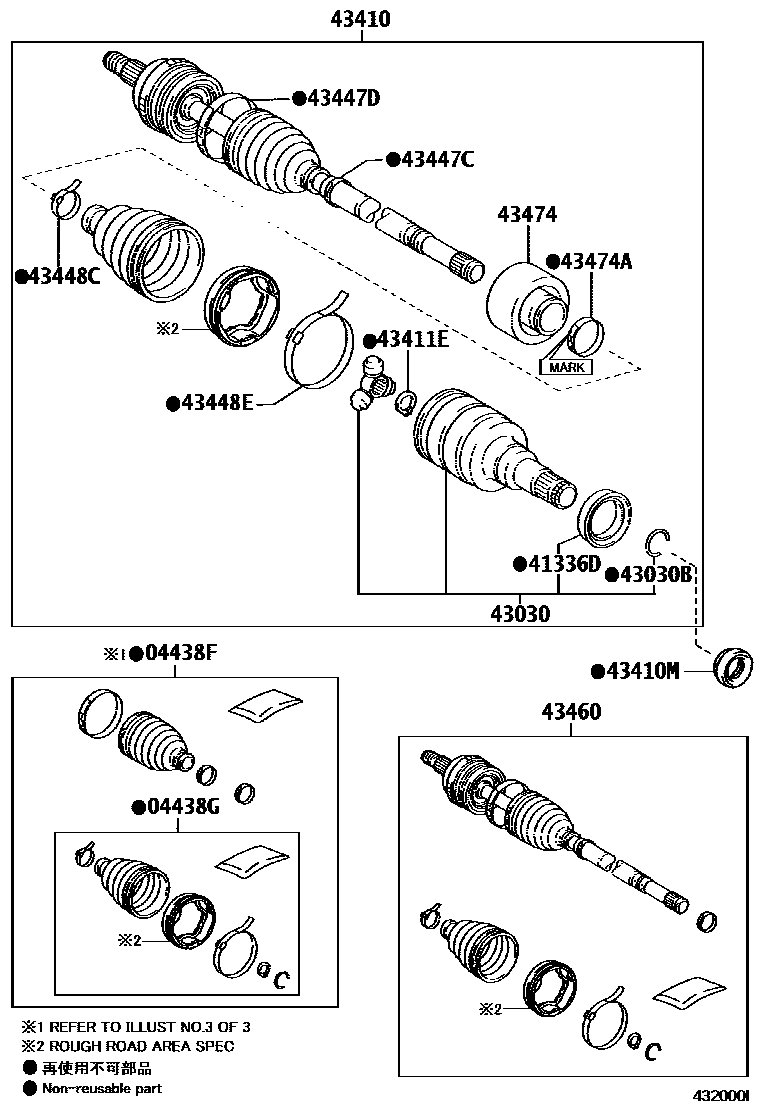

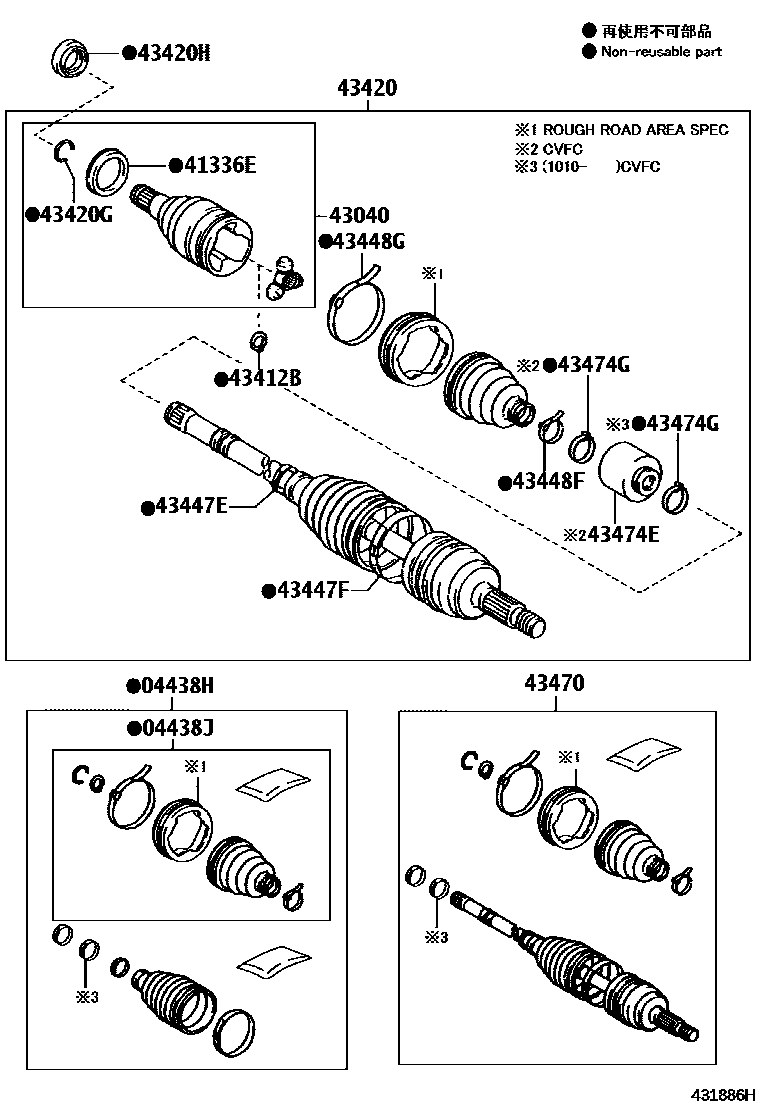

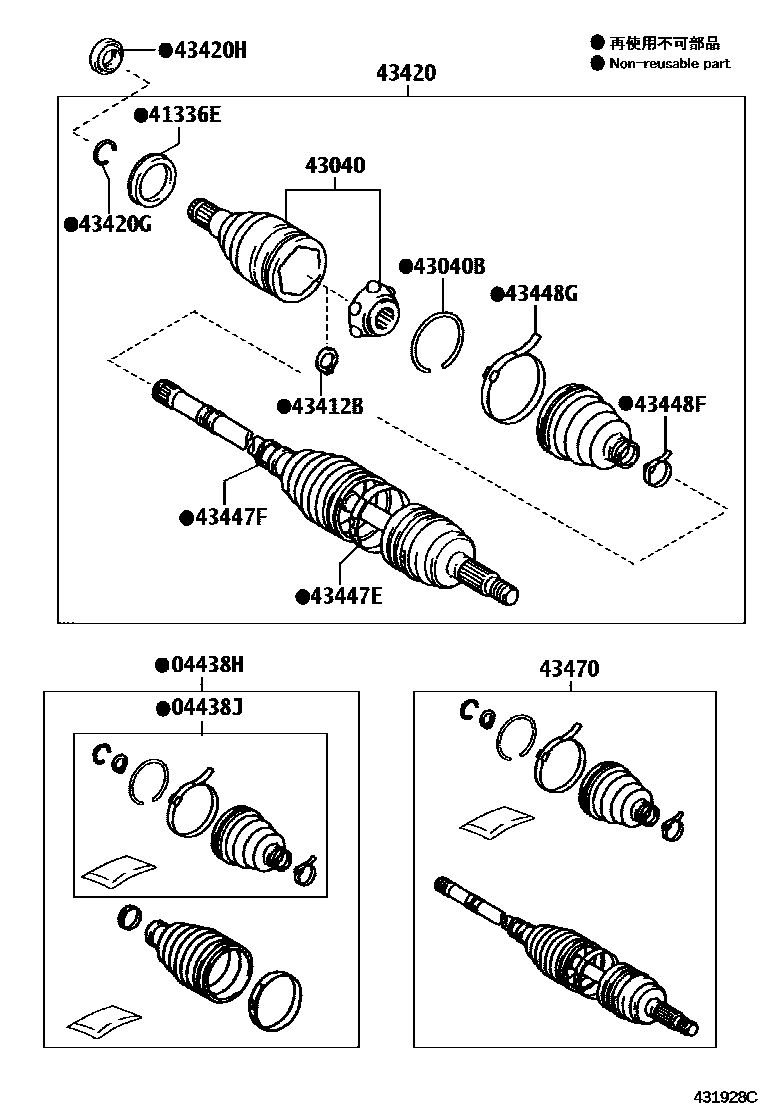

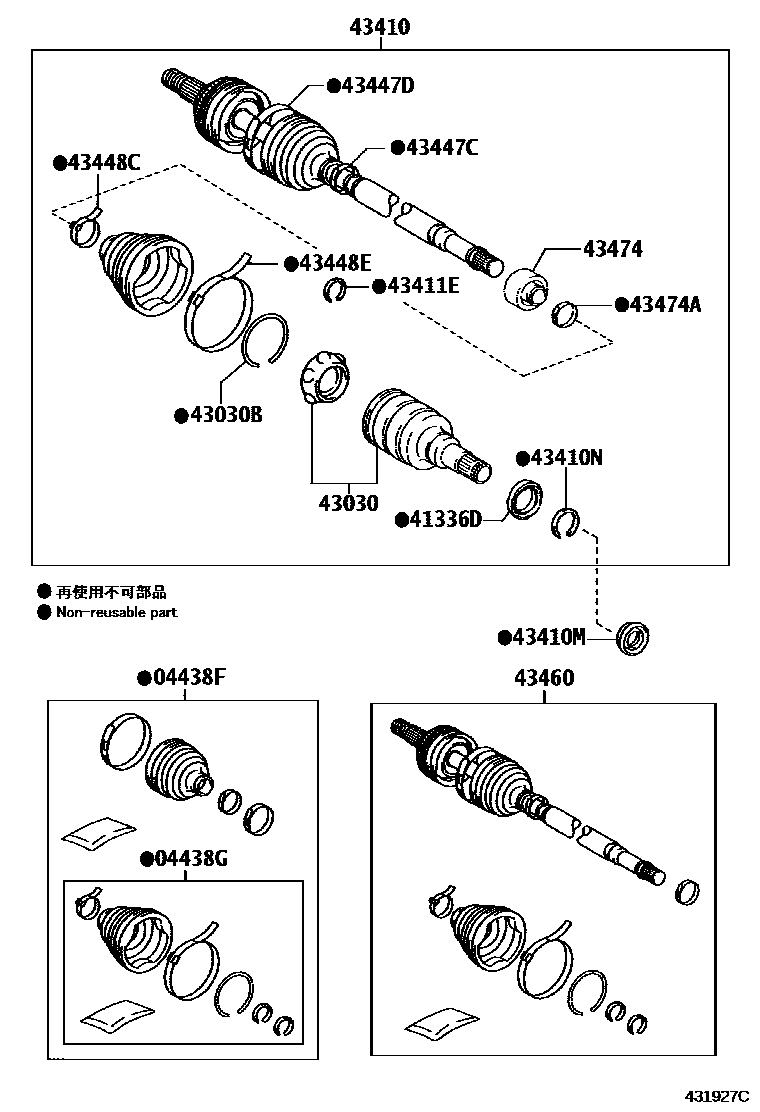

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-12470 · 04427-12530 · 04427-12630 · 04427-12631 · 04427-52671 · 04427-52890 · 04427-52891 · 04428-12740 · 04438-12540 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-12370 · 04437-12371 · 04437-12400 · 04437-52190 · 04437-52191 · 04437-52330 · 04438-12530 · 04438-12A00 · 04438-32231 · 04438-42200 · 04438-42201 · 04438-52230 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-12470 · 04427-12530 · 04427-12630 · 04427-12631 · 04427-12681 · 04427-52671 · 04427-52890 · 04427-52891 · 04428-12620 · 04428-12650 · 04428-12660 · 04428-12740 · 04428-42100 · 04428-42101 · 04428-52850 · 04438-12540 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-12370 · 04437-12371 · 04437-12400 · 04437-52190 · 04437-52191 · 04437-52330 · 04438-12530 · 04438-12A00 · 04438-32231 · 04438-42200 · 04438-42201 · 04438-52230 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-12020 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-12010 · 41336-12060 · 41336-28020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-12060 · 43040-12120 · 43040-12150 · 43040-32040 · 43403-10011 · 43403-12040 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-26004 · 90521-27005 · 90521-79001 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-12050 · 43040-12120 · 43040-12150 · 43040-32040 · 43403-10011 · 43403-12040 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-79001 |
| 43410 | Right front driveshaft assembly | 43410-12490 · 43410-12A10 · 43410-12A20 · 43410-12A30 · 43410-12A40 · 43410-12A80 · 43410-12B00 |
| 43410M | Front drive shaft right oil seal | 90311-34031 · 90311-34033 · 90311-34035 · 90311-34039 · 90311-34045 · 90311-35055 · 90311-35057 · 90311-35062 · 90311-35065 · 90311-40030 · 90311-40036 |
| 43410N | Hole snap ring (for right front driveshaft) | 90521-33002 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-12070 · 90520-22001 · 90520-22005 · 90520-25034 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-12070 · 90520-22001 · 90520-22005 · 90520-25034 |
| 43420 | Left front drive shaft assembly | 43420-12420 · 43420-12770 · 43420-12830 · 43420-12831 · 43420-12840 · 43420-12841 · 43420-12850 · 43420-12851 · 43420-12860 · 43420-12870 · 43420-12A10 · 43420-42091 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 · 90521-27005 · 90521-33002 |
| 43420H | Front drive shaft left oil seal | 90311-34030 · 90311-34034 · 90311-34036 · 90311-34042 · 90311-34043 · 90311-34044 · 90311-35054 · 90311-35058 · 90311-35061 · 90311-35064 · 90311-35066 · 90311-35068 · 90311-50035 · 90311-50047 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12190 · 42345-12230 · 42345-52260 · 90949-01A65 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12080 · 42345-12180 · 42345-12240 · 42345-52250 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12190 · 42345-12230 · 42345-52260 · 90949-01A65 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12080 · 42345-12180 · 42345-12240 · 42345-52250 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-12230 · 90949-01078 · 90949-01108 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12140 · 42345-12160 · 42345-12180 · 42346-22010 · 90949-01146 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-12230 · 90949-01078 · 90949-01108 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12140 · 42345-12160 · 42345-12180 · 42346-22010 · 90949-01146 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-80046 · 43460-80111 · 43460-80112 · 43460-80113 · 43460-80115 · 43460-80117 · 43460-80118 · 43460-80126 · 43460-80127 · 43460-80128 · 43460-80150 · 43460-80151 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-49585 · 43470-49586 · 43470-80165 · 43470-80191 · 43470-80192 · 43470-80193 · 43470-80194 · 43470-80196 · 43470-80198 · 43470-80199 · 43470-80292 · 43470-80293 · 43470-80294 · 43470-80313 · 43470-80315 · 43470-80323 · 43470-80328 · 43470-80329 |
| 43474 | drive shaft damper | 43474-12120 · 43474-12130 · 43474-52030 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 · 90949-01947 |
| 43474E | Left front driveshaft shock absorber | 43474-12190 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-14010 |
