Toyota COROLLA Shift Lever & Retainer — Figure 3312

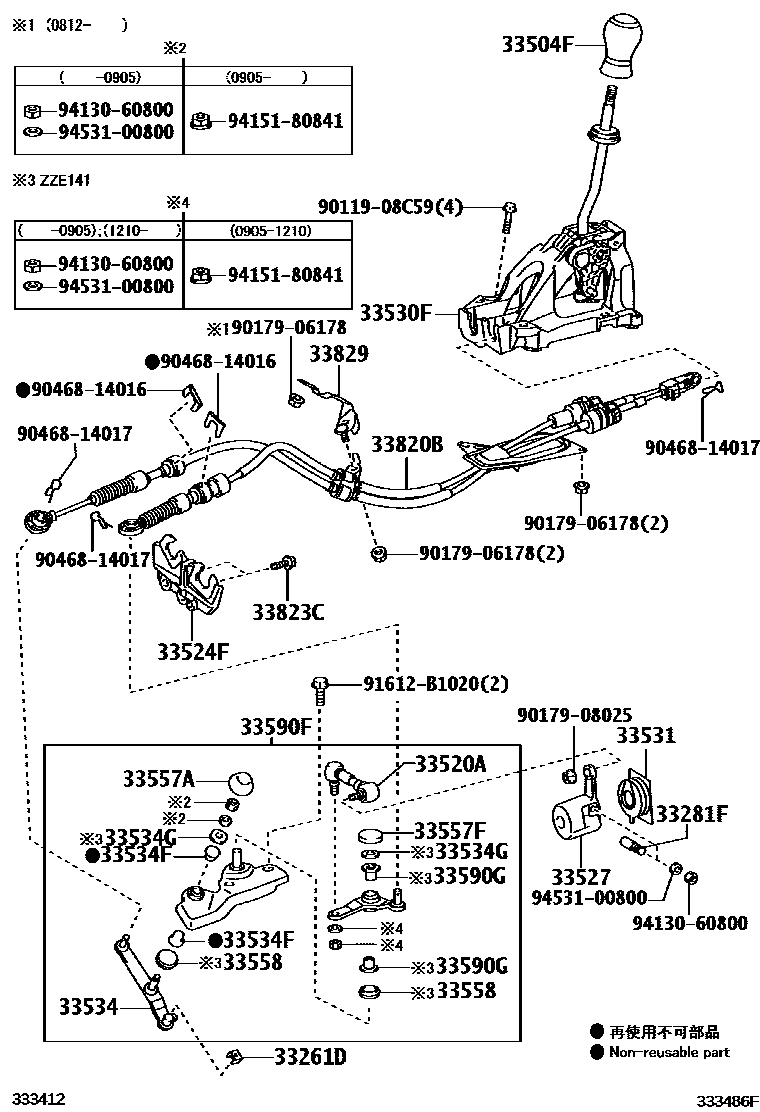

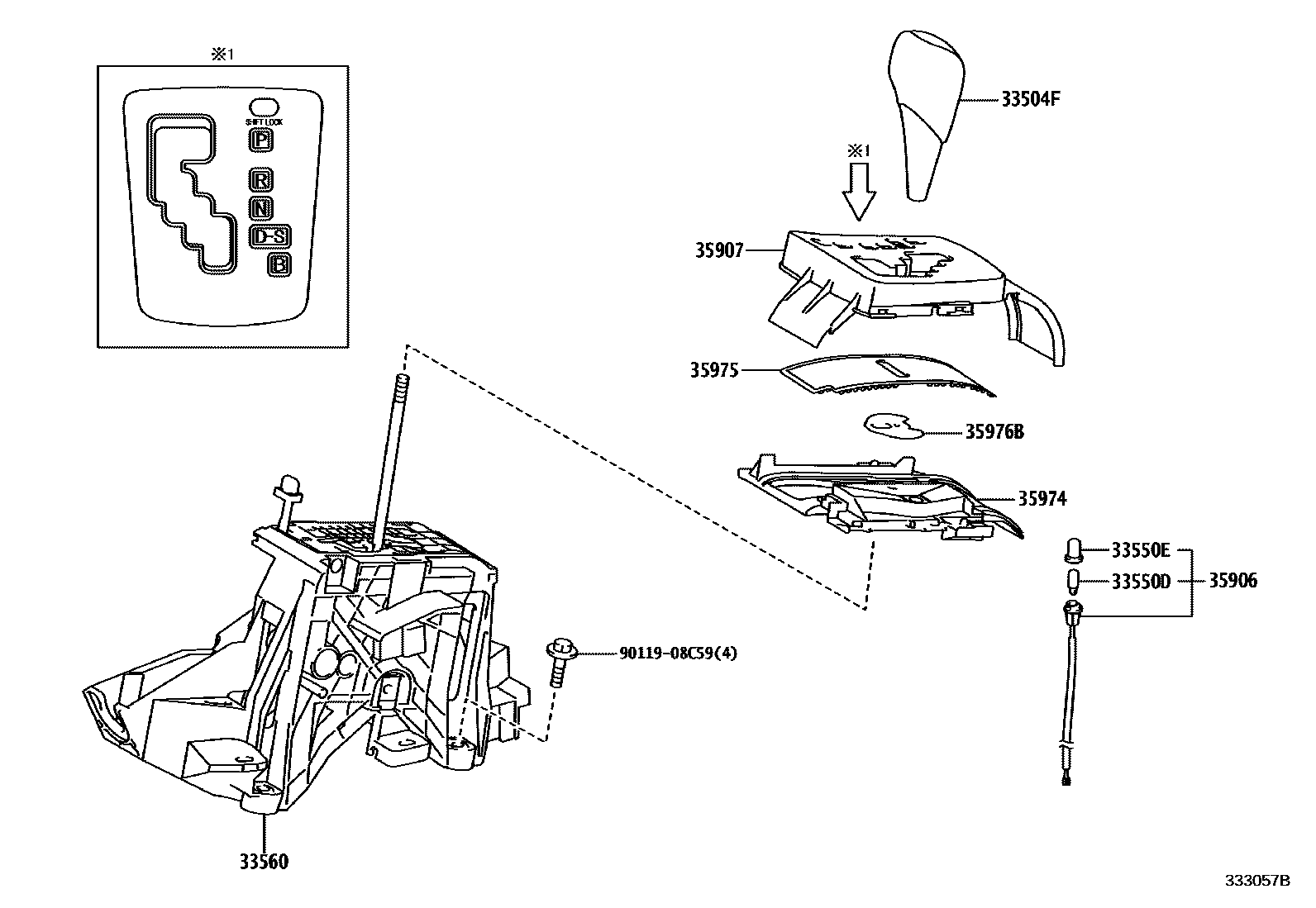

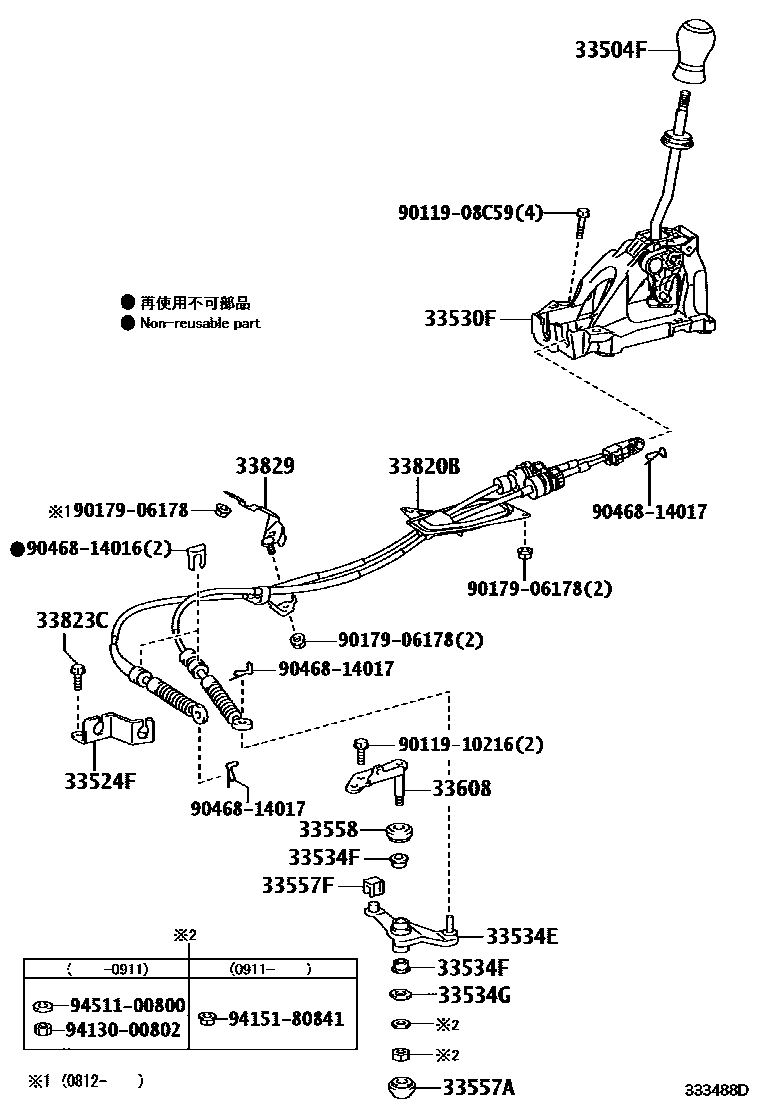

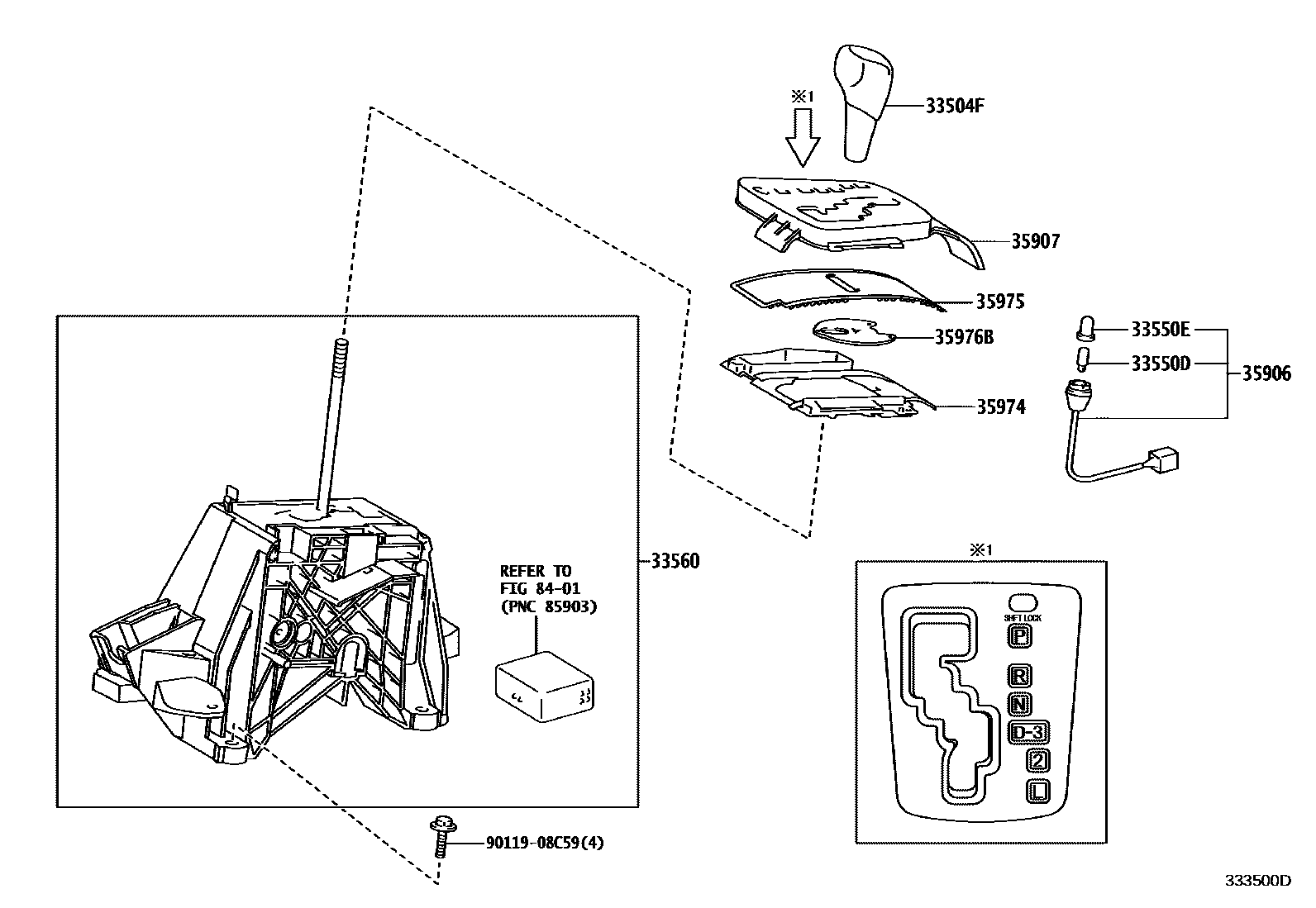

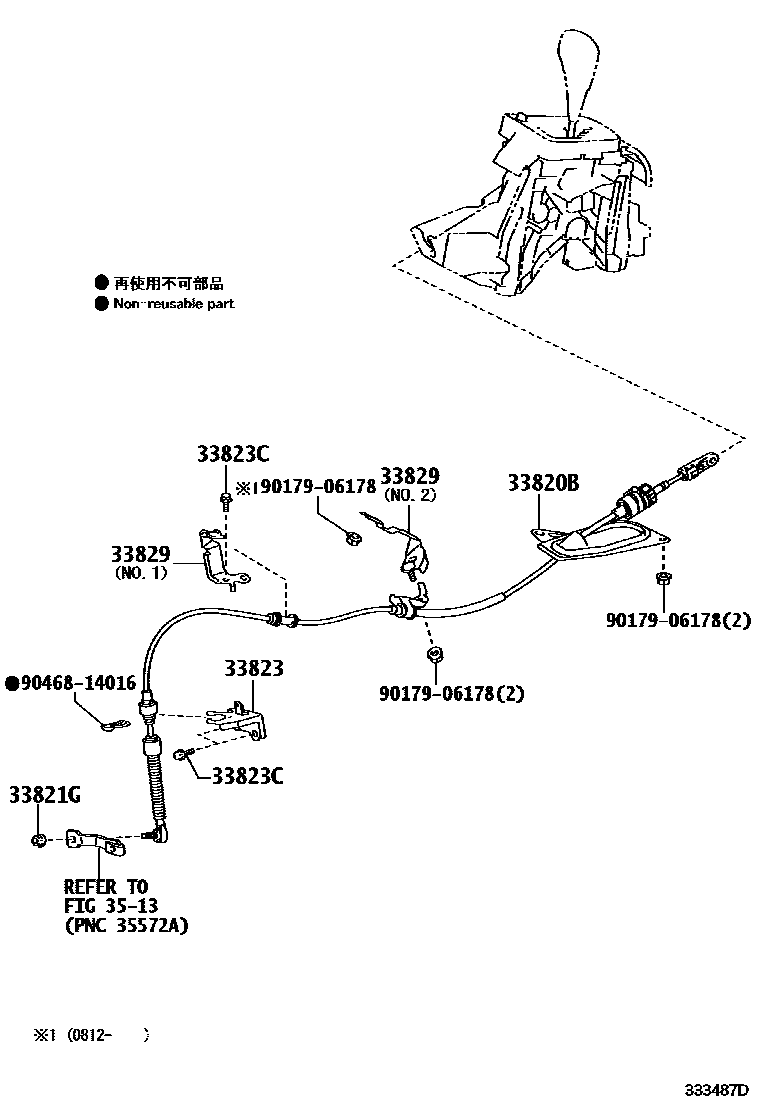

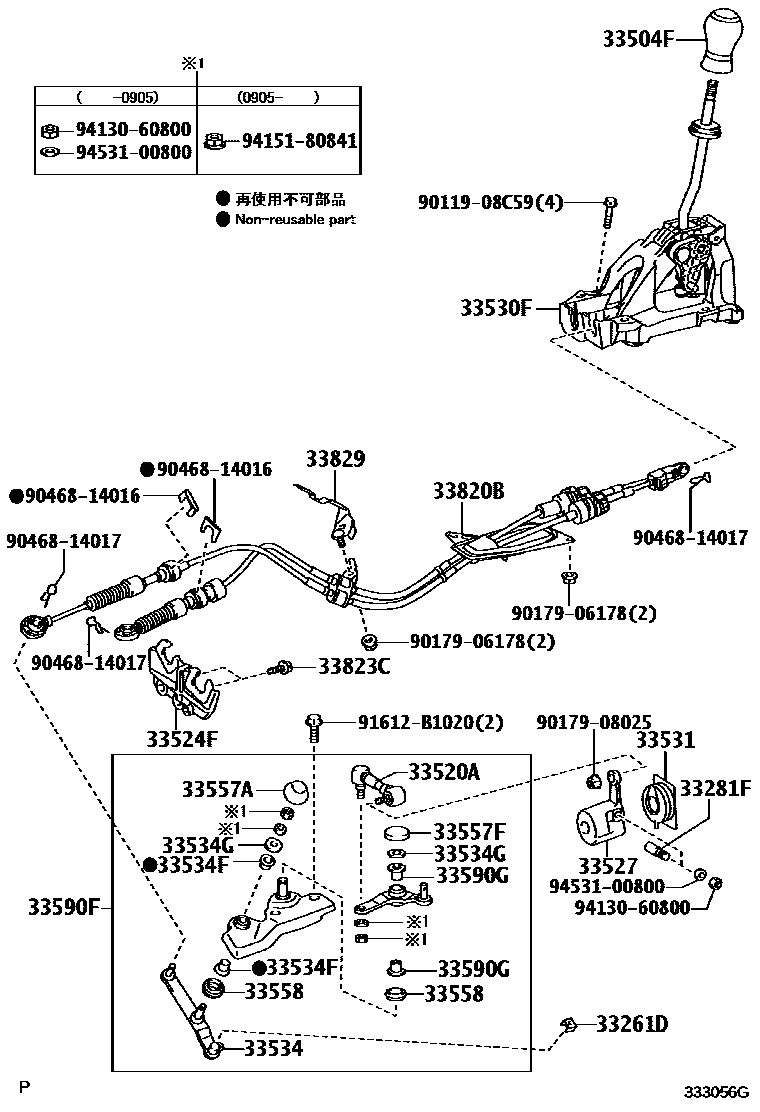

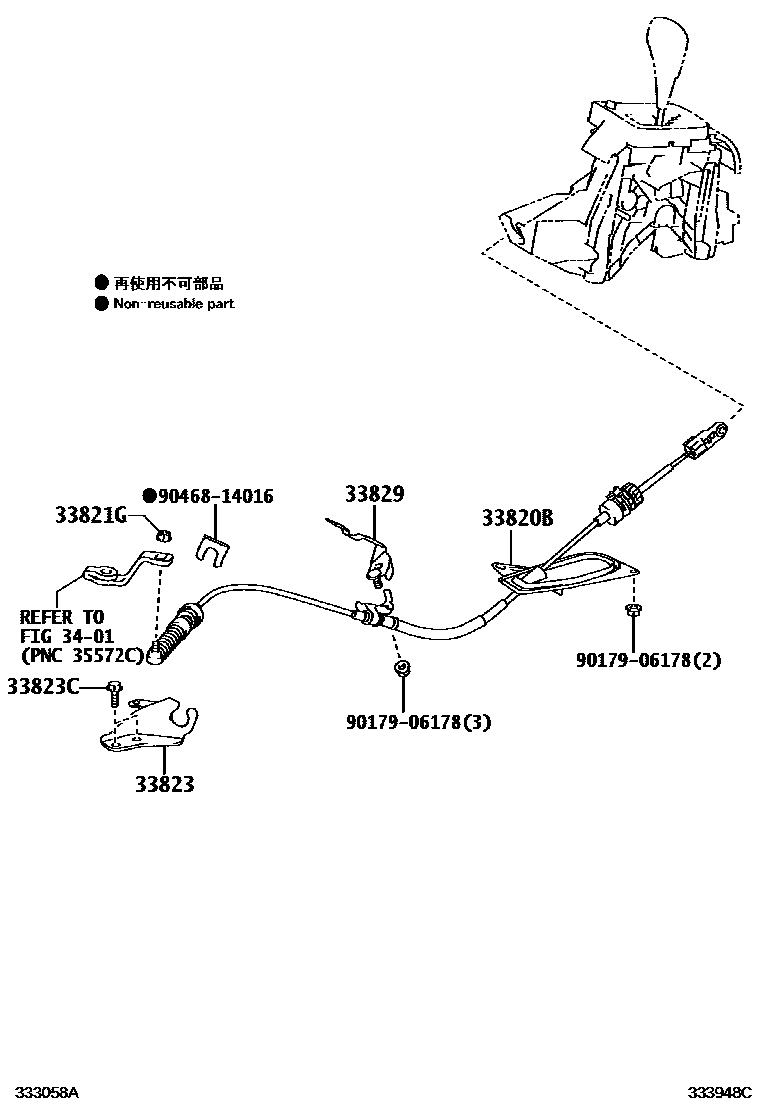

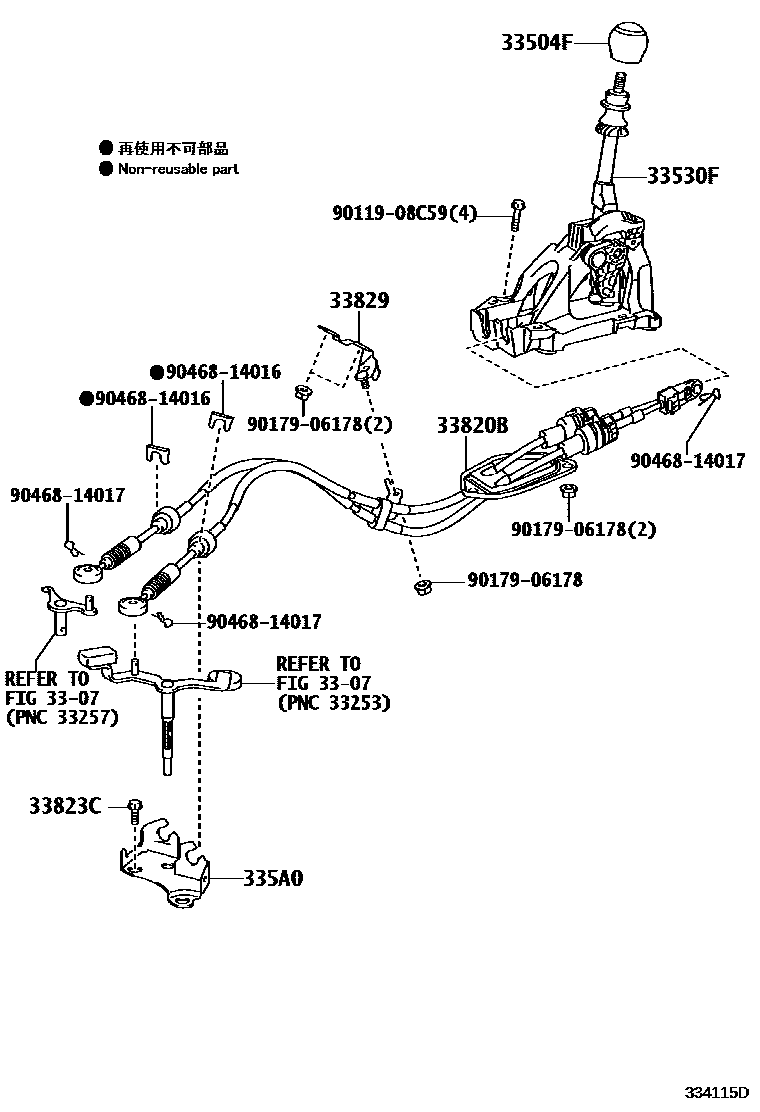

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 8 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-28020 · 33524-52050 · 33524-52060 |
| 33527 | Gear shift lever (for floor shift) | 33527-52011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12A40 · 33530-12A50 · 33530-12A61 · 33530-12A71 |
| 33531 | Dust boot (for shift lever) | 33531-17010 |
| 33534 | Gear selection right angle lever | 33534-12120 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04071 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 · 33557-33010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-12250 · 33560-12260 · 33560-12270 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-12070 |
| 33590G | Bushing (for gear selector right-angle lever) | 33546-20020 |
| 335A0 | Control cable bracket assembly | 335A0-12020 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 |
| 33820B | Transmission control cable assembly | 33820-12C40 · 33820-12C50 · 33820-12D10 · 33820-12D20 · 33820-12D30 · 33820-12D40 · 33820-12F20 · 33820-12F60 |
| 33821G | Nut (for transmission control cable) | 90179-08061 · 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-12190 · 33823-12280 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 91611-B0816 · 91611-G0820 · 91612-61030 |
| 33829 | Transmission control cable bracket | 33829-12120 · 33829-12130 · 33829-12170 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12250 · 35906-12270 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-12160 · 35907-12170 · 35907-12200 · 35907-12240 · 35907-12250 |
| 35974 | Position indicator light lower shell | 35974-12220 · 35974-12270 |
| 35975 | Slide cover (for position indicator light) | 35975-12400 · 35975-12410 |
| 35976B | Shift lever handle cover (for floor shift) | 35976-12160 |
