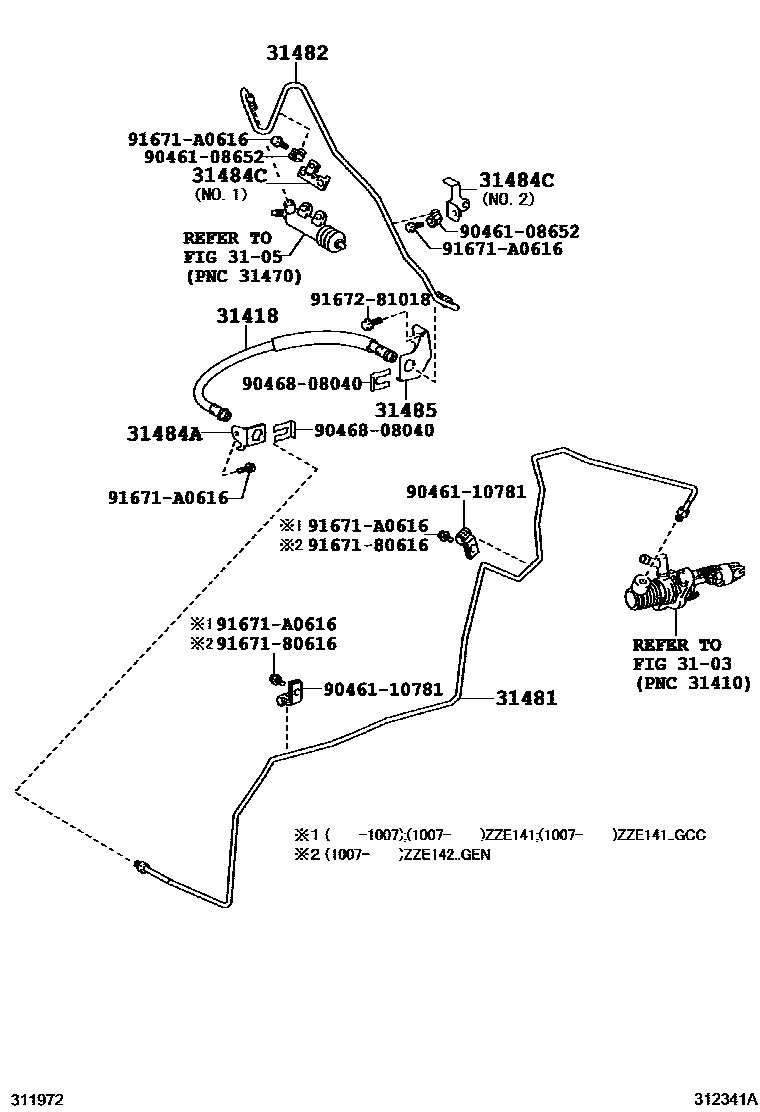

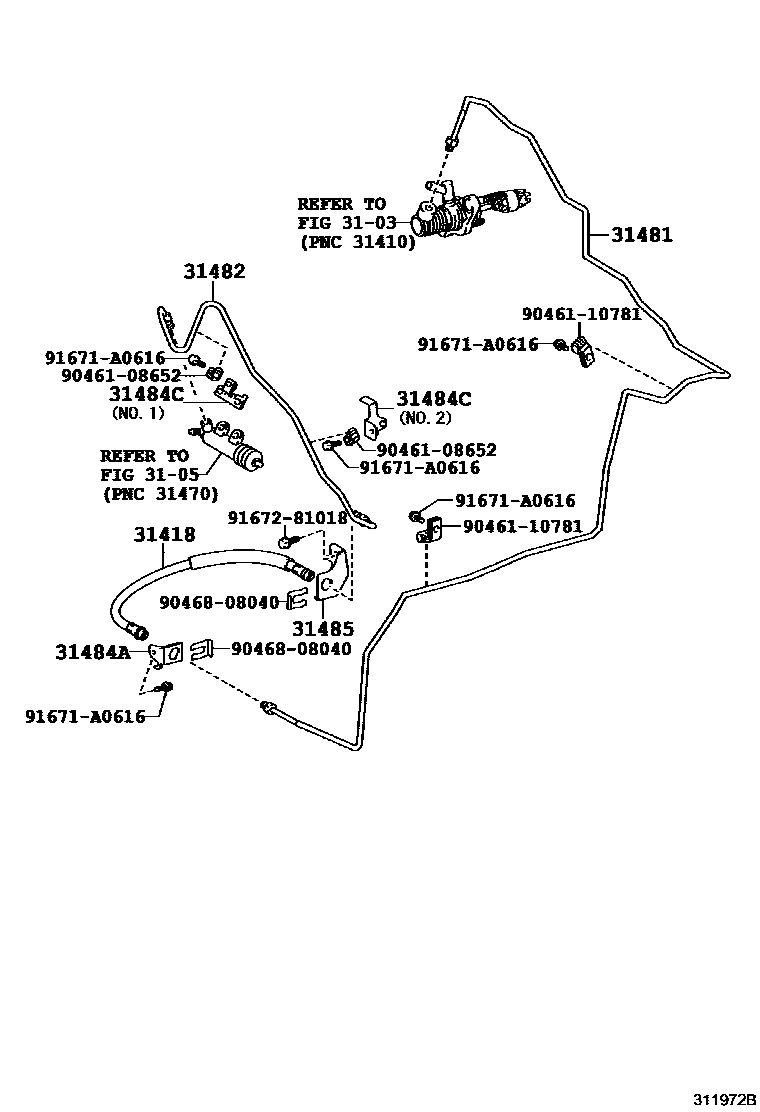

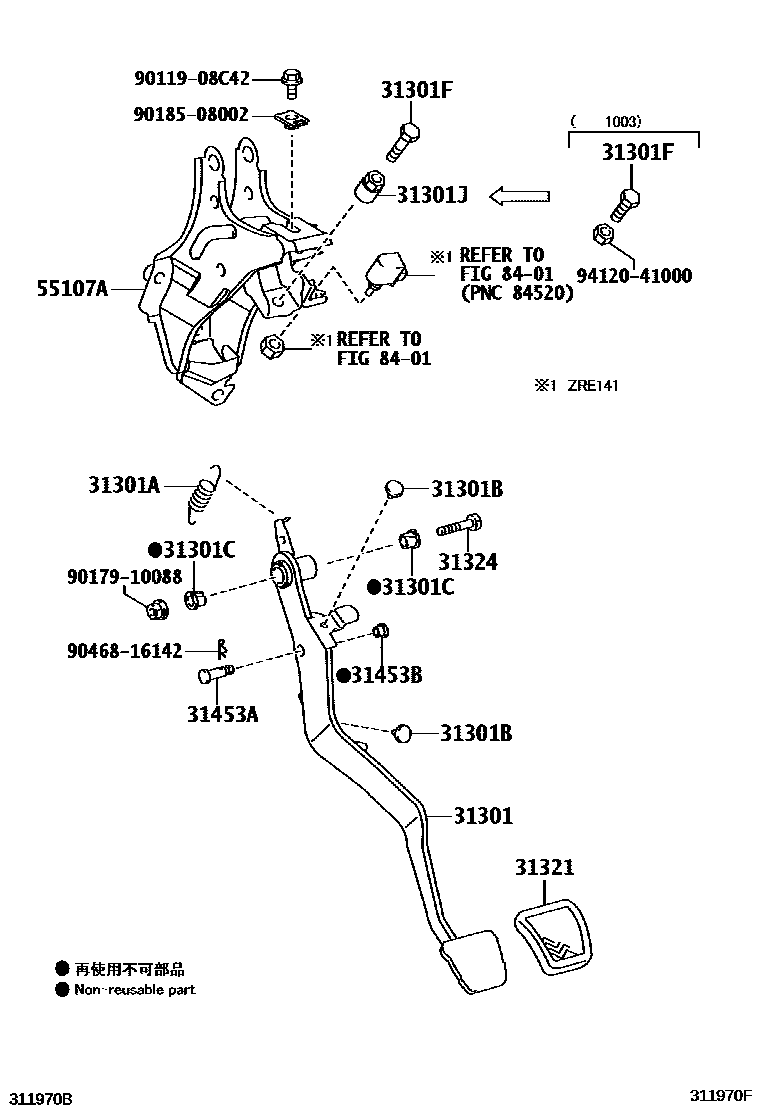

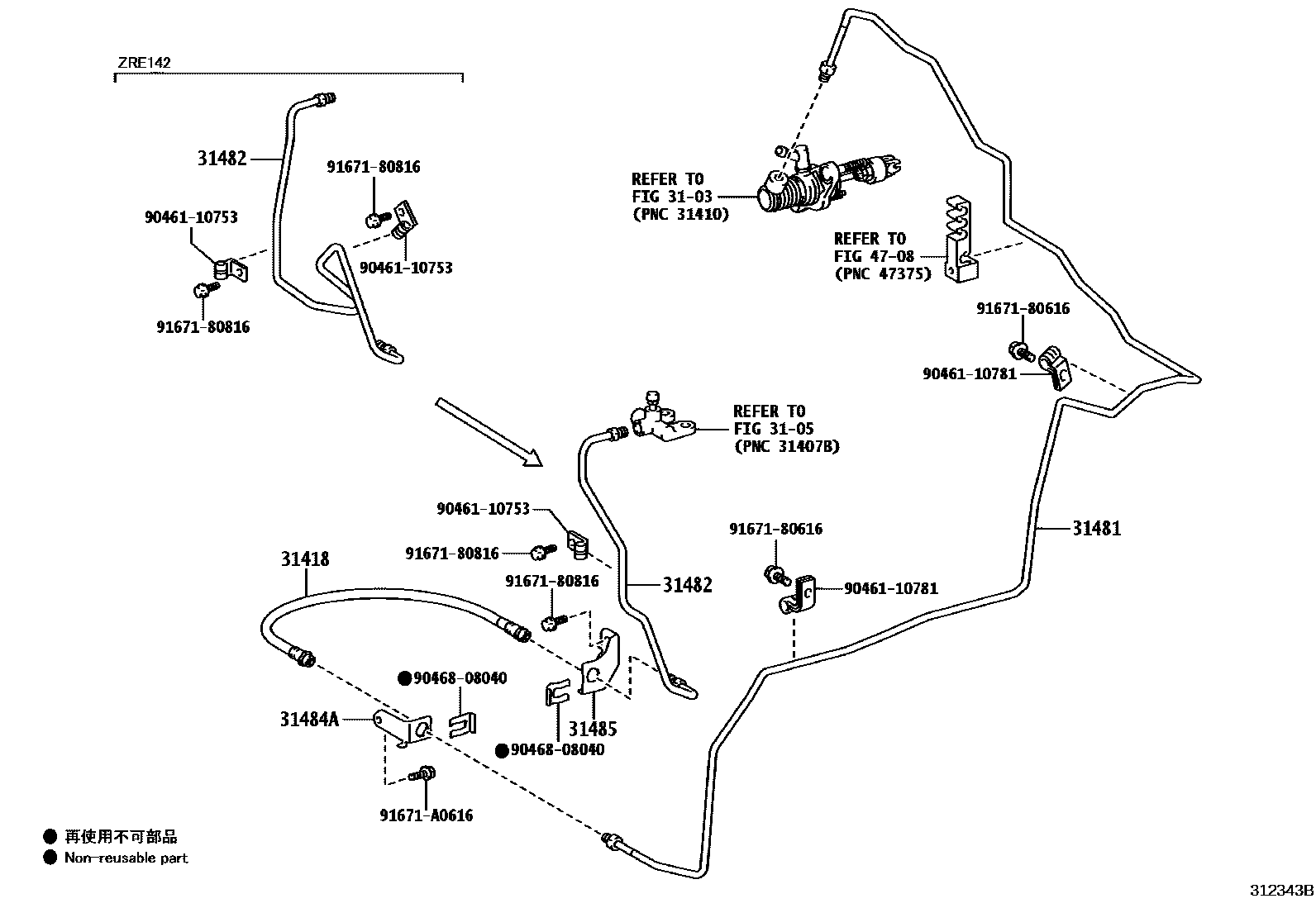

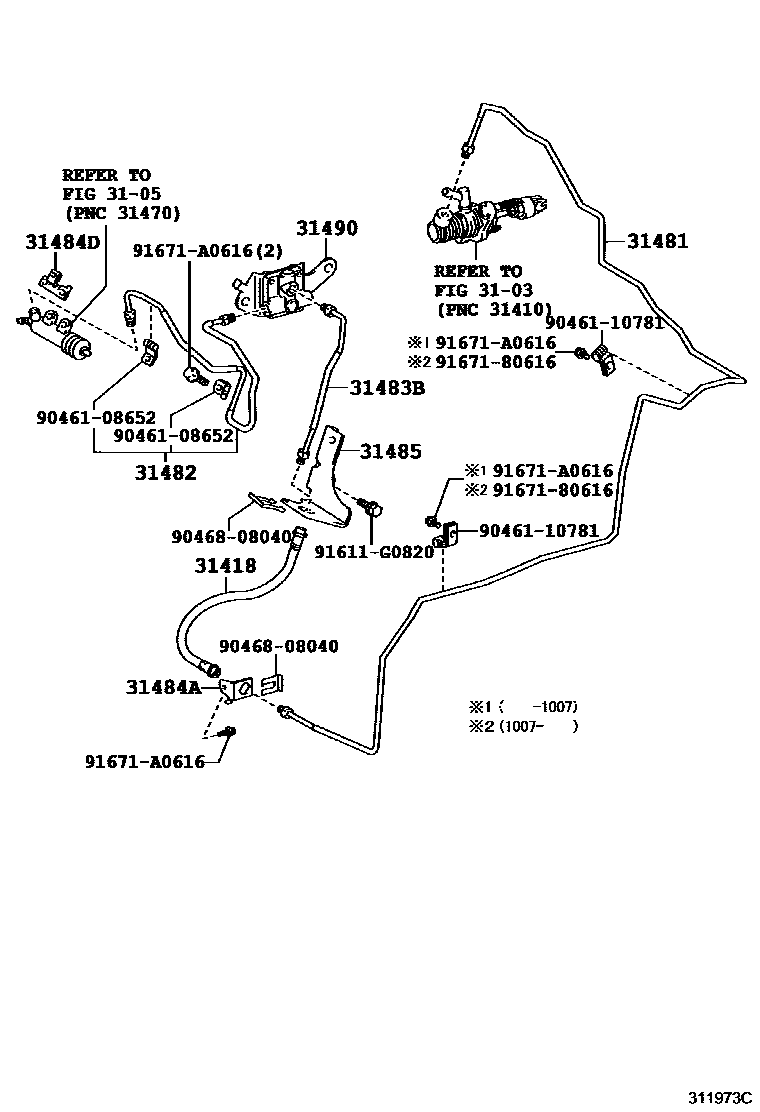

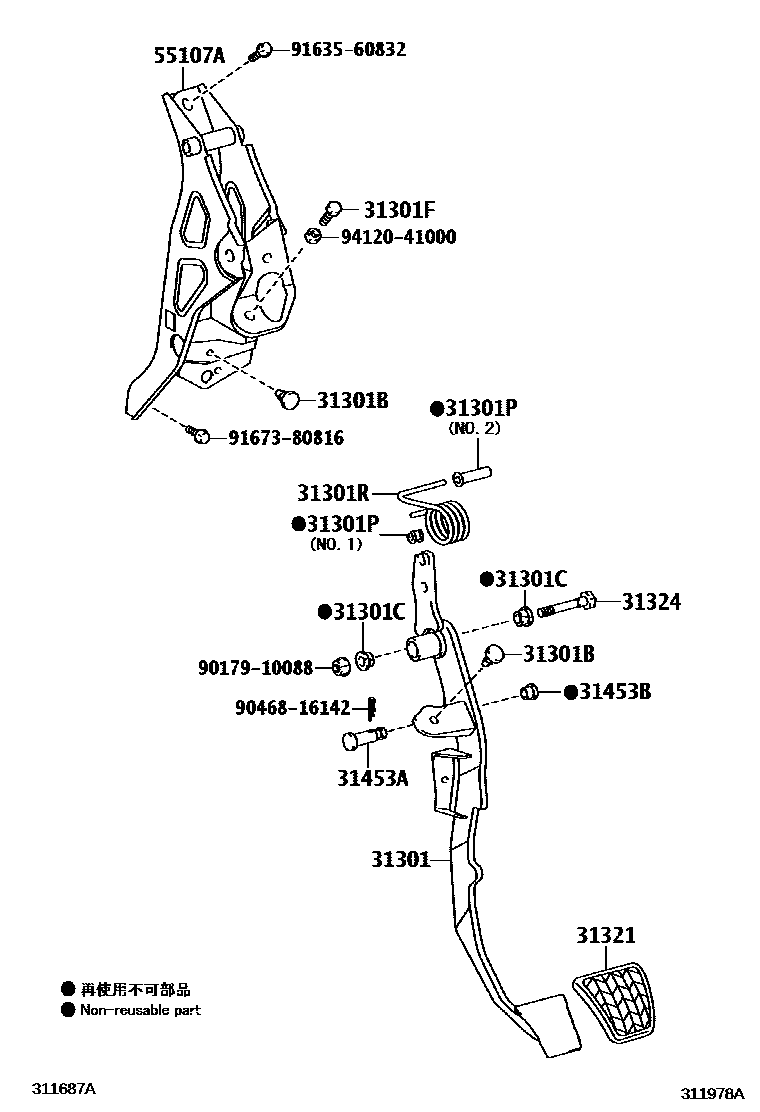

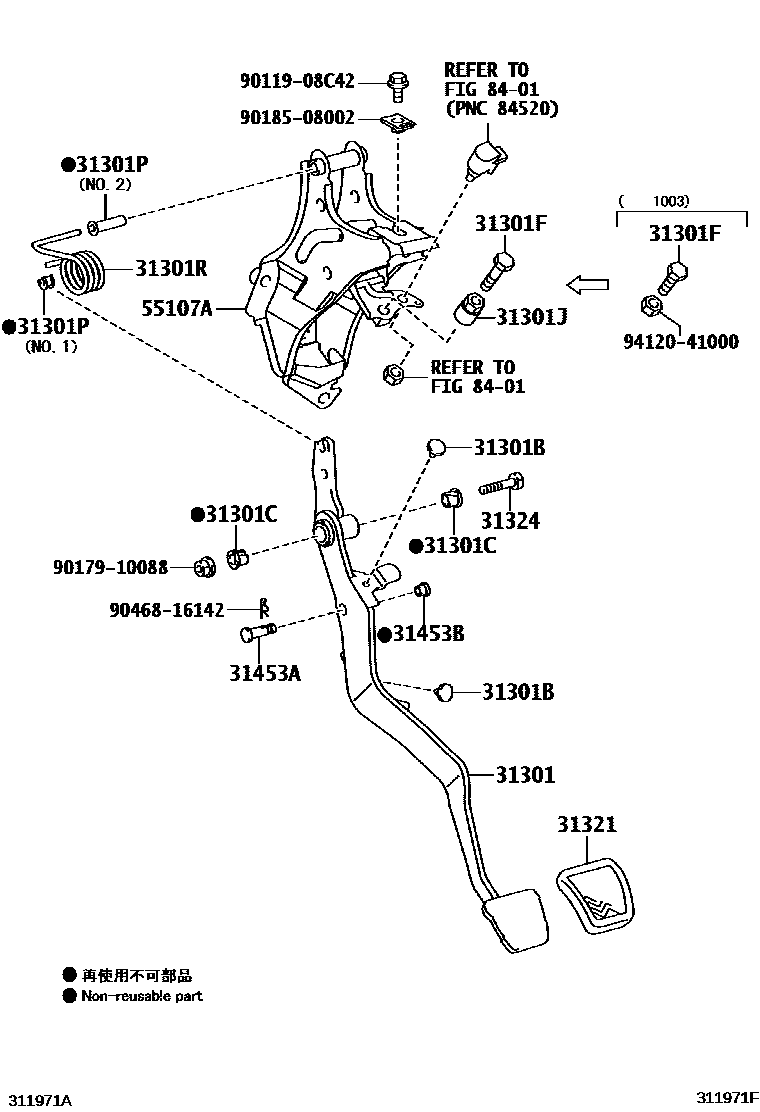

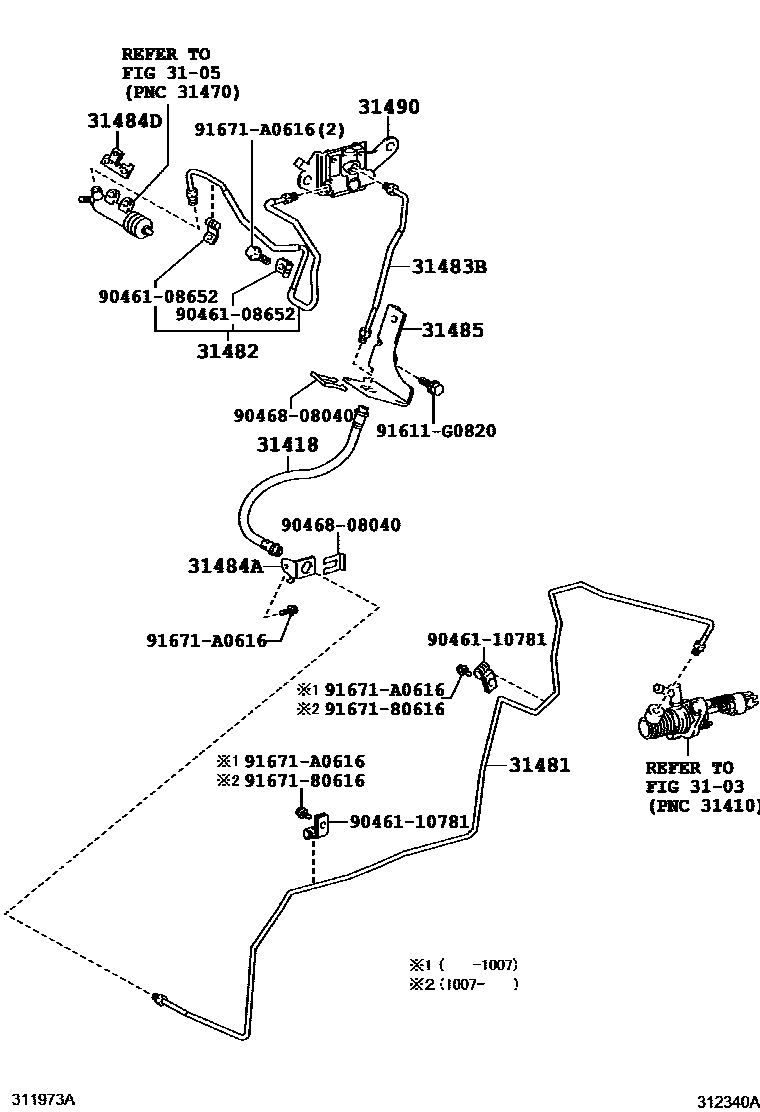

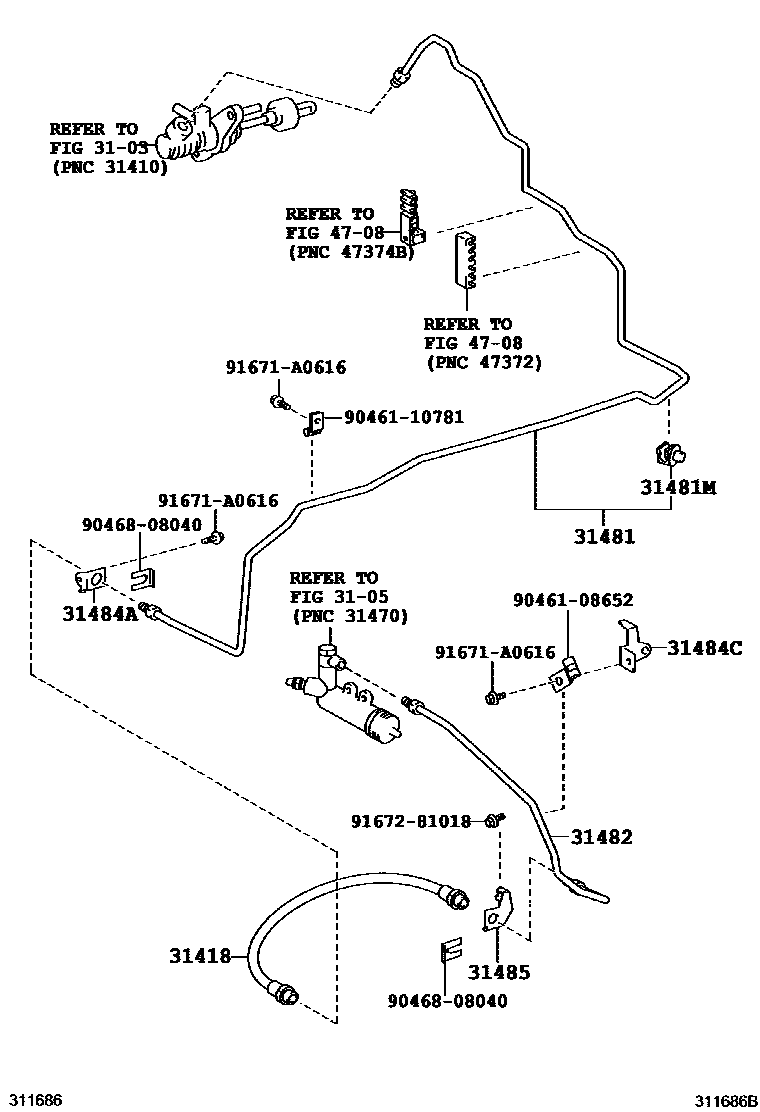

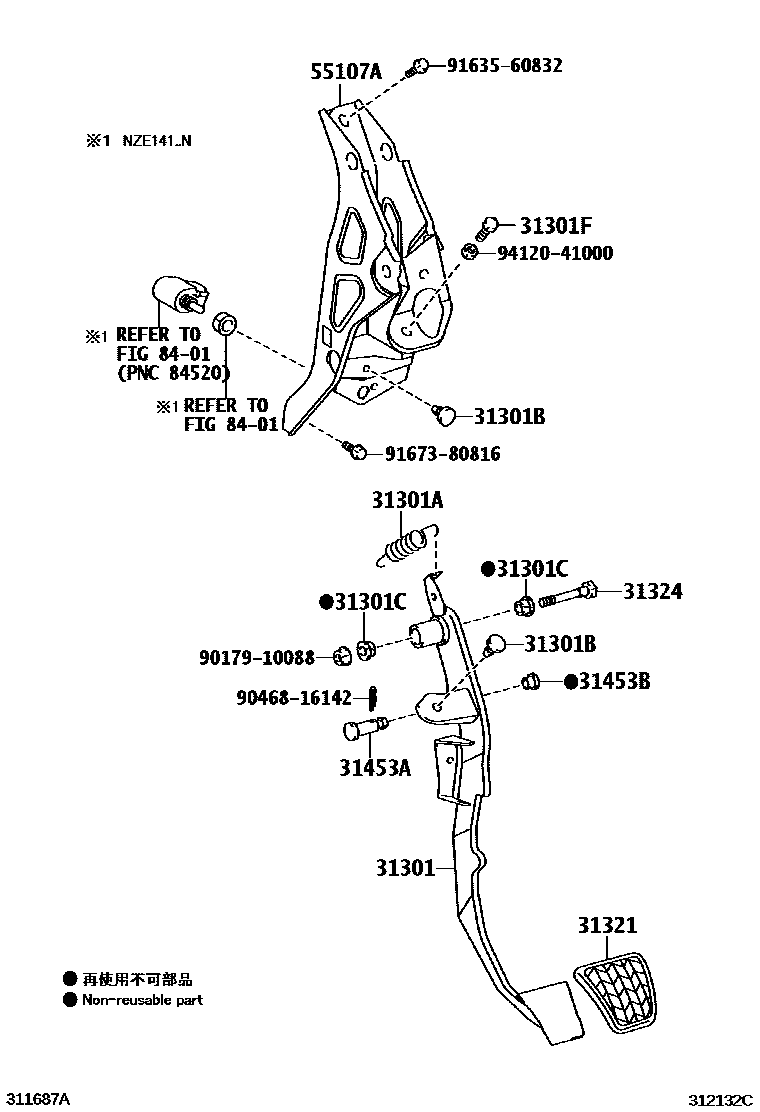

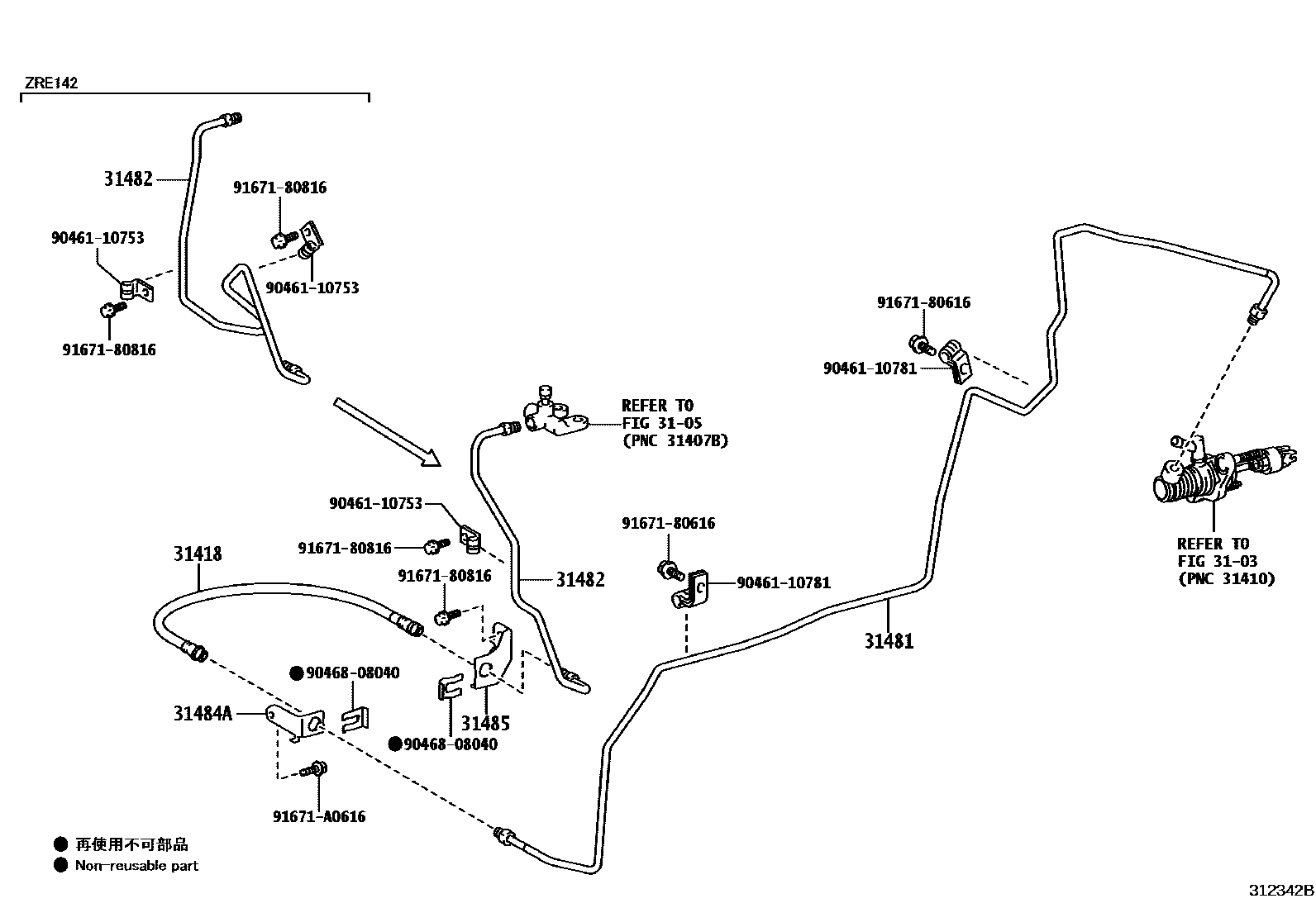

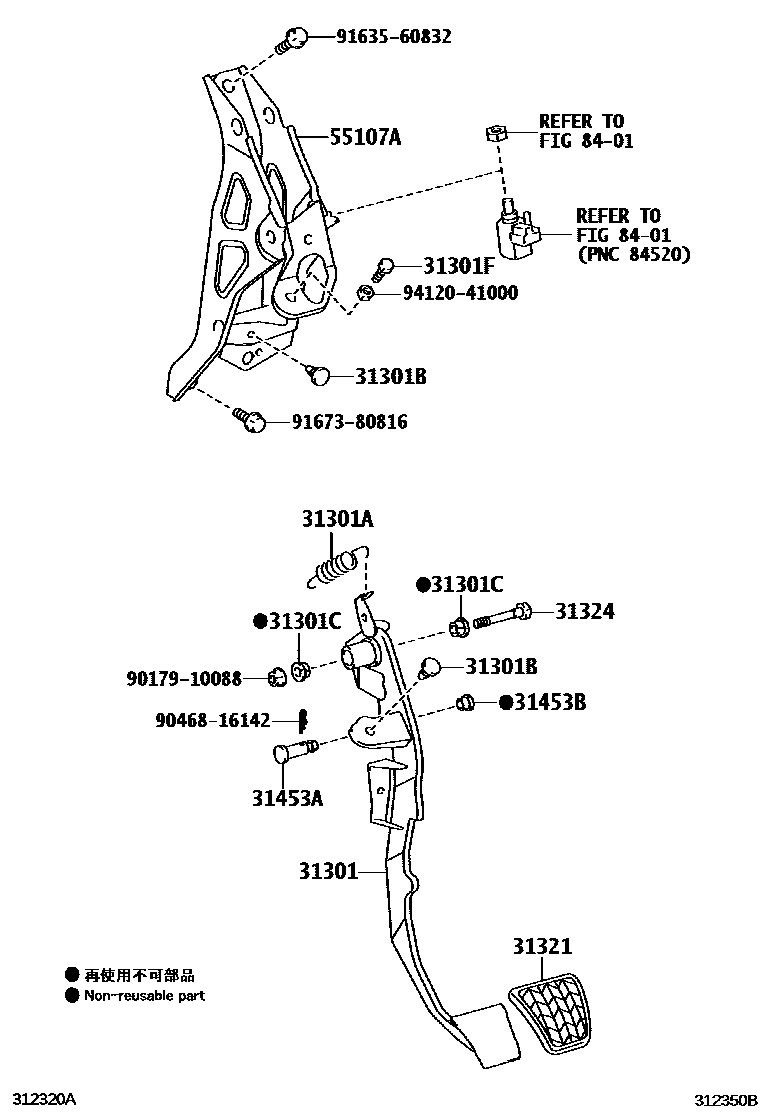

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 12 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-02400 · 31301-12530 · 31301-12540 · 31301-12550 · 31301-12560 · 31301-12600 · 31301-12610 |
| 31301A | Spring (for clutch pedal) | 90507-14047 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10055 · 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 46441-12020 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90386-05017 · 90389-05019 |
| 31301R | Compression spring (for flip spring seat) | 90949-03138 |
| 31321 | clutch pedal pad | 31321-02020 · 31321-42010 |
| 31324 | clutch pedal shaft | 90109-10167 · 90109-10174 |
| 31418 | clutch hose | 90947-02E28 · 90947-02E57 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08256 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-12380 · 31481-12390 · 31481-12400 · 31481-12410 · 31481-12420 |
| 31481M | Clamp (for clutch master cylinder tube) | 90949-01D17 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-12330 · 31482-12340 · 31482-12350 · 31482-12360 · 31482-12370 |
| 31483B | Accumulator to flexible hose pipe | 31483-12110 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-12380 · 31484-12450 |
| 31484C | No. 1 clutch tube bracket | 31484-20460 · 31484-52150 |
| 31484D | No. 2 clutch tube bracket | 31484-20460 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-12520 · 31484-12540 · 31484-12550 |
| 31490 | Clutch pressure accumulator assembly | 31490-12020 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-02330 · 55107-12310 · 55107-12320 · 55107-12330 · 55107-12340 · 55107-12380 · 55107-12390 |
