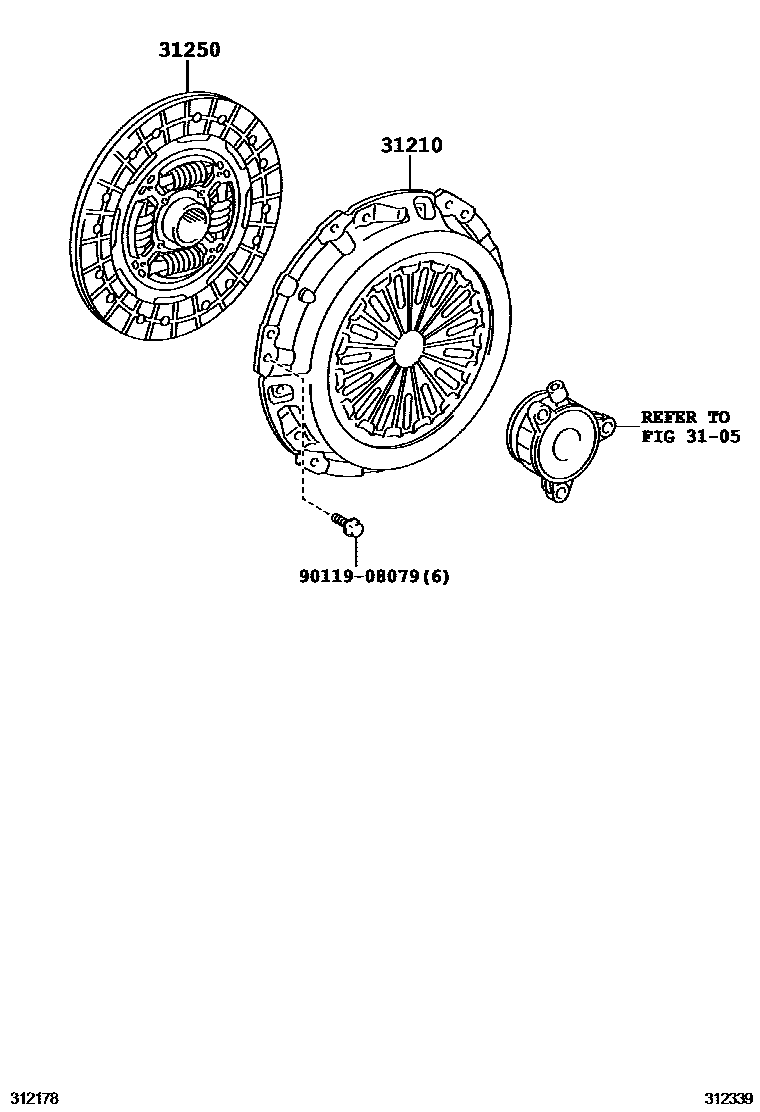

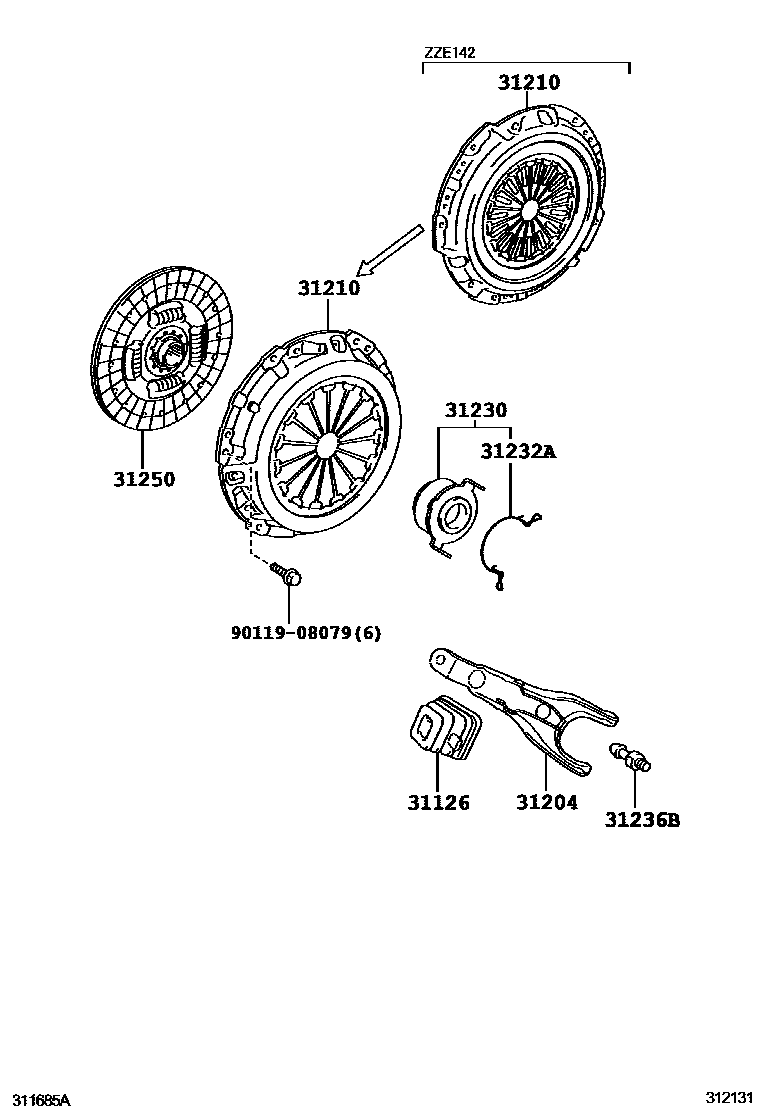

Toyota COROLLA 离合器和分离叉 — Figure 3101
Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-12051 · 31126-32010 |
| 31204 | Clutch release fork assembly | 31204-17010 · 31204-20100 · 31204-52010 |
| 31210 | Clutch cover assembly | 31210-12272 · 31210-12310 · 31210-12330 · 31210-12340 · 31210-52052 |
| 31230 | Clutch release bearing assembly | 31230-12180 · 31230-12181 · 31230-12191 · 31230-33020 |
| 31232A | Release bearing hub clip | 31232-12070 · 31232-12080 · 31232-20020 |
| 31236B | Split fork bracket | 31236-12020 · 31236-20060 |
| 31250 | Clutch disc assembly | 31250-12590 · 31250-12600 · 31250-52050 |
