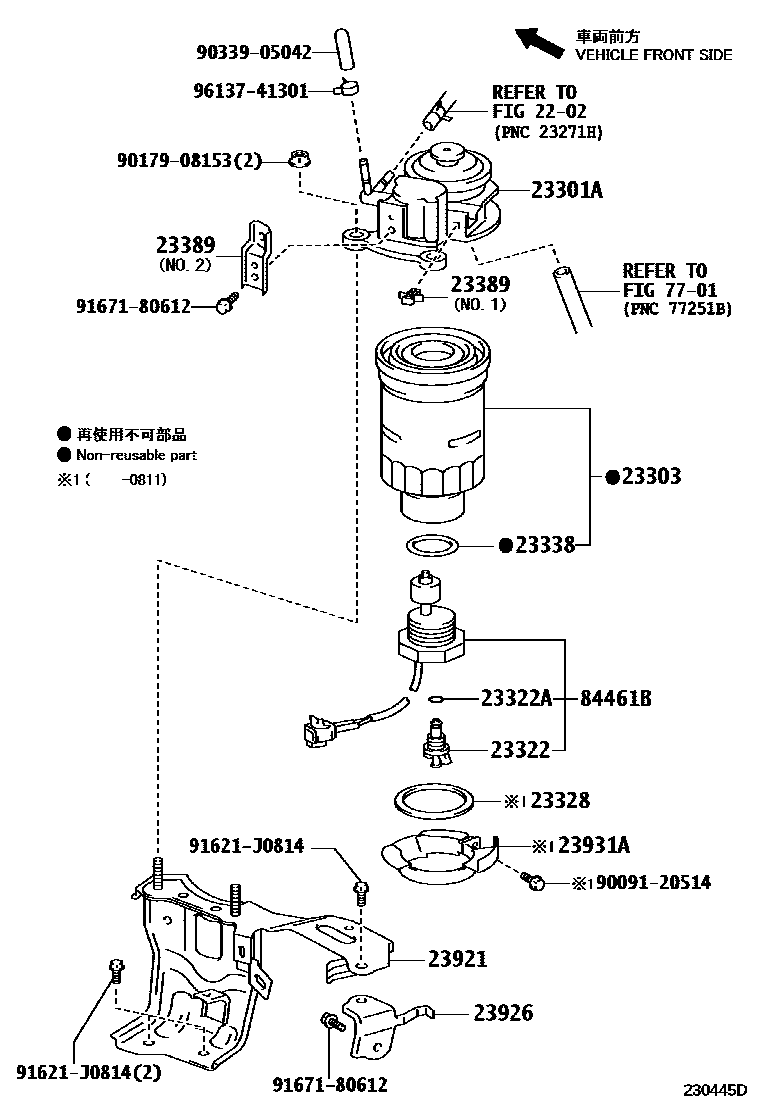

Toyota COROLLA fuel filter — Figure 2302
Toyota COROLLA EPC diagram 2302, fuel filter, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23301A | Fuel filter cover assembly | 23380-64570 · 23380-64571 |
| 23303 | Fuel filter element sub-assembly | 23390-26140 |
| 23322 | Drain plug (for fuel filter) | 23388-64470 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23328 | Gasket (for fuel filter) | 23385-30160 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23389 | fuel filter clip | 23389-27130 · 23389-64570 |
| 23921 | Fuel filter support | 23904-64040 |
| 23926 | No. 2 fuel filter support bracket | 23926-64010 · 23926-64011 |
| 23931A | fuel filter cover | 23931-26010 |
| 84461B | Liquid level warning switch | 84461-60080 · 84461-60081 |
