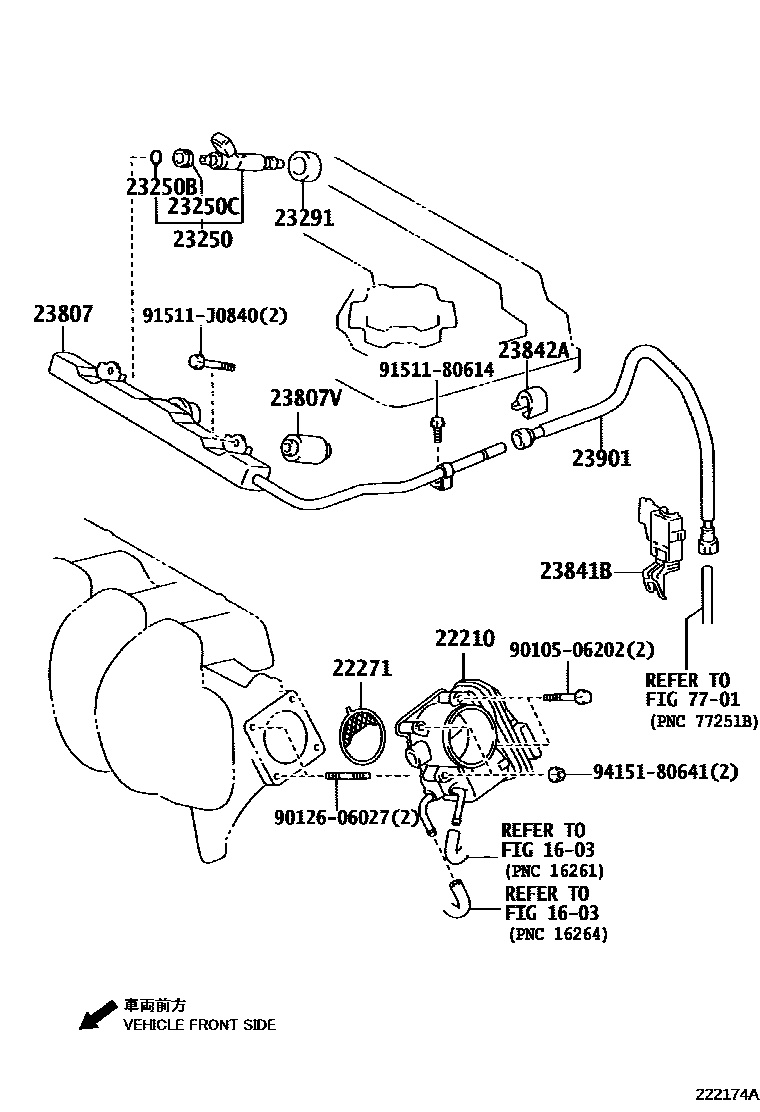

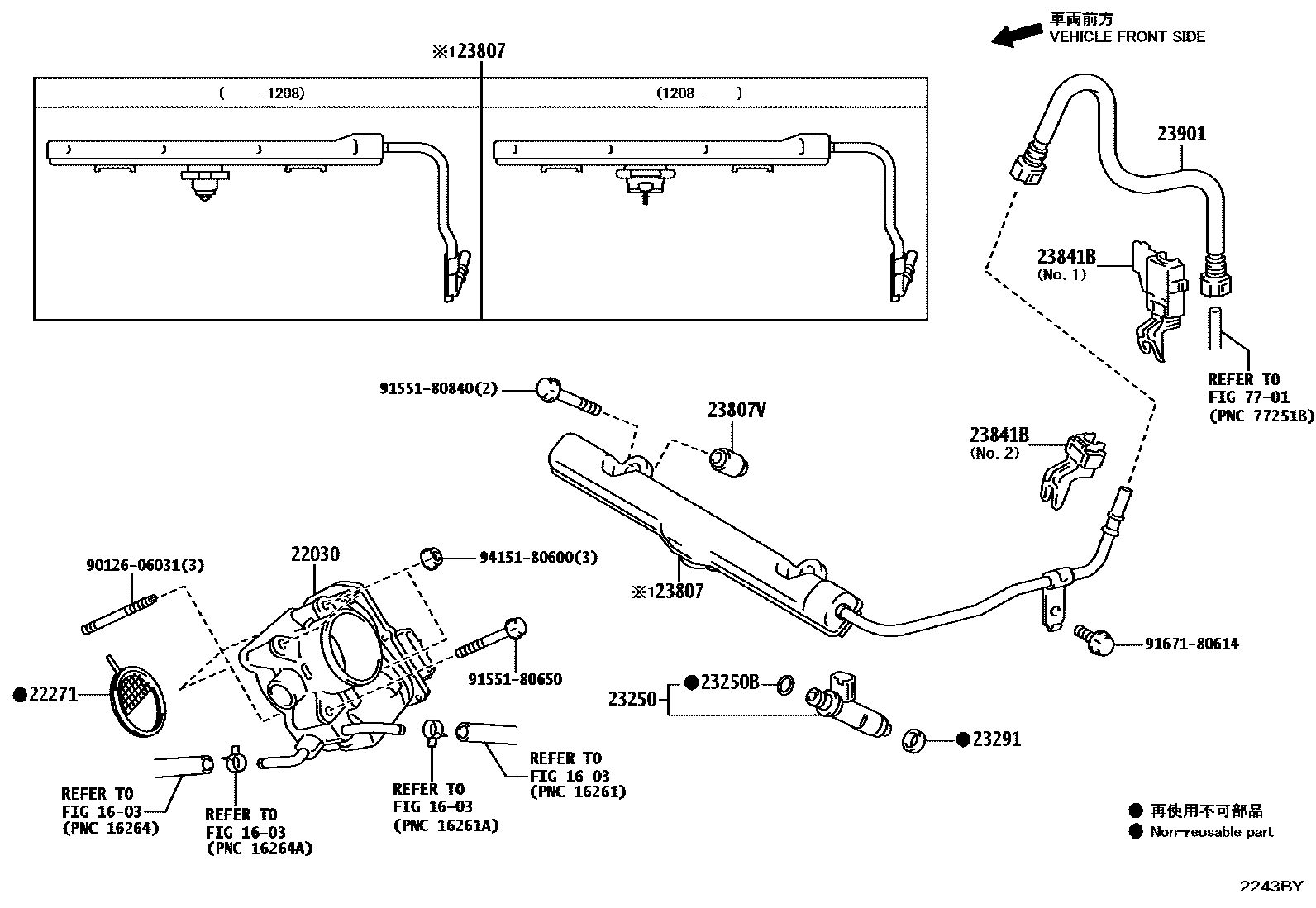

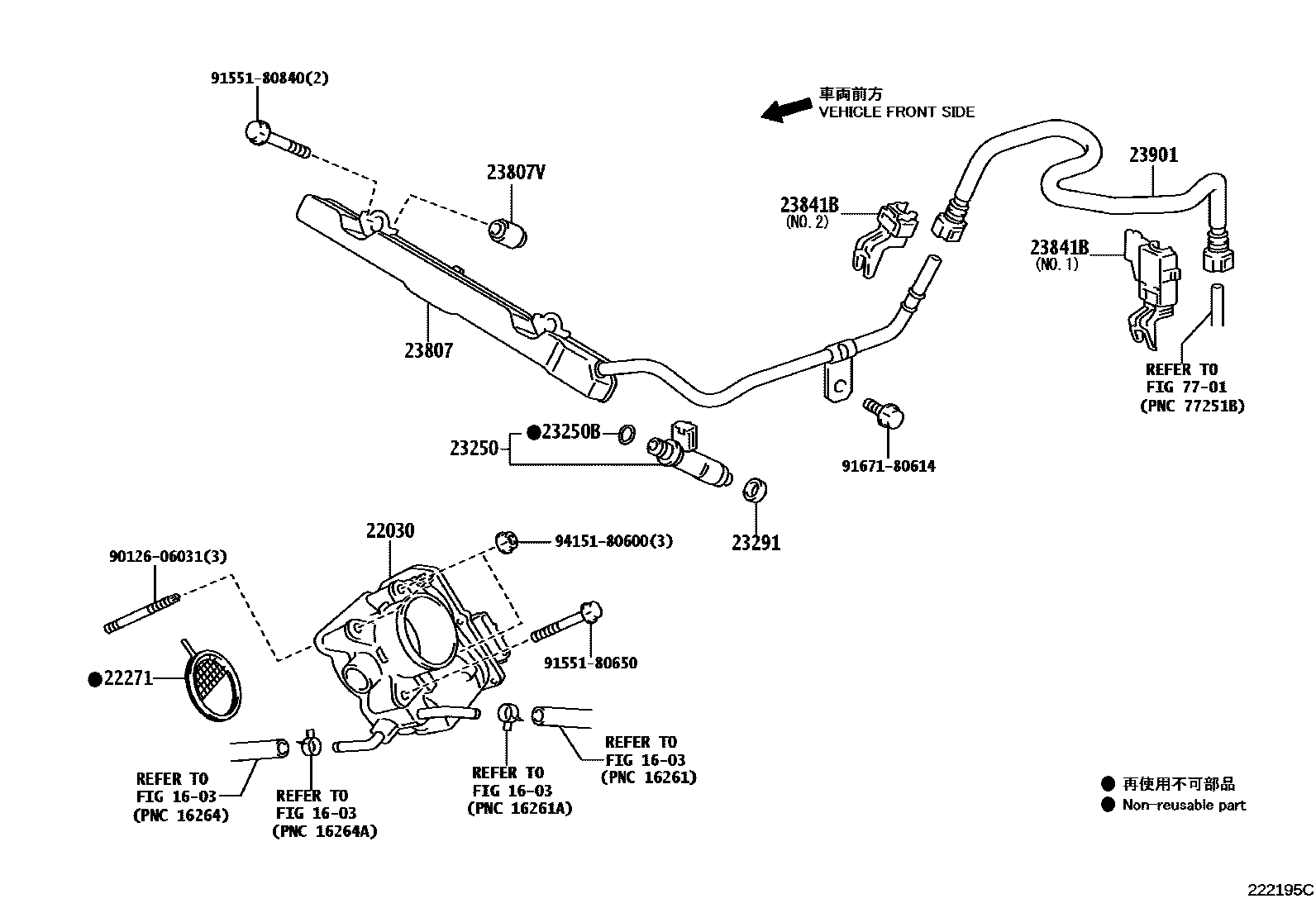

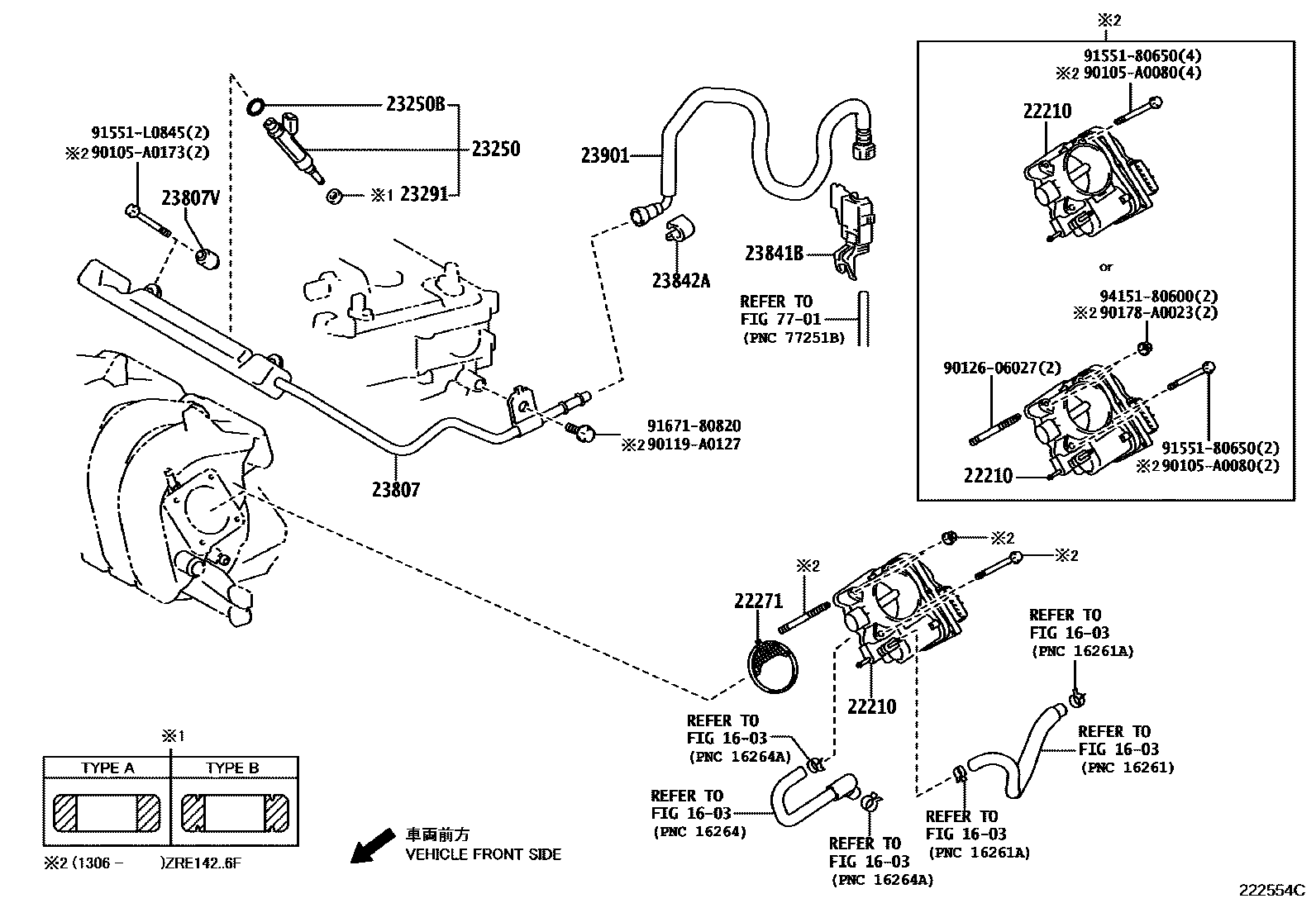

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-21030 |
| 22210 | Throttle body assembly | 22030-0T080 · 22030-22041 · 22030-22051 · 22030-37050 |
| 22271 | Throttle body gasket | 22271-0D051 · 22271-0D060 · 22271-21060 · 22271-75031 |
| 23250 | Fuel injector assembly | 23209-09140 · 23209-0D020 · 23209-0D030 · 23209-21040 · 23209-22020 · 23209-22090 · 23209-39145 · 23209-39146 |
| 23250B | O-ring (for fuel injector) | 90301-07030 · 90301-07037 · 90301-A0036 |
| 23250C | Gasket (for injector) | 90080-48058 |
| 23291 | Injector vibration isolation pad | 23291-22010 · 23291-22020 · 23291-23010 · 23291-28020 · 23291-41010 |
| 23807 | Oil pipe sub-assembly | 23807-21030 · 23807-21051 · 23807-21090 · 23807-22030 · 23807-22061 · 23814-37050 · 23814-37051 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-21010 · 23891-37010 · 90561-08055 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21040 · 23841-21050 · 23841-28010 · 23841-36010 · 23841-37090 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-28010 |
| 23901 | Fuel pipe sub-assembly | 23901-21170 · 23901-21190 · 23901-22200 · 23901-37190 |
