Toyota COROLLA Alternator — Figure 1903

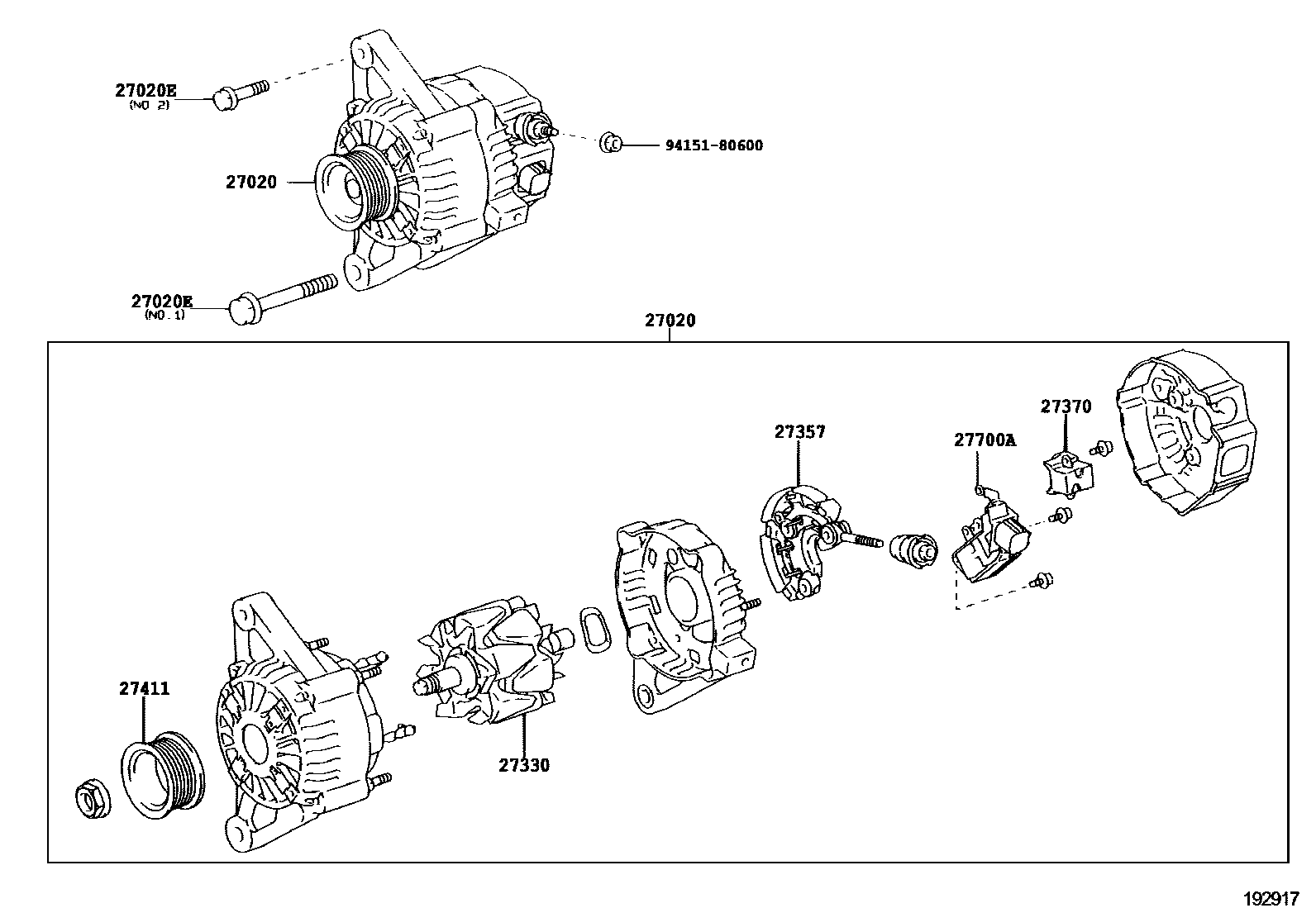

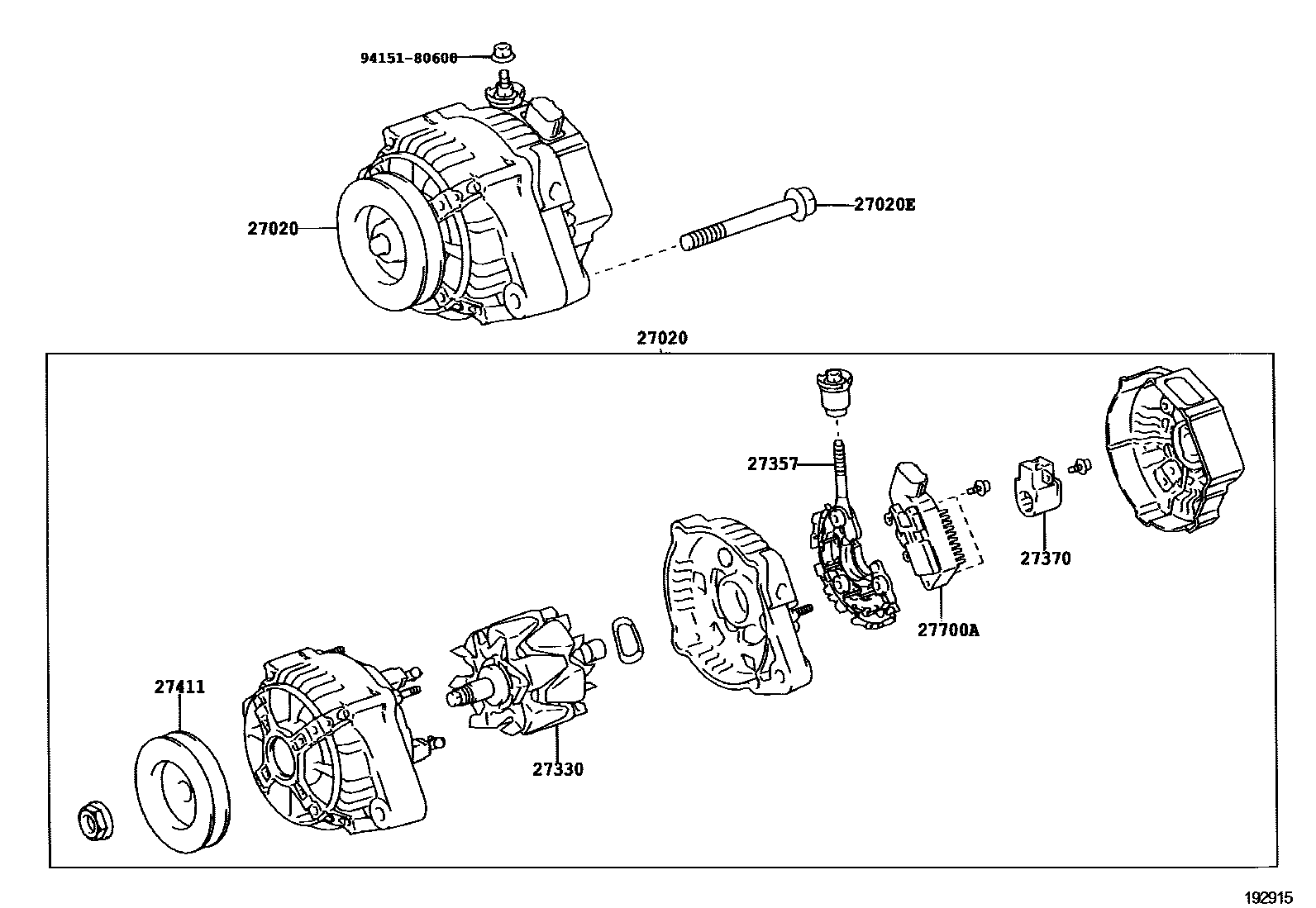

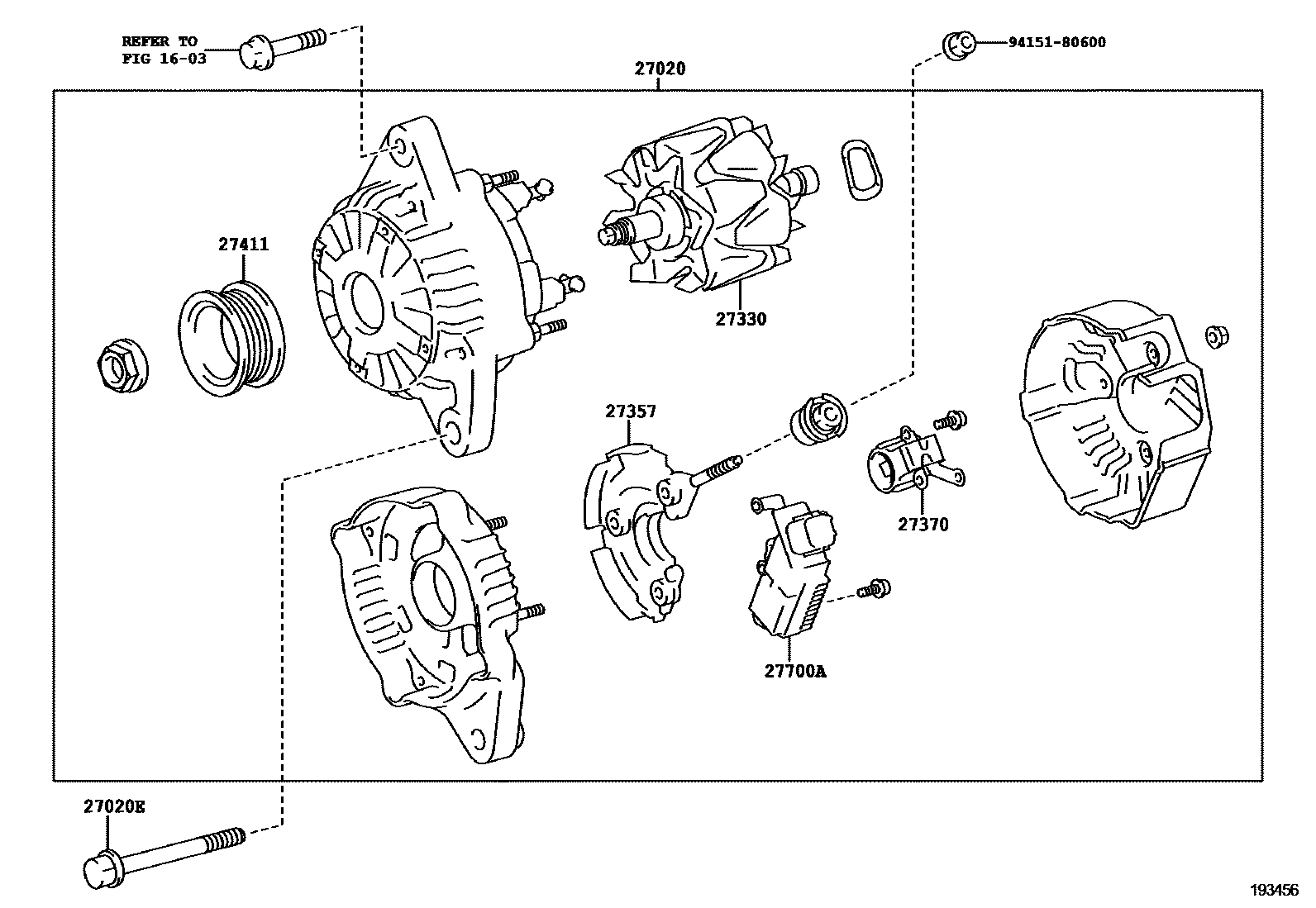

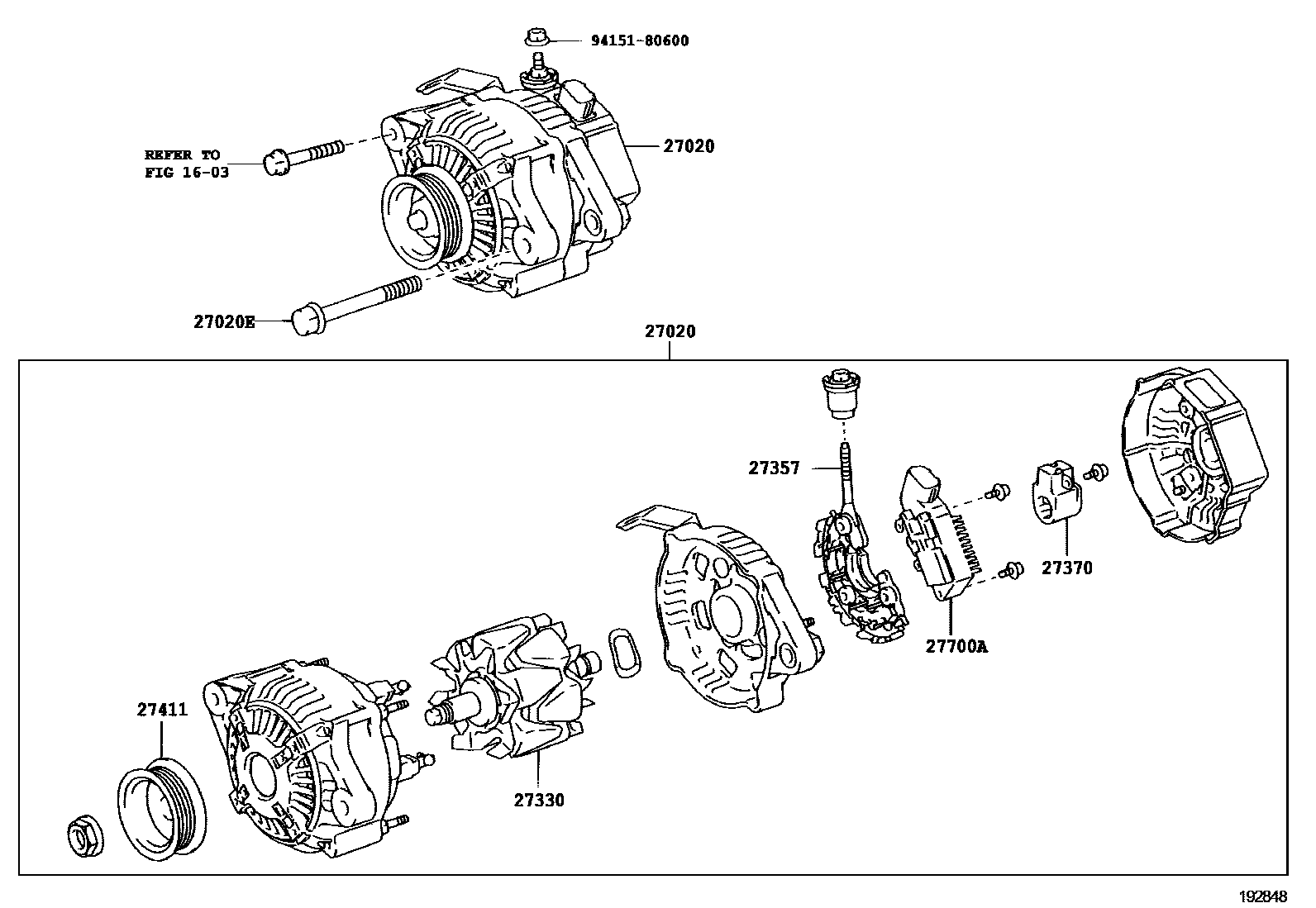

Toyota COROLLA EPC diagram 1903, Alternator, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-21130 · 27060-21131 · 27060-21150 · 27060-21151 · 27060-22230 · 27060-22231 · 27060-37090 · 27060-64450 |
| 27020E | Bolts (for generator) | 90105-10075 · 90105-10307 · 90901-05004 · 91511-80830 |
| 27330 | Alternator Rotor Assembly | 27330-30130 · 27330-62220 |
| 27357 | Generator rectifier frame | 27357-22200 |
| 27370 | Alternator Brush Holder Assembly | 27370-23120 · 27370-75060 |
| 27411 | Alternator Pulley | 27411-22080 · 27411-22210 · 27411-64660 · 27411-70140 |
| 27700A | Generator voltage regulator assembly | 27700-21050 · 27700-22050 · 27700-28080 |
