Toyota COROLLA vacuum tube — Figure 1708

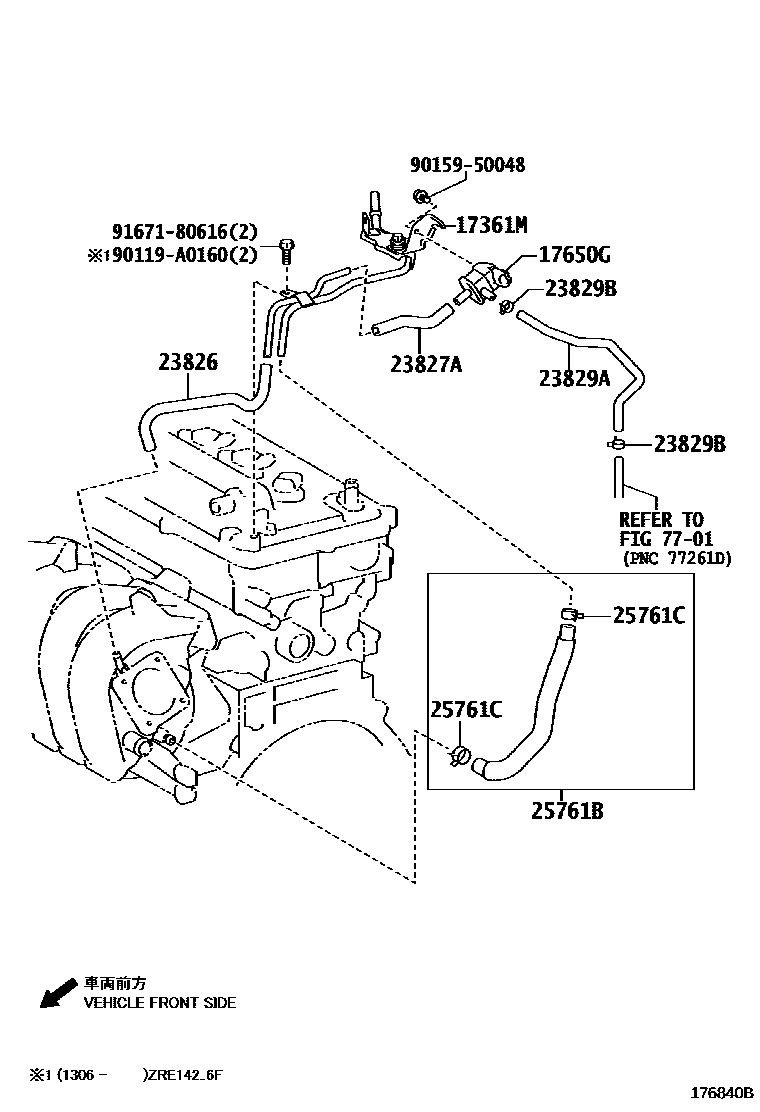

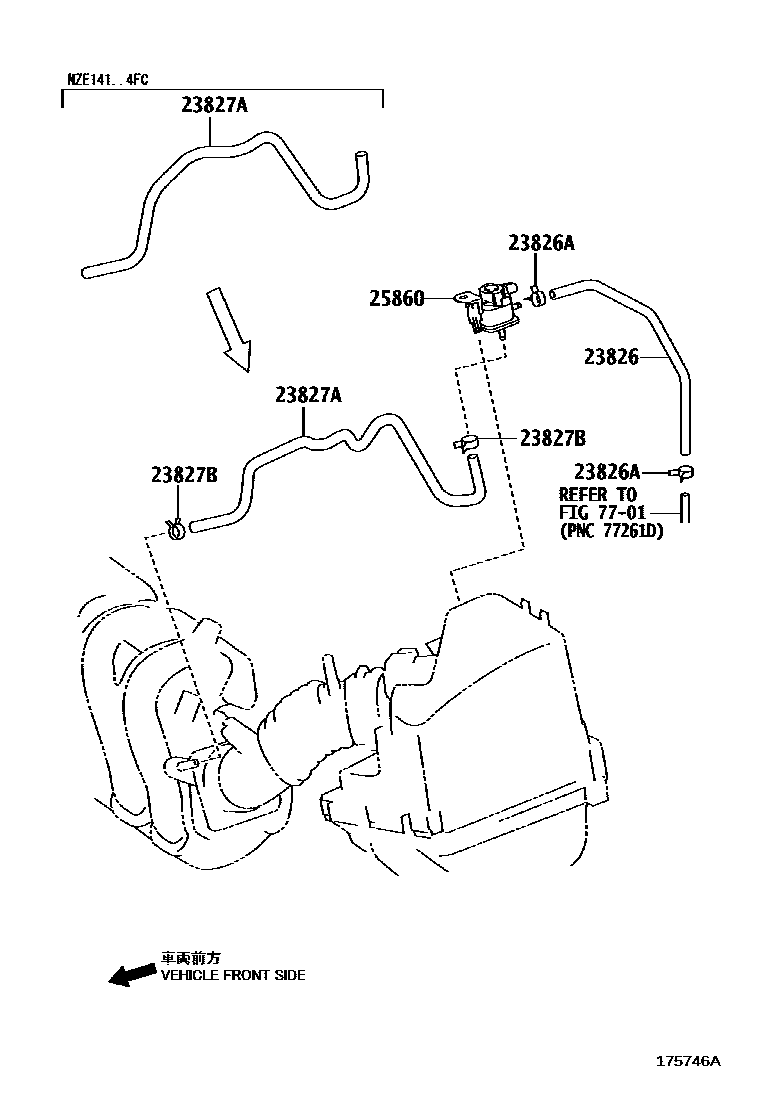

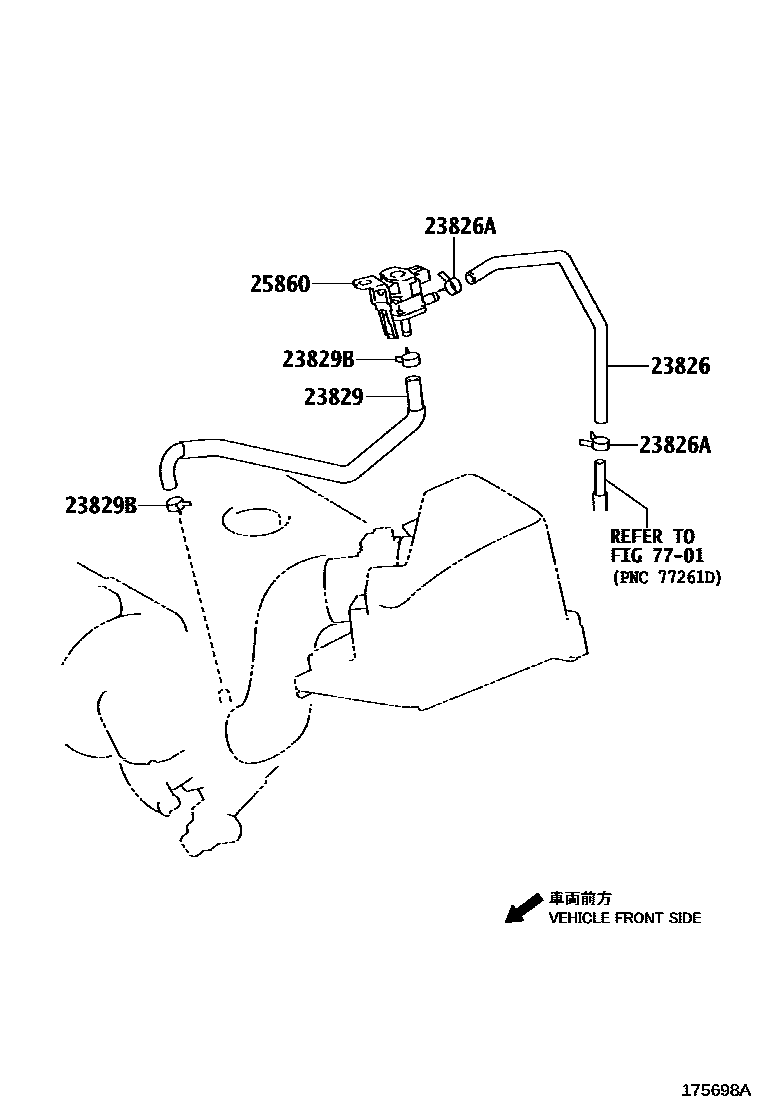

Toyota COROLLA EPC diagram 1708, vacuum tube, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17361M | air tube | 17361-37011 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 · 90910-TC001 |
| 23826 | No. 1 fuel vapor supply hose | 23826-21160 · 23826-21170 · 23826-37021 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-21130 · 23827-21160 · 23827-37020 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-51300 |
| 23829 | No. 3 fuel vapor supply hose | 23829-22100 · 23829-22120 · 23829-22130 |
| 23829A | Fuel vapor supply hose | 23826-37060 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-11003 · 96132-51300 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-37011 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-21100 · 25860-21120 |
