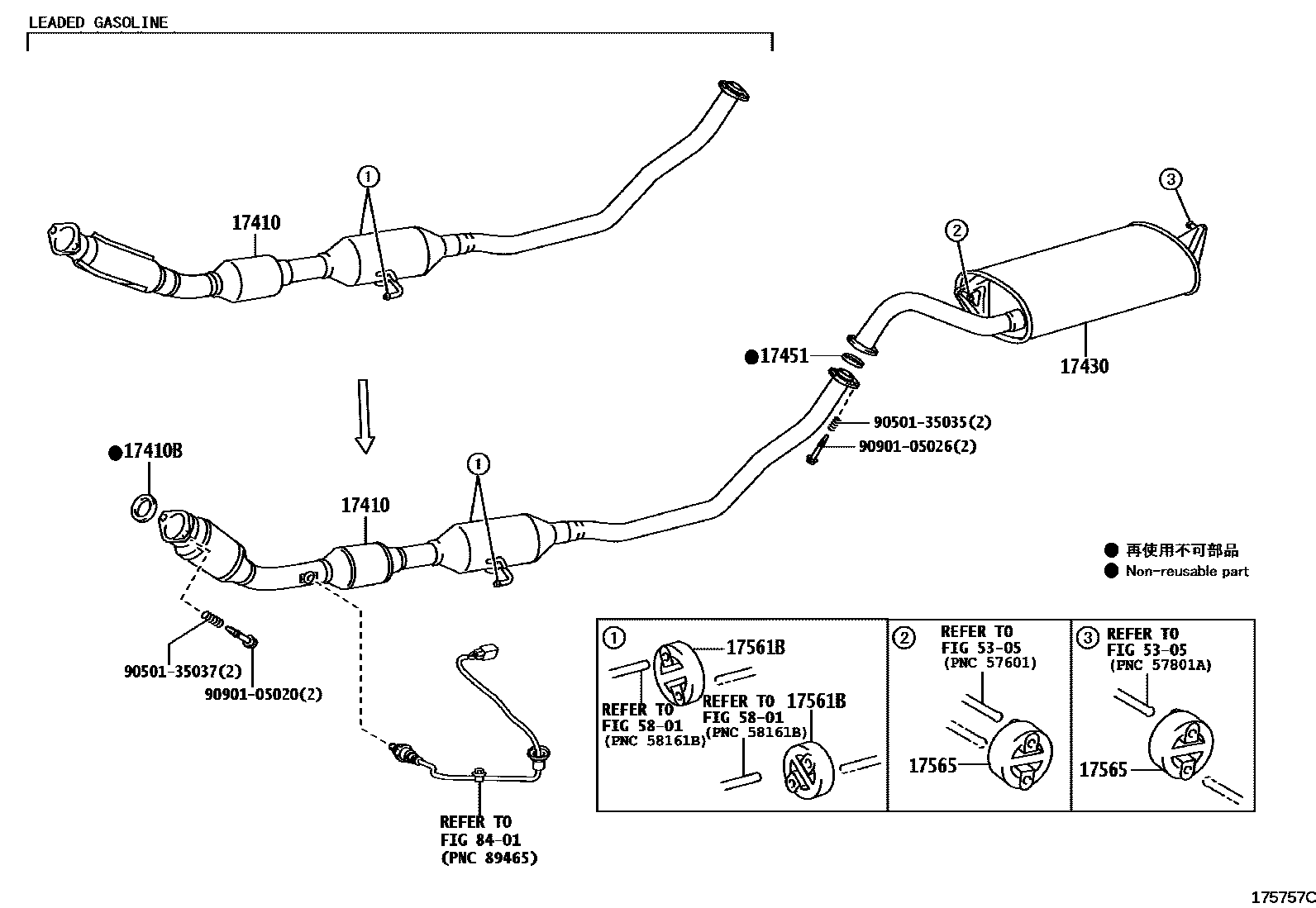

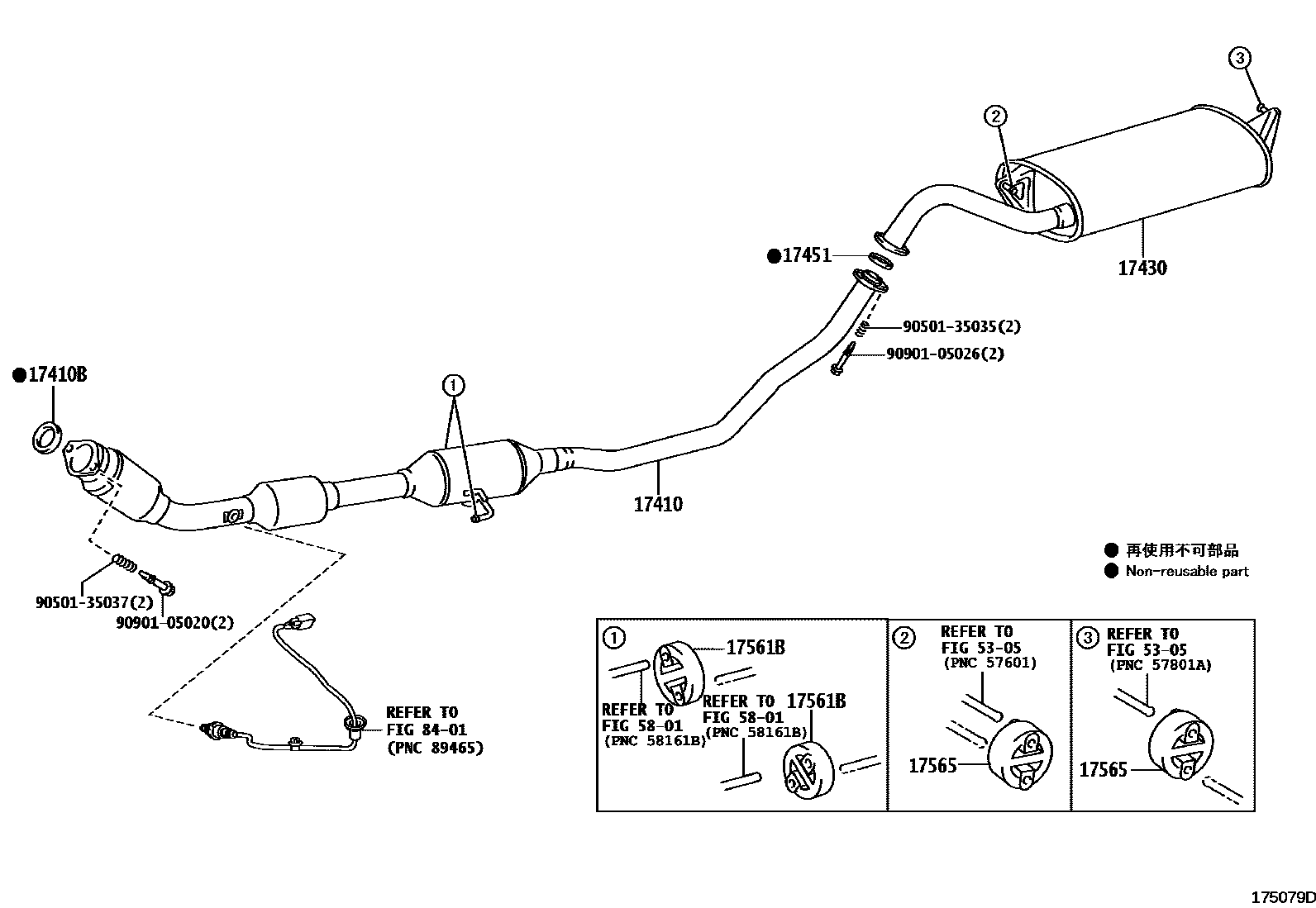

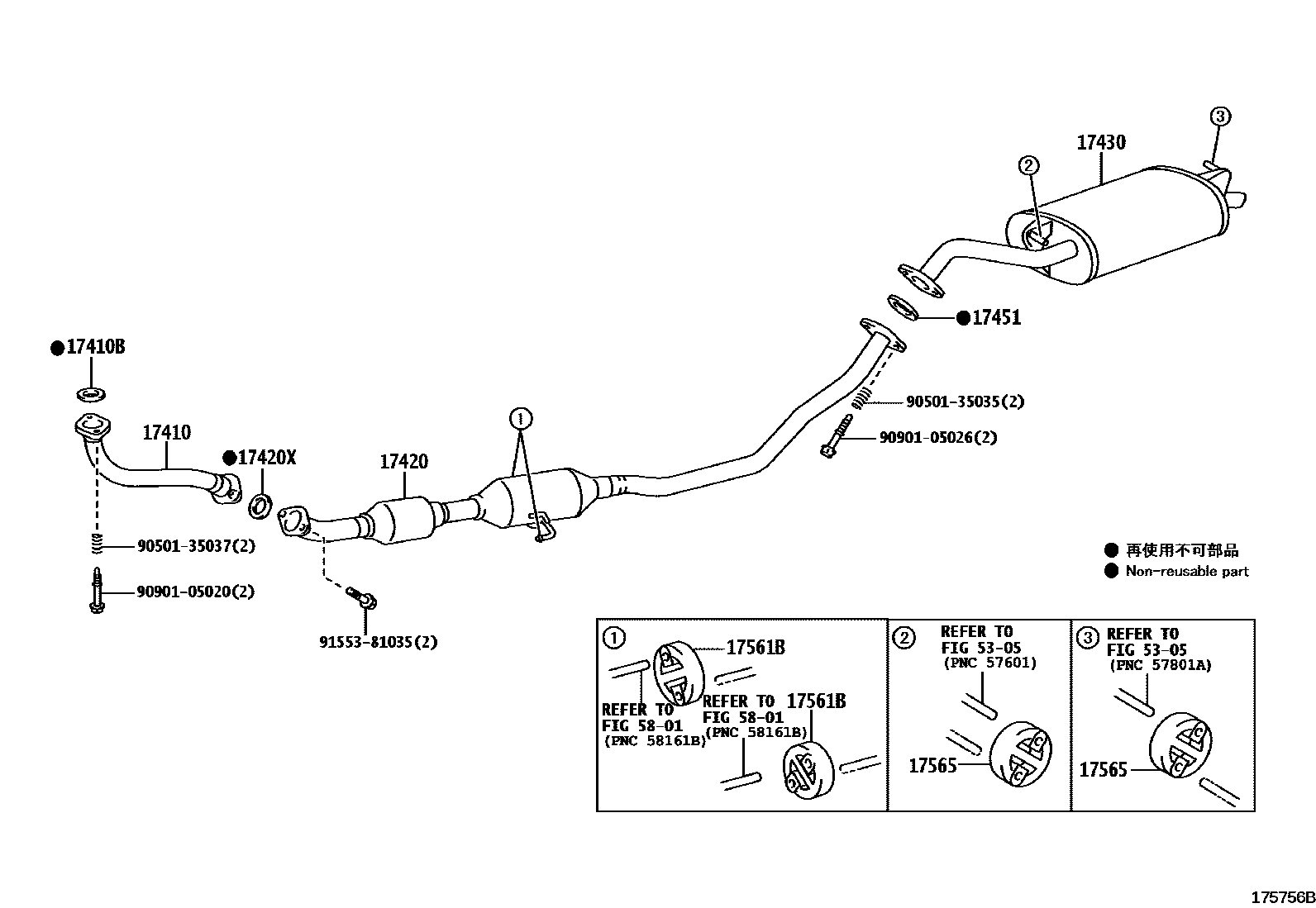

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-21780 · 17410-21790 · 17410-21A20 · 17410-22630 · 17410-22650 · 17410-37410 · 17410-64A00 |
| 17410B | Exhaust pipe gasket | 17451-21070 · 17451-22070 · 17451-28040 · 90917-06080 |
| 17420 | Central exhaust pipe assembly | 17420-64310 |
| 17420X | Center exhaust pipe liner | 90917-06089 |
| 17430 | Exhaust tailpipe assembly | 17430-21700 · 17430-21730 |
| 17451 | Exhaust pipe gasket | 17451-23040 · 17451-23041 · 17451-23042 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-22030 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-22040 |
