Toyota COROLLA Manifold — Figure 1701

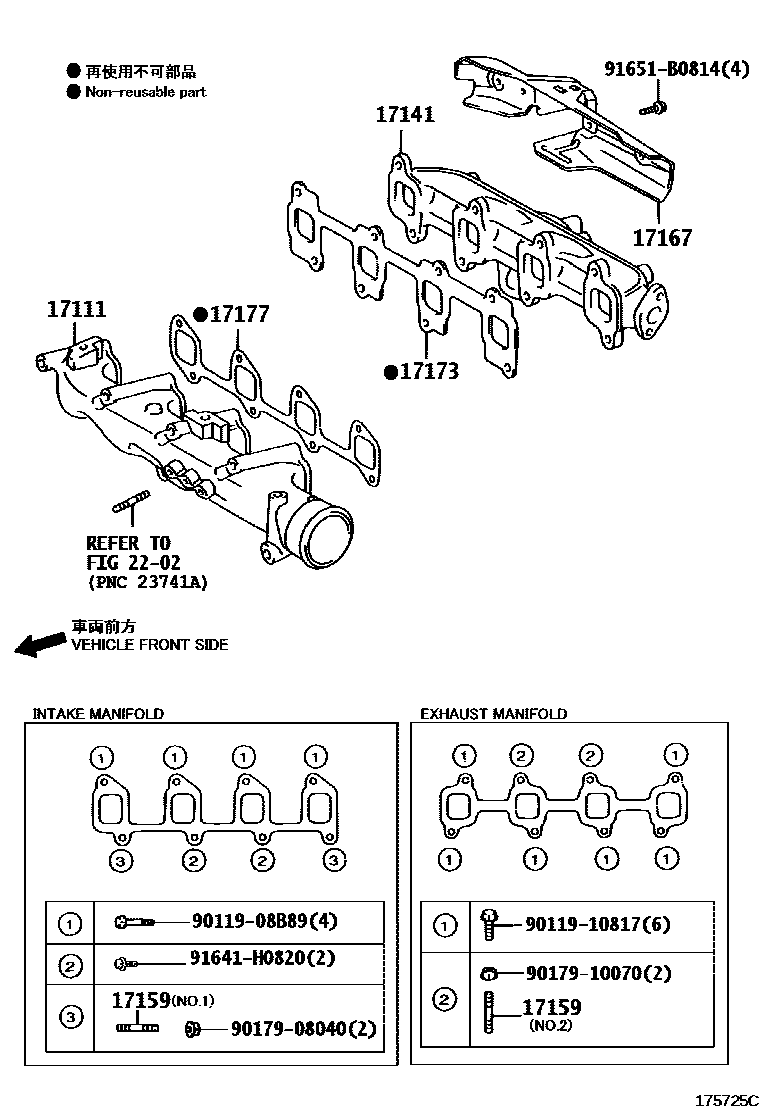

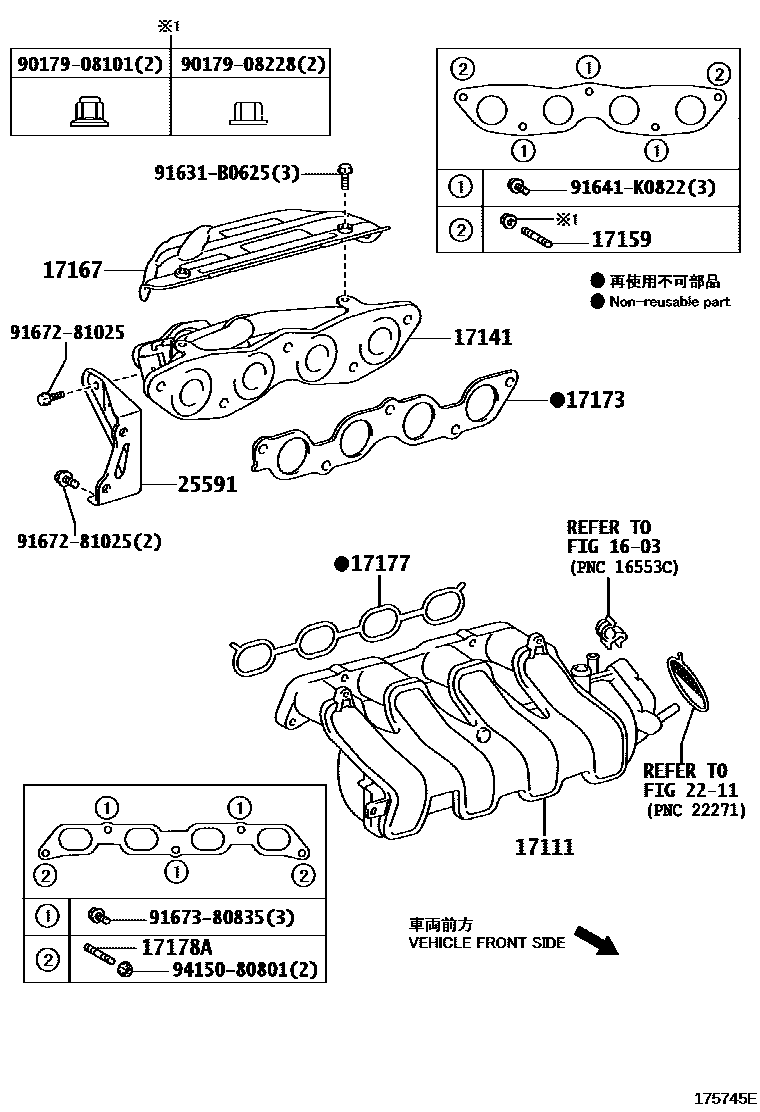

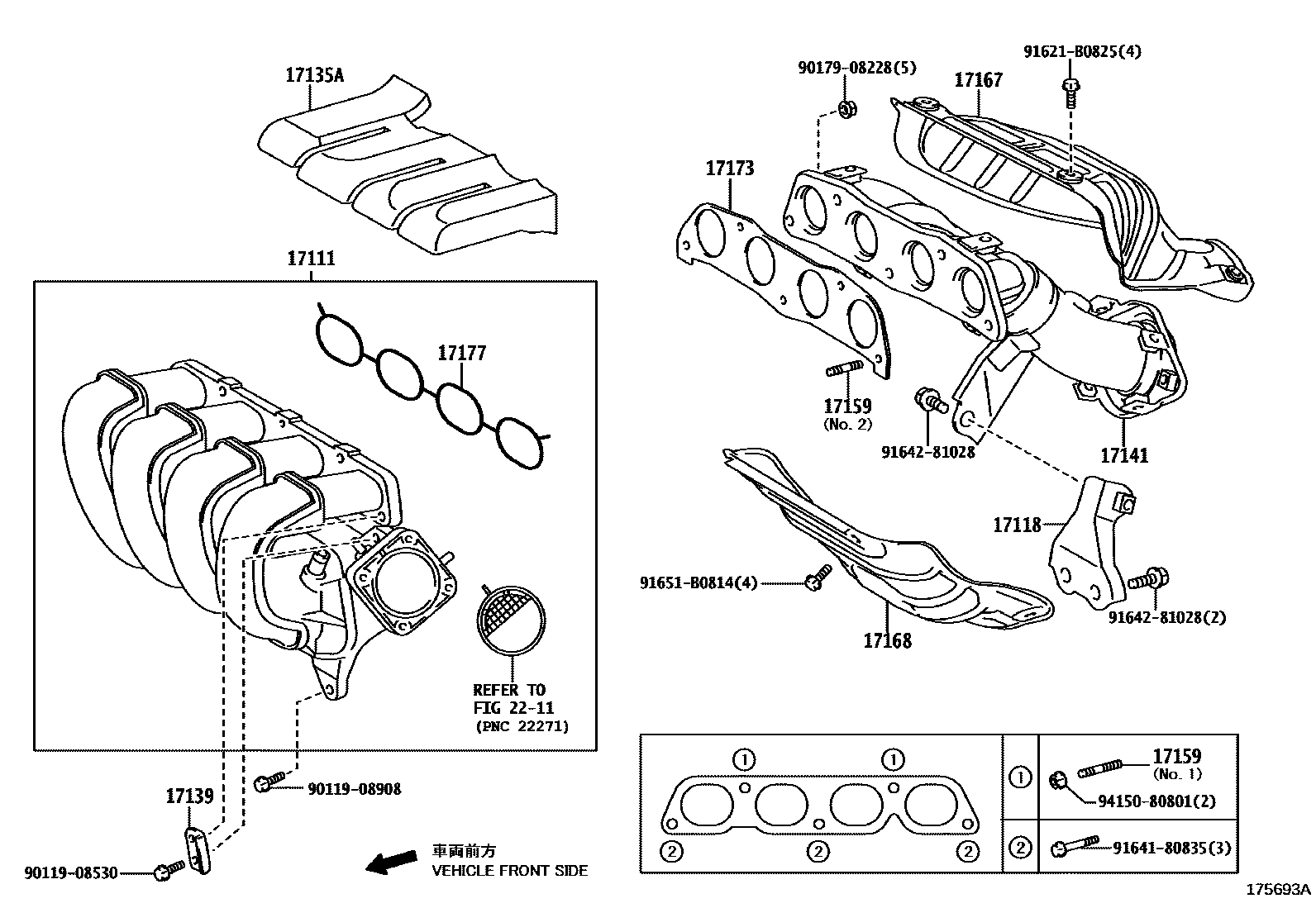

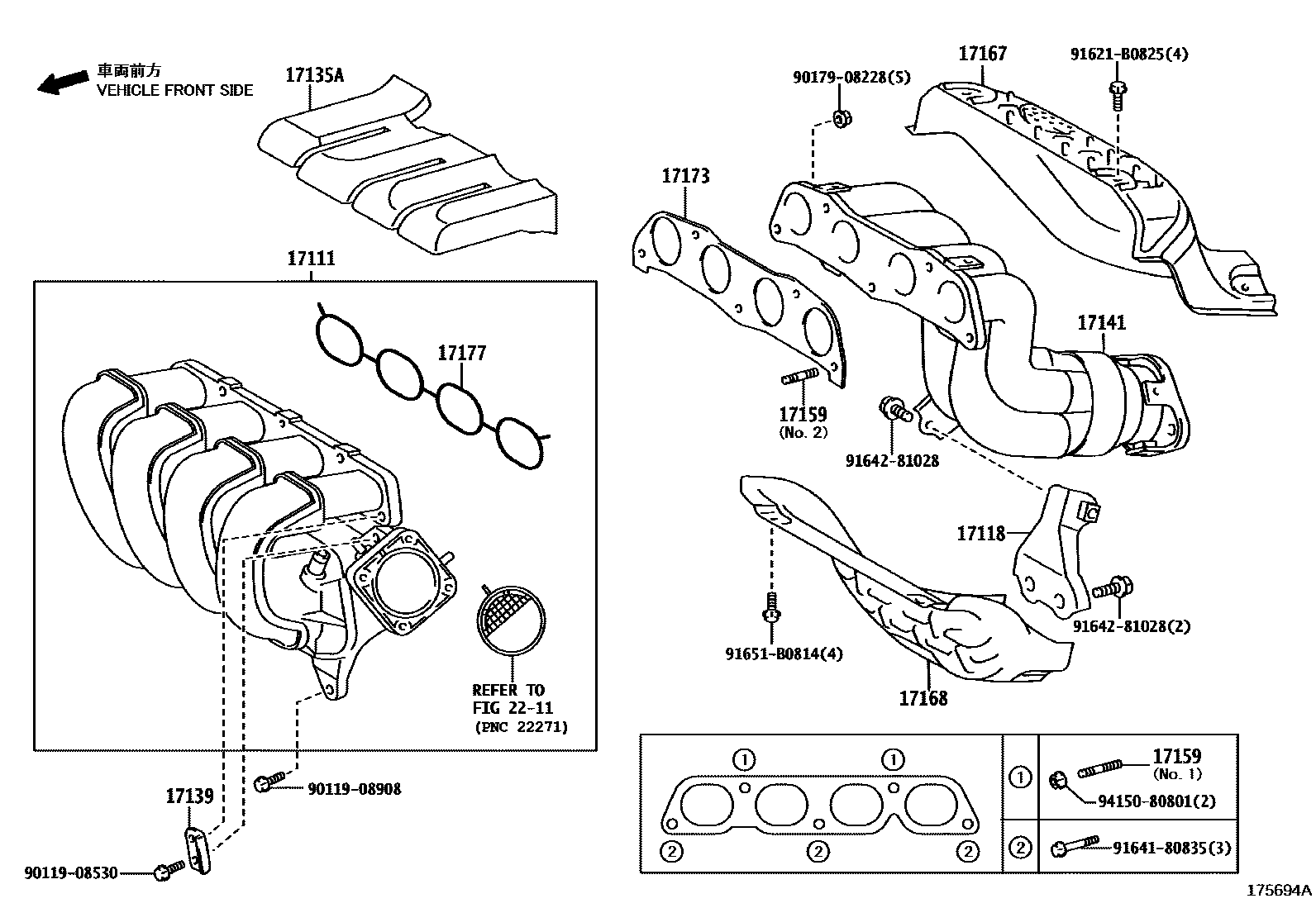

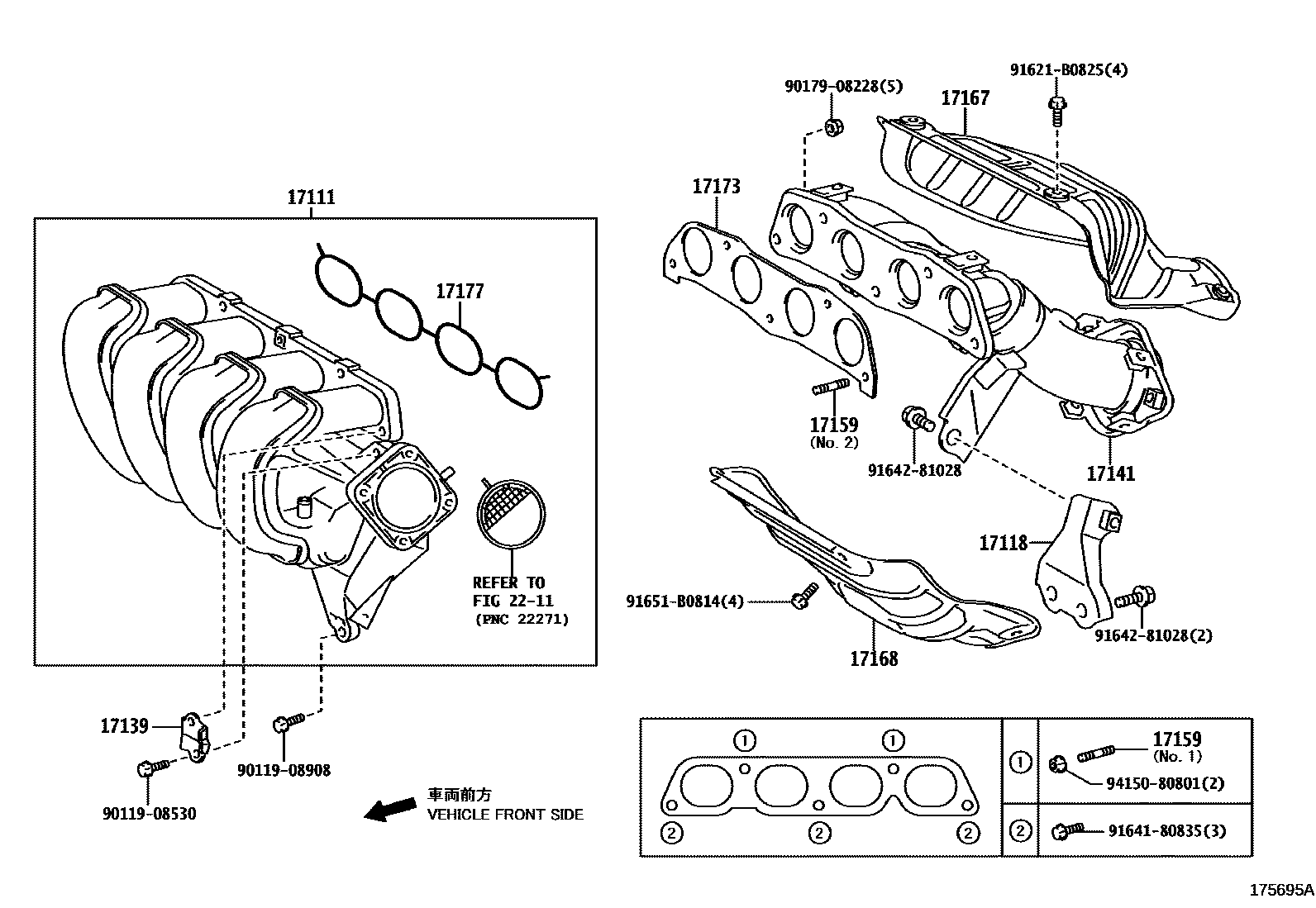

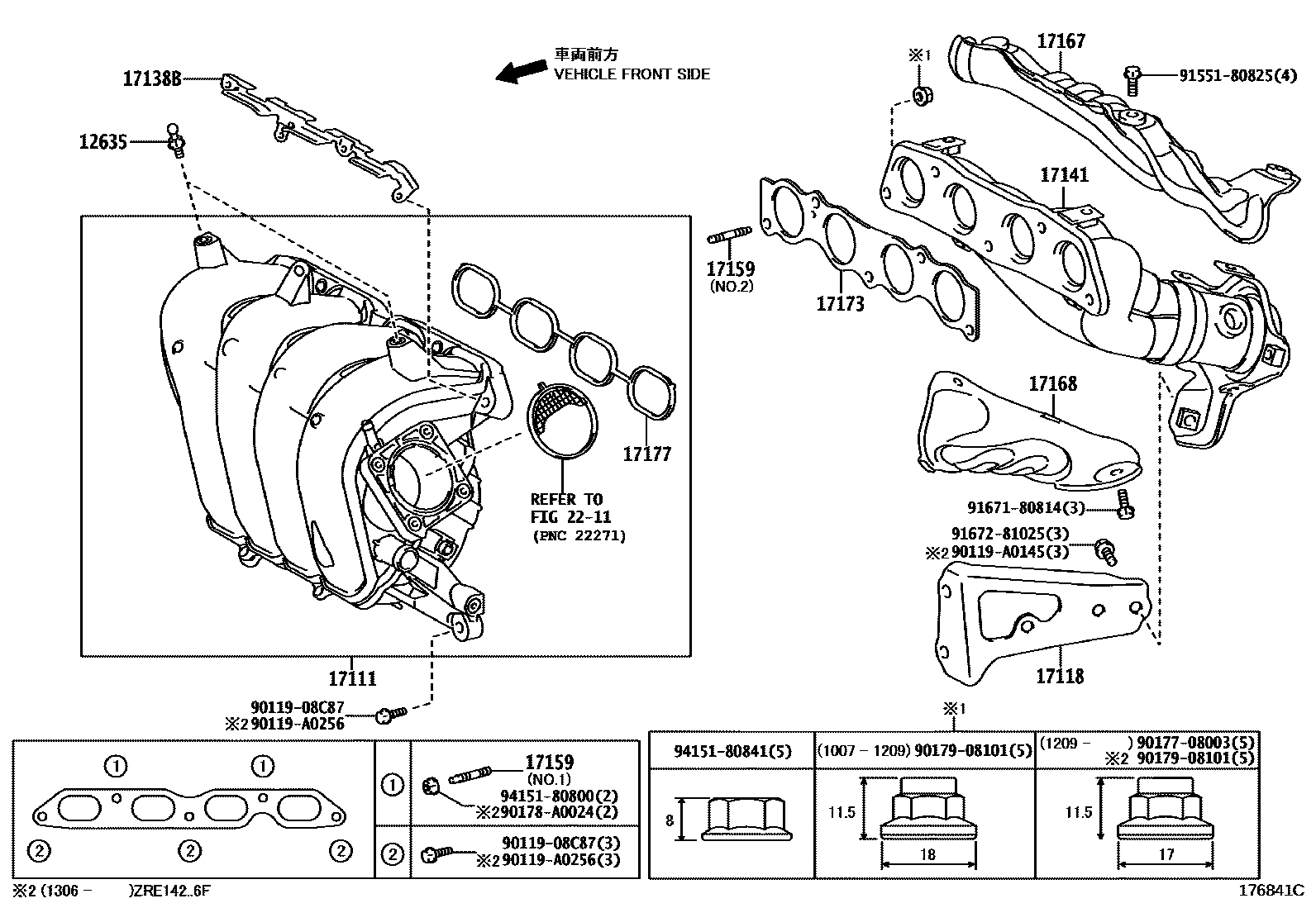

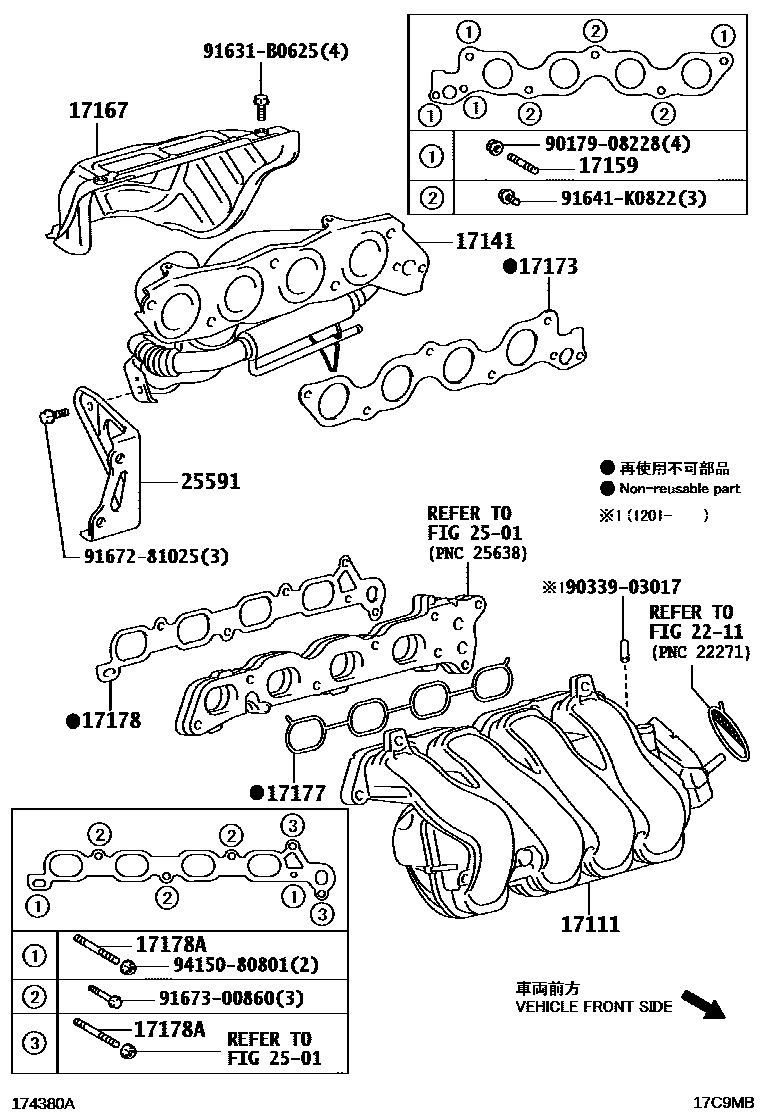

Toyota COROLLA EPC diagram 1701, Manifold, with 7 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12635 | hood connector | 90109-06385 |
| 17111 | Intake Manifold | 17101-21070 · 17101-21080 · 17111-64150 · 17120-0D070 · 17120-0T012 · 17120-22070 · 17120-37022 |
| 17118 | Manifold stays | 17118-0T060 · 17118-22020 · 17118-37010 |
| 17135A | Intake manifold No. 1 heat shield | 17135-22010 |
| 17138B | Intake manifold stay | 17138-0T010 · 17138-0T011 · 17138-37010 · 17138-37011 |
| 17139 | No. 2 manifold stay | 17139-22030 · 17139-22050 |
| 17141 | exhaust manifold | 17104-21040 · 17104-21041 · 17104-22050 · 17104-22100 · 17141-21130 · 17141-21210 · 17141-37051 · 17141-37130 · 17141-64310 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08037 · 90126-08043 · 90126-08052 · 90126-10017 · 90126-A0006 · 90126-A0019 · 92122-60820 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-21110 · 17167-22041 · 17167-22080 · 17167-37011 · 17167-37110 · 17167-64120 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-22040 · 17168-22080 · 17168-37100 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0T030 · 17173-21020 · 17173-21030 · 17173-22010 · 17173-37010 · 17173-64060 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-0D030 · 17171-22030 · 17177-0T020 · 17177-21020 · 17177-21030 · 17177-37030 · 17177-64020 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-21010 |
| 17178A | Hexagonal studs (intake manifold to cylinder head gasket) | 90126-08026 · 90126-08049 |
| 25591 | Manifold bracket | 25591-21060 |
