Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 2 images and 2 PNC and OE references.

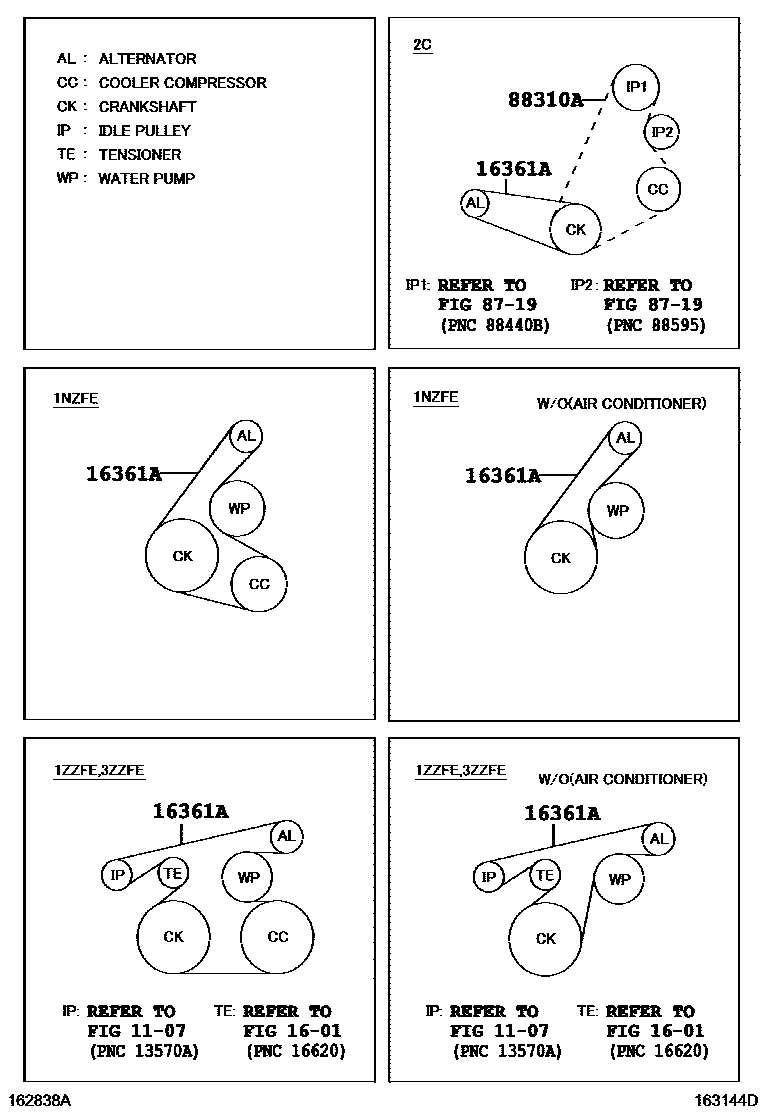

Toyota COROLLA V-Belt EPC diagram — 163144D
V-Belt — 163144D (200704 – 999999)

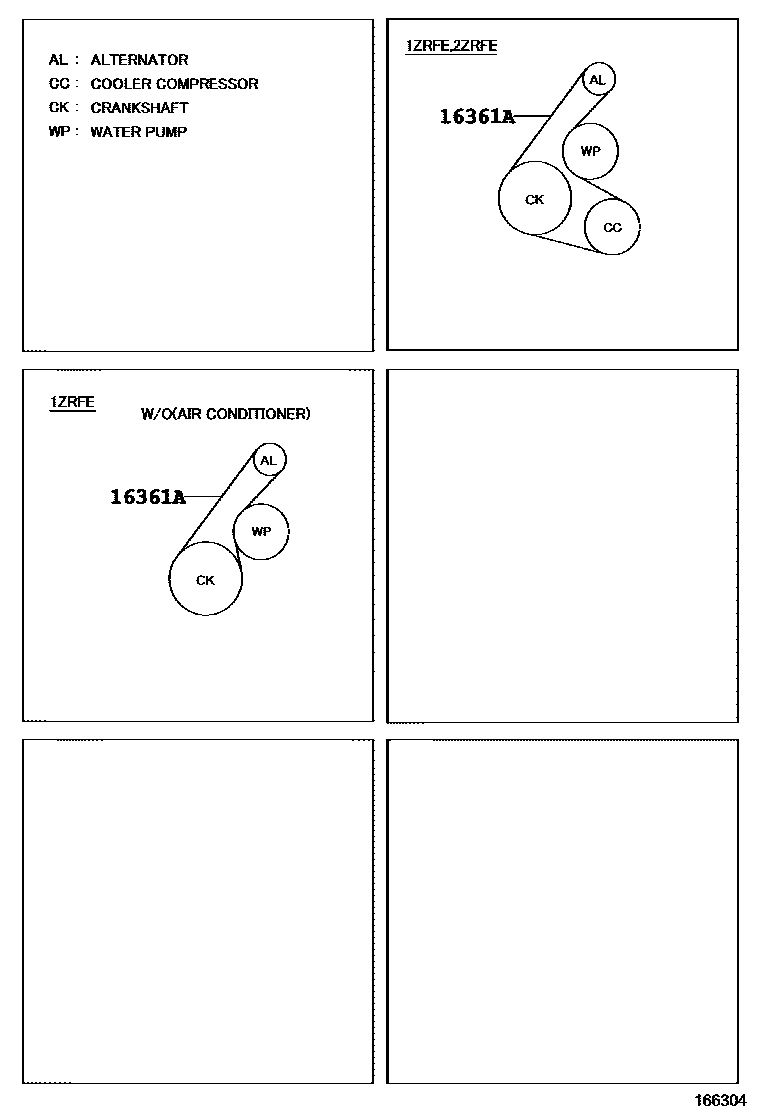

Toyota COROLLA V-Belt EPC diagram — 166304
V-Belt — 166304 (200704 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02372 · 90916-02499 · 90916-02539 · 90916-02556 · 90916-02660 · 90916-02664 · 90916-02705 · 99366-H1400 · 99366-H1680 · 99366-K0910
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)99365-C1210 · 99365-D1210 · 99365-H1210
