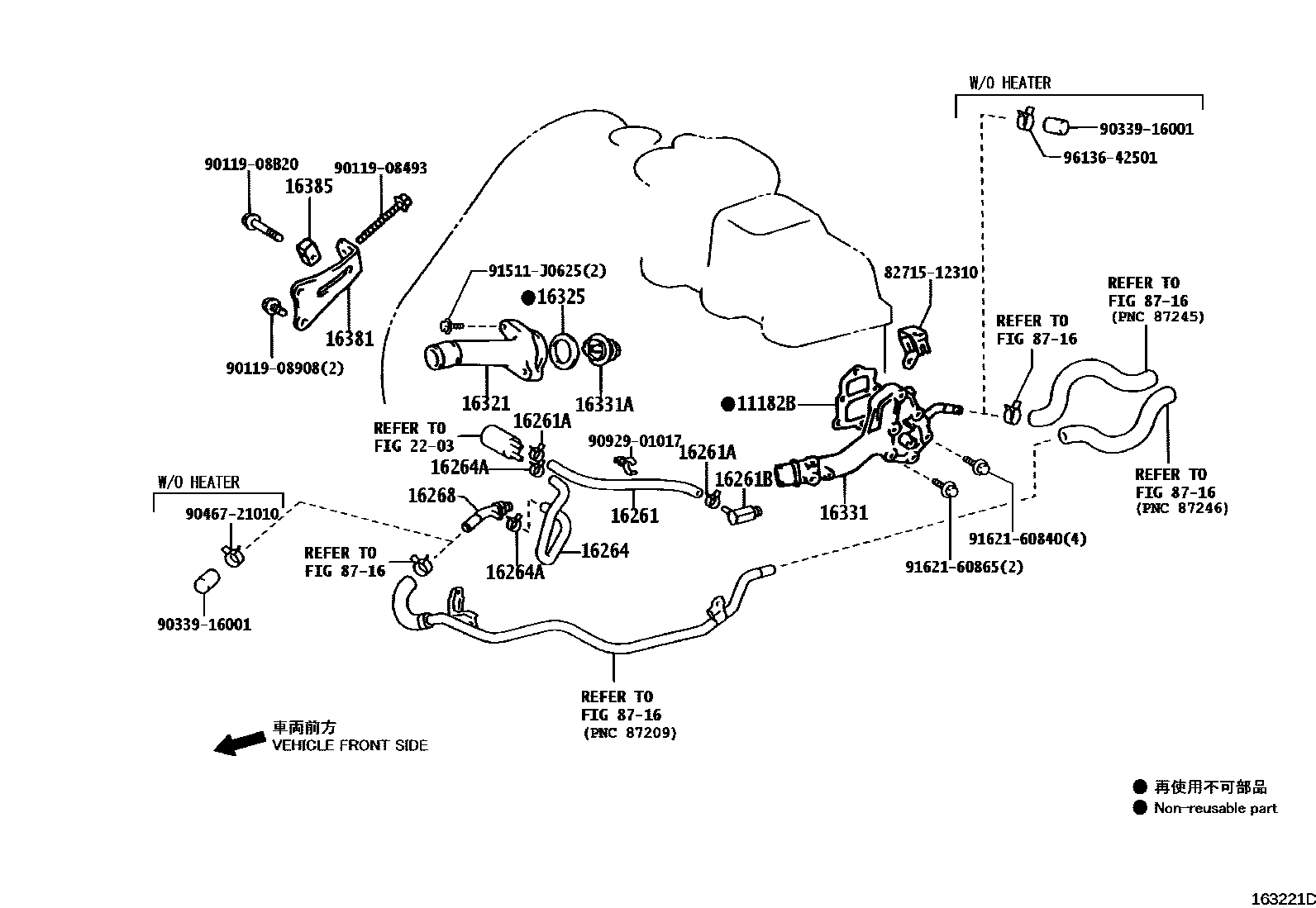

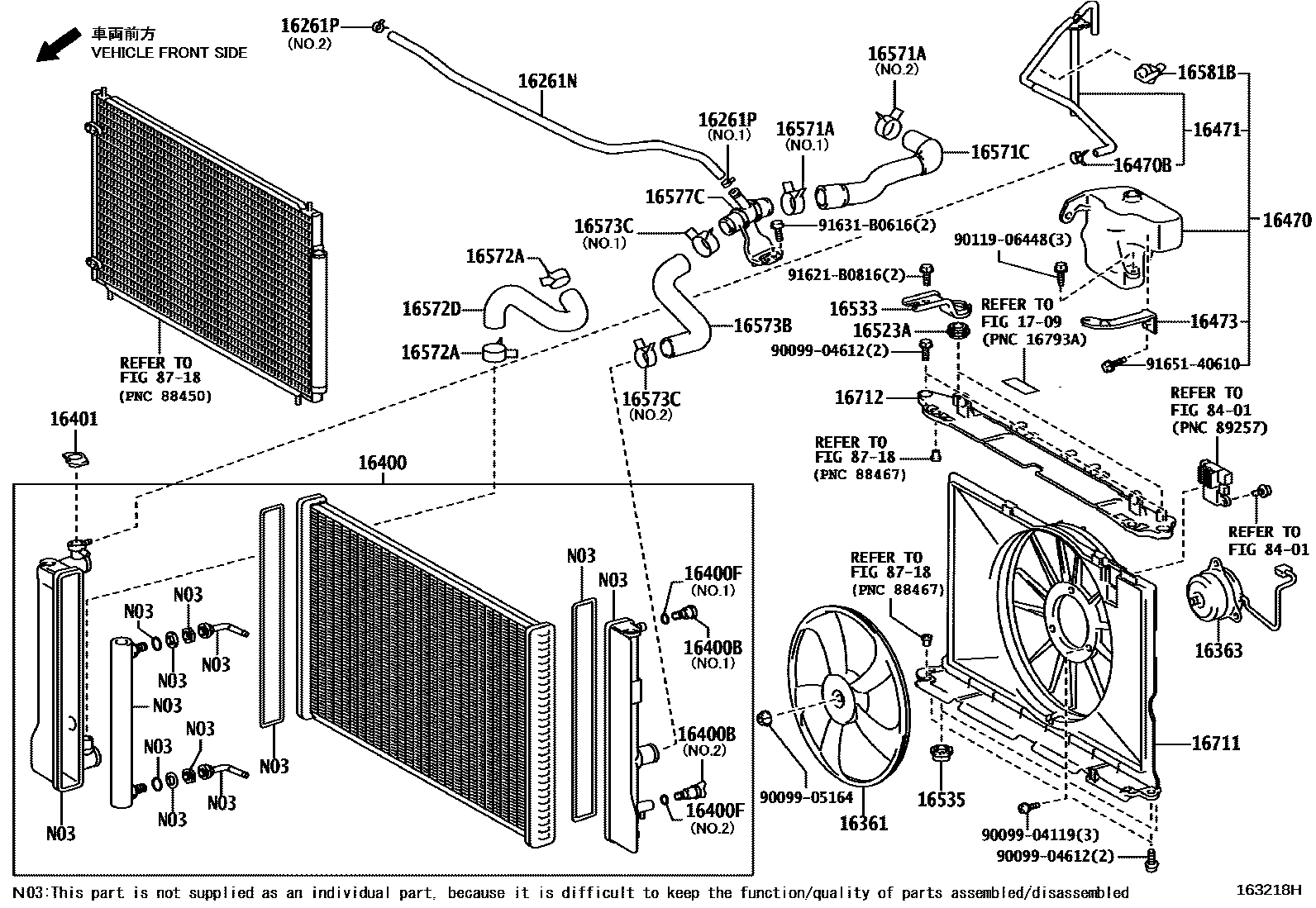

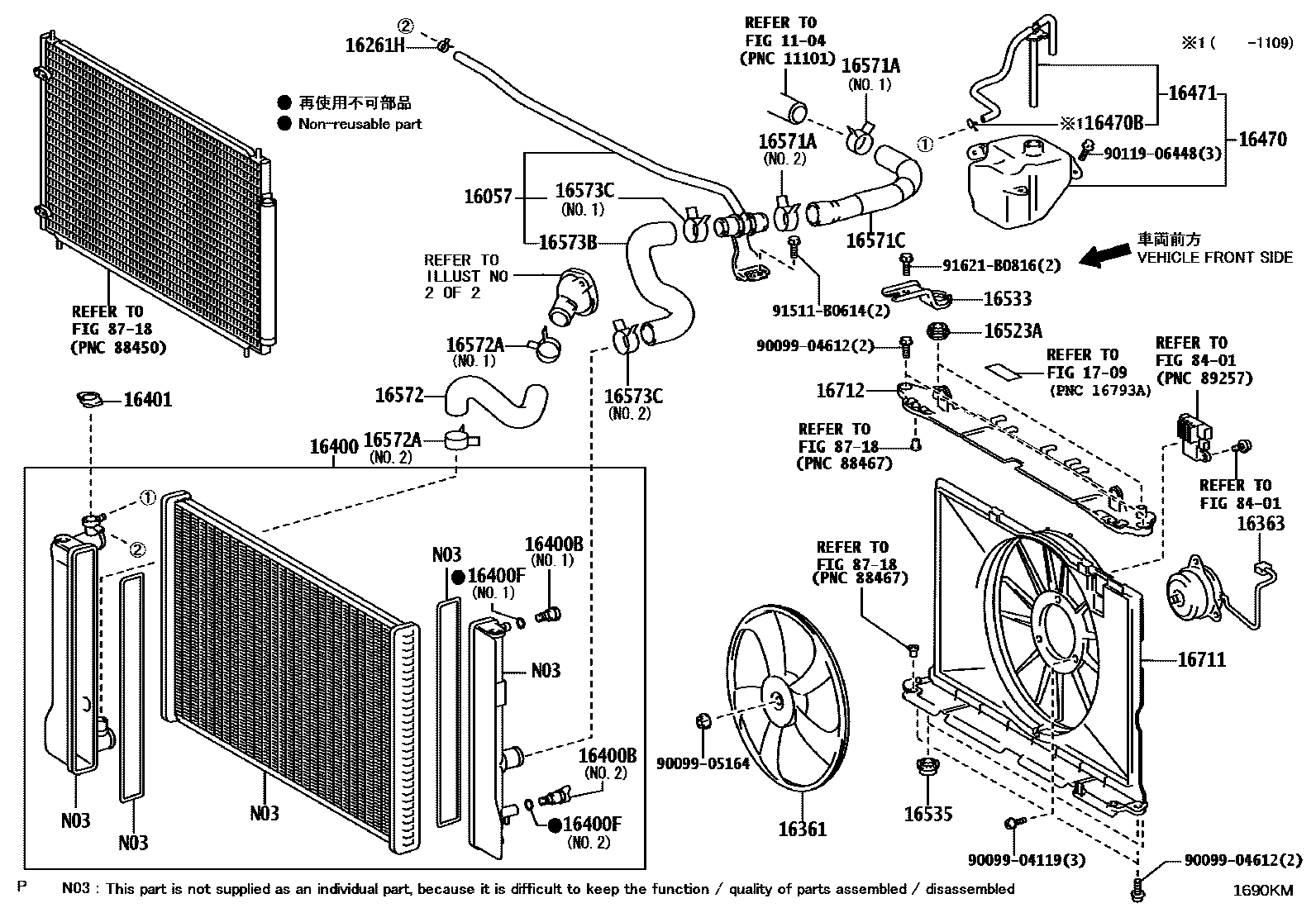

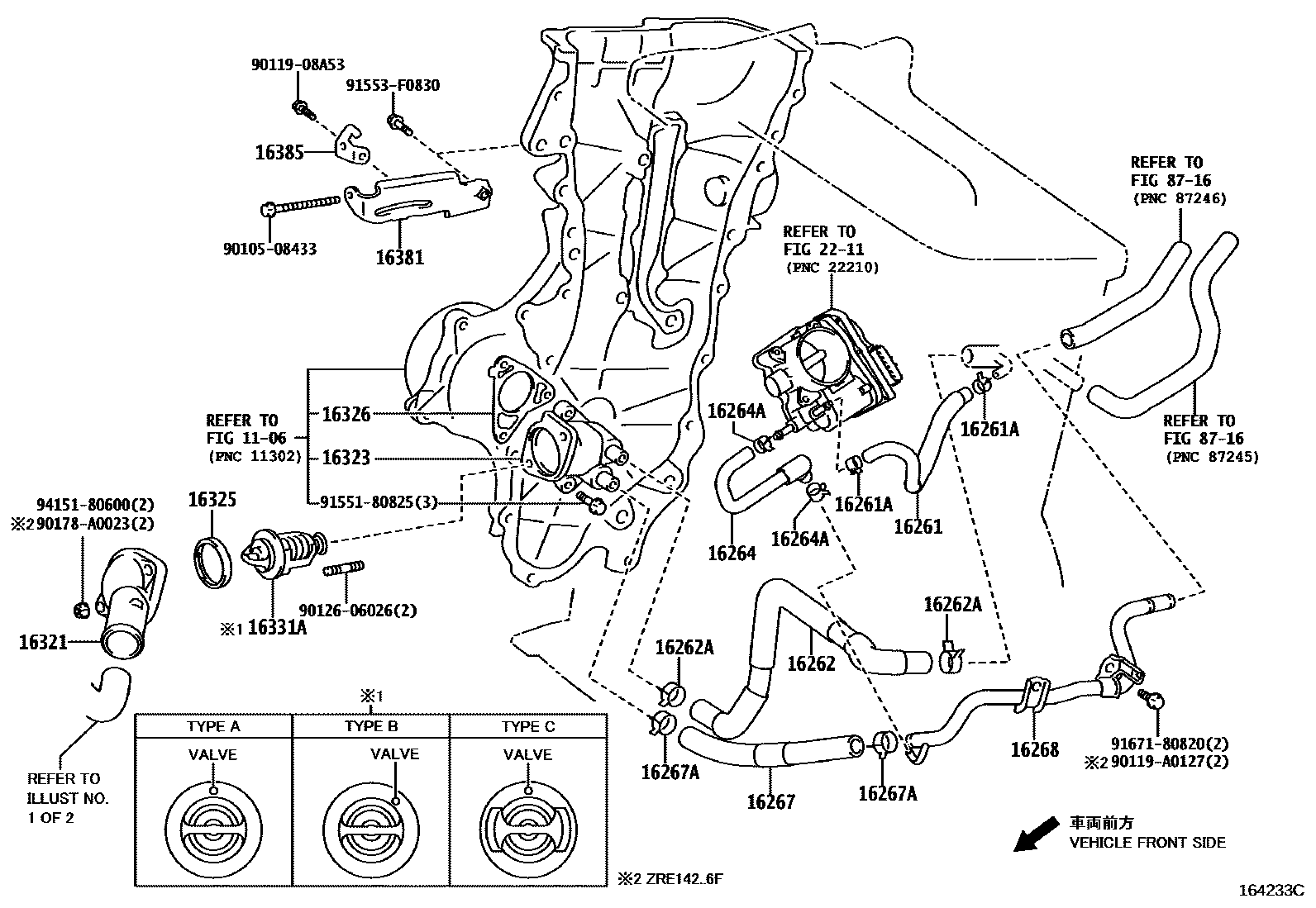

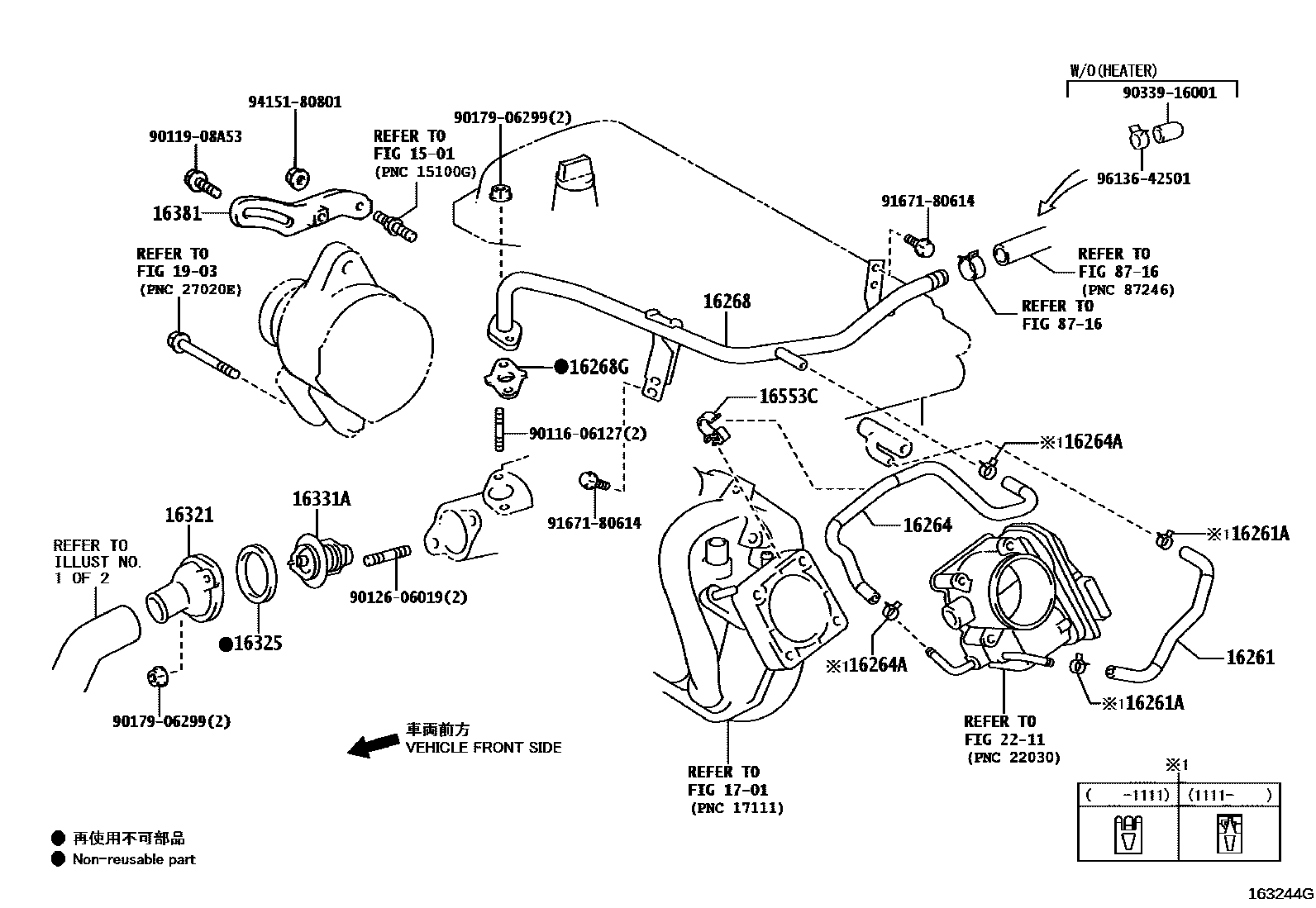

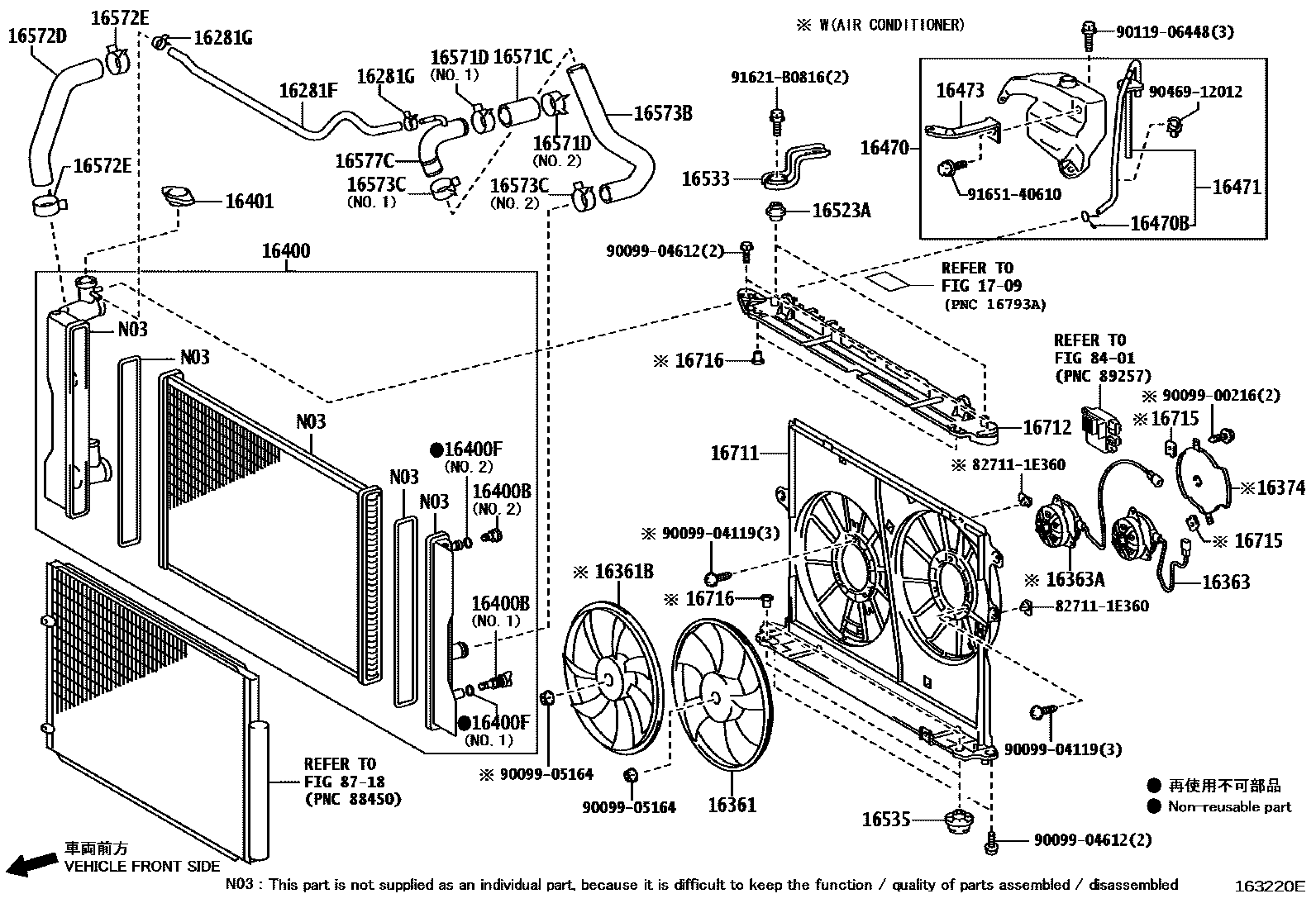

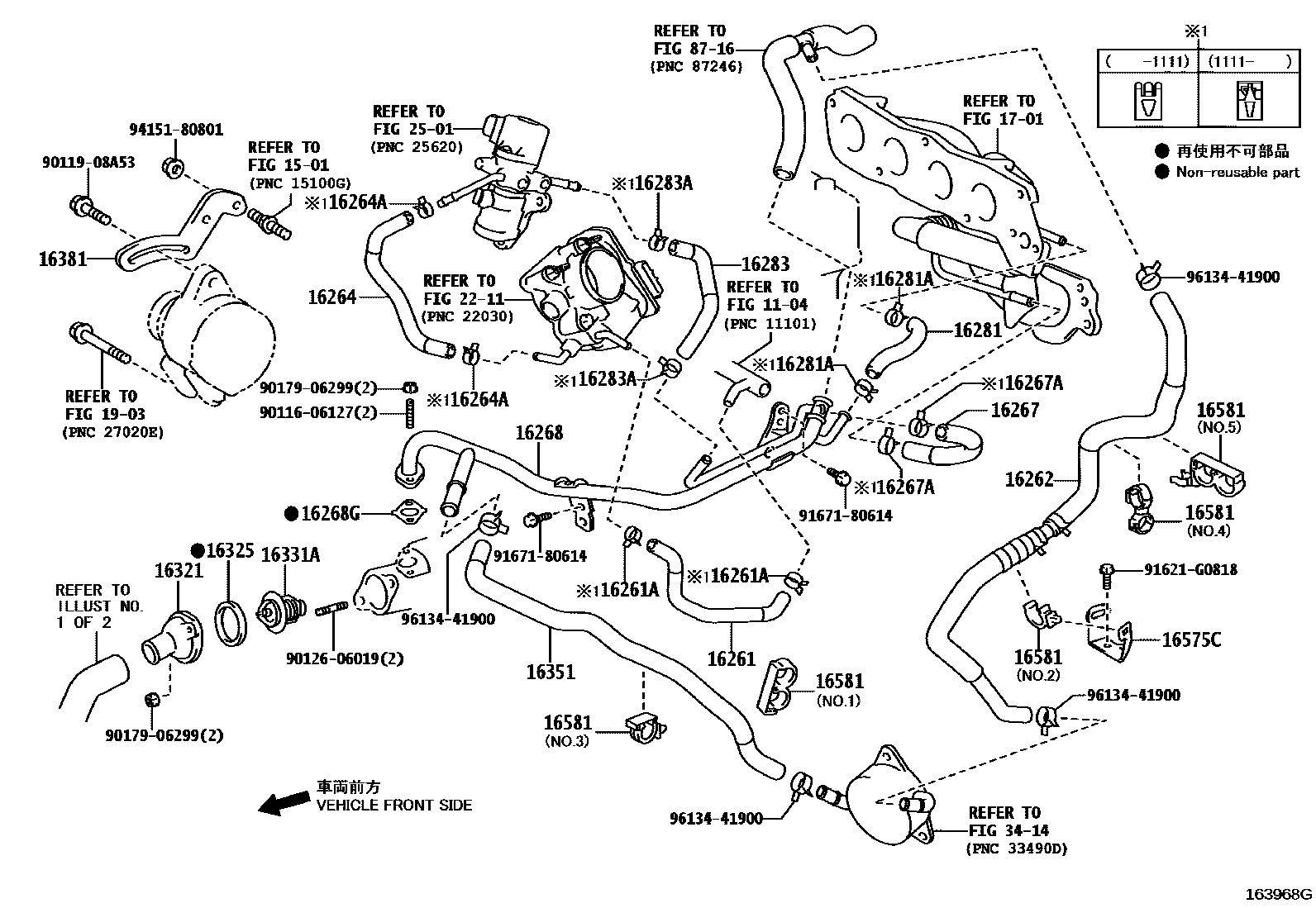

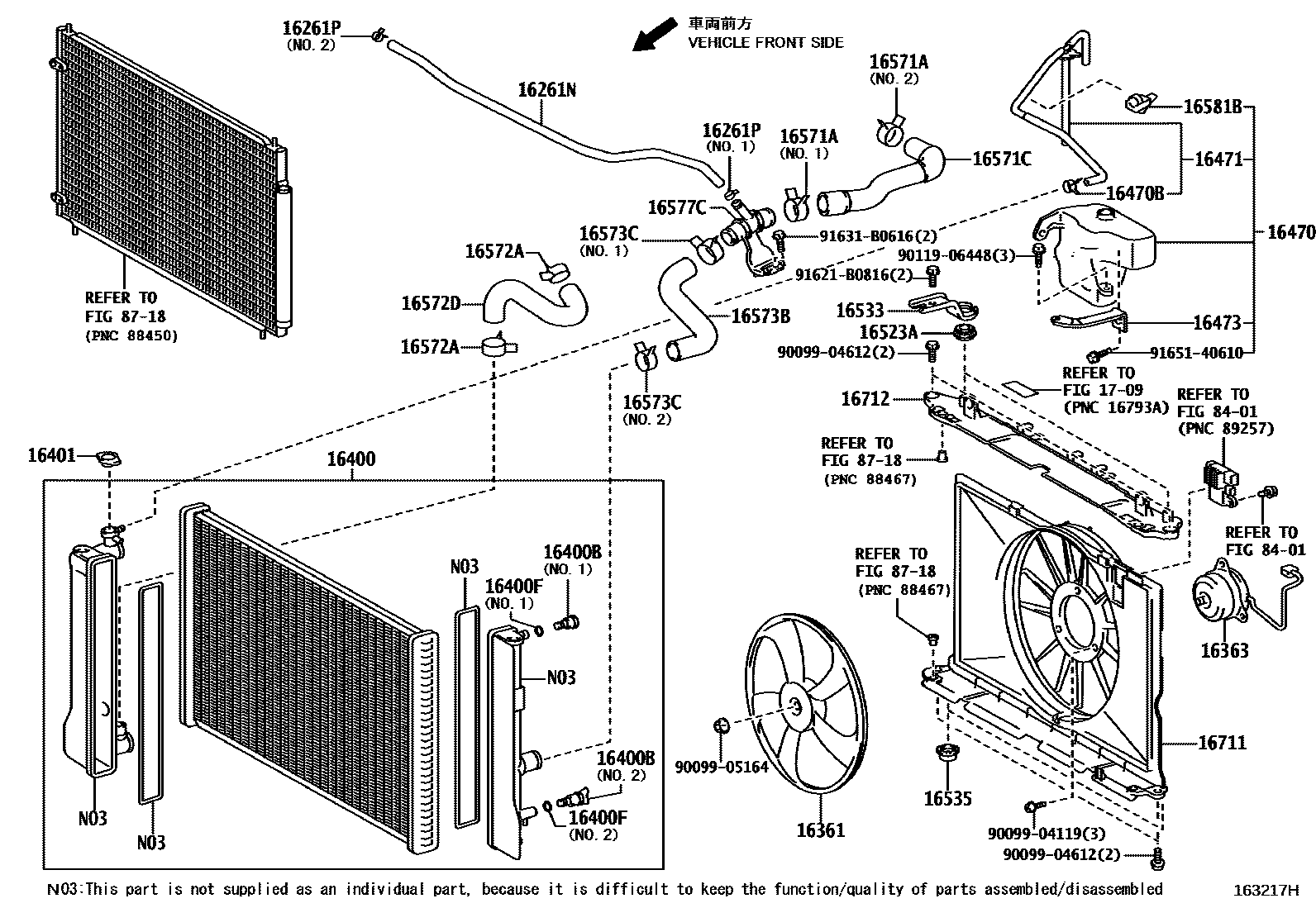

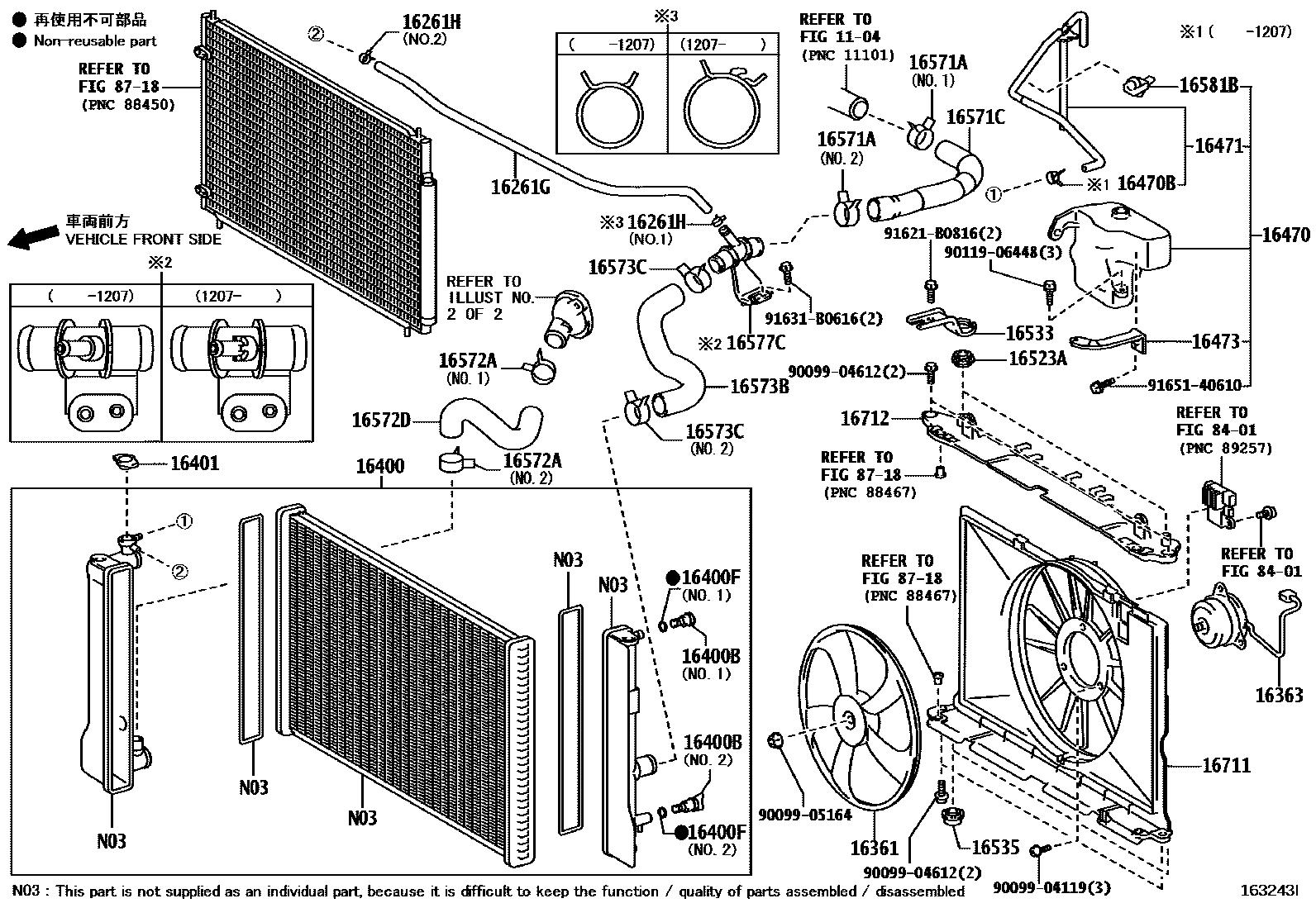

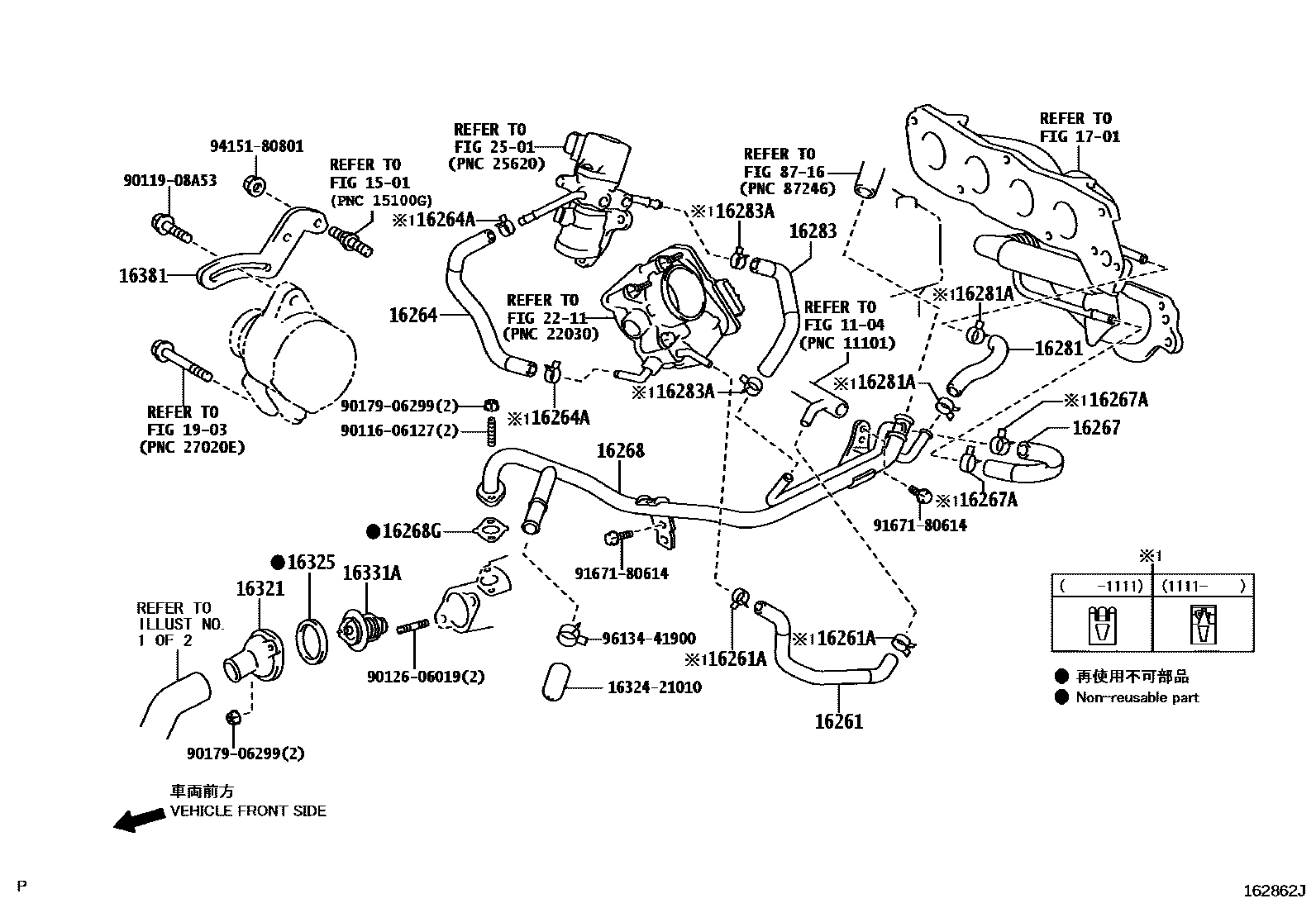

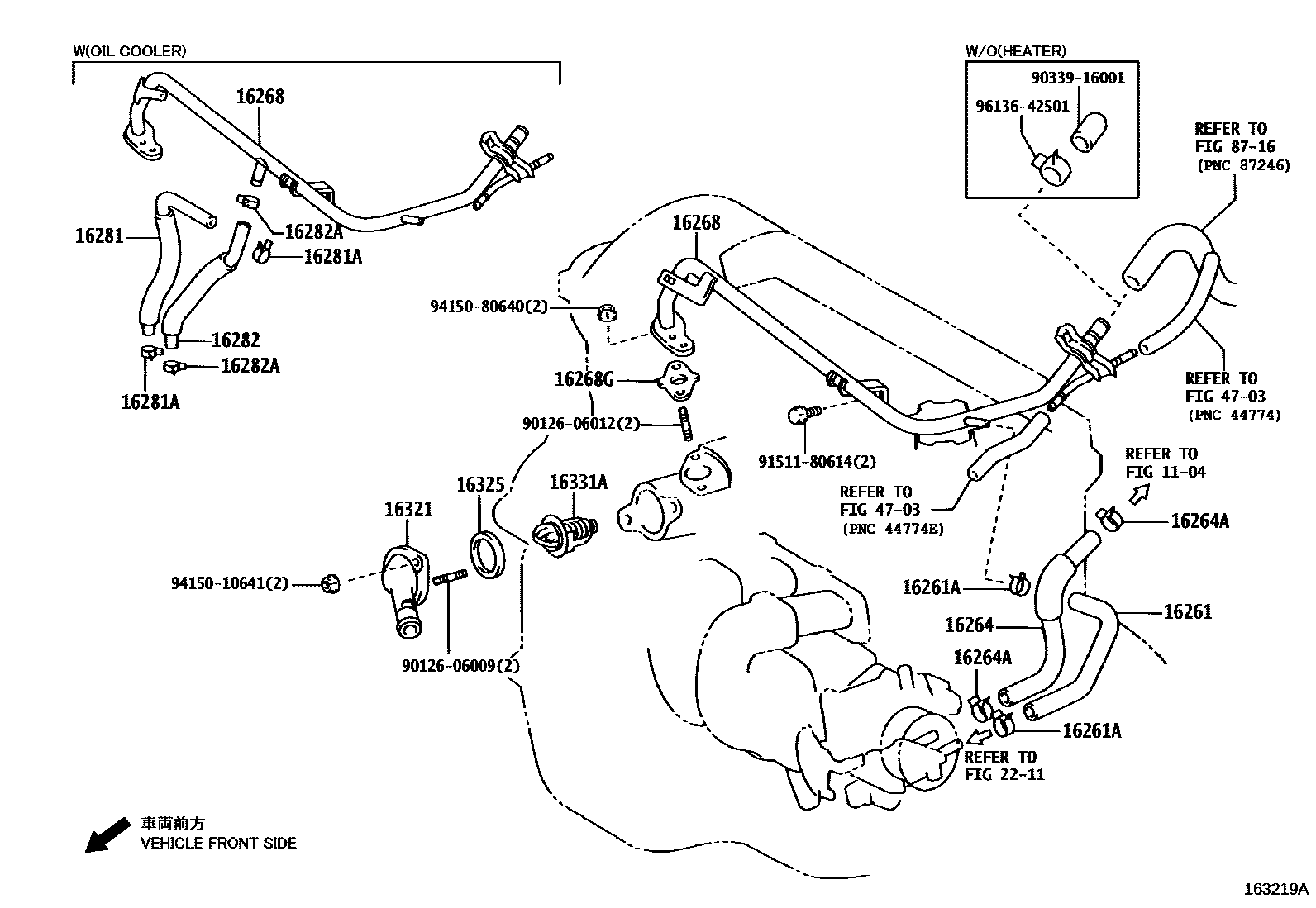

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 11 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11182B | Rear cylinder head gasket | 11182-64021 |
| 16057 | Radiator hose sub-assembly | 16057-21010 |
| 16261 | HOSE, WATER BY-PASS | 16261-21070 · 16261-21090 · 16261-22142 · 16261-37021 · 16261-37022 · 16261-64060 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-A0017 · 90467-13054 · 90467-15022 · 96136-41501 · 96137-41501 |
| 16261B | Connector (for water bypass hose) | 90404-53075 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-22110 · 16261-22111 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90467-15022 · 96136-41901 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-22110 · 16261-22111 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96136-41901 |
| 16262 | water inlet hose | 16262-21040 · 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 90466-A0023 · 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-21060 · 16264-21070 · 16264-22123 · 16264-37021 · 16264-37022 · 16264-64090 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 · 90467-13054 · 90467-15022 · 96136-41501 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-21020 · 16267-37010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-A0023 · 90467-13054 · 96136-41501 · 96136-42501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T090 · 16268-21022 · 16268-21050 · 16268-22160 · 16268-22161 · 16268-22170 · 16268-22171 · 16268-37031 · 16268-64061 |
| 16268G | Gasket (for water bypass pipe) | 16258-21020 · 16258-21021 · 16258-22010 · 16258-28030 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-21020 · 16281-22040 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-13054 · 96136-41501 · 96136-52201 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16281-64020 · 16281-64021 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-15022 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-22020 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96136-52201 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-21010 · 16283-21011 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90467-13054 · 96136-41501 |
| 16321 | water inlet | 16321-21020 · 16321-22070 · 16321-37010 · 16321-64020 |
| 16323 | HOUSING, WATER INLET | 16323-0T020 · 16323-0T021 · 16323-37020 · 16323-37021 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H020 · 16325-0T030 · 16325-28010 · 16325-62010 · 16325-63011 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37010 |
| 16331 | Water outlet | 16331-64150 |
| 16331A | thermostat | 90916-03046 · 90916-03093 · 90916-03126 · 90916-03129 · 90916-03142 · 90916-03144 · 90916-03145 · 90916-A3002 · 90916-A3003 |
| 16351 | water bypass outlet | 16351-21010 |
| 16361 | Fan | 16361-21110 · 16361-22120 · 16361-22130 · 16361-28320 |
| 16361B | Fan No. 2 | 16361-28330 |
| 16363 | cooling fan motor | 16363-22100 · 16363-22120 · 16363-64220 |
| 16363A | Cooling fan motor No. 2 | 16363-64250 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-28120 |
| 16381 | Fan belt adjustment lever | 16381-21030 · 16381-21040 · 16381-37030 · 16381-64080 |
| 16385 | Fan belt adjustment slider | 16385-37010 · 16385-64011 |
| 16400 | Radiator assembly | 16410-21180 · 16410-22150 · 16410-22160 · 16410-22170 · 16410-22171 · 16410-22180 · 16410-22181 · 16410-64640 |
| 16400B | Radiator drain switch screw plug | 16417-21280 · 16417-28530 |
| 16400F | Seal (for radiator drain switch) | 16418-20290 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-20353 · 16401-72090 |
| 16470 | Radiator reservoir assembly | 16470-21020 · 16470-22090 · 16470-22091 · 16470-64260 · 16470-64261 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90466-11001 · 90466-11003 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-21060 · 16405-22060 · 16405-64130 |
| 16473 | Bracket (for radiator reservoir) | 16473-22090 · 16473-64260 |
| 16523A | Radiator bracket cushion | 16523-21050 |
| 16533 | Radiator upper bracket | 16533-21030 · 16533-22070 |
| 16535 | Radiator lower support | 16535-21090 · 16535-21091 · 16535-74230 |
| 16553C | hose clamp | 16581-21010 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 96136-43901 · 96136-44301 |
| 16571C | Radiator hose No. 1 | 16571-21130 · 16571-21140 · 16571-22200 · 16571-37100 · 16571-64360 |
| 16571D | No. 1 radiator hose clip | 90466-35001 · 96136-44301 |
| 16572 | Radiator outlet hose | 16572-21100 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 96136-43901 · 96136-44301 |
| 16572D | Radiator hose No. 2 | 16572-21110 · 16572-22150 · 16572-37090 · 16572-64360 |
| 16572E | No. 2 radiator hose clip | 96136-44301 |
| 16573B | Radiator hose No. 3 | 16573-21080 · 16573-22040 · 16573-64110 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-35001 · 96136-44301 |
| 16575C | No. 1 water hose clamp bracket | 16575-21020 |
| 16577C | radiator pipe | 16577-22030 · 16577-22031 · 16577-64050 |
| 16581 | Hose clamp (for water hose) | 16581-21020 · 16581-21030 · 16581-21060 · 16581-21070 · 16581-21080 |
| 16581B | Hose clamp (for radiator hose) | 16581-22130 |
| 16711 | fan cover | 16711-21140 · 16711-22160 · 16711-22171 · 16711-64560 |
| 16712 | No. 2 fan cover | 16712-21010 · 16712-22050 · 16712-22060 · 16712-64270 |
| 16715 | fan cover bracket | 88688-18030 |
| 16716 | fan cover cushion | 16716-28010 |
