Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 4 images and 13 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — 151186F
Oil Filter — 151186F (200704 – 999999)

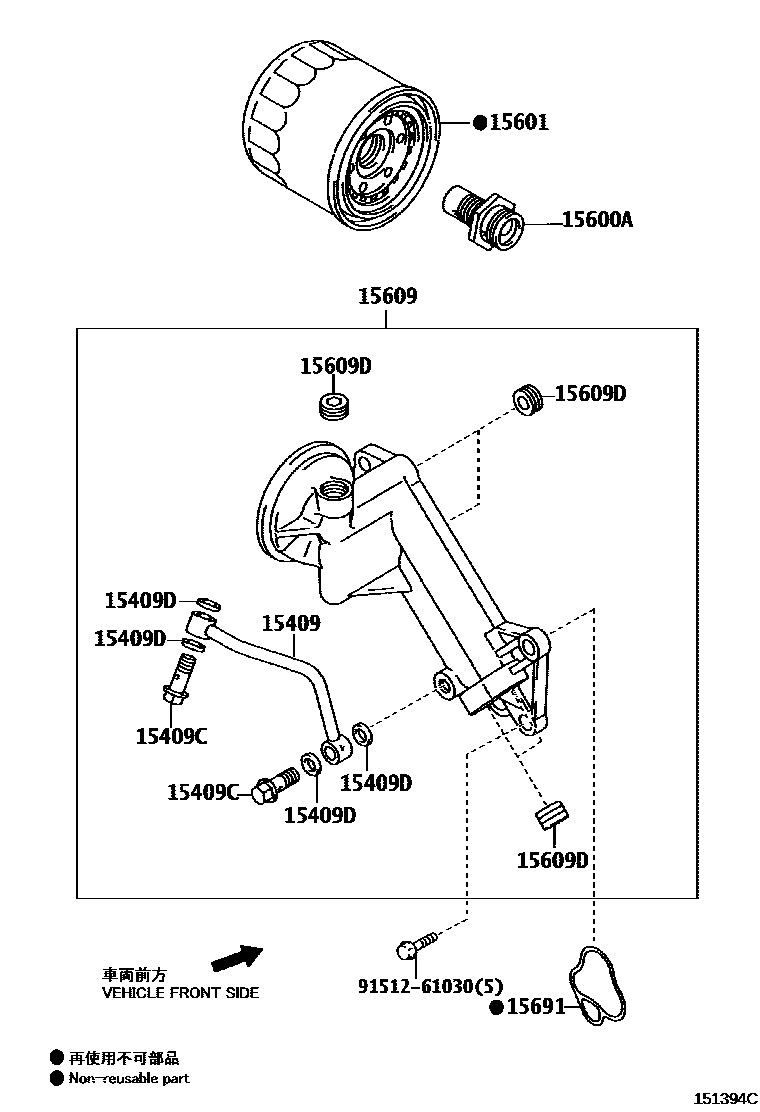

Toyota COROLLA Oil Filter EPC diagram — 151394C
Oil Filter — 151394C (200708 – 999999)

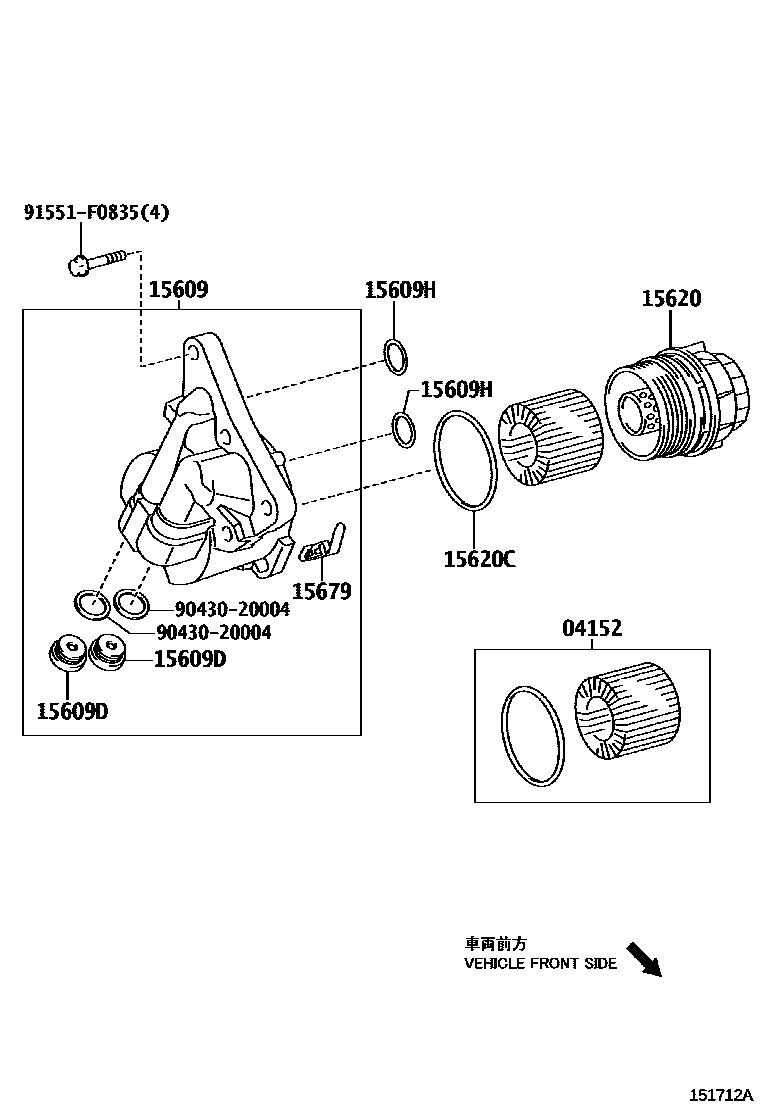

Toyota COROLLA Oil Filter EPC diagram — 151712A
Oil Filter — 151712A (201007 – 999999)

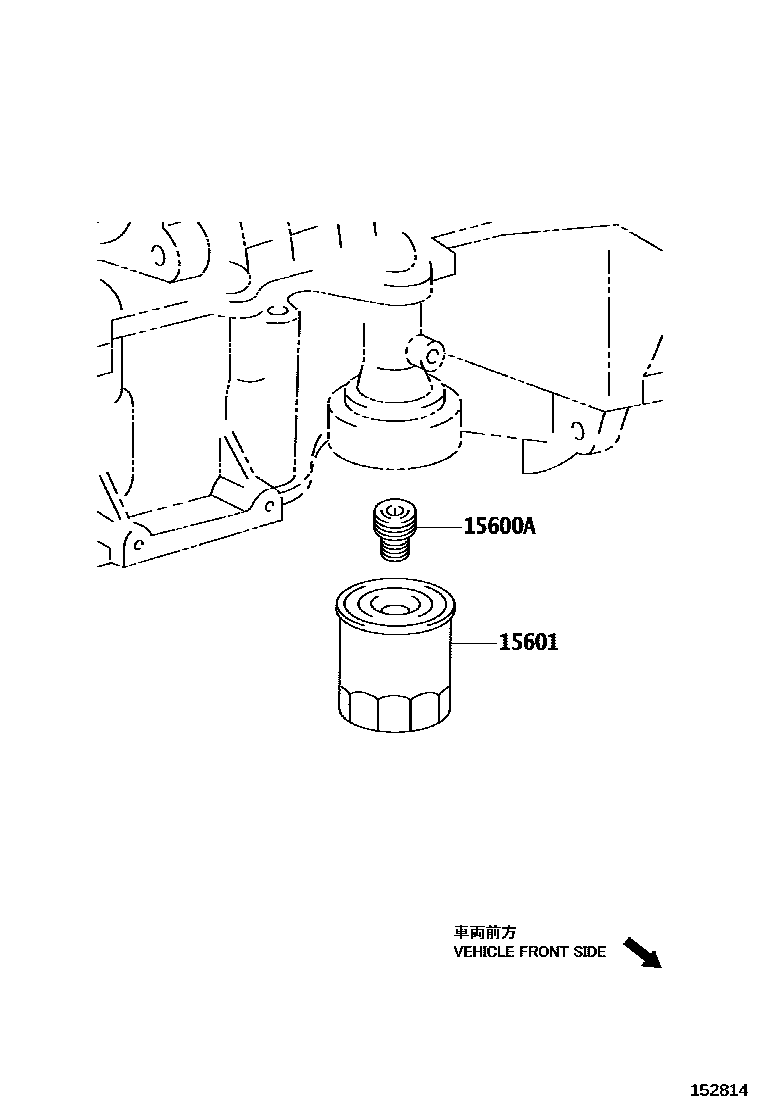

Toyota COROLLA Oil Filter EPC diagram — 152814
Oil Filter — 152814 (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-37010
15409Oil filter outlet pipe or oil outlet hose15431-64030
15409CJoint bolt (for oil filter outlet pipe)90401-10031
15409DGasket (for oil filter outlet pipe)90430-10035
15600AConnector (for oil filter)15116-54021 · 90402-28004 · 90904-04002 · 90904-04004
15601Oil filter sub-assembly90915-10003 · 90915-30003
15609Oil filter bracket sub-assembly15608-64042 · 15609-37040 · 15609-37041
15609DStraight threaded plug with head (for oil filter bracket)90341-20002 · 90344-53002
15609HO-ring (for oil filter bracket)90301-A0034 · 96723-24020
15620Oil filter cover assembly15620-0T010 · 15620-37010
15620CGasket (for oil filter cover)90301-69011
15679Oil filter bracket clip15679-37010
15691oil filter gasket15691-64041
