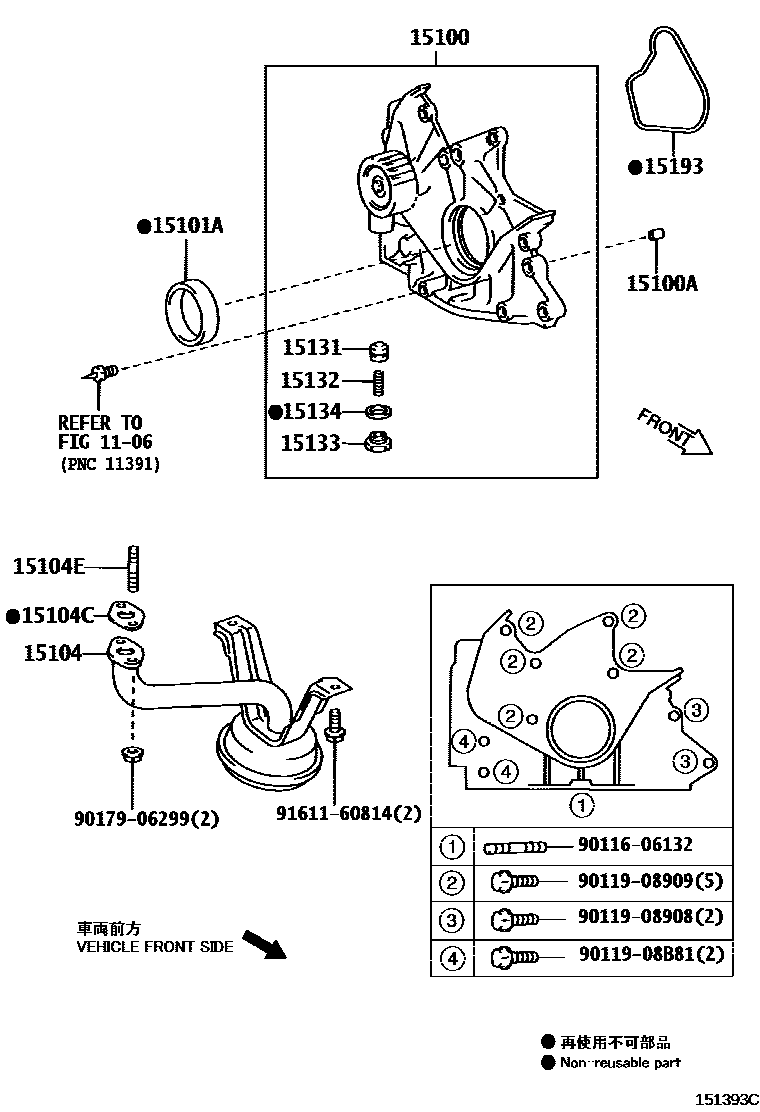

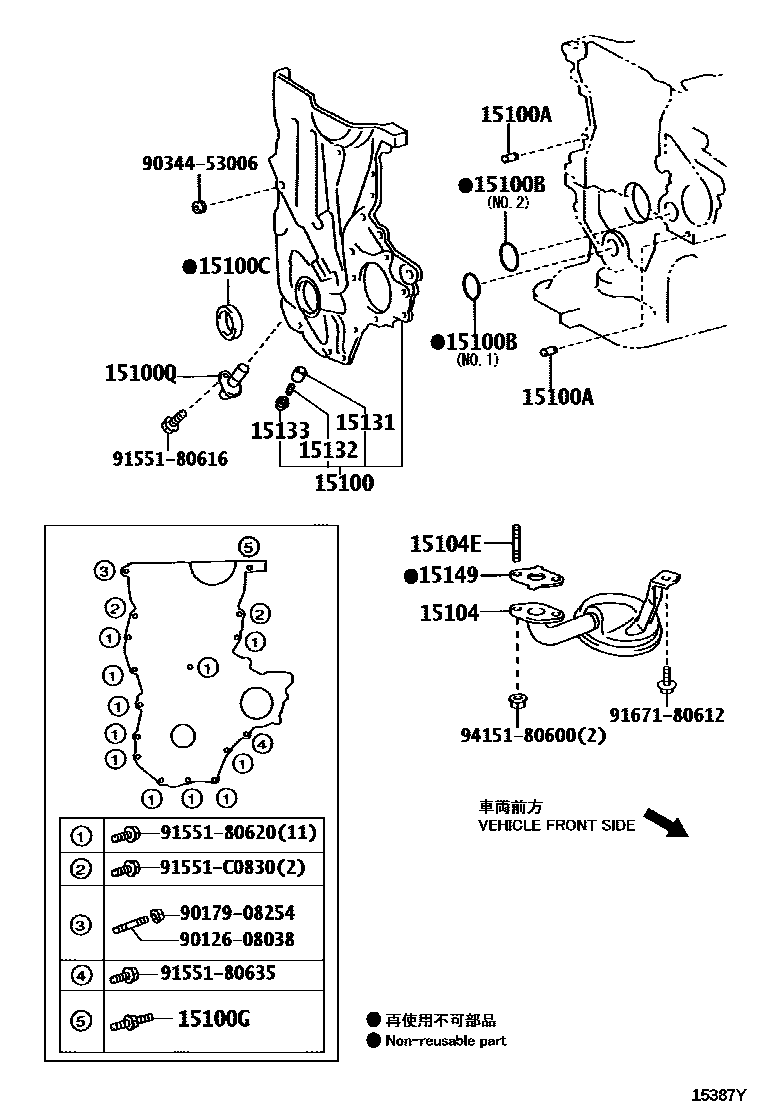

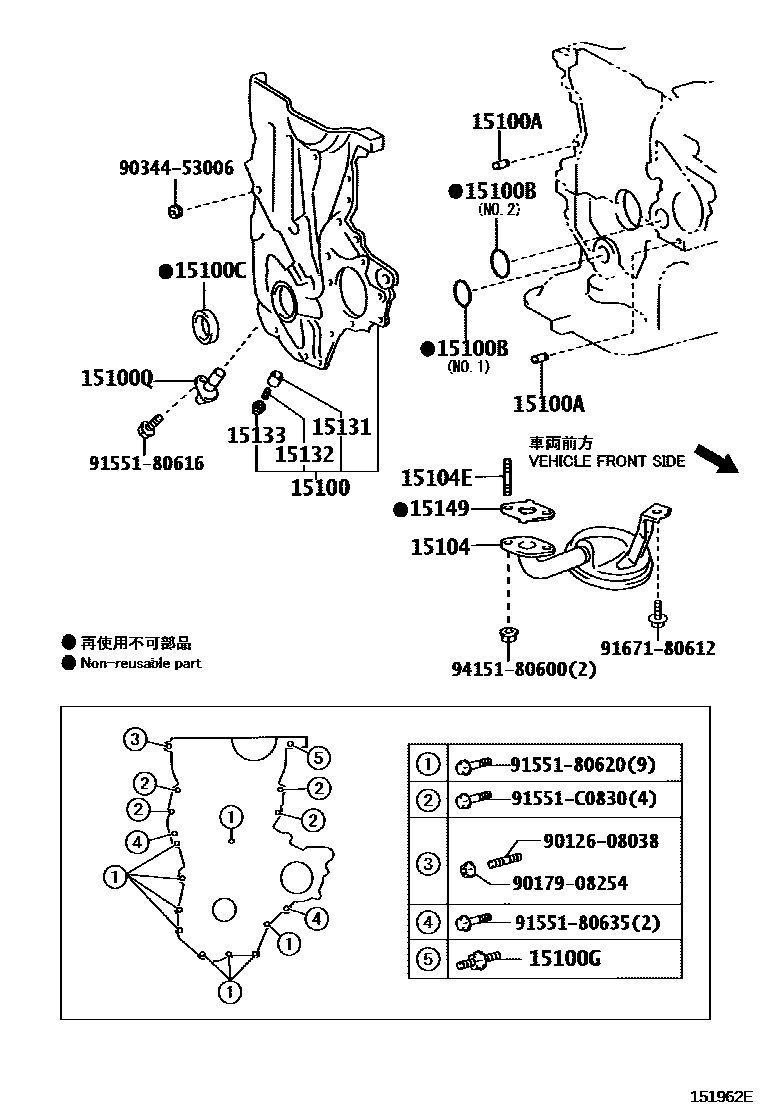

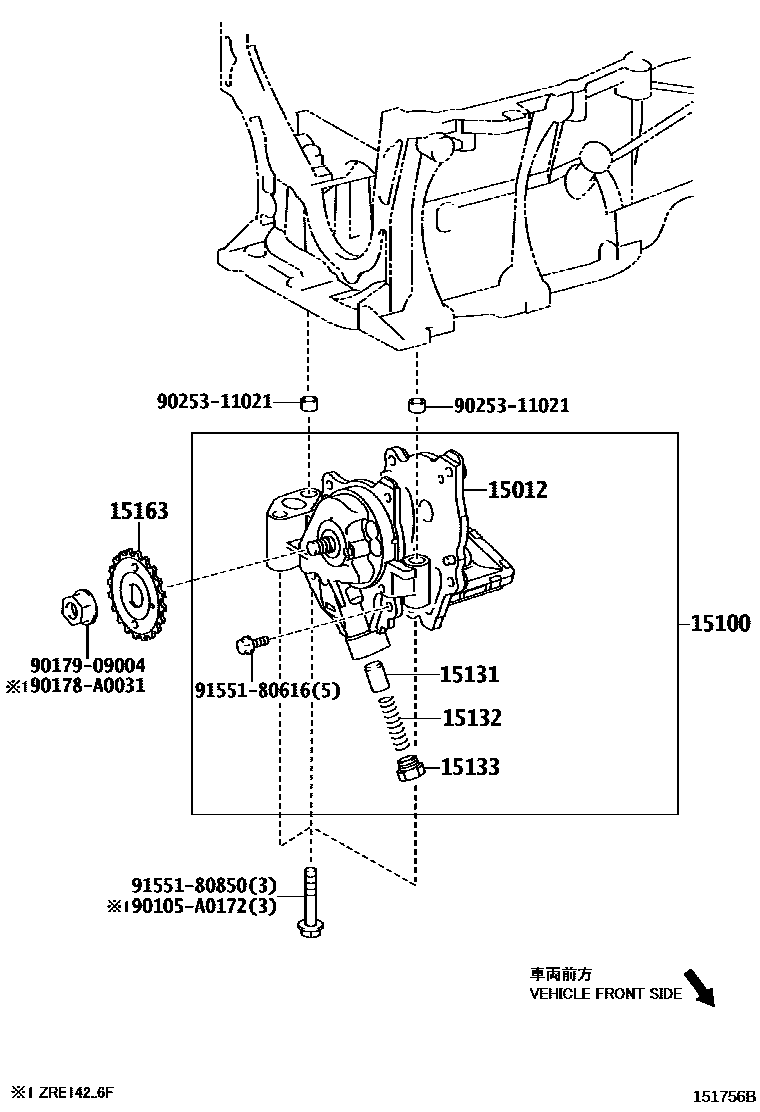

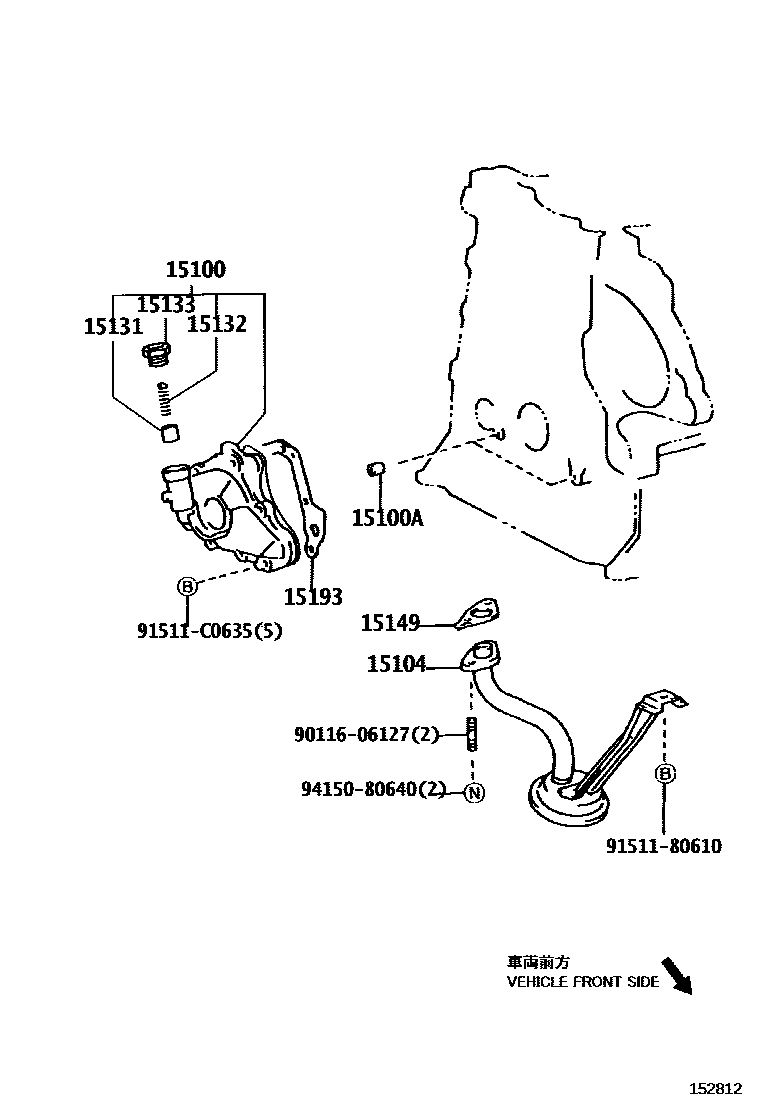

Toyota COROLLA Engine Oil Pump — Figure 1501
Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-0T010 · 15012-37010 |
| 15100 | Oil pump assembly | 15100-0T010 · 15100-21040 · 15100-21042 · 15100-21043 · 15100-21060 · 15100-22041 · 15100-37030 · 15100-64042 |
| 15100A | Ring pin (for oil pump assembly) | 90253-08003 · 90253-09003 · 90253-11021 |
| 15100B | O-ring (for oil pump) | 11497-21010 · 12151-21010 · 90301-31012 · 90301-42006 |
| 15100C | Seals (for oil pump) | 90311-25021 · 90311-25032 |
| 15100G | Stud bolt (for oil pump) | 90109-08283 |
| 15100Q | crankshaft position sensor | 90919-05045 · 90919-05081 · 90919-05087 |
| 15101A | Seals (for crankshaft) | 90311-42031 |
| 15104 | Oil filter sub-assembly | 15104-21022 · 15104-22023 · 15104-64080 |
| 15104C | Gasket (for oil filter) | 15149-64070 |
| 15104E | Stud bolts (for oil filter) | 90116-06132 · 90126-06021 |
| 15131 | Oil pump pressure reducing valve | 15131-0A040 · 15131-21020 · 15131-24010 · 15131-64041 |
| 15132 | Oil pump pressure reducing valve spring | 15132-17010 · 15132-21020 · 15132-21060 · 15132-22040 · 15132-46060 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 · 15133-21030 · 15133-28020 · 15133-64041 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-67020 |
| 15149 | Oil filter flange gasket | 15149-22010 · 16258-21030 |
| 15163 | Oil pump drive shaft gear | 15163-0H010 · 15163-28010 |
| 15193 | oil pump gasket | 15193-64022 · 15197-22010 |
