Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 7 images and 7 PNC and OE references.

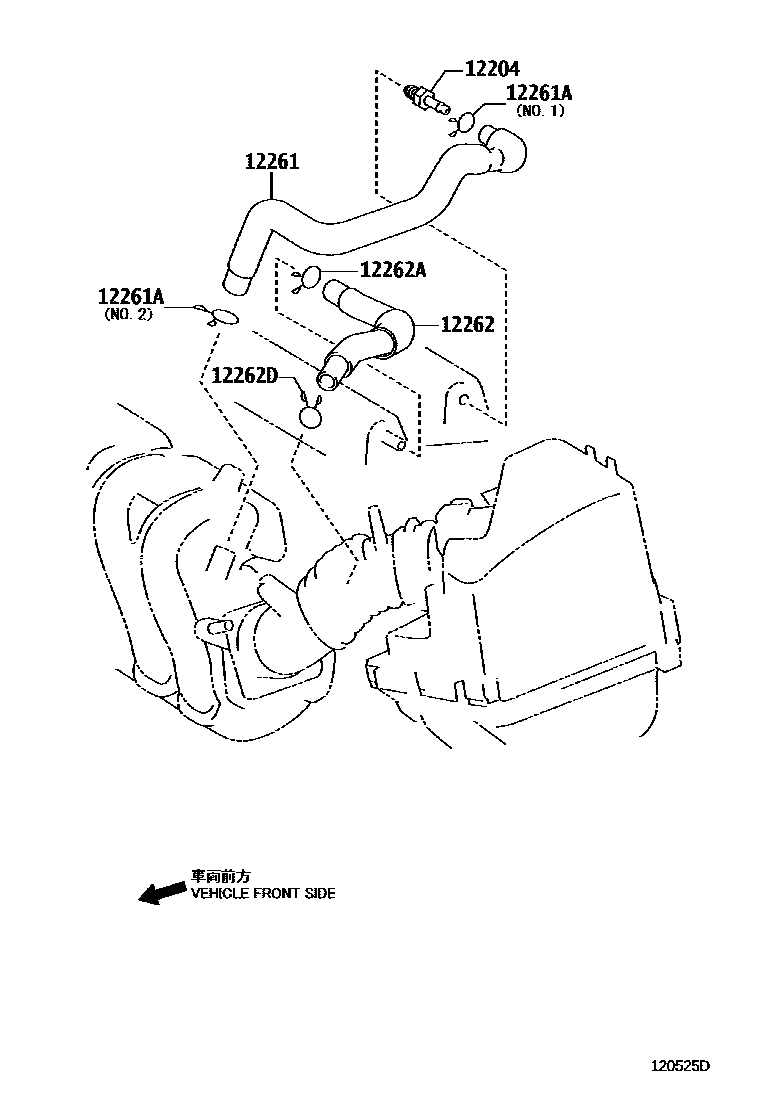

Toyota COROLLA Ventilation Hose EPC diagram — 120525D
Ventilation Hose — 120525D (200704 – 999999)

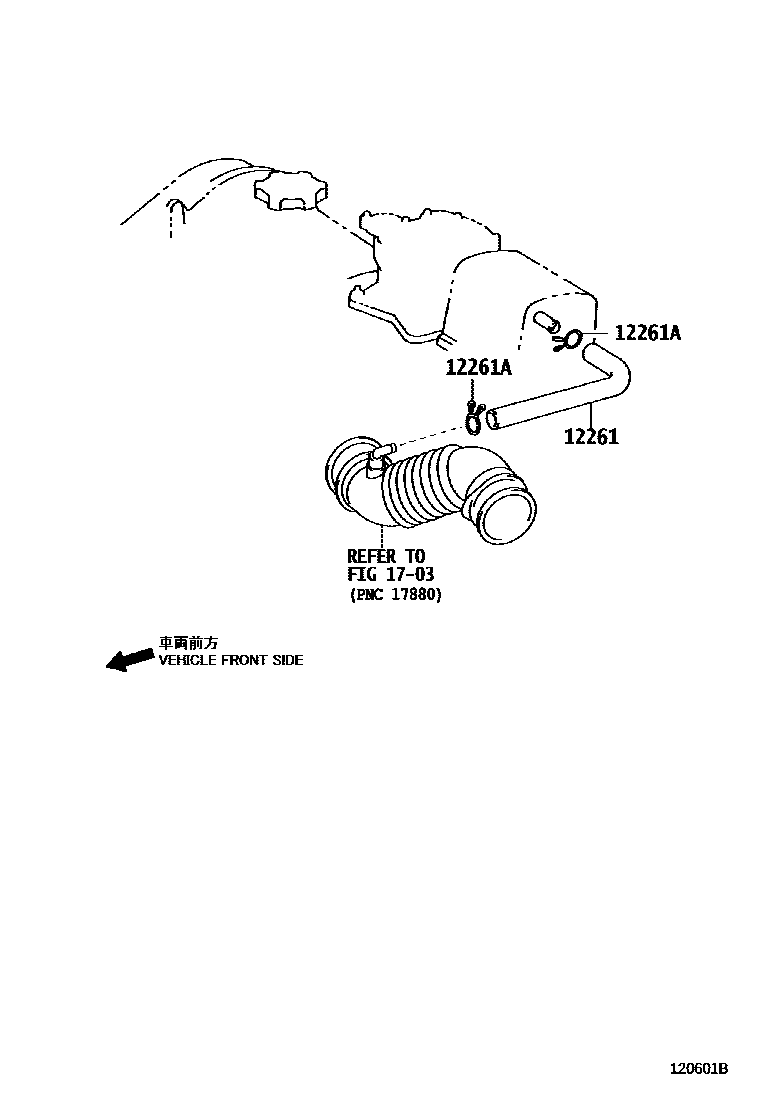

Toyota COROLLA Ventilation Hose EPC diagram — 120601B
Ventilation Hose — 120601B (200708 – 999999)

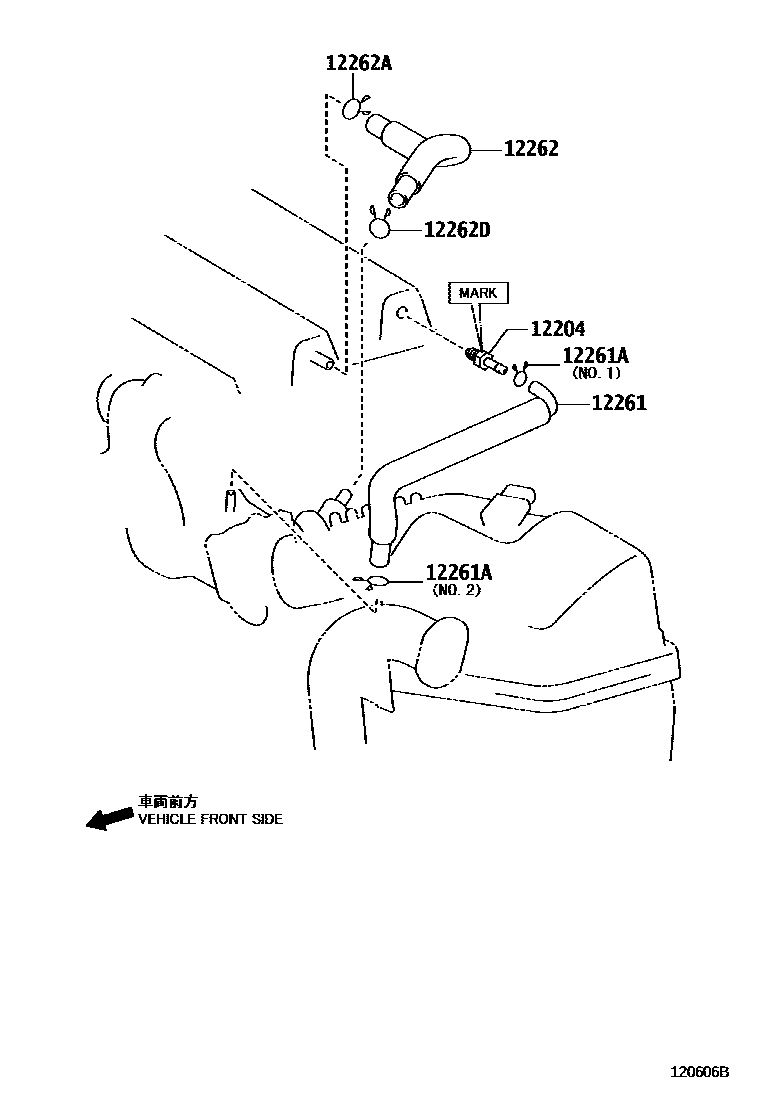

Toyota COROLLA Ventilation Hose EPC diagram — 120606B
Ventilation Hose — 120606B (200708 – 999999)

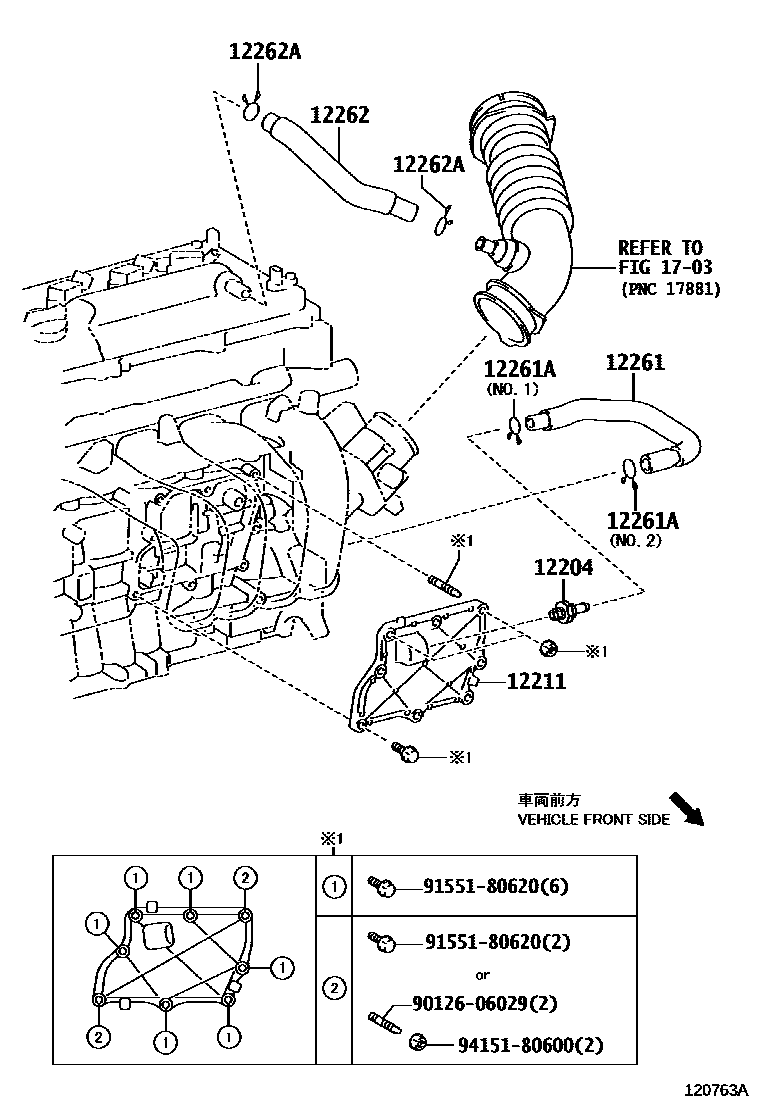

Toyota COROLLA Ventilation Hose EPC diagram — 120763A
Ventilation Hose — 120763A (201007 – 999999)

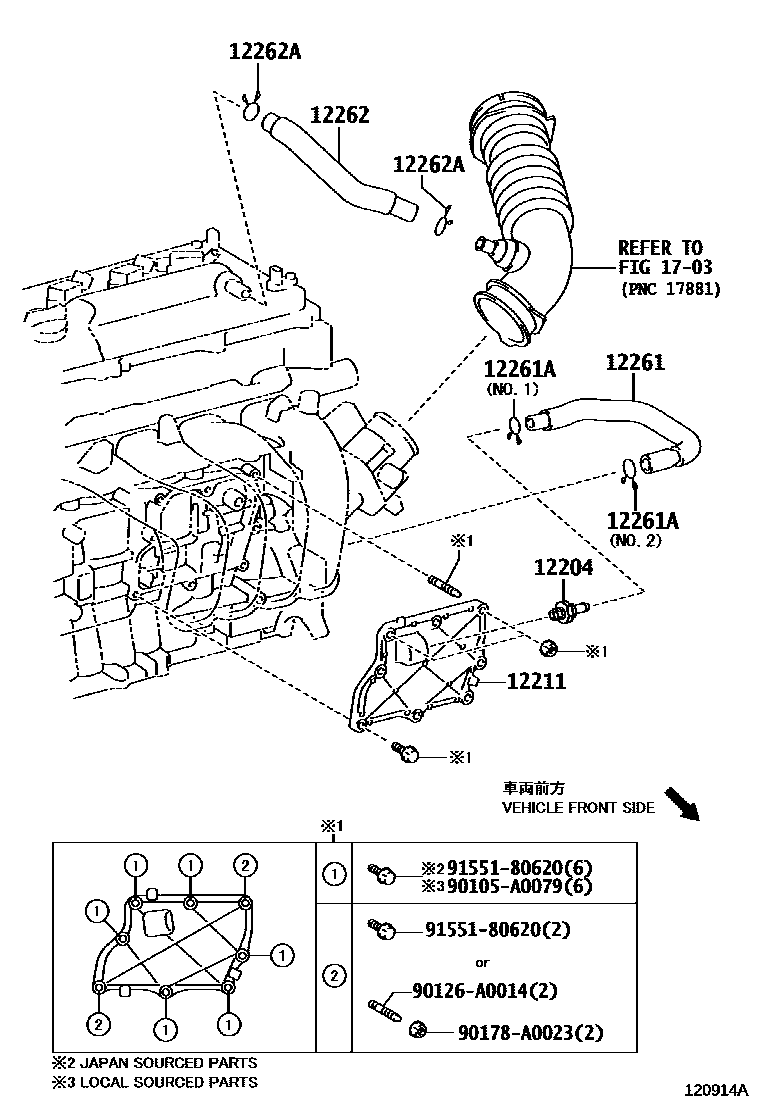

Toyota COROLLA Ventilation Hose EPC diagram — 120914A
Ventilation Hose — 120914A (201306 – 999999)

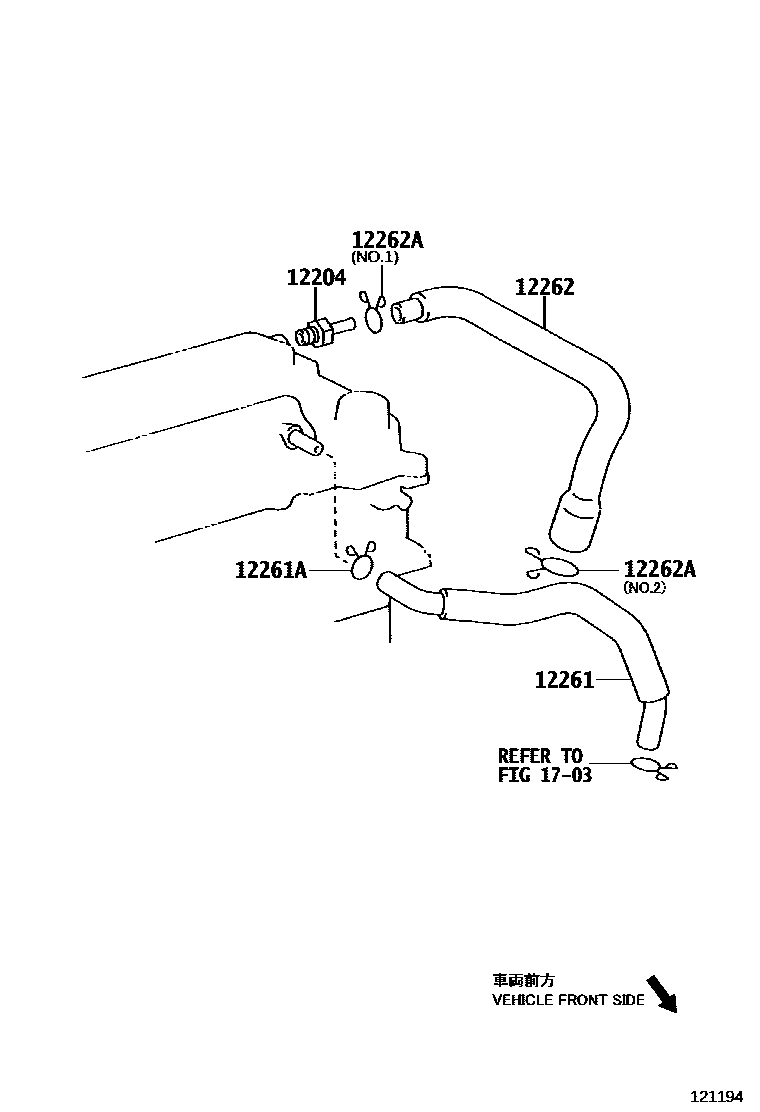

Toyota COROLLA Ventilation Hose EPC diagram — 121194
Ventilation Hose — 121194 (200708 – 999999)

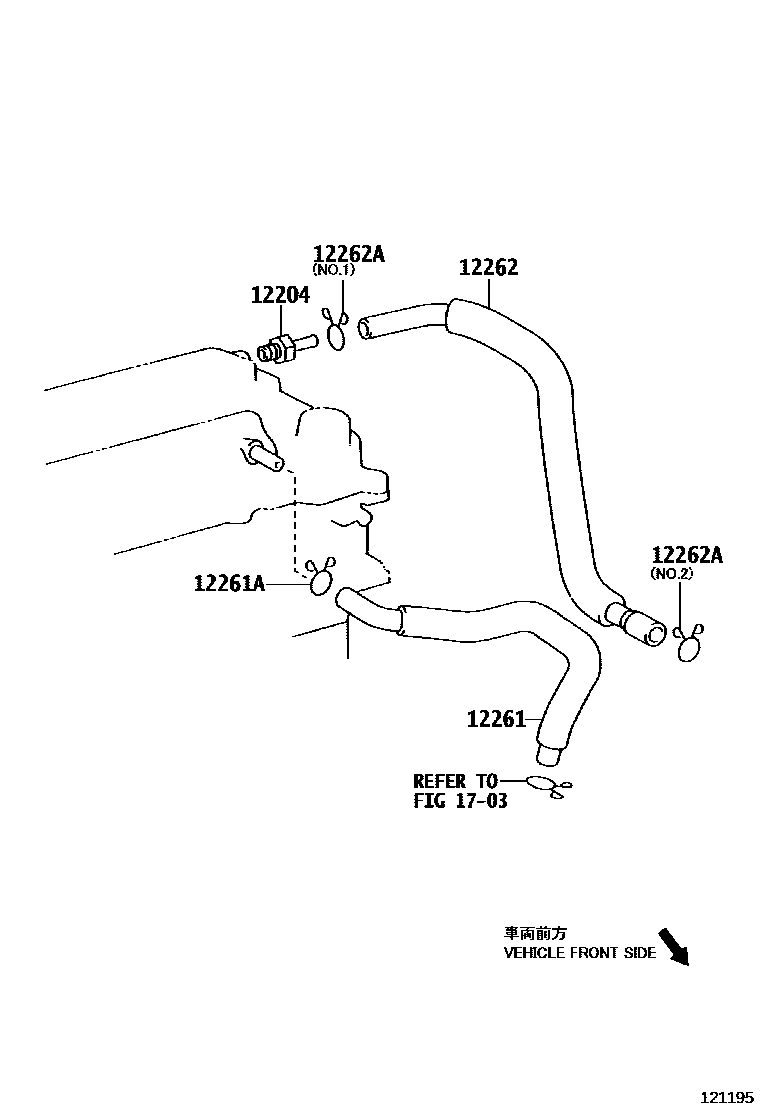

Toyota COROLLA Ventilation Hose EPC diagram — 121195
Ventilation Hose — 121195 (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21011 · 12204-21012 · 12204-21013 · 12204-21020 · 12204-22051 · 12204-37010
12211Ventilation box No. 112211-0T020 · 12211-37010
12261Ventilation Hose12261-21030 · 12261-21060 · 12261-22110 · 12261-22140 · 12261-37040 · 12261-37080 · 12261-64330
12261AClip or clip (for vent hose)90466-22005 · 90466-23003 · 90467-15120 · 90467-18003 · 90467-21152 · 90467-23002 · 90467-24038
12262Ventilation hose No. 212262-21100 · 12262-22130 · 12262-22150 · 12262-37020
12262AClamp (for vent hose No. 2)16581-21050 · 90466-18002 · 90467-13103 · 90467-21004
12262DClamp (for vent hose No. 2)90467-21004
