Toyota COROLLA Engine Mounting — Figure 1107

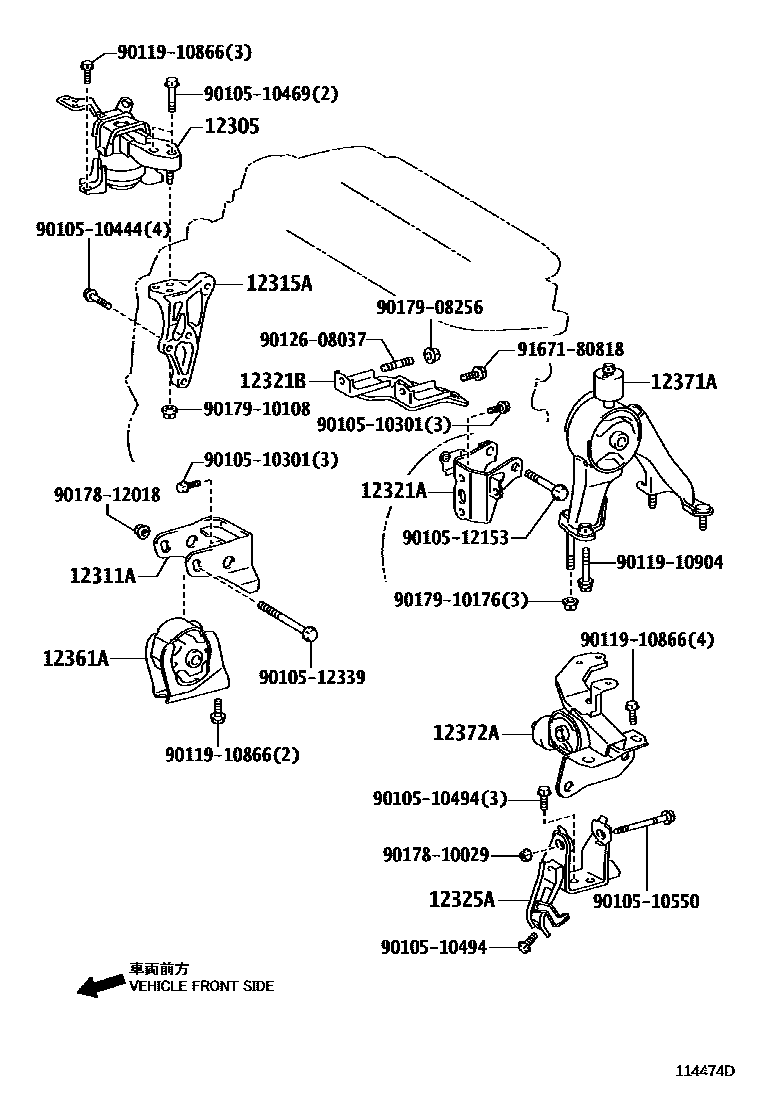

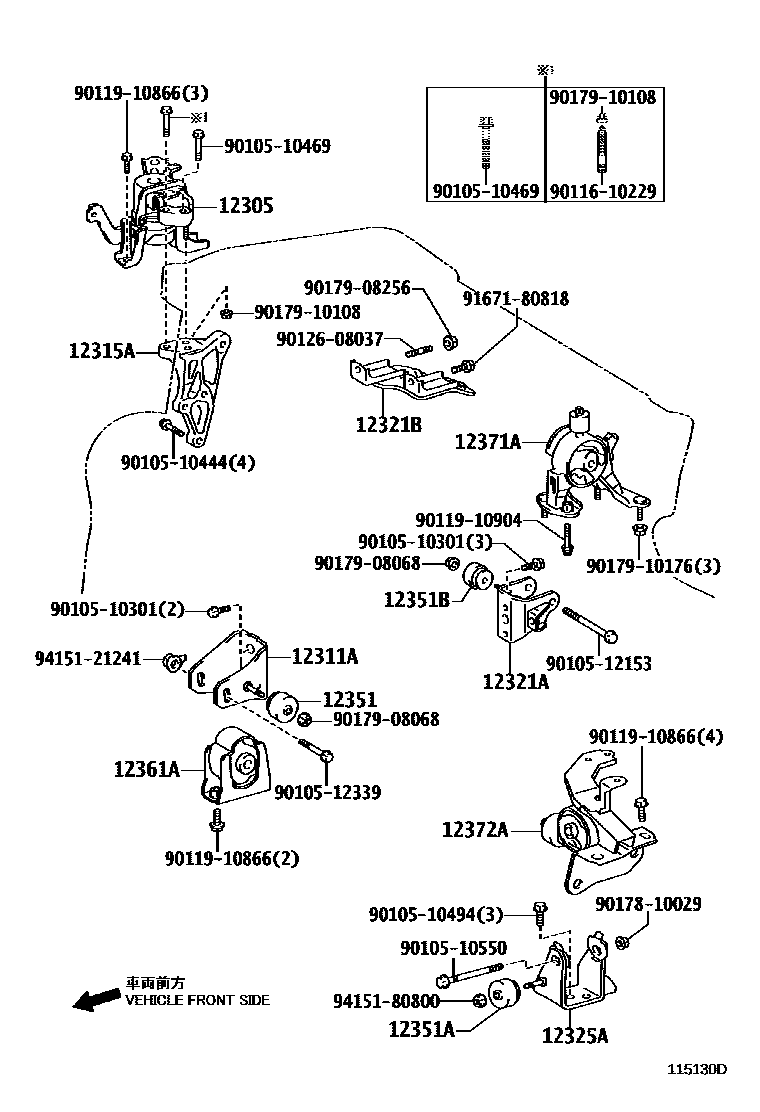

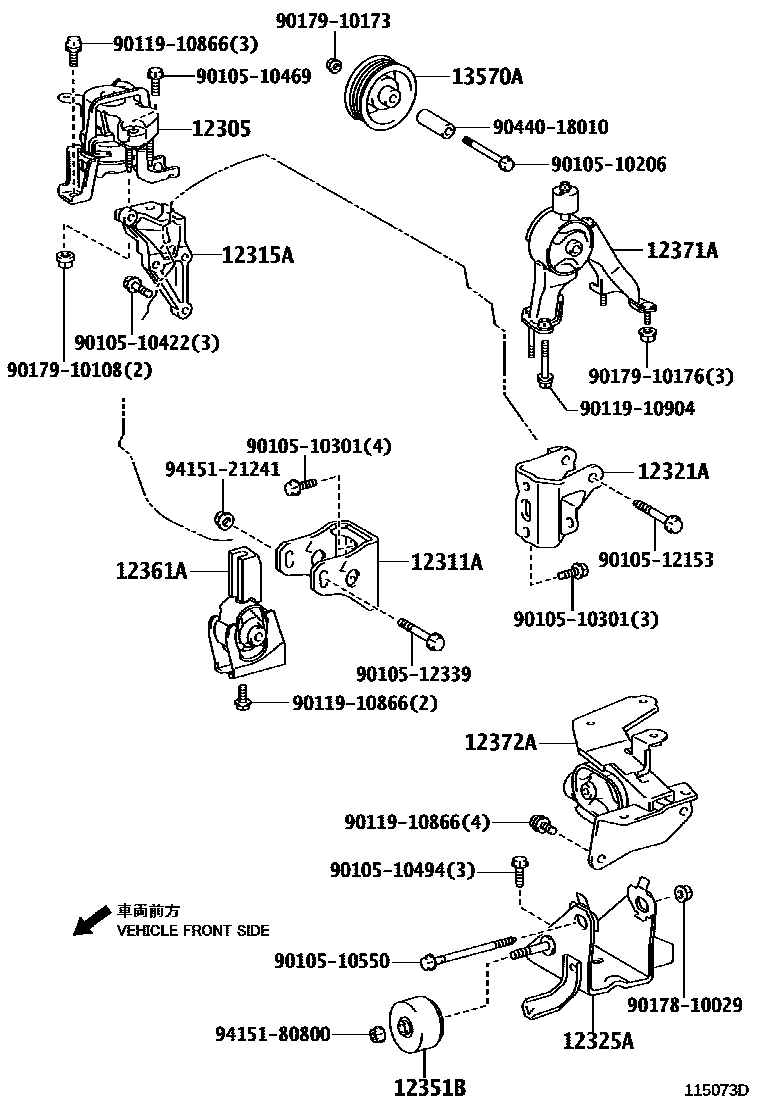

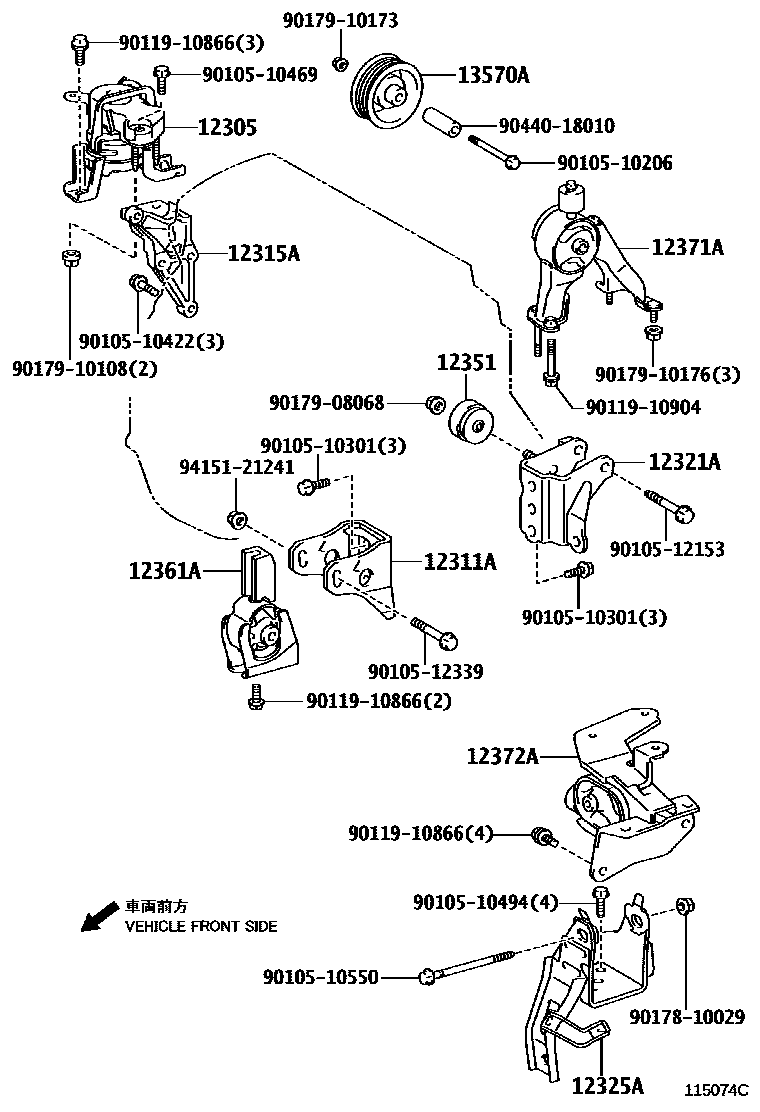

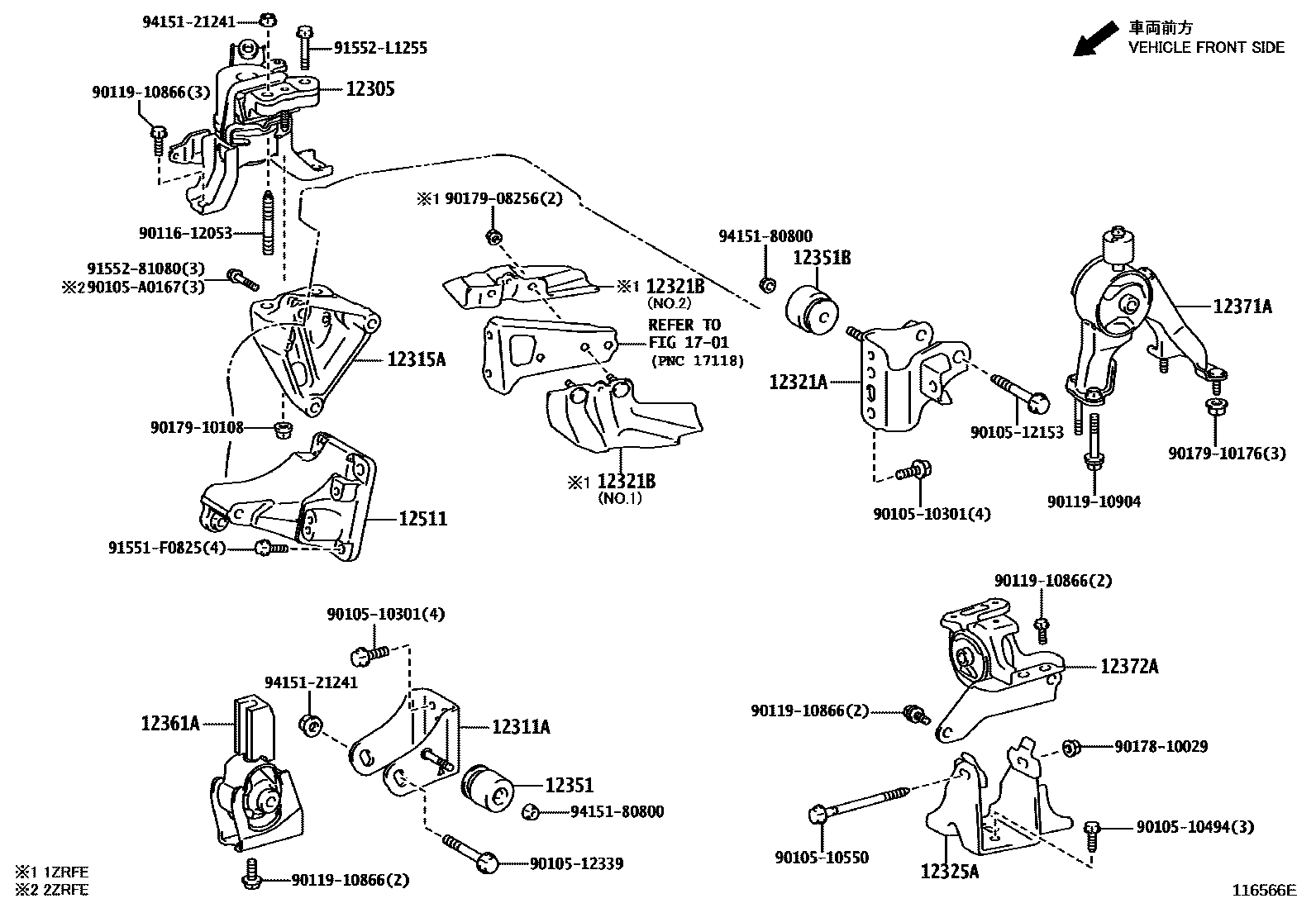

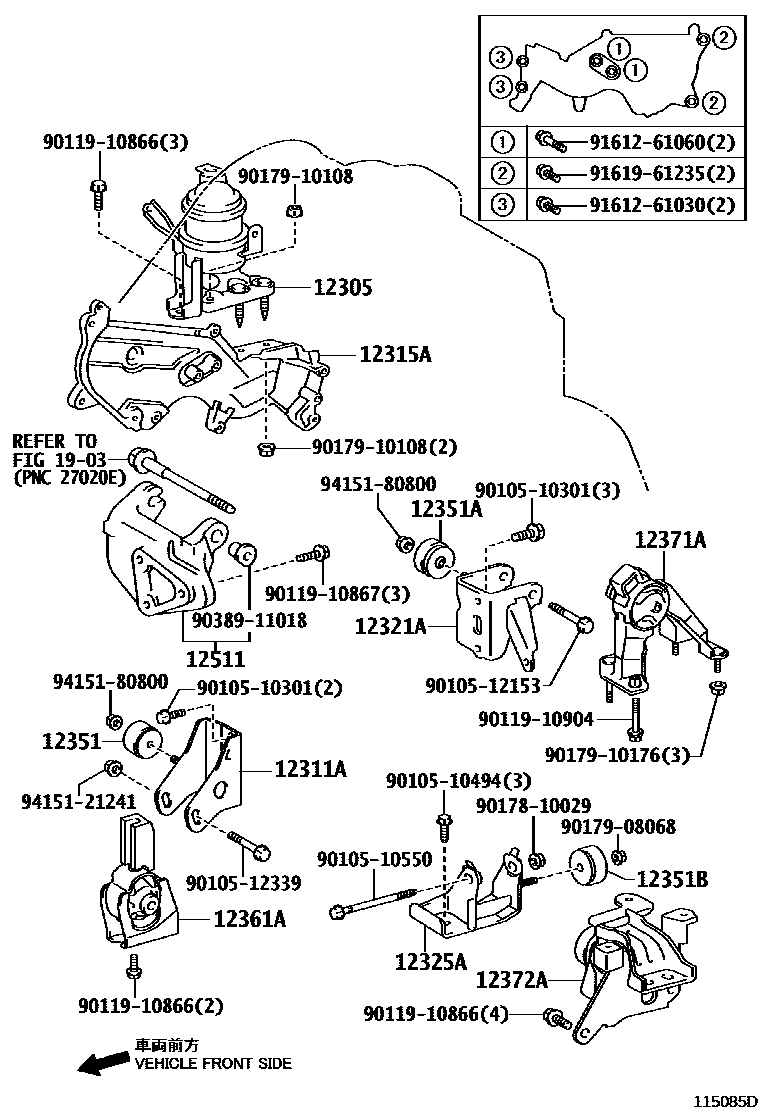

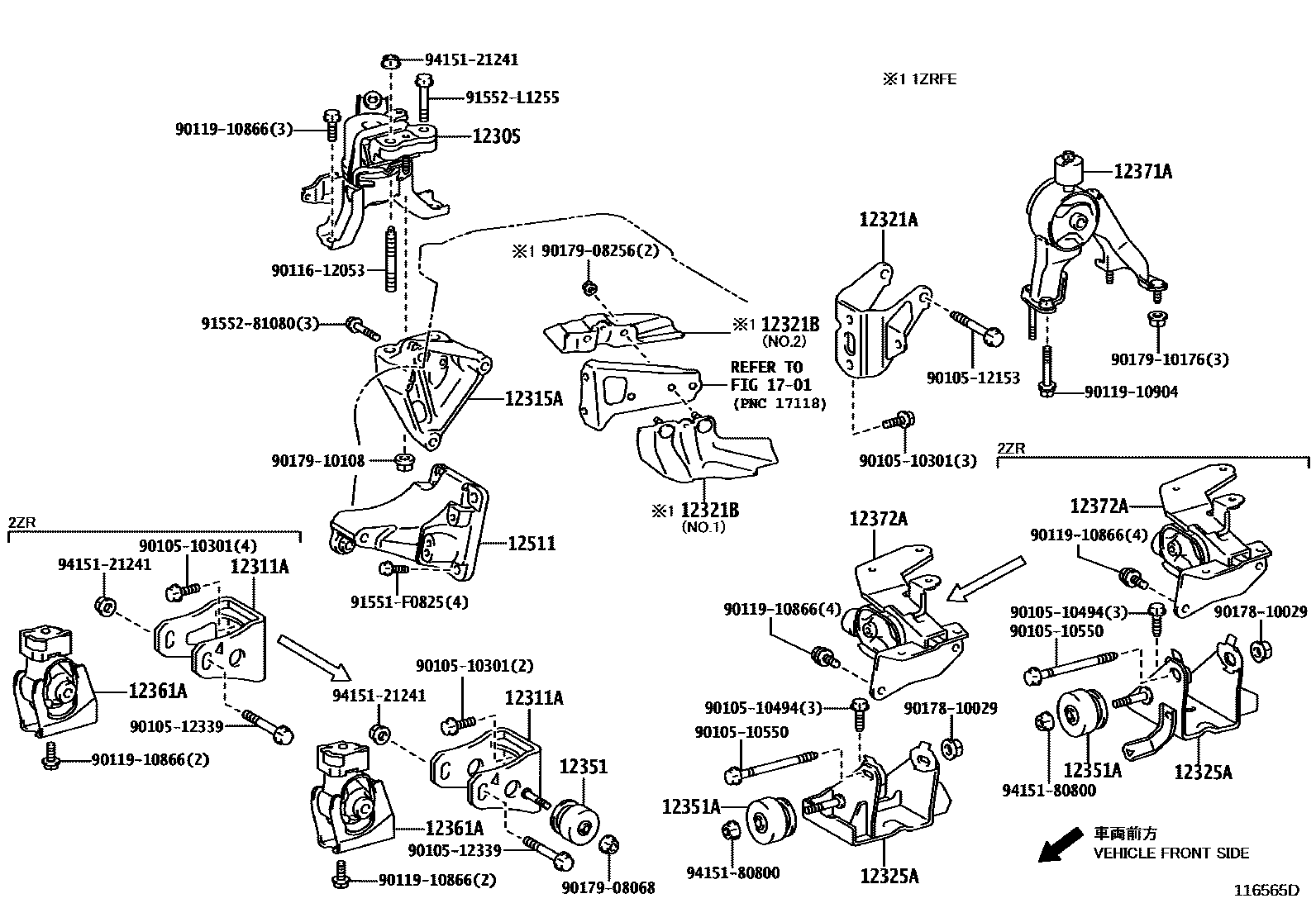

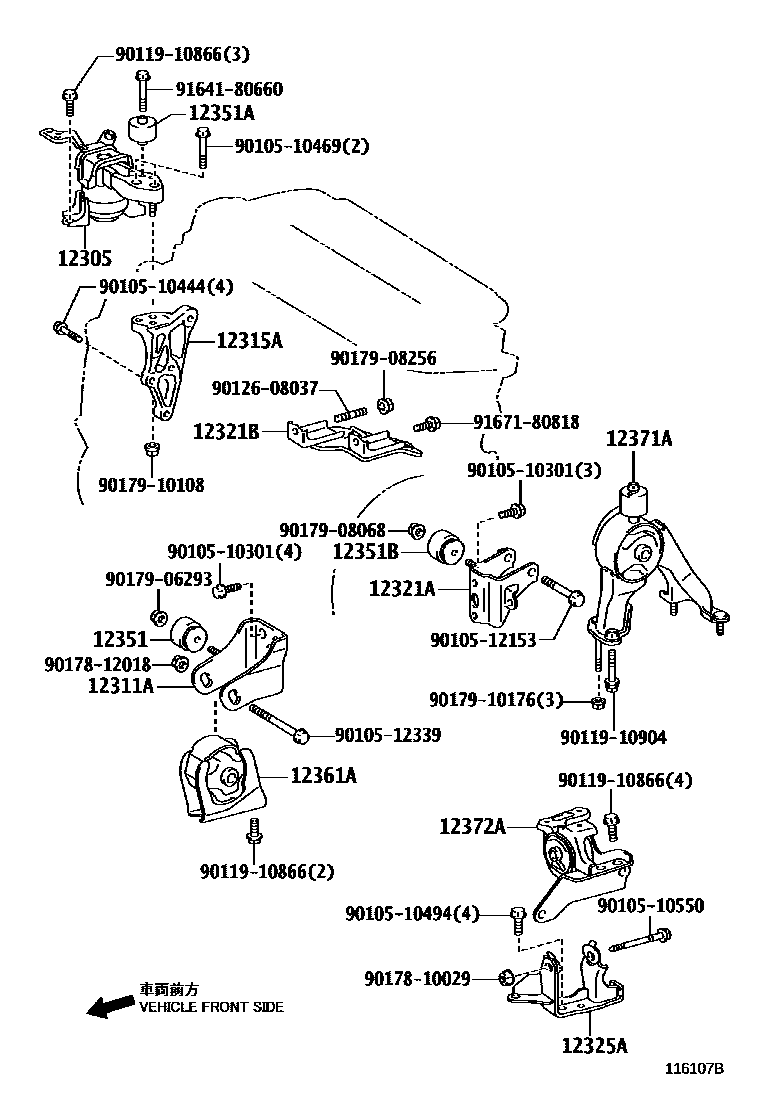

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 8 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-21300 · 12305-21320 · 12305-21420 · 12305-21550 · 12305-22380 · 12305-22440 · 12305-37070 · 12305-64200 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-21060 · 12311-21090 · 12311-21110 · 12311-22270 · 12311-22280 · 12311-37060 · 12311-37150 · 12311-37160 · 12311-64240 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-21041 · 12315-21042 · 12315-21043 · 12315-21044 · 12315-22050 · 12315-37030 · 12315-64141 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-21060 · 12321-21170 · 12321-21210 · 12321-21220 · 12321-21230 · 12321-22130 · 12321-22260 · 12321-22261 · 12321-37160 · 12321-37170 · 12321-64360 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43409-52020 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-21200 · 12325-21210 · 12325-21250 · 12325-22320 · 12325-22330 · 12325-37150 · 12325-37160 · 12325-64220 |
| 12351 | engine mount shock absorber | 12351-11130 · 12351-22080 · 12351-26010 · 12351-27050 · 12351-37120 · 12351-63010 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-11023 · 12351-11072 · 12351-21040 · 12351-22060 · 12351-28070 |
| 12351B | engine mount shock absorber | 12351-22060 · 12351-26010 · 12351-27050 · 12351-37120 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-21080 · 12361-21090 · 12361-21100 · 12361-21140 · 12361-22130 · 12361-37050 · 12361-64410 |
| 12371A | Engine rear mount vibration isolation pad | 12371-21240 · 12371-21250 · 12371-21290 · 12371-22250 · 12371-22260 · 12371-37060 · 12371-64350 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-21230 · 12372-21240 · 12372-21250 · 12372-22200 · 12372-37180 · 12372-64330 |
| 12511 | No. 1 generator bracket | 12511-0T030 · 12511-37010 · 12511-64060 |
| 13570A | No. 1 poly-ribbed belt idler assembly | 13570-22010 |
