Toyota COROLLA Cylinder Block — Figure 1105

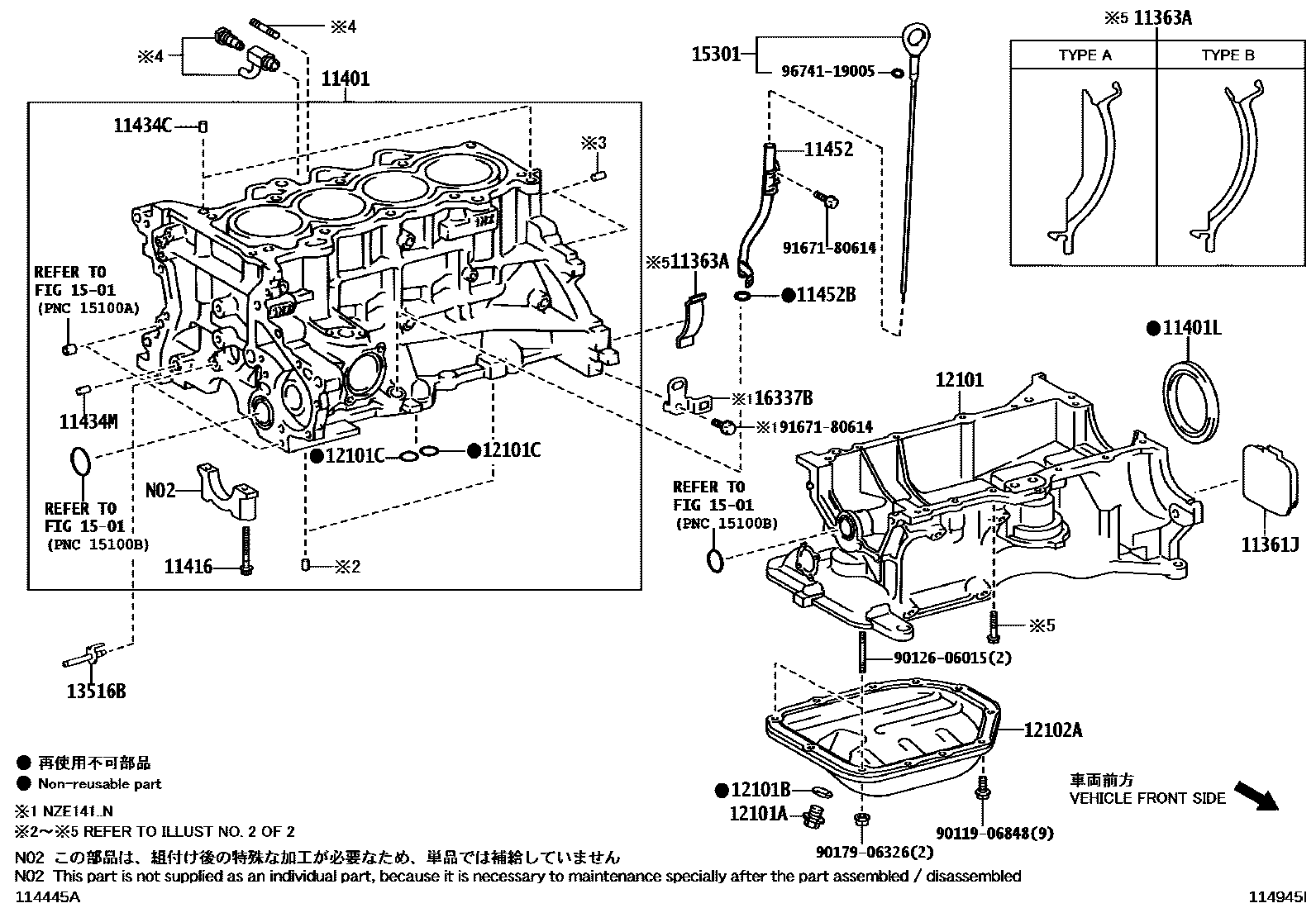

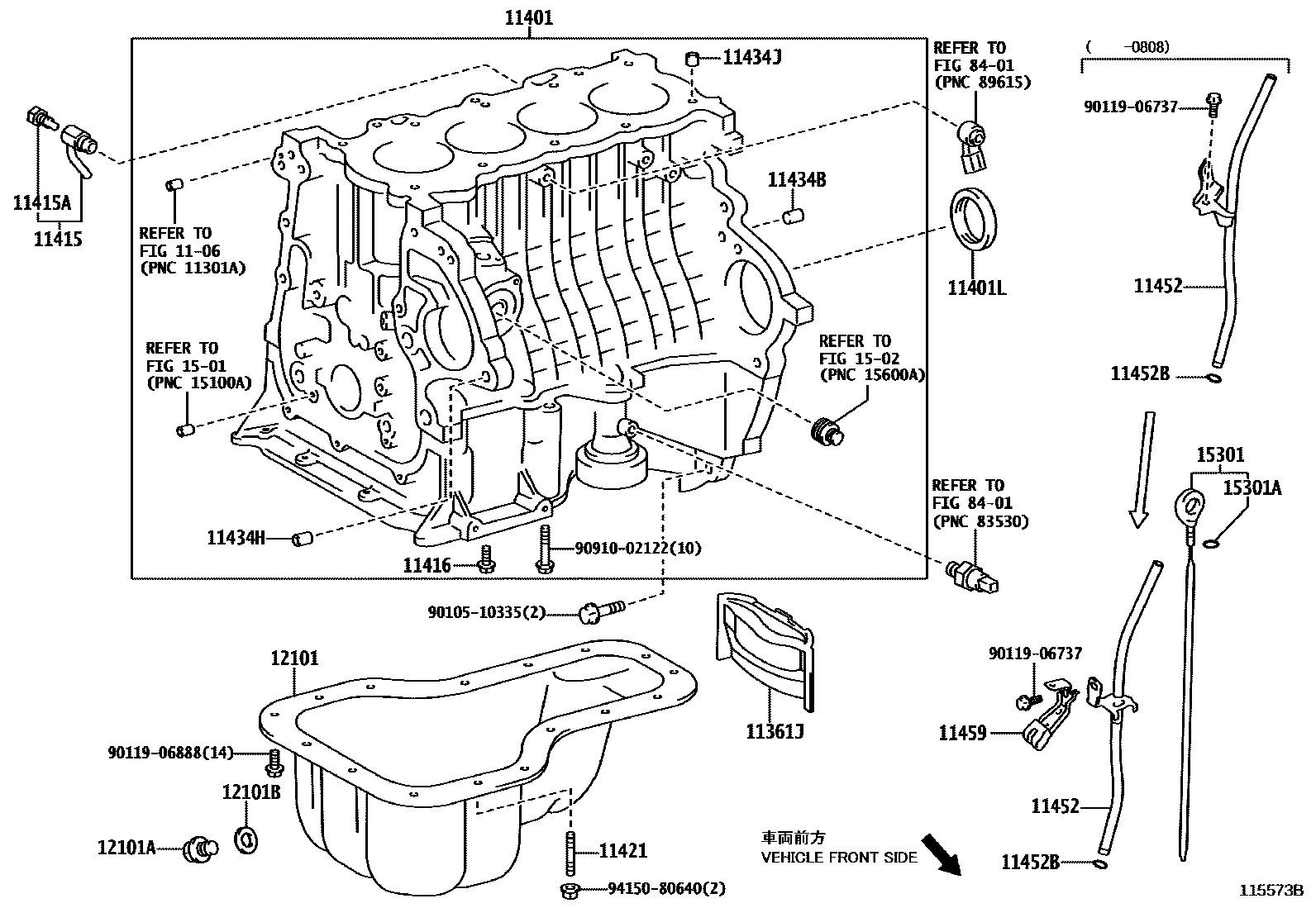

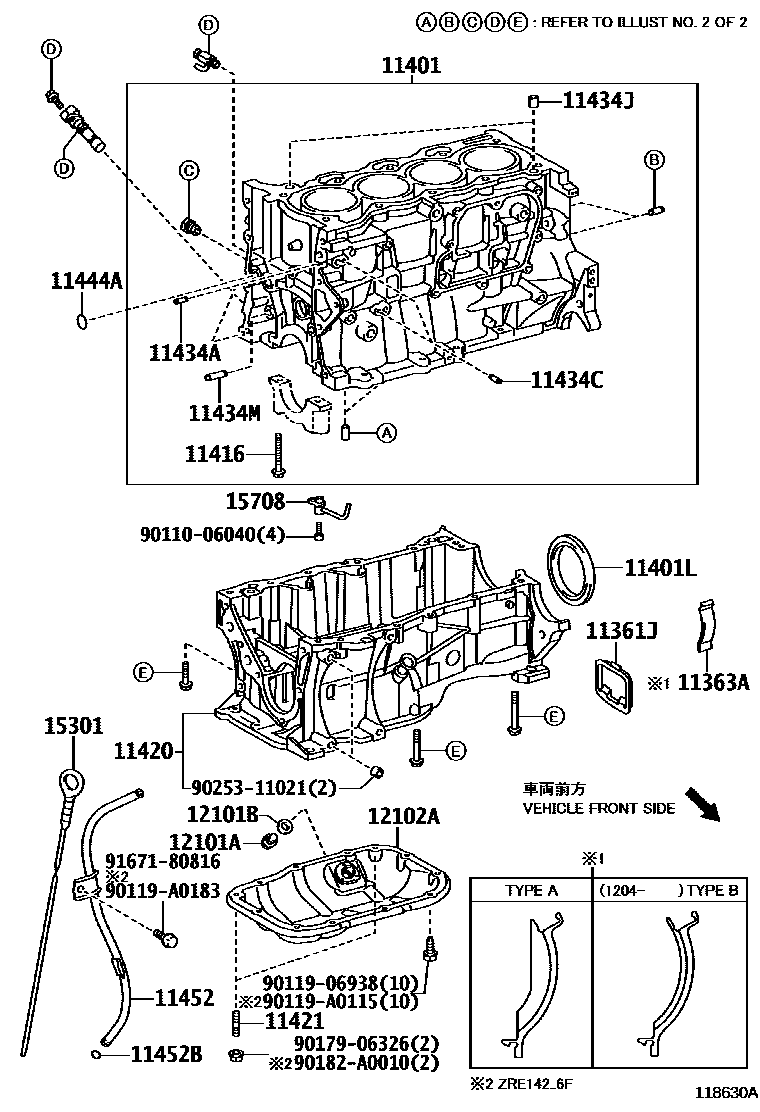

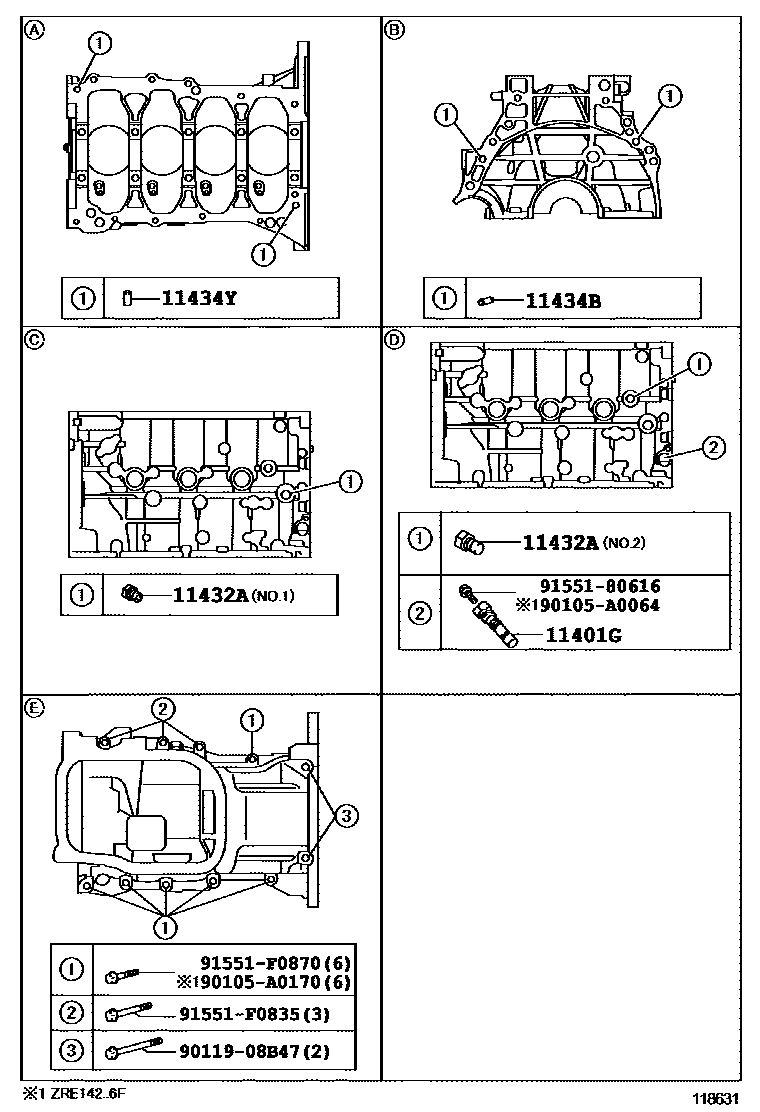

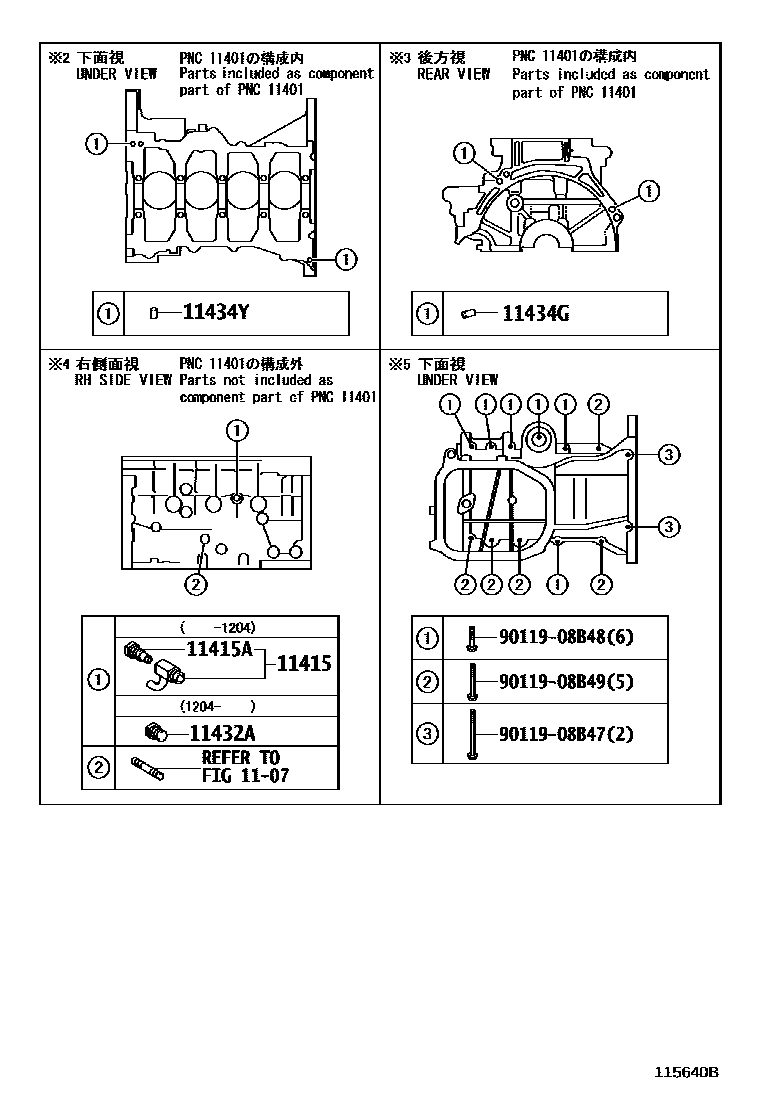

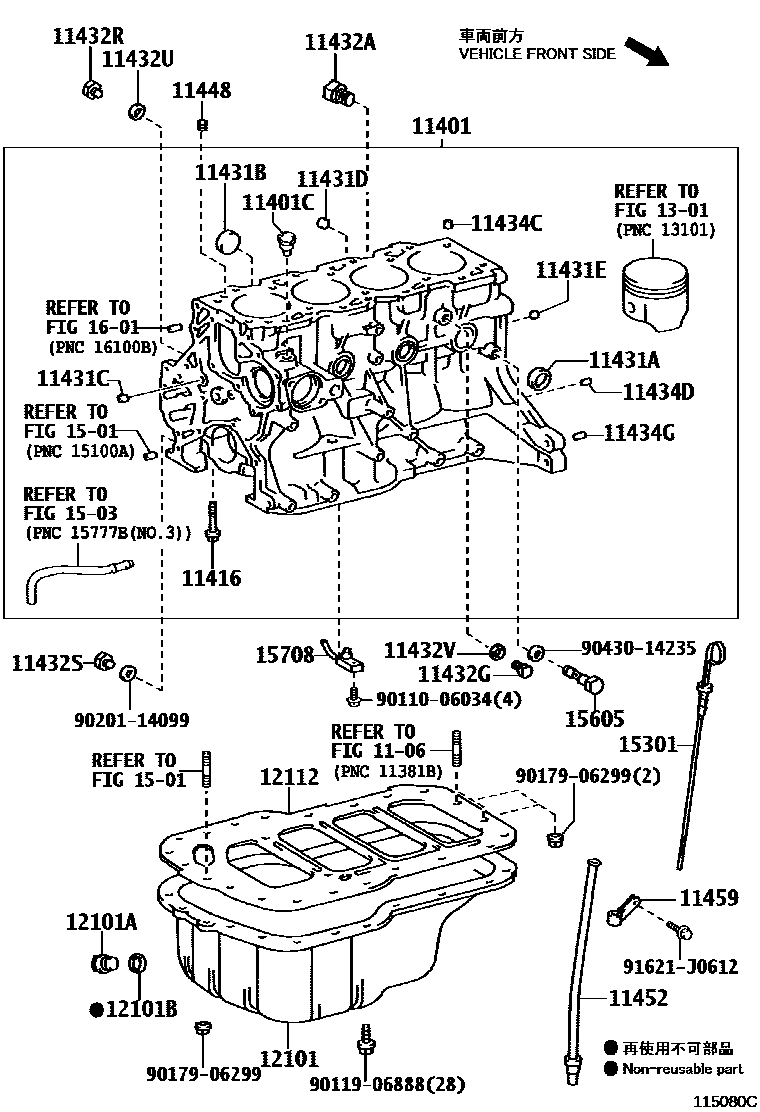

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 6 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-21011 · 11361-22021 |
| 11363A | Flywheel housing side cover | 11363-21010 · 11363-33010 |
| 11401 | Cylinder block sub-assembly | 11401-29855 · 11401-29856 · 11401-29857 · 11401-29858 · 11401-29865 · 11401-29866 · 11401-29867 · 11401-69698 · 11410-09321 · 11410-09455 · 11410-29155 · 11410-29156 · 11410-29165 · 11410-29166 · 11410-39047 · 11410-39048 · 11410-39057 · 11410-39058 |
| 11401C | Flange (for water bypass pipe) | 16353-64011 |
| 11401G | crankshaft position sensor | 90919-05070 · 90919-A5004 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-75016 · 90311-75019 · 90311-76001 · 90311-76002 · 90311-76003 · 90311-78002 · 90311-A0013 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02125 · 90910-02135 · 90910-02163 · 90910-A2010 · 91511-K0840 |
| 11420 | Reinforce crankcase assembly | 11420-0T011 · 11420-37010 |
| 11421 | Stud bolts (for oil pan) | 90126-06010 · 90126-06028 · 90126-A0013 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-63500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-63000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-41800 |
| 11431D | No. 4 sealing plug (for cylinder block) | 96411-41800 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-41800 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 · 90345-52003 · 90345-53006 |
| 11432G | No. 5 headed straight thread plug | 90341-12006 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-10002 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-14032 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | 90430-10027 |
| 11432V | No. 2 straight thread plug gasket (for cylinder block) | 90430-12221 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-04097 · 90250-08120 · 90253-14004 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-14003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13001 · 90253-13017 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-08120 |
| 11444A | O-ring | 90301-A0034 · 96723-24020 |
| 11448 | Cylinder block oil orifice | 11448-64020 |
| 11452 | Engine oil level gauge guide | 11452-21030 · 11452-22030 · 11452-22031 · 11452-37010 · 11452-37011 · 11452-64030 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 11459 | Oil level gauge guide bracket | 11459-22010 · 90929-01049 |
| 12101 | Oil pan sub-assembly | 12101-22024 · 12101-64141 · 12111-21033 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12101C | O-ring (for oil pan) | 96722-24020 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0T020 · 12102-21010 · 12102-37010 |
| 12112 | No. 2 oil pan | 12112-64040 |
| 13516B | oil nozzle | 13516-21010 |
| 15301 | Engine oil level scoring assembly | 15301-21030 · 15301-21040 · 15301-21060 · 15301-22050 · 15301-37010 · 15301-37030 · 15301-64090 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15605 | Oil check valve sub-assembly | 15703-27010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-37011 · 15708-37012 · 15790-64030 |
| 16337B | No. 1 water outlet stay | 16337-21010 |
