Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 14 images and 2 PNC and OE references.

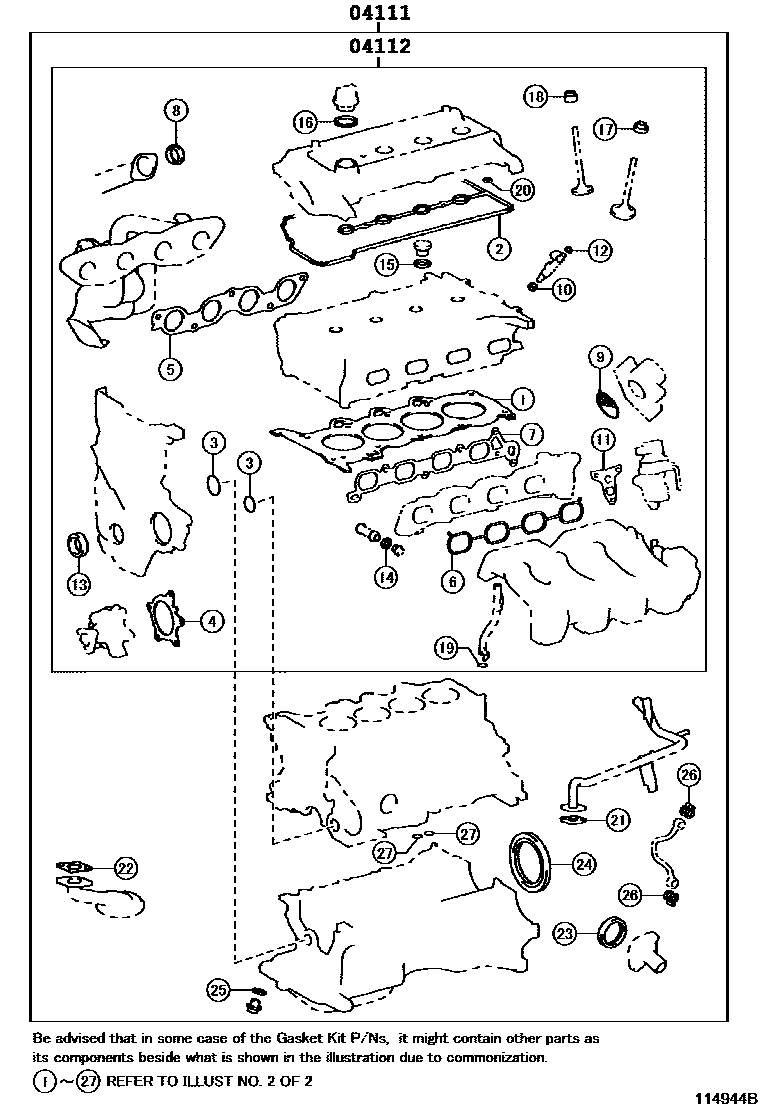

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 114944B
Engine Overhaul Gasket Kit — 114944B (200704 – 999999)

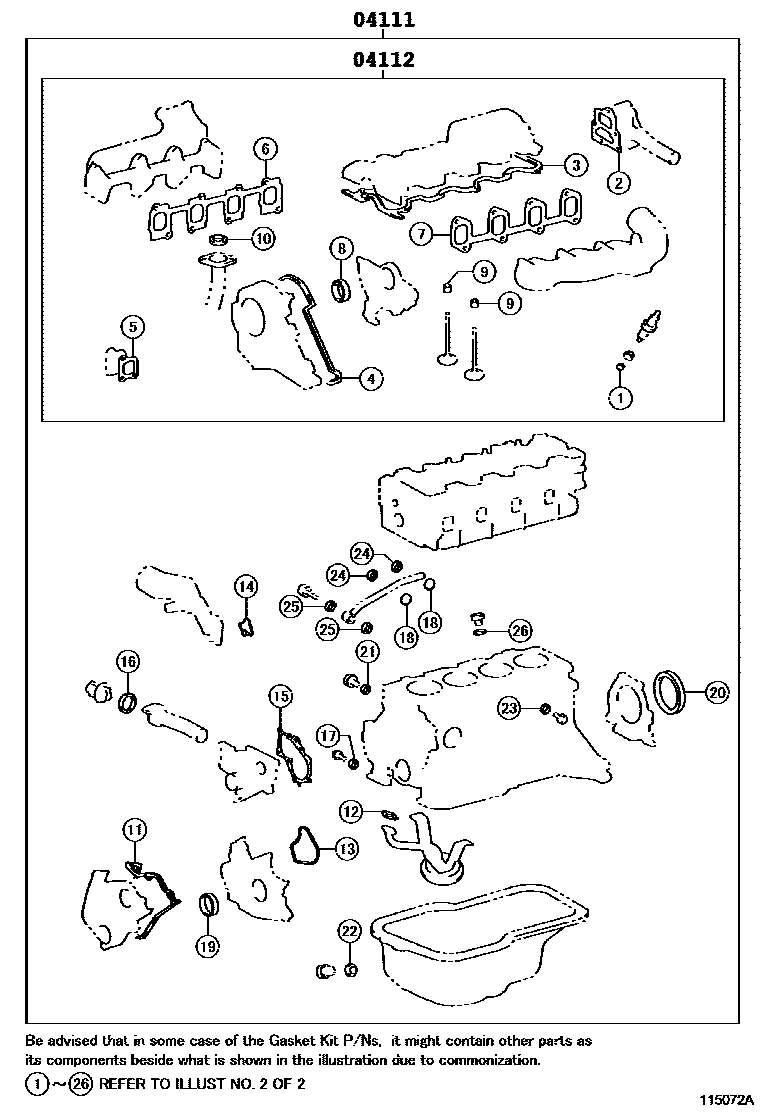

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115072A
Engine Overhaul Gasket Kit — 115072A (200708 – 999999)

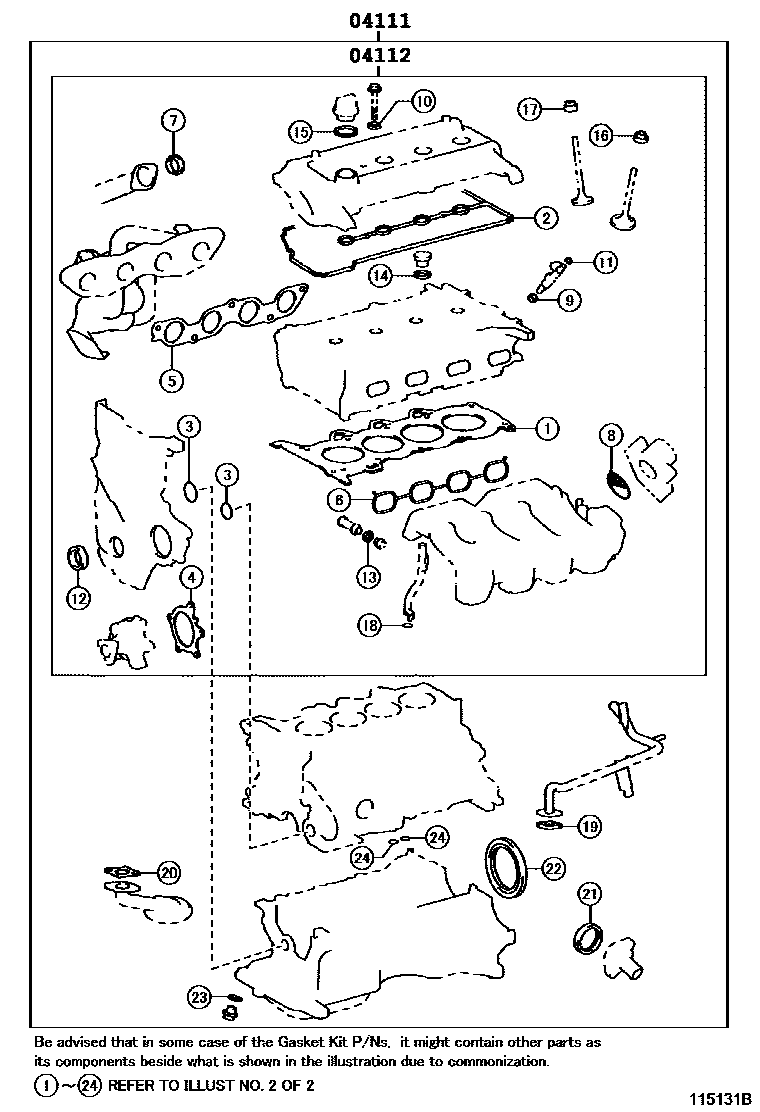

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115131B
Engine Overhaul Gasket Kit — 115131B (200708 – 999999)

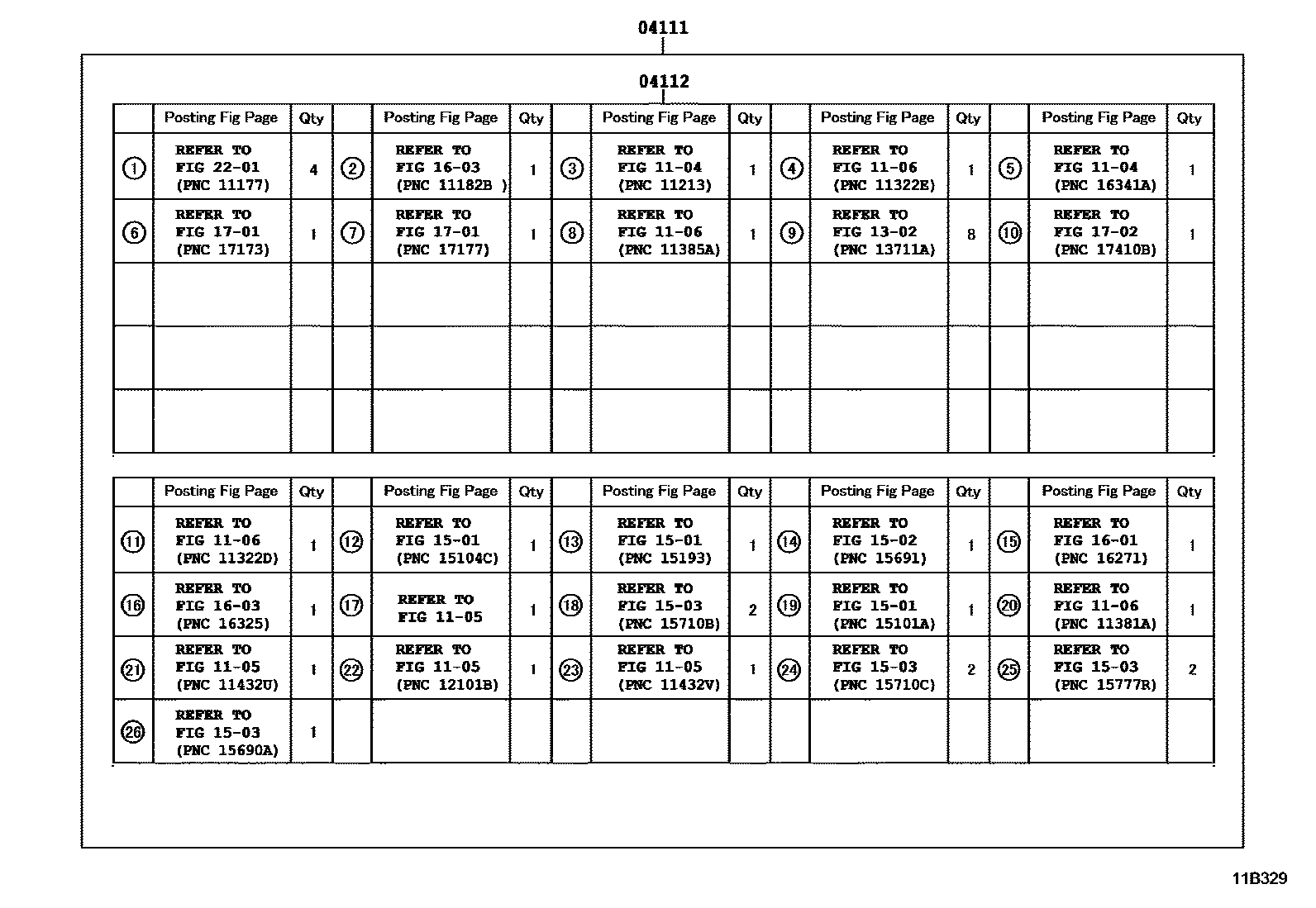

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B329
Engine Overhaul Gasket Kit — 11B329 (200708 – 999999)

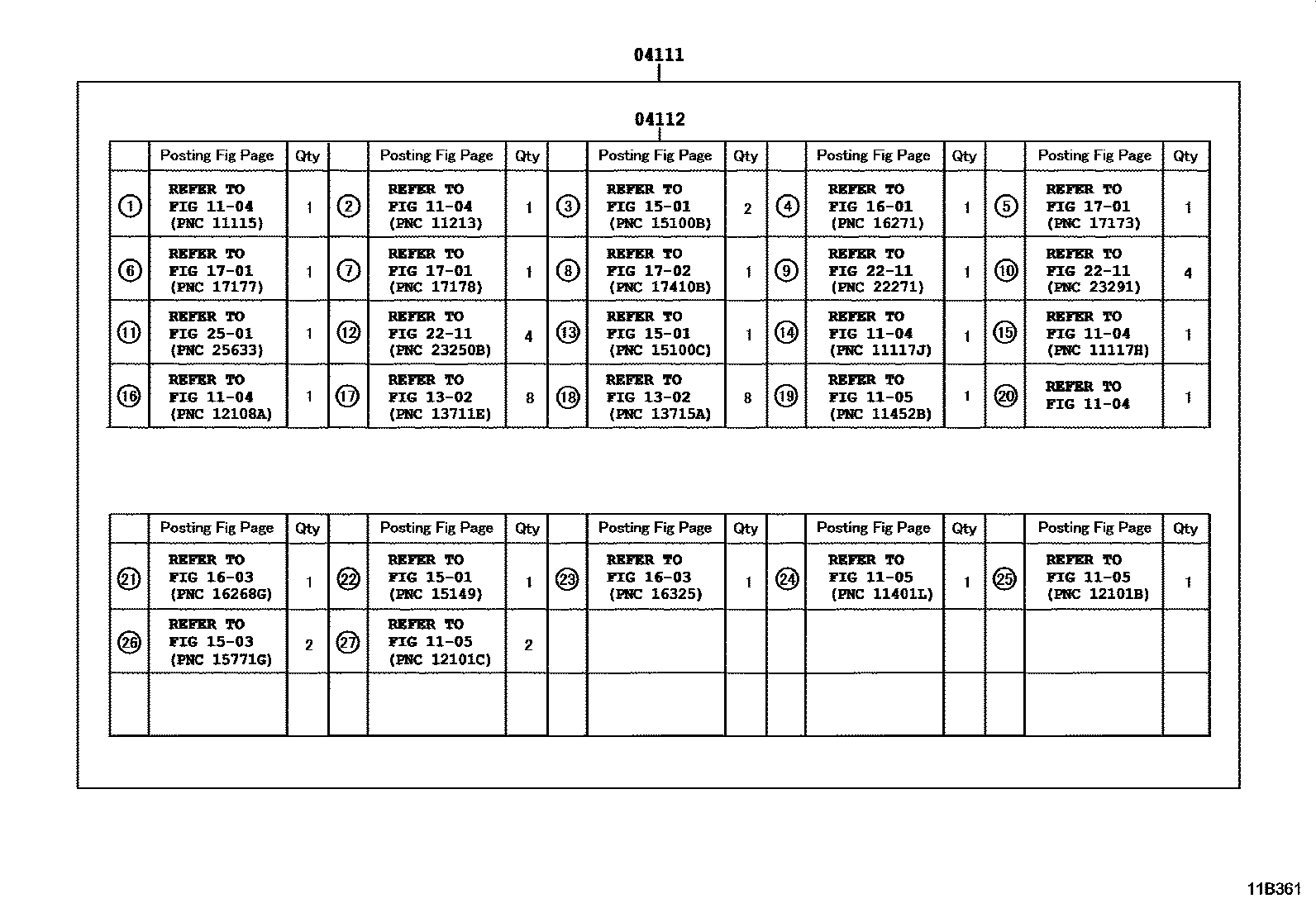

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B361
Engine Overhaul Gasket Kit — 11B361 (200704 – 999999)

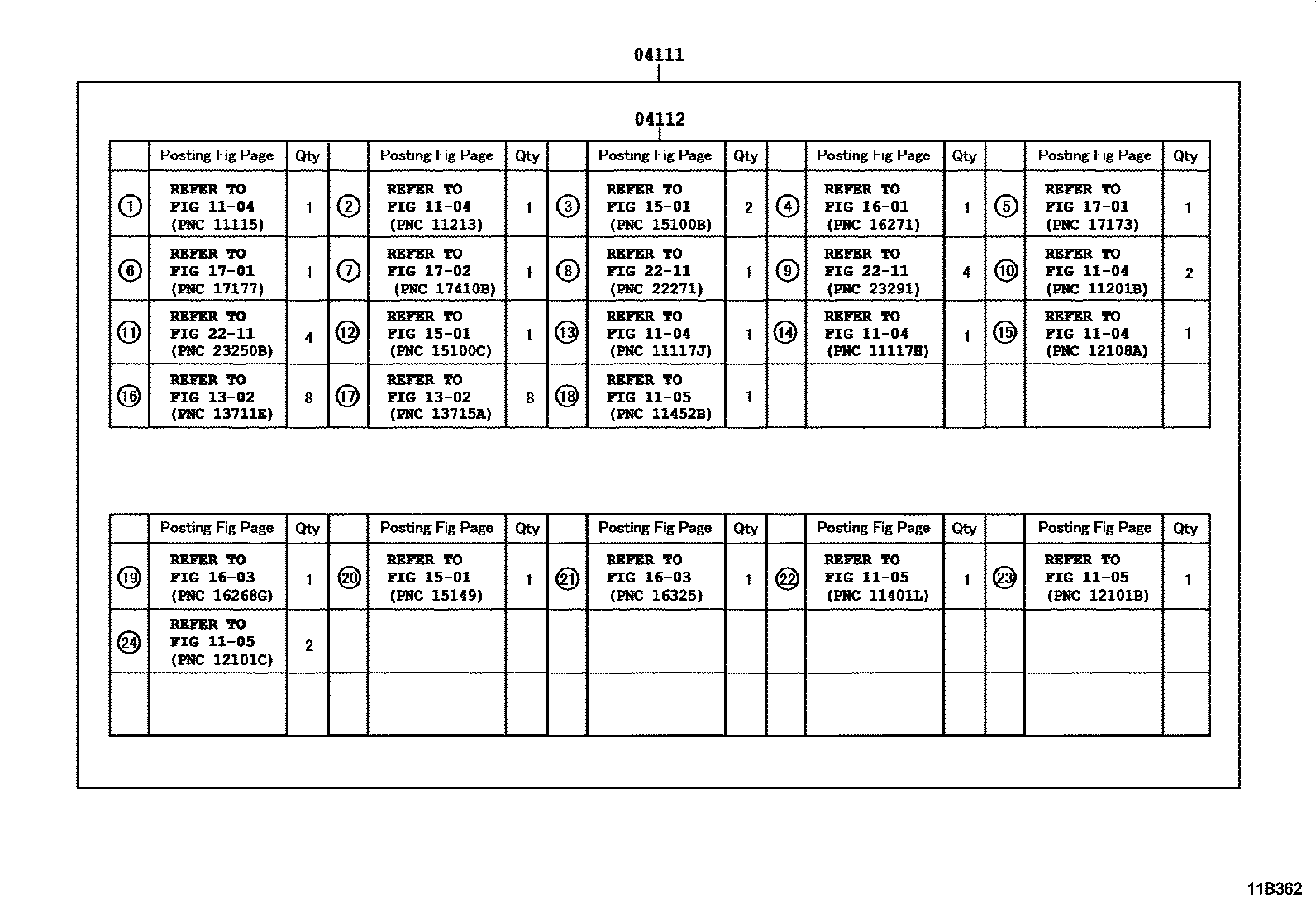

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B362
Engine Overhaul Gasket Kit — 11B362 (200708 – 999999)

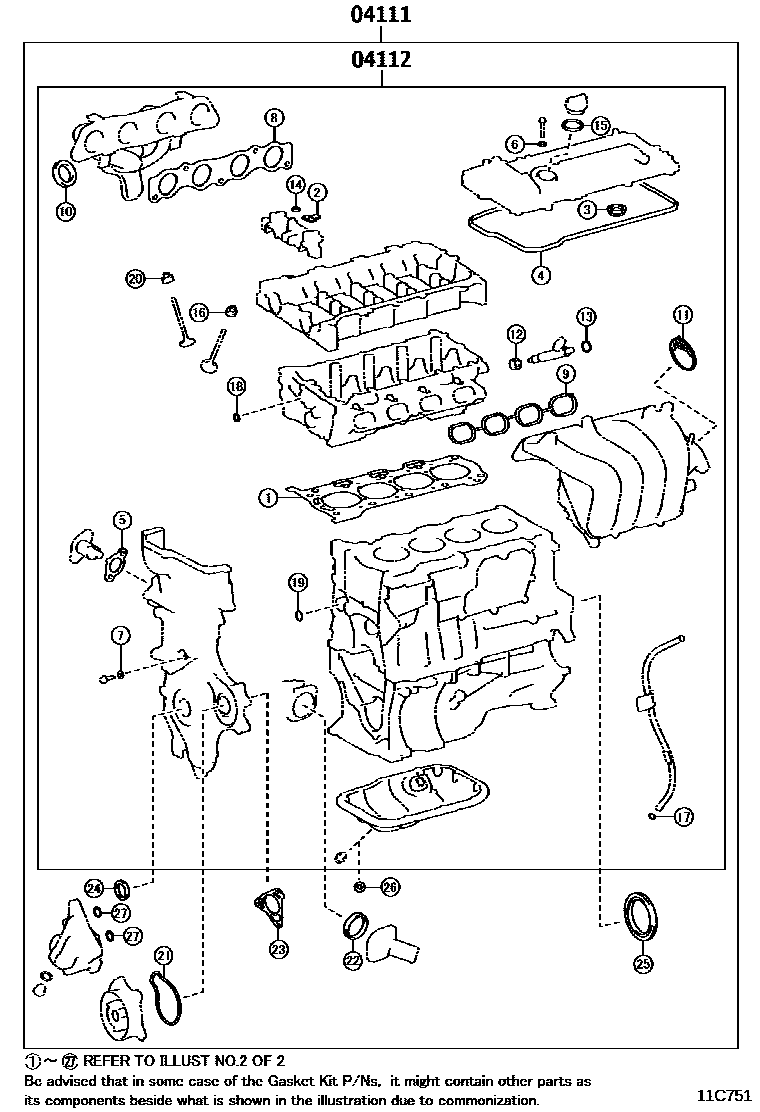

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C751
Engine Overhaul Gasket Kit — 11C751 (201007 – 999999)

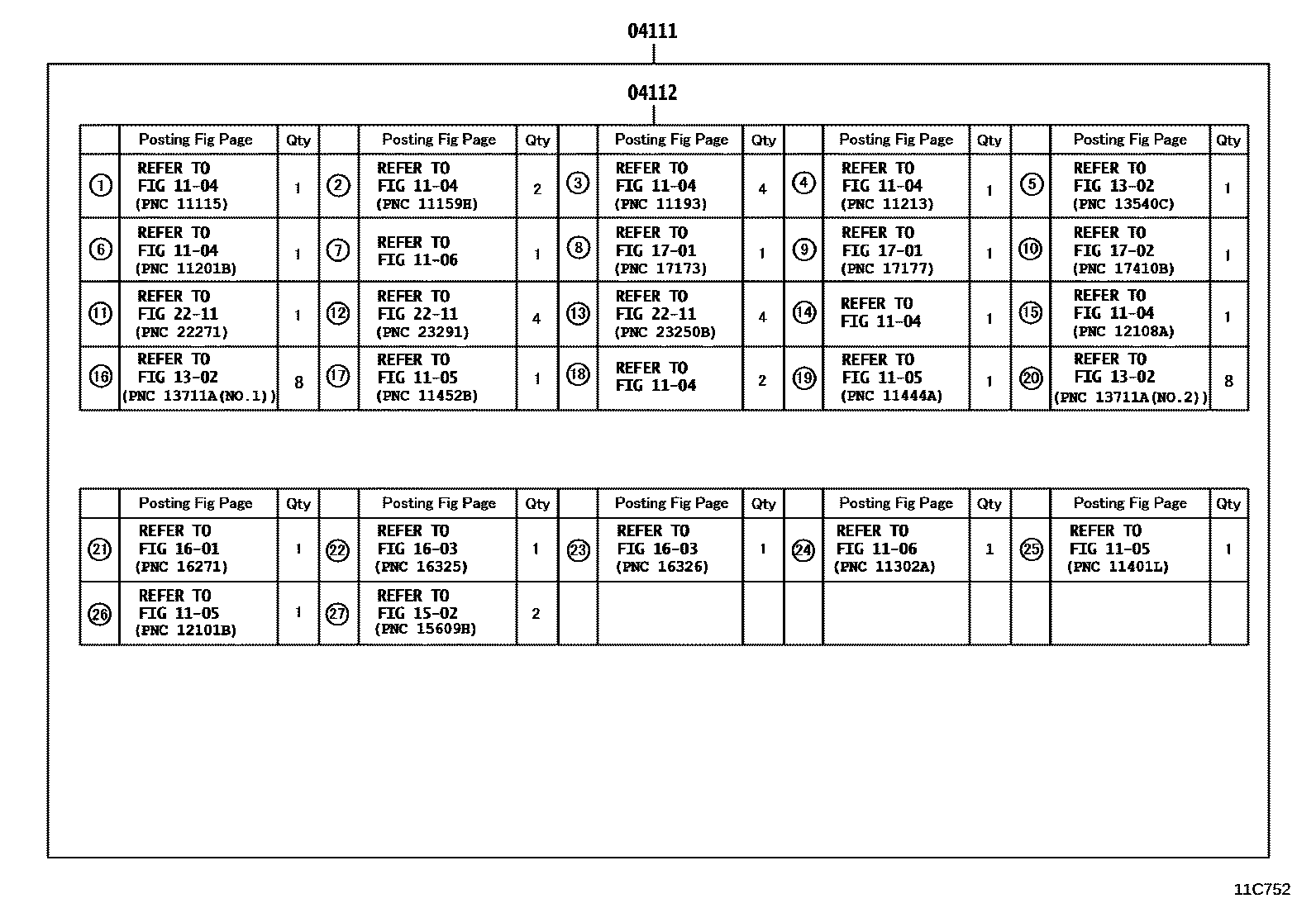

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C752
Engine Overhaul Gasket Kit — 11C752 (201007 – 999999)

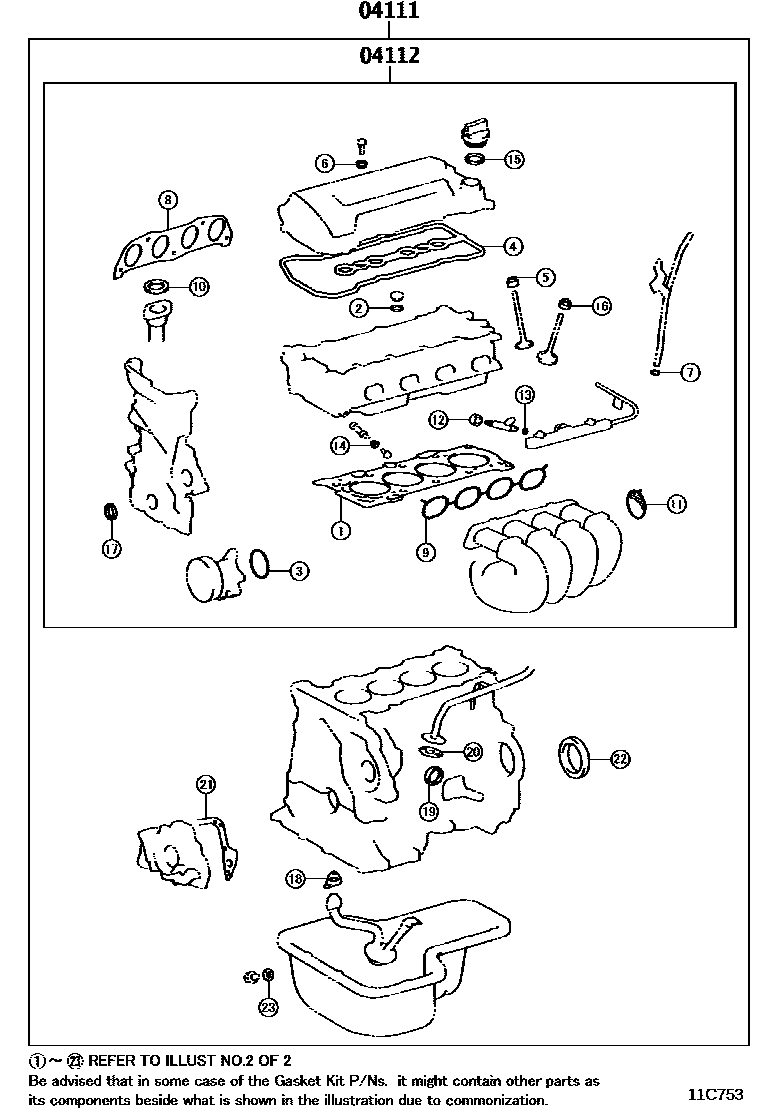

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C753
Engine Overhaul Gasket Kit — 11C753 (200708 – 201311)

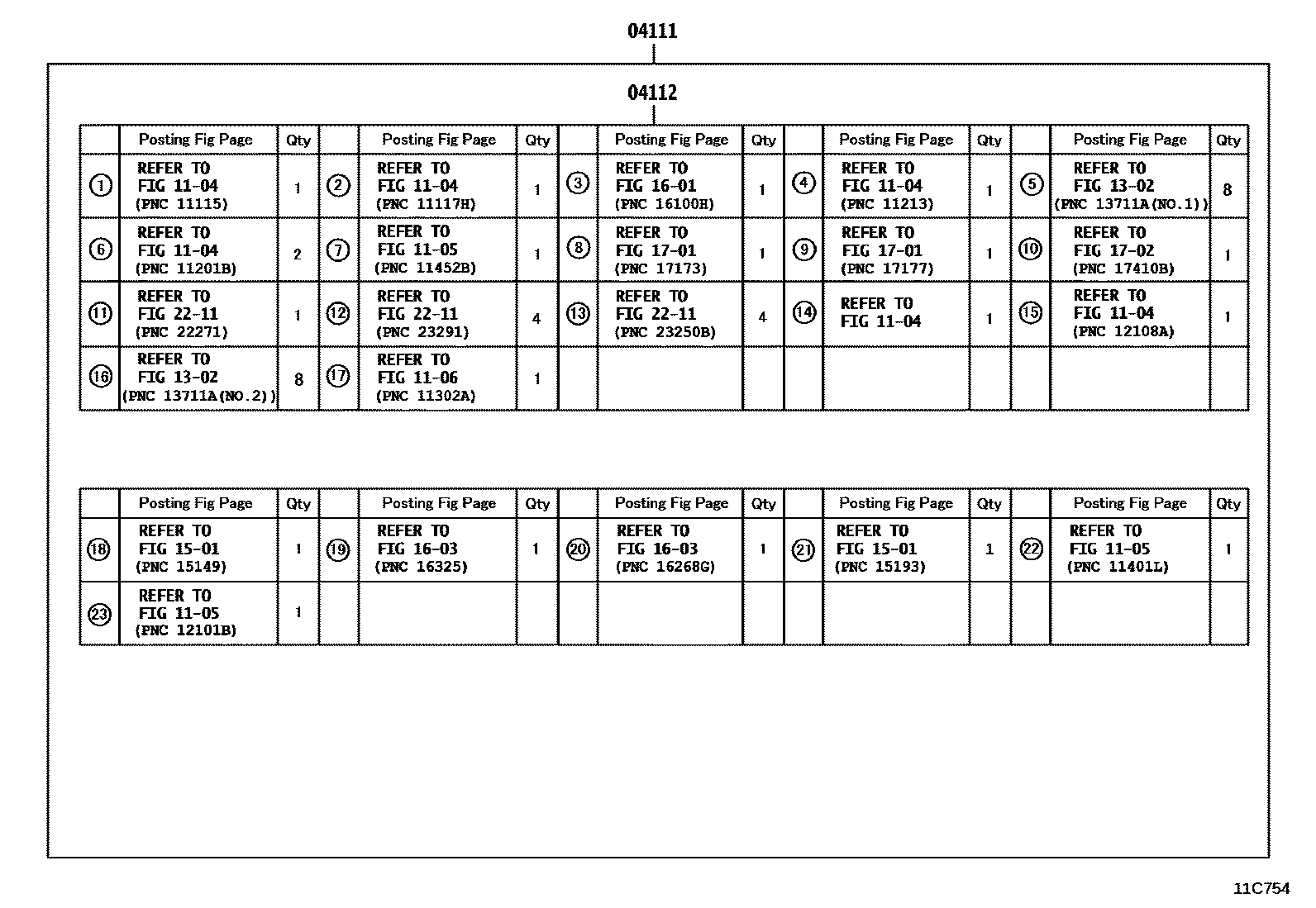

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C754
Engine Overhaul Gasket Kit — 11C754 (200708 – 201311)

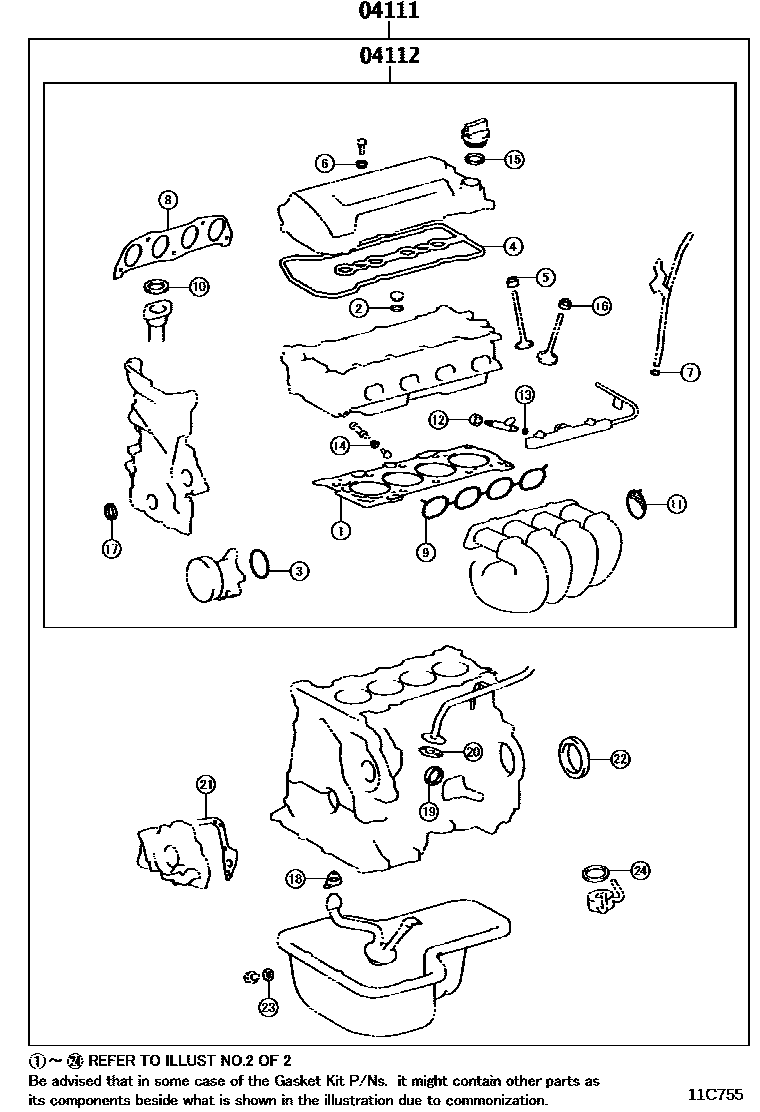

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C755
Engine Overhaul Gasket Kit — 11C755 (200708 – 201311)

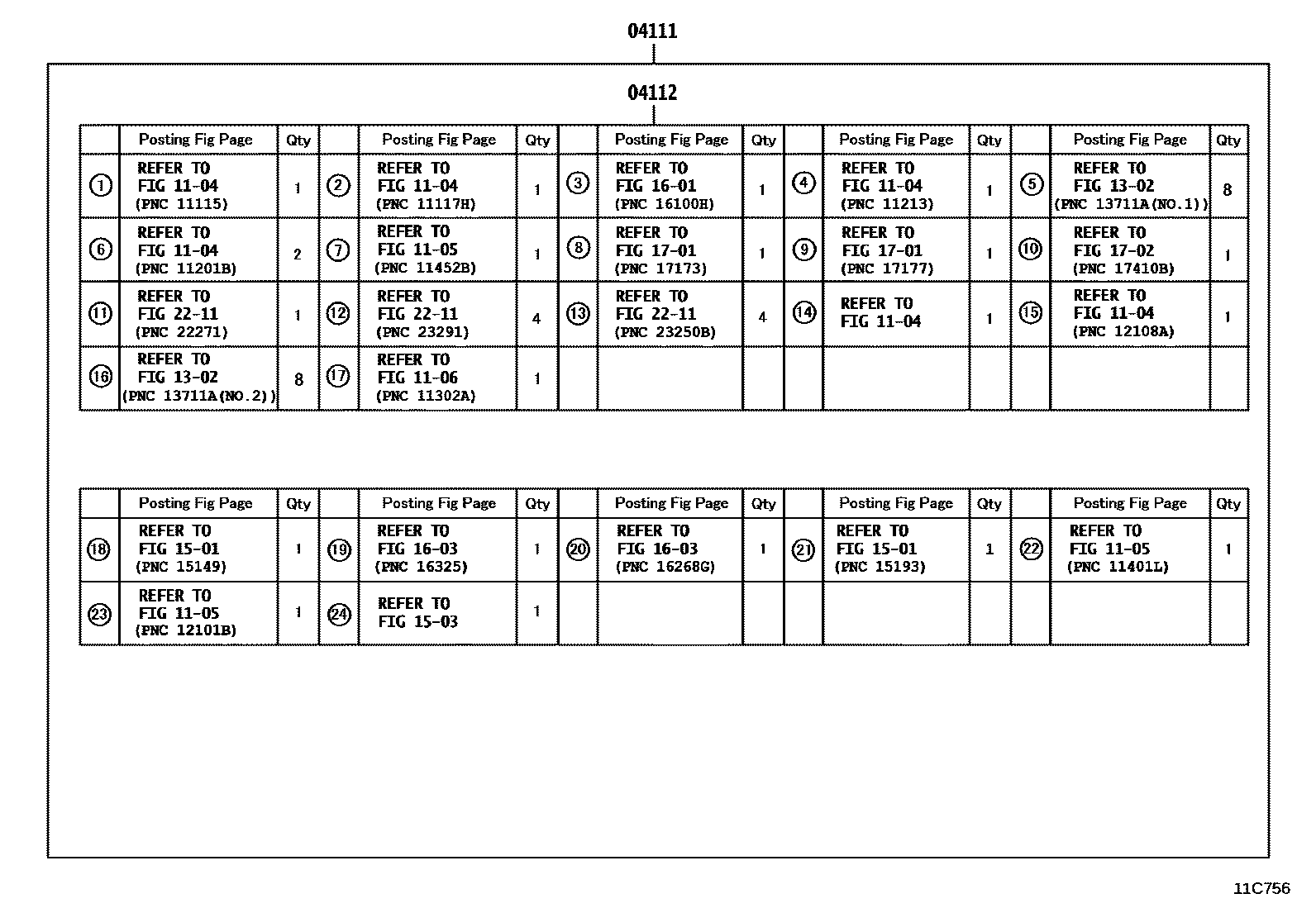

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C756
Engine Overhaul Gasket Kit — 11C756 (200708 – 201311)

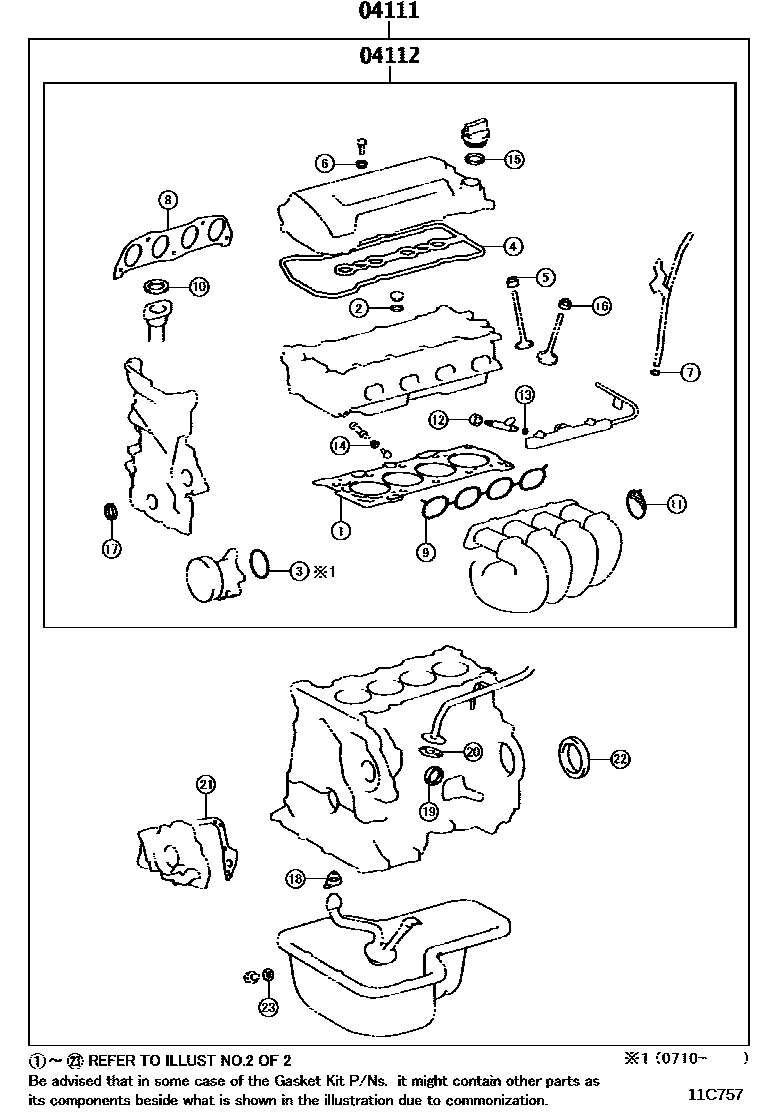

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C757
Engine Overhaul Gasket Kit — 11C757 (200708 – 999999)
Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C758
Engine Overhaul Gasket Kit — 11C758 (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T133 · 04111-21231 · 04111-21232 · 04111-21233 · 04111-21234 · 04111-21235 · 04111-21236 · 04111-21237 · 04111-21238 · 04111-21241 · 04111-21242 · 04111-21243 · 04111-21244 · 04111-21245 · 04111-21246 · 04111-21360 · 04111-22700 · 04111-22701 · 04111-22840 · 04111-22841 · 04111-22842 · 04111-22910 · 04111-22911 · 04111-22912 · 04111-37093 · 04111-37095 · 04111-37096 · 04111-64681
04112Engine valve grinding pad assembly04112-0T132 · 04112-21231 · 04112-21232 · 04112-21233 · 04112-21234 · 04112-21235 · 04112-21236 · 04112-21241 · 04112-21242 · 04112-21243 · 04112-21244 · 04112-21350 · 04112-22620 · 04112-22621 · 04112-22690 · 04112-37073 · 04112-37074 · 04112-37075 · 04112-64431
