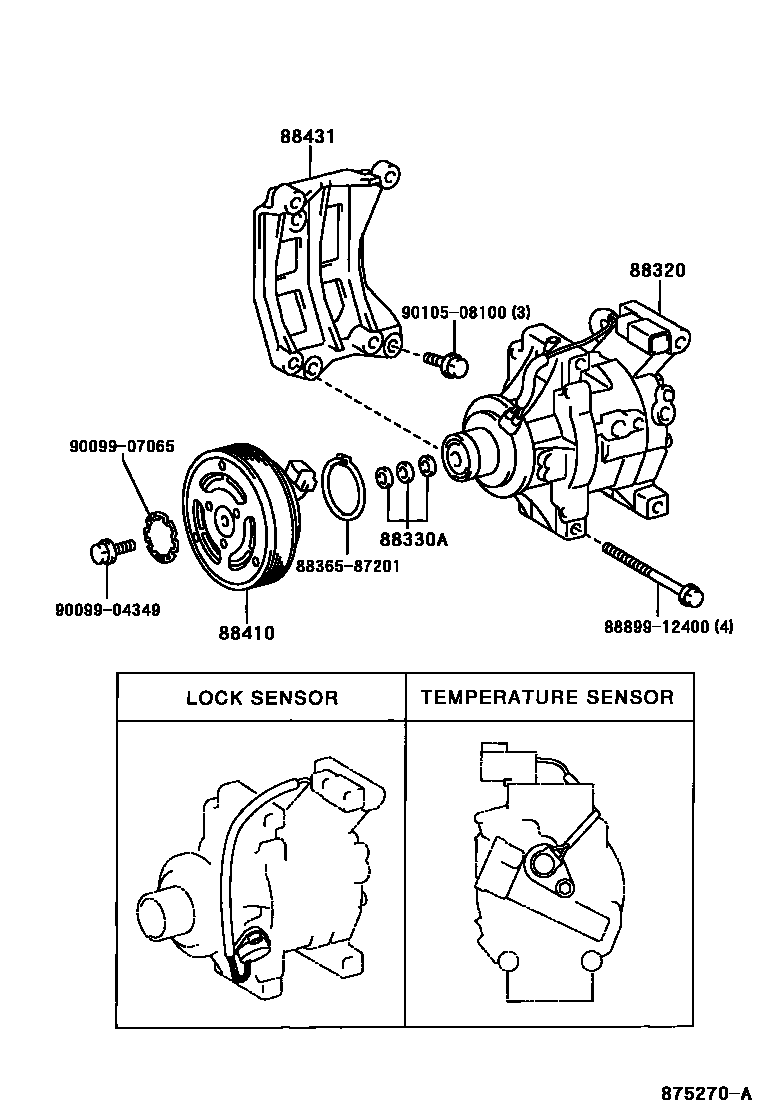

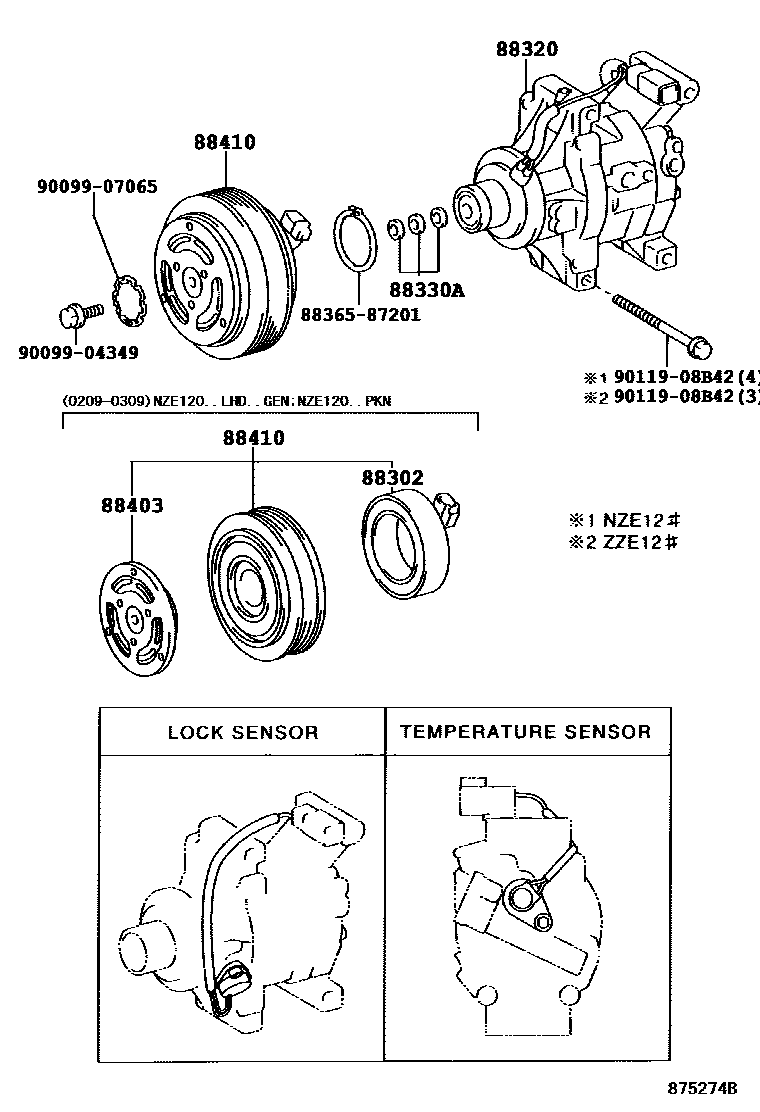

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-1A050 · 99411-1A050 |
| 88320 | Cooler Compressor Assembly | 88320-1A480 · 88320-1A481 · 88320-1A490 · 88320-1A491 · 88320-1A500 · 88320-1A501 · 88320-1A510 · 88320-1A511 · 88320-1A531 · 88320-1A550 · 88320-1A570 · 88320-1A590 · 88320-1A610 · 88320-1A630 |
| 88330A | Washer (for electromagnetic clutch) | 88318-87704 · 88318-87705 · 88318-87706 · 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-1A020 |
| 88410 | Magnetic Clutch Assembly | 88410-1A210 · 88410-1A220 · 88410-1A230 · 88410-1A260 · 88410-1A270 · 88410-1A290 · 88410-1A310 · 88410-52140 · 88410-52141 · 88410-52230 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12650 · 88431-12651 |
