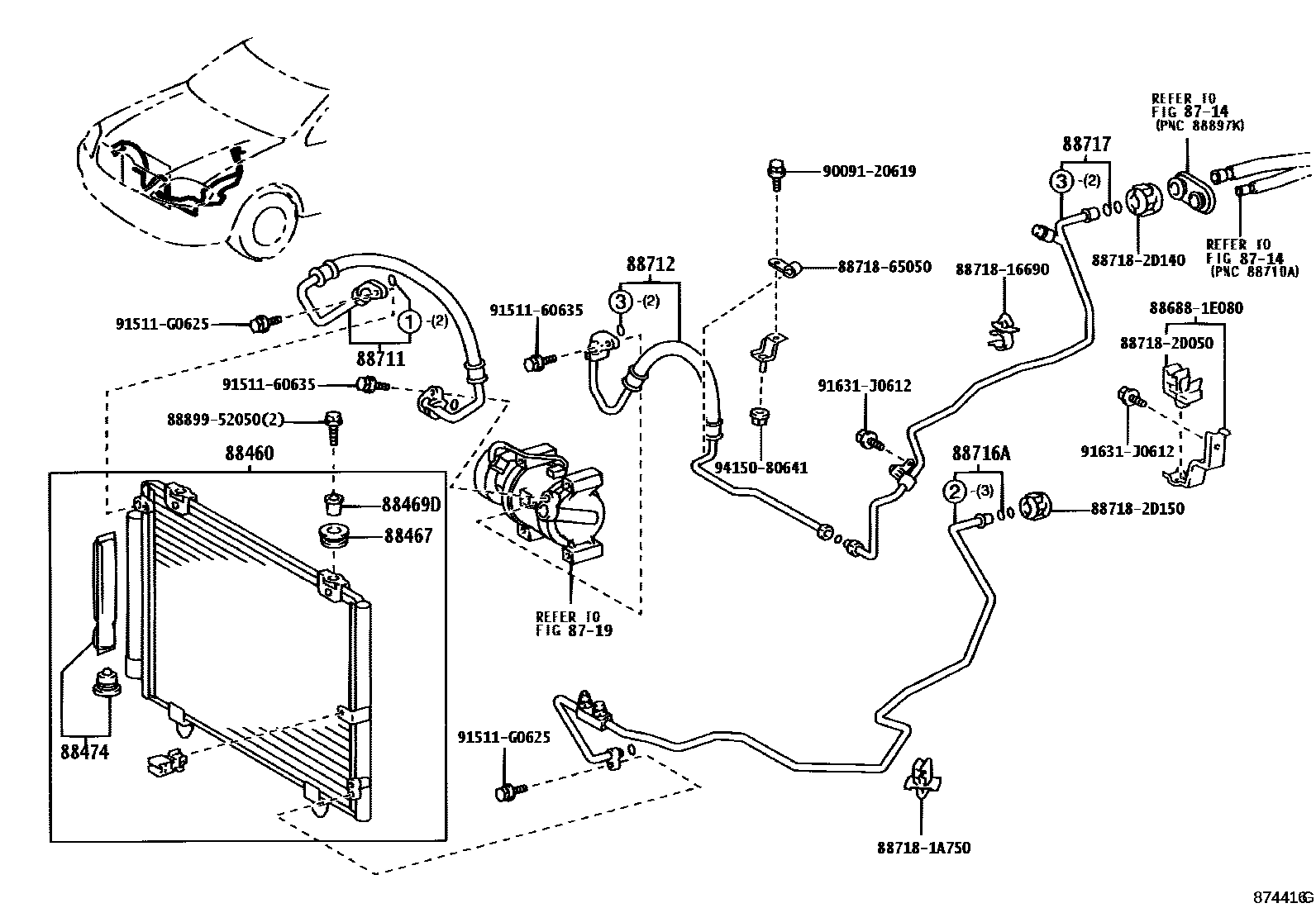

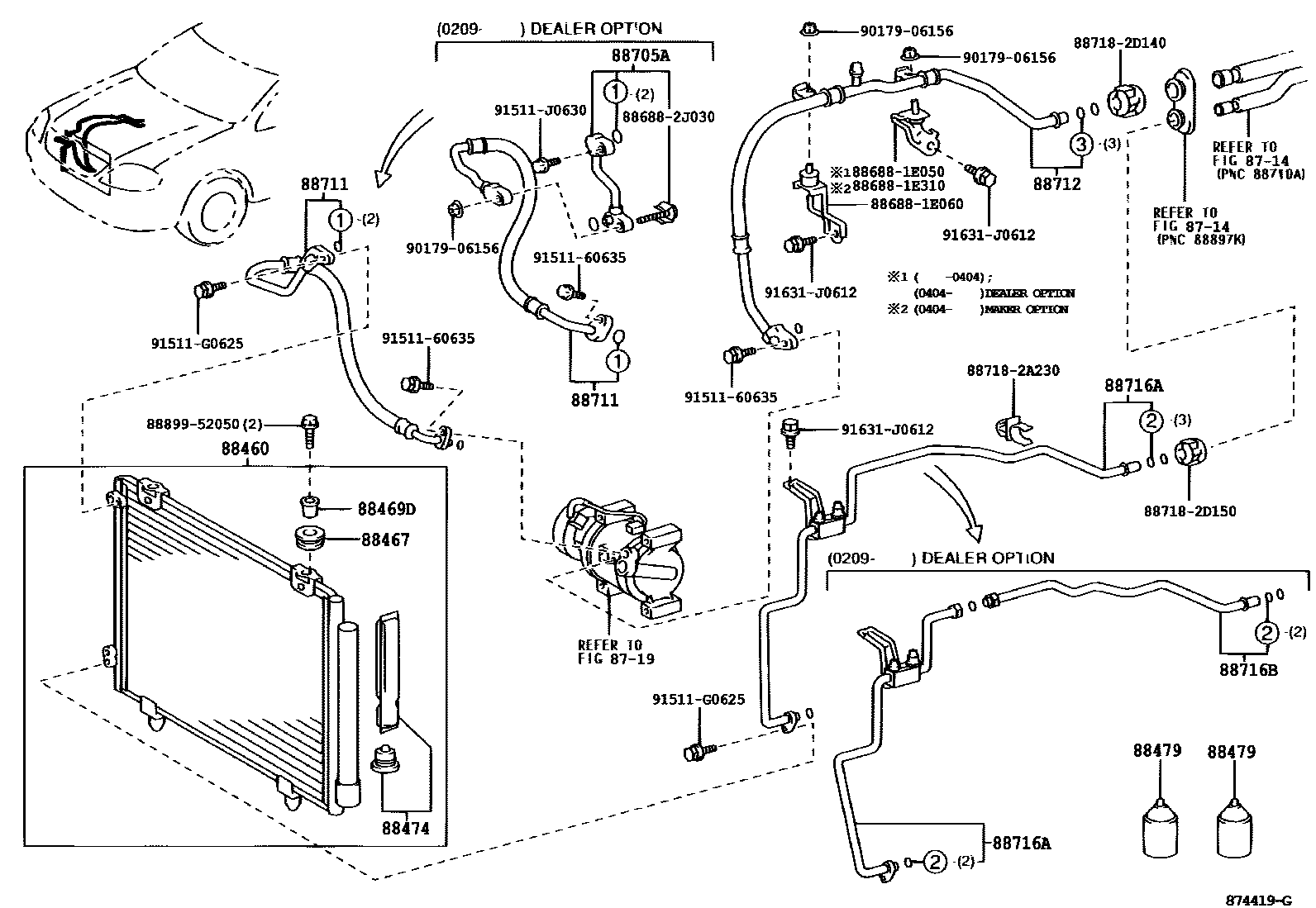

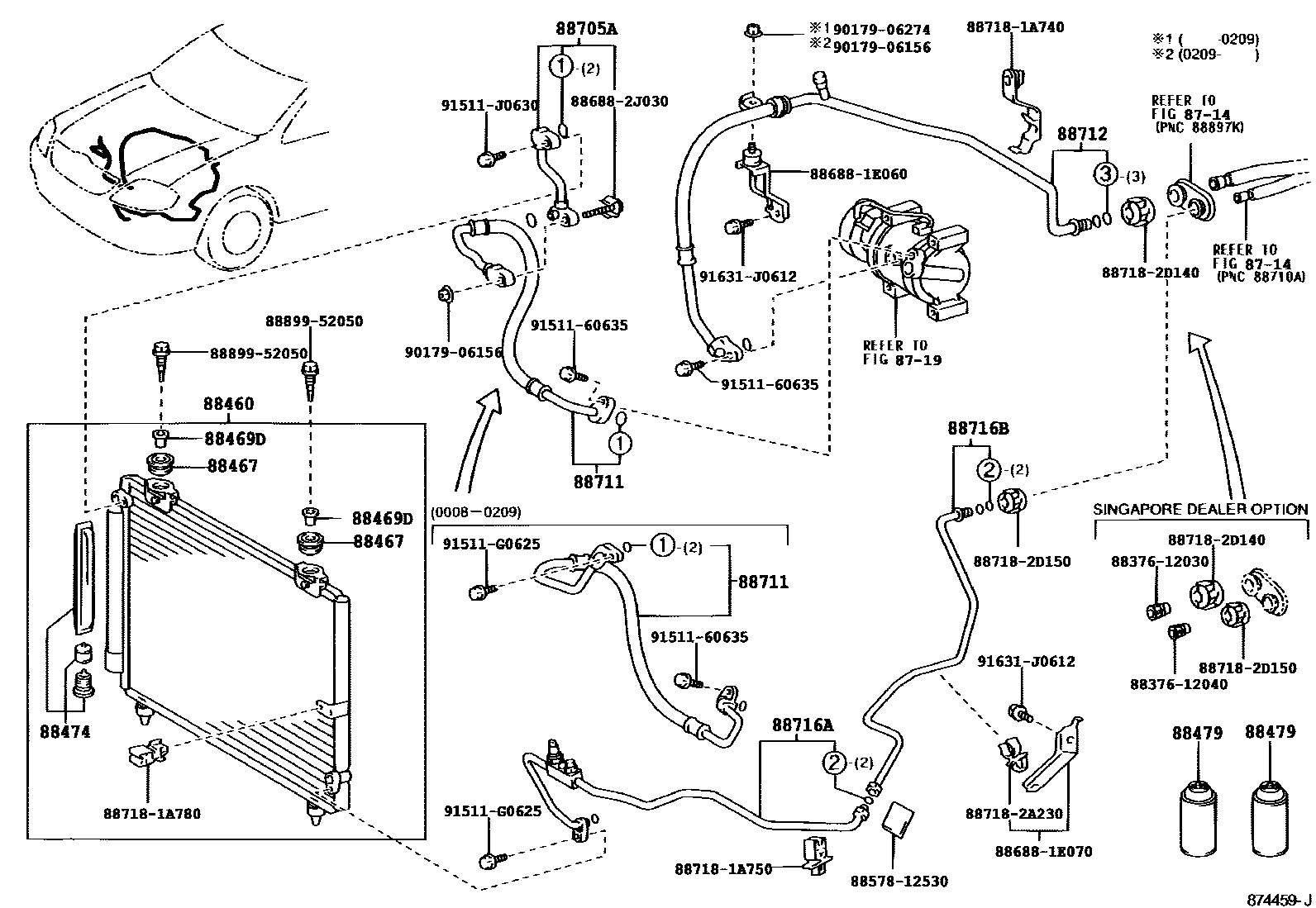

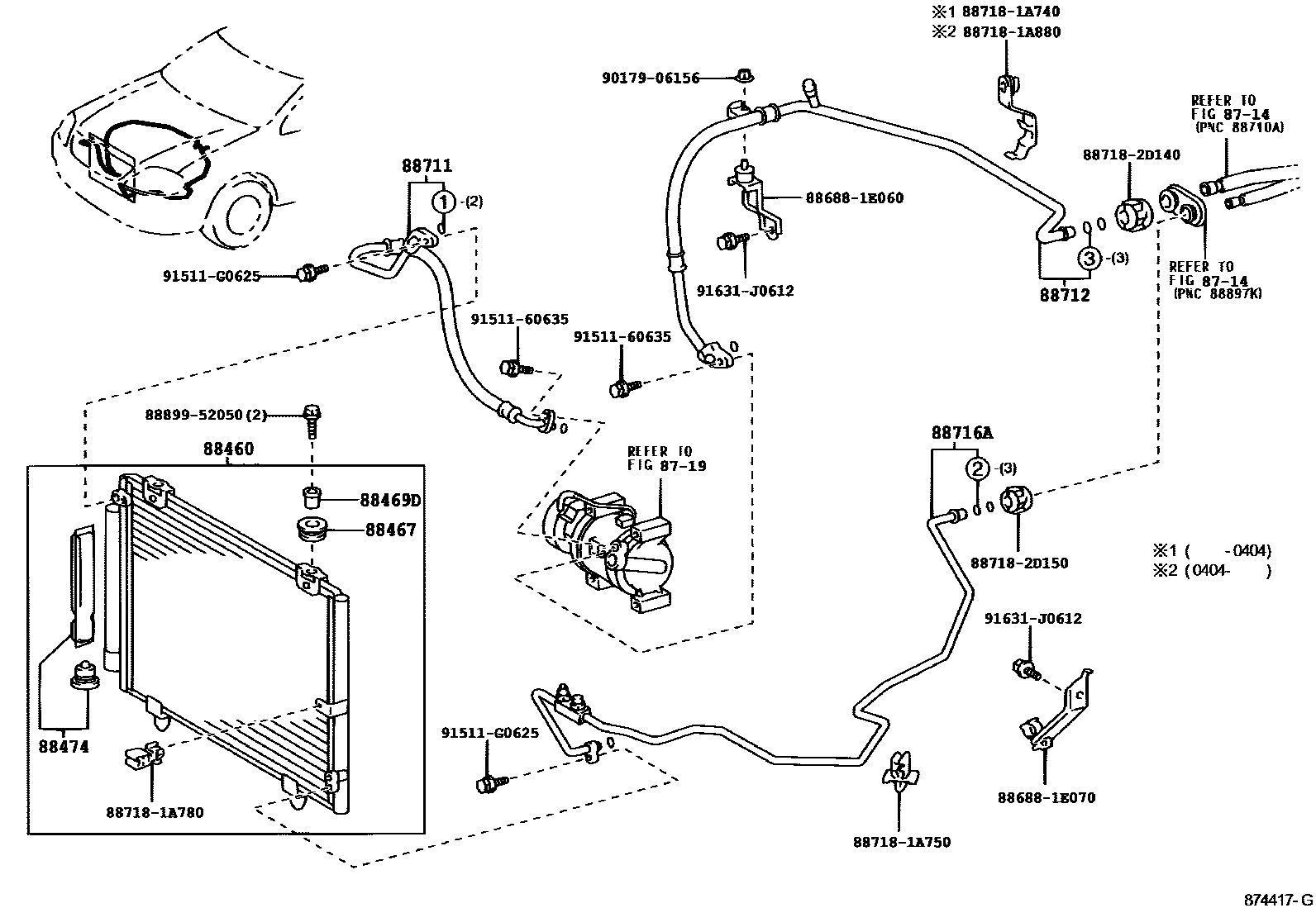

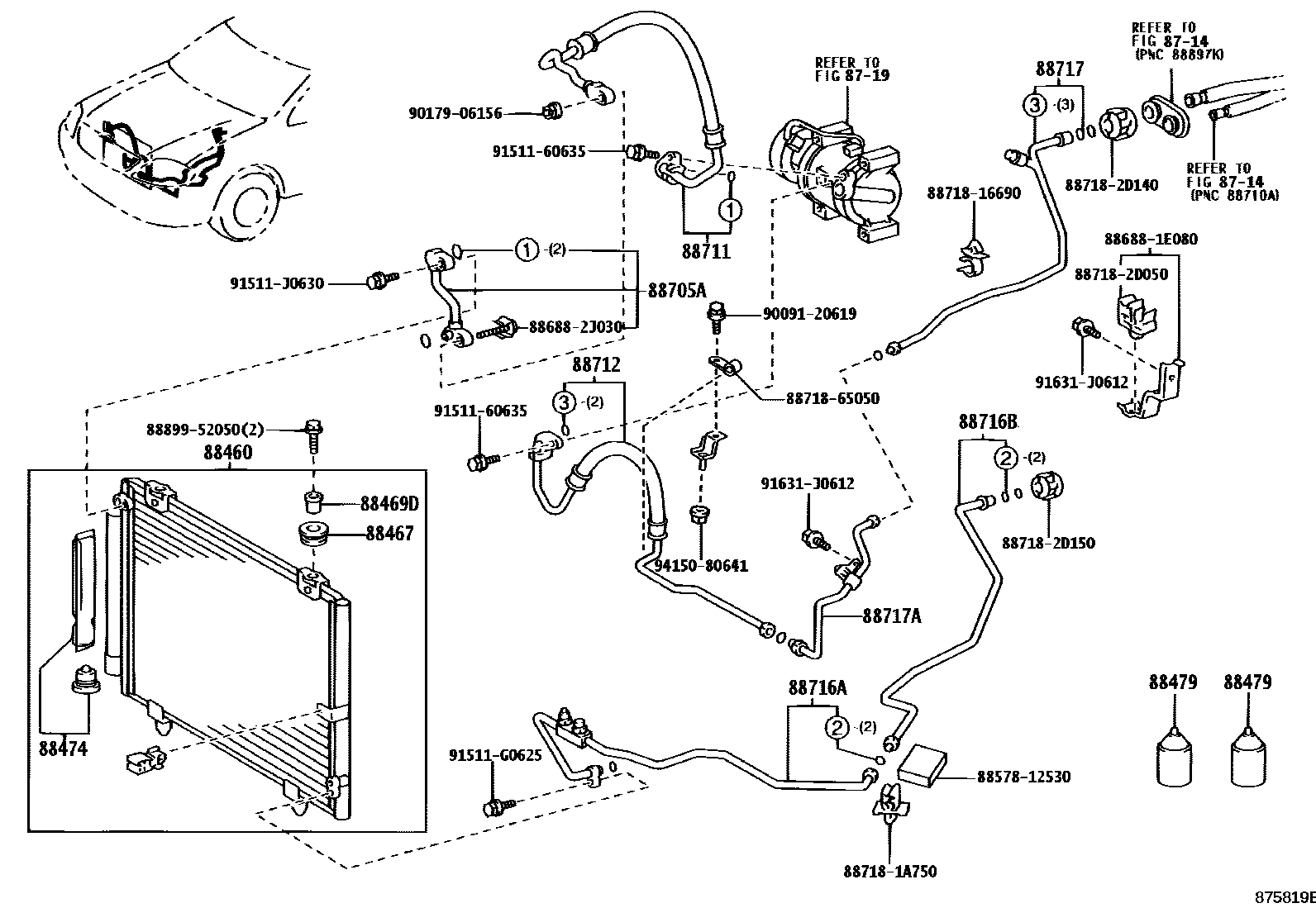

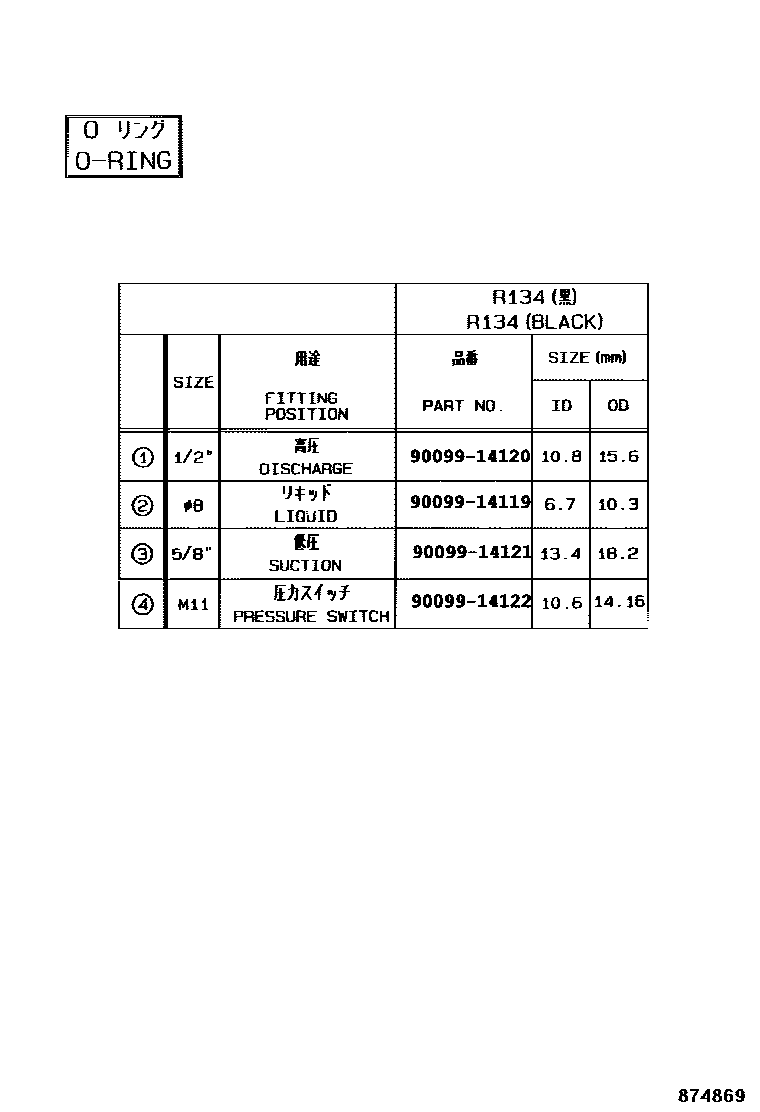

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88450-12210 · 88450-12211 · 88450-12230 · 88450-12231 · 88450-12240 · 88450-12241 · 88450-13030 · 88450-13031 · 88460-12540 · 88460-12541 · 88460-12550 · 88460-12551 · 88460-12560 · 88460-12561 · 88460-13020 · 88460-13021 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 · 90986-02008 |
| 88705A | Discharge pipe sub-assembly | 88705-12200 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-12530 · 88703-12540 · 88703-12550 · 88703-12580 · 88703-12620 · 88703-12630 · 88703-12640 · 88703-12680 · 88703-12690 · 88703-12700 · 88703-12760 · 88703-12761 · 88703-12770 · 88703-12771 · 88703-12790 · 88703-12800 · 88703-12801 · 88703-12802 · 88703-12810 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-12810 · 88704-12820 · 88704-12830 · 88704-12831 · 88704-12840 · 88704-12850 · 88704-1A010 · 88704-1A130 · 88704-1A131 · 88704-1A140 · 88704-1A141 · 88704-1A150 · 88704-1A151 · 88704-1A160 · 88704-1A161 · 88704-1A170 · 88704-1A171 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-12510 · 88710-12511 · 88710-12530 · 88710-12531 · 88710-12532 · 88710-12570 · 88710-12580 · 88710-12750 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-1A640 · 88716-1A660 · 88716-1A800 |
| 88717 | Cooler No. 1 refrigerant suction pipe | 88710-12520 · 88710-12521 · 88717-1A170 |
| 88717A | Cooler refrigerant suction pipe A | 88710-13030 |
