Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55523B | Heater control opening cover | 55523-12110 · 55523-12120 |

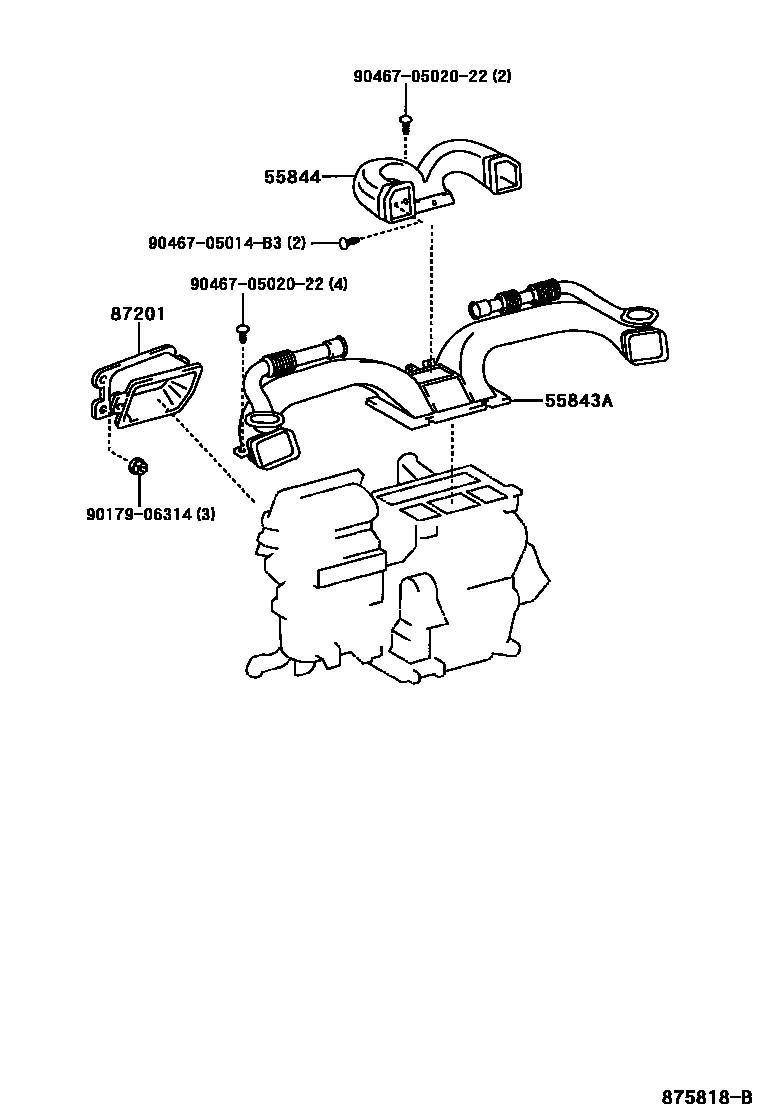

| 55843A | Air duct No. 1 from heater to air register | 55843-02070 · 55843-12280 · 55843-12290 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-02100 · 55844-12460 · 55844-12470 |

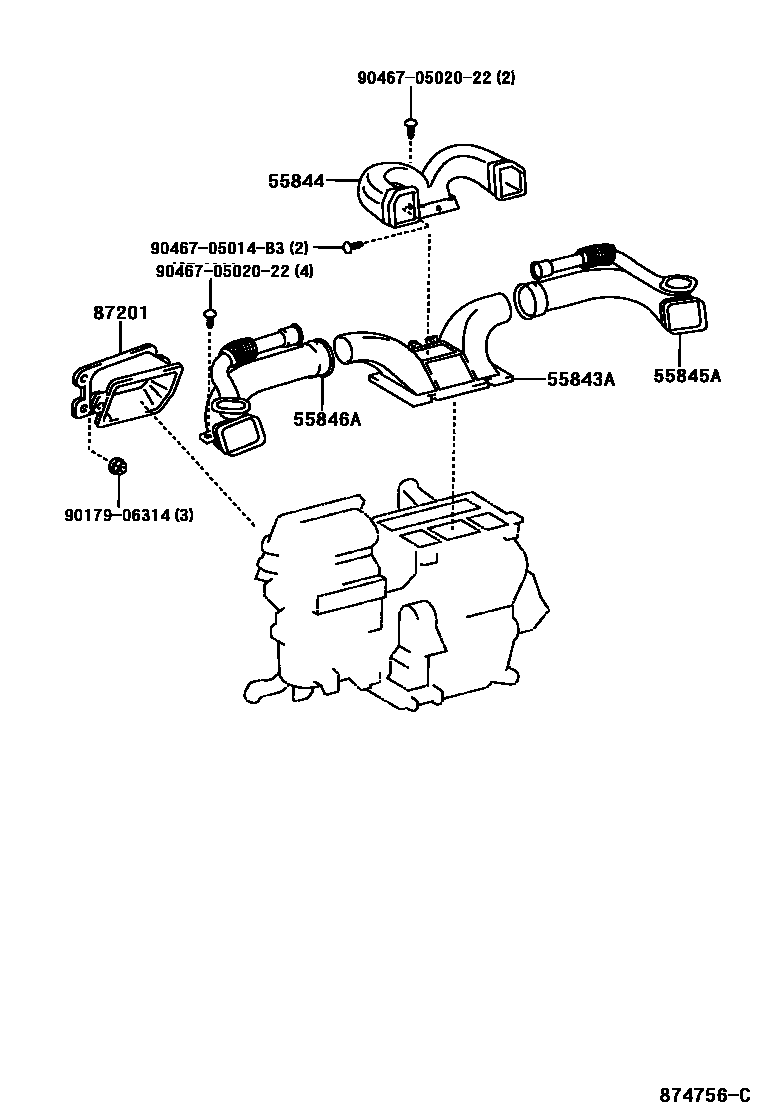

| 55845A | Air duct No. 3 from heater to air regulator | 55845-02040 |
| 55846A | Air duct No. 4 from heater to air register | 55846-02050 |

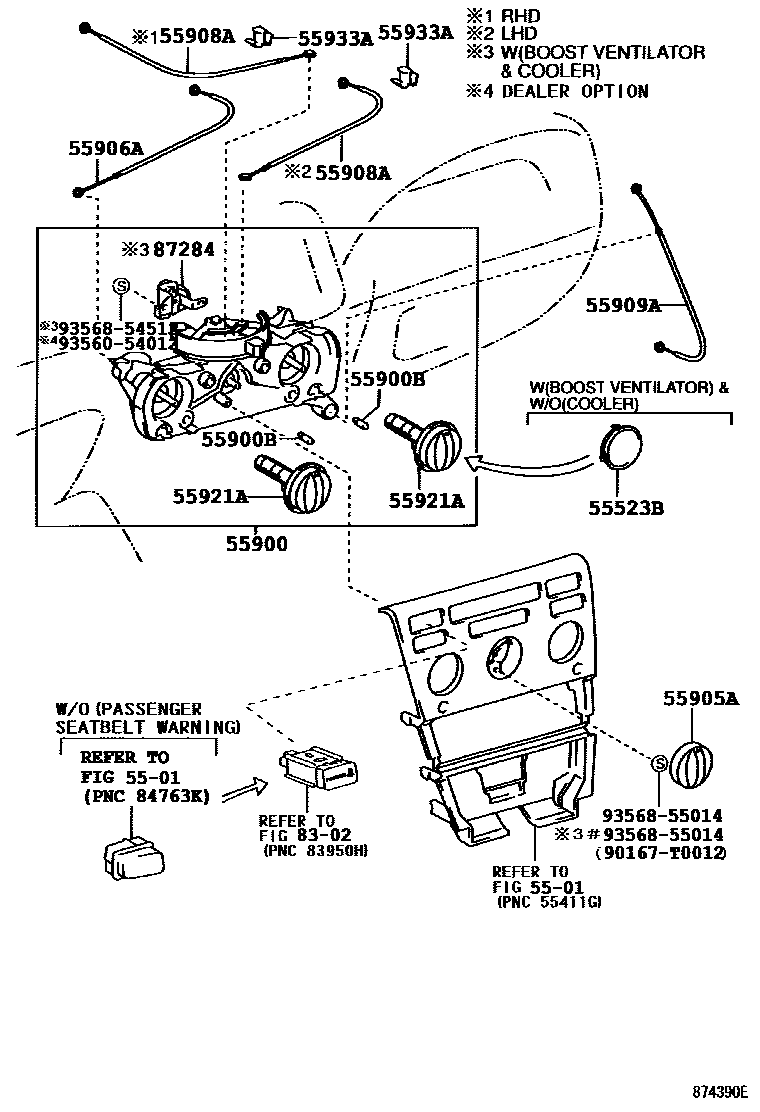

| 55900 | Air conditioning control assembly | 55900-12820 · 55900-1A010 · 55900-1A030 · 55900-1A040 · 55900-1A050 · 55900-1A070 · 55900-1A071 · 55900-1A080 · 55900-1A081 · 55900-1A090 · 55900-1A091 |
| 55900B | air conditioning control light bulb | 90981-11040 |

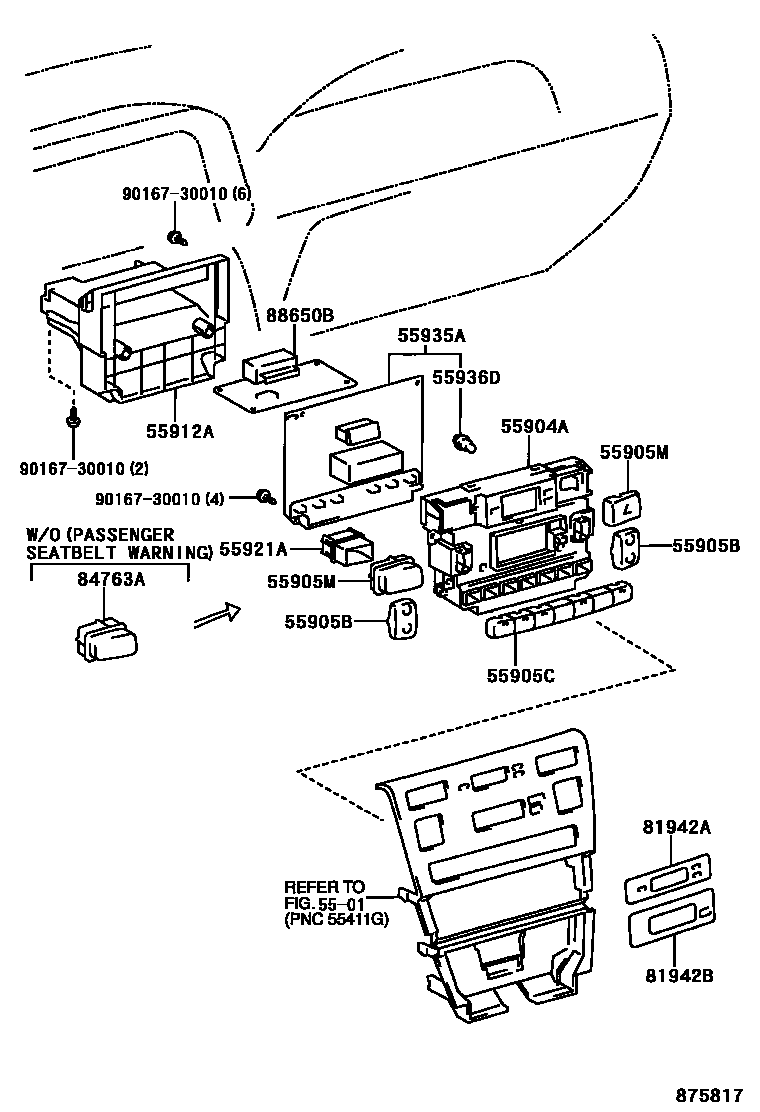

| 55904A | Heater control housing sub-assembly | 55904-12010 |
| 55905A | Heater control button | 55905-12610 · 55905-12710 · 55905-12740 · 55905-12741 |
| 55905B | Heater control button 2 | 55905-12670 · 55905-12680 · 55905-12790 · 55905-12800 |
| 55905C | Heater control button No. 3 | 55905-12690 · 55905-12810 |
| 55905M | Control lever handle sub-assembly | 55905-12650 · 55905-12660 · 55905-12770 · 55905-12780 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12400 · 55906-12410 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12320 · 55908-12330 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12320 |
| 55912A | heater control housing | 55912-12070 |
| 55921A | Heater Controller Fixing | 55921-12120 · 55921-12140 · 55921-12150 · 55921-12160 · 55921-12161 |
| 55933A | Heater control cable clip | 55933-52010 |
| 55935A | Central instrument cluster module circuit | 55935-12040 · 55935-12070 |
| 55936D | Center instrument cluster module switch bulb | 90010-05101 · 90010-05106 · 90010-05120 · 90010-05122 · 90010-05130 · 90010-05135 · 90010-05136 |
| 81942A | Heater No. 1 control nameplate | 81942-12640 · 81942-12670 · 81942-12830 |
| 81942B | Heater No. 2 control nameplate | 81942-12650 · 81942-12680 · 81942-12840 |
| 84763A | switch board | 84763-12140 |
| 87201 | No. 1 air duct sub-assembly | 87201-12590 · 87201-12610 |
| 87284 | Variable resistor sub-assembly | 88032-12190 |

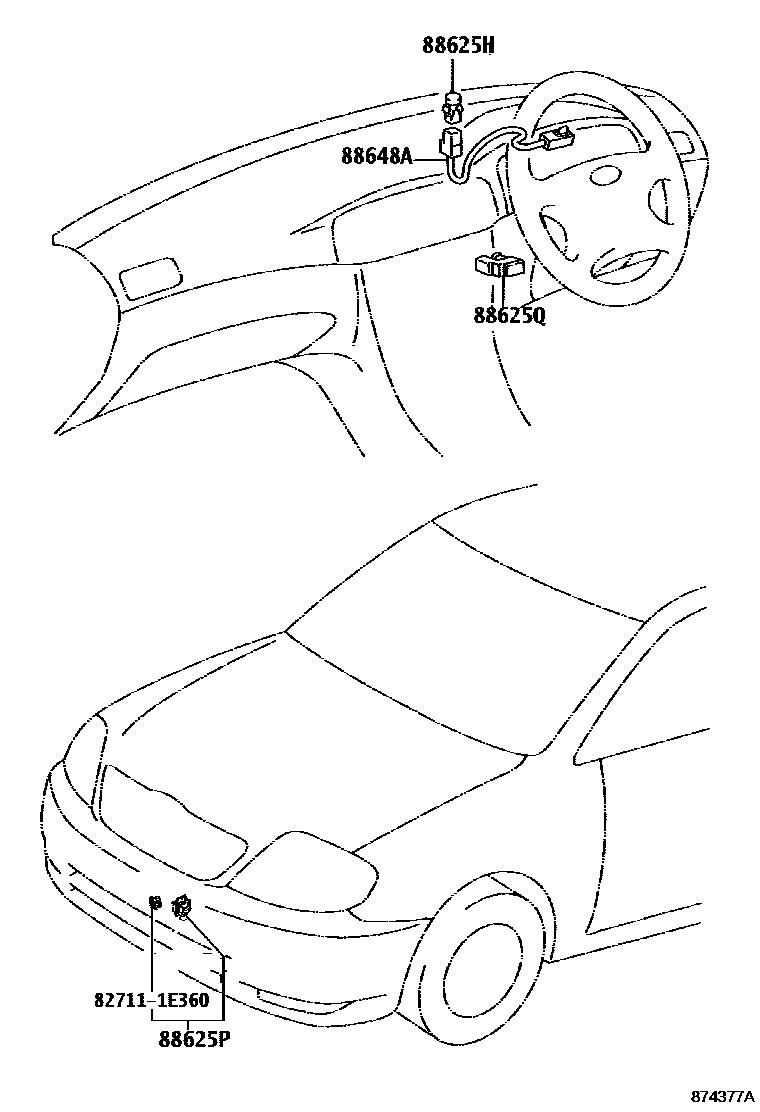

| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22130 · 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88648A | Cooler wiring harness | 88648-12670 |
| 88650B | Air conditioning amplifier assembly | 88650-13040 · 88650-1E480 |
