Toyota COROLLA 防盗装置 — Figure 8424

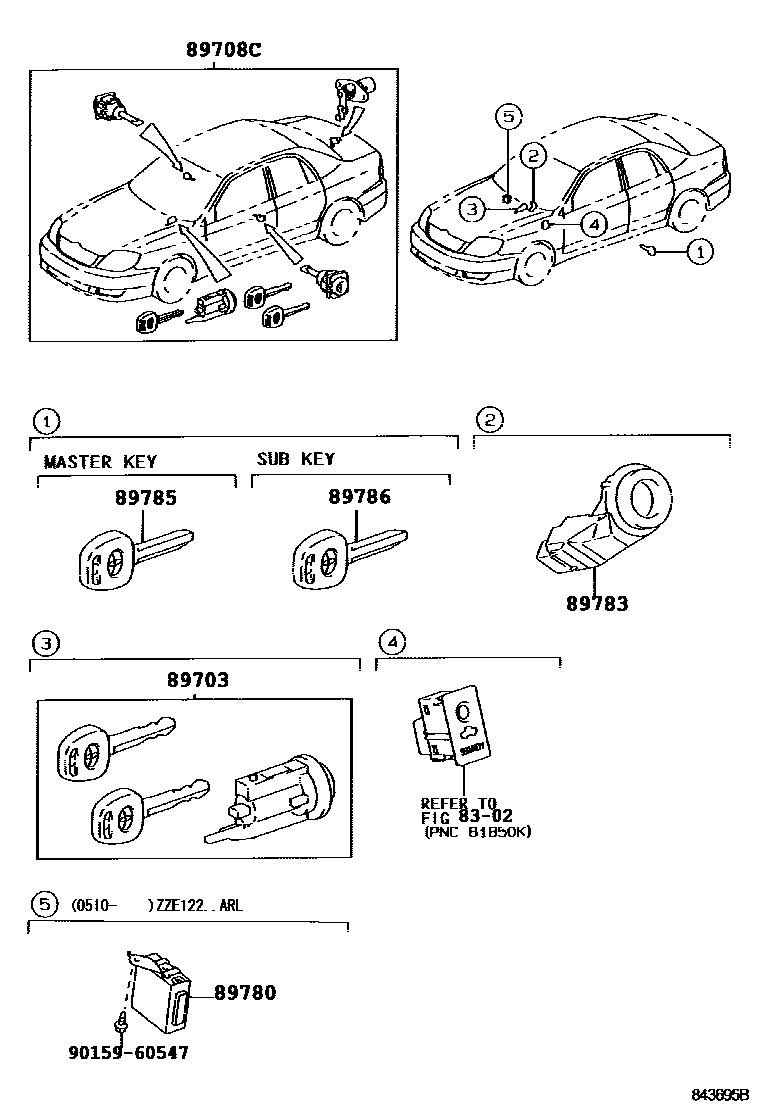

Toyota COROLLA EPC diagram 8424, 防盗装置, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89703 | Ignition lock cylinder and key assembly with transceiver | 69057-12580 · 69057-52190 · 89708-12190 |
| 89708C | Key lock cylinder assembly with transceiver transmitter | 69005-12A40 · 69005-13700 · 69005-1E440 · 89708-12140 · 89708-12170 |
| 89780 | Transceiver key ECU assembly | 89780-12130 |
| 89783 | transceiver key amplifier | 89783-12040 · 89783-52010 |
| 89785 | transceiver key master transmitter | 89785-26020 |
| 89786 | transceiver key secondary transmitter | 89786-60050 |
