Toyota COROLLA 高位刹车灯 — Figure 8117

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 4 images and 3 PNC and OE references.

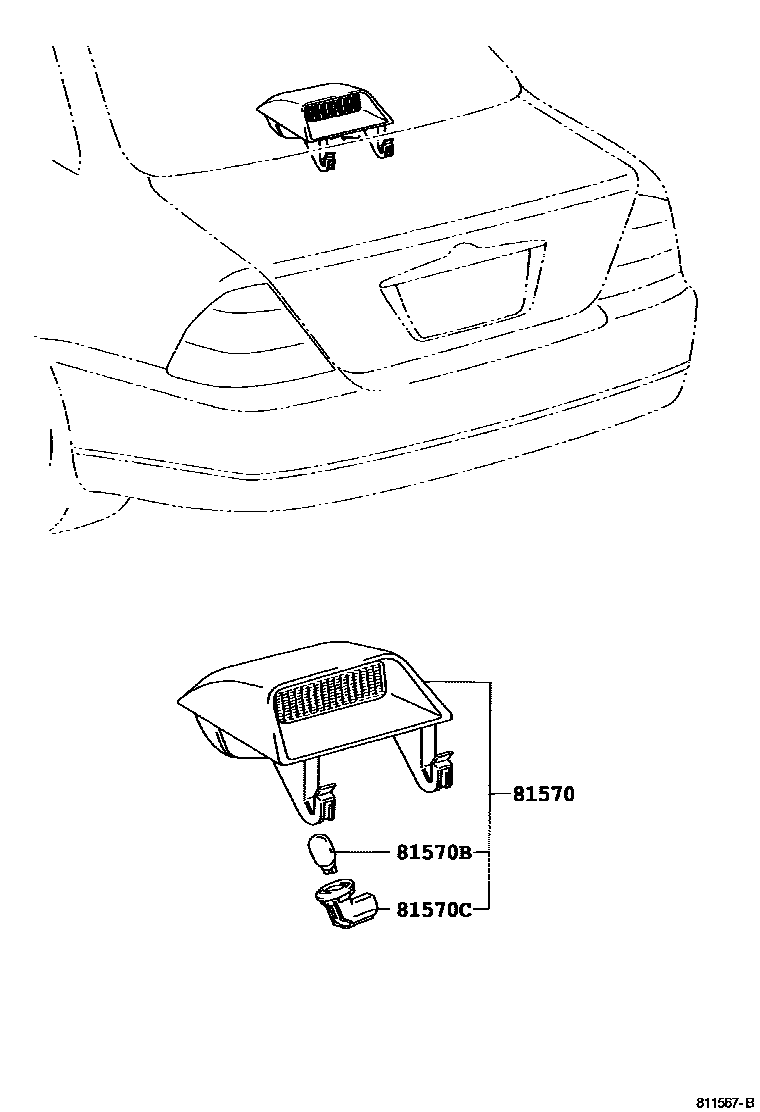

Toyota COROLLA 高位刹车灯 EPC diagram — 811567B
高位刹车灯 — 811567B (200008 – 999999)

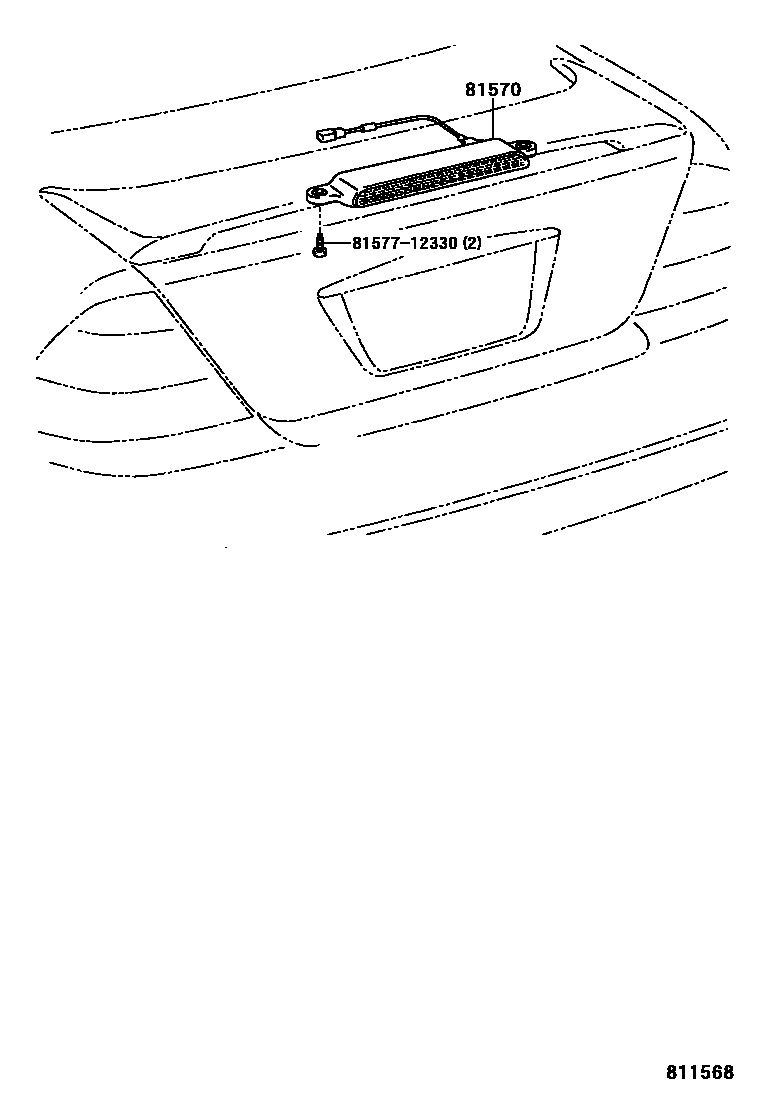

Toyota COROLLA 高位刹车灯 EPC diagram — 811568
高位刹车灯 — 811568 (200008 – 999999)

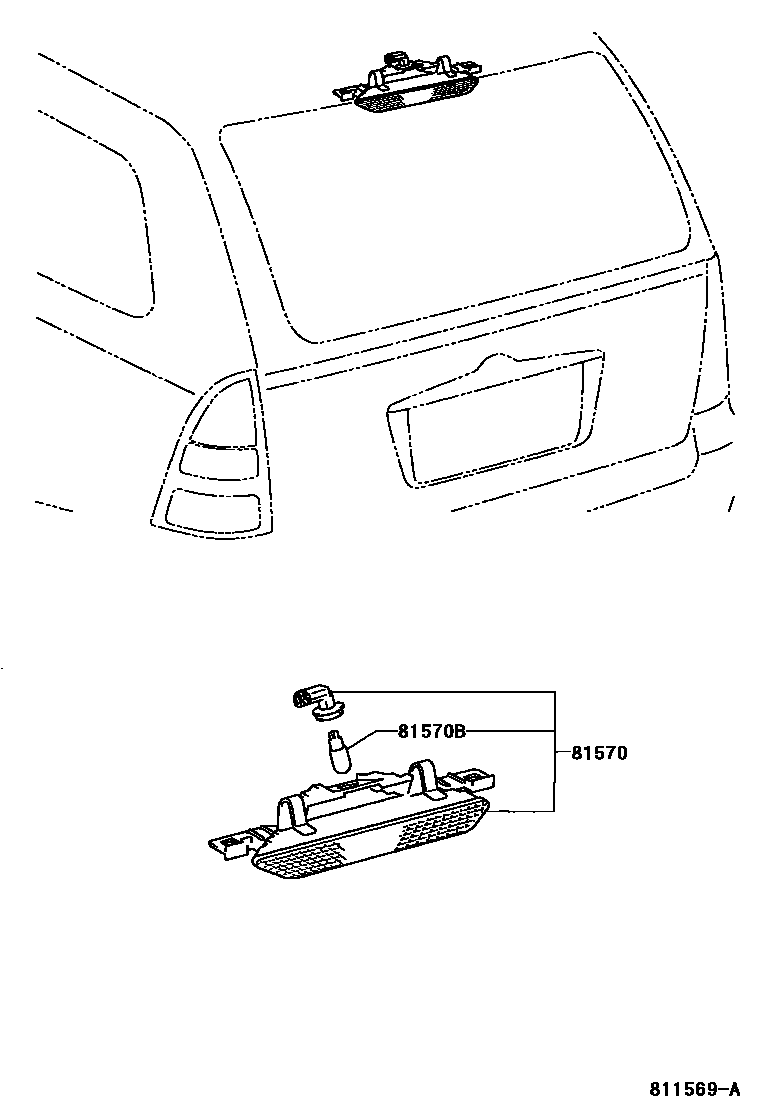

Toyota COROLLA 高位刹车灯 EPC diagram — 811569A
高位刹车灯 — 811569A (200008 – 999999)

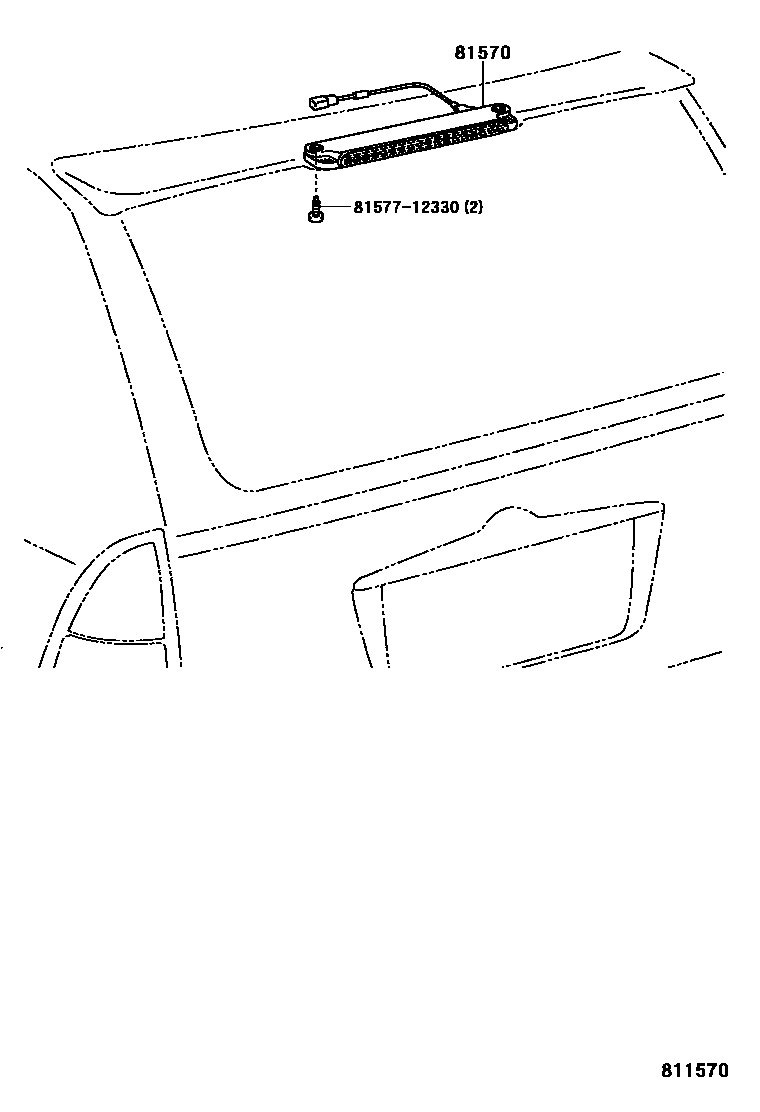

Toyota COROLLA 高位刹车灯 EPC diagram — 811570
高位刹车灯 — 811570 (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
81570Central brake light assembly81570-12360 · 81570-12361 · 81570-13160 · 81570-13170
81570BBulb (for center brake light)90981-11059
81570CCentral brake light lamp holder90075-99005
