Toyota COROLLA 后牌照灯 — Figure 8113

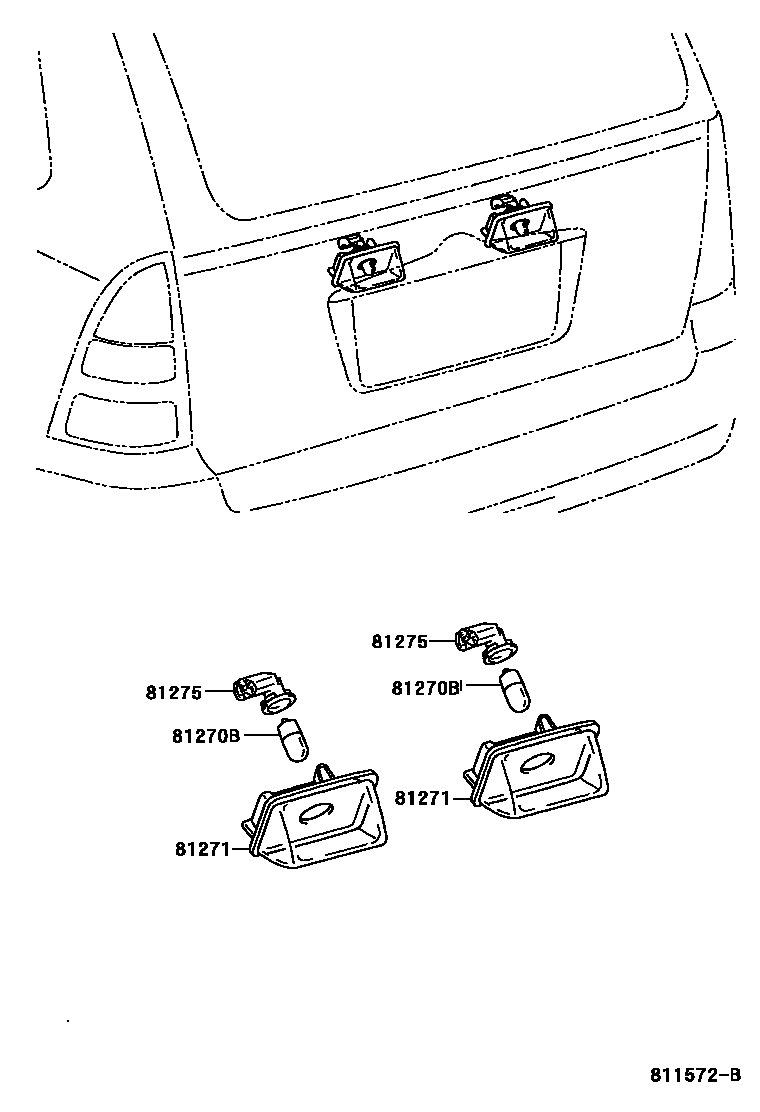

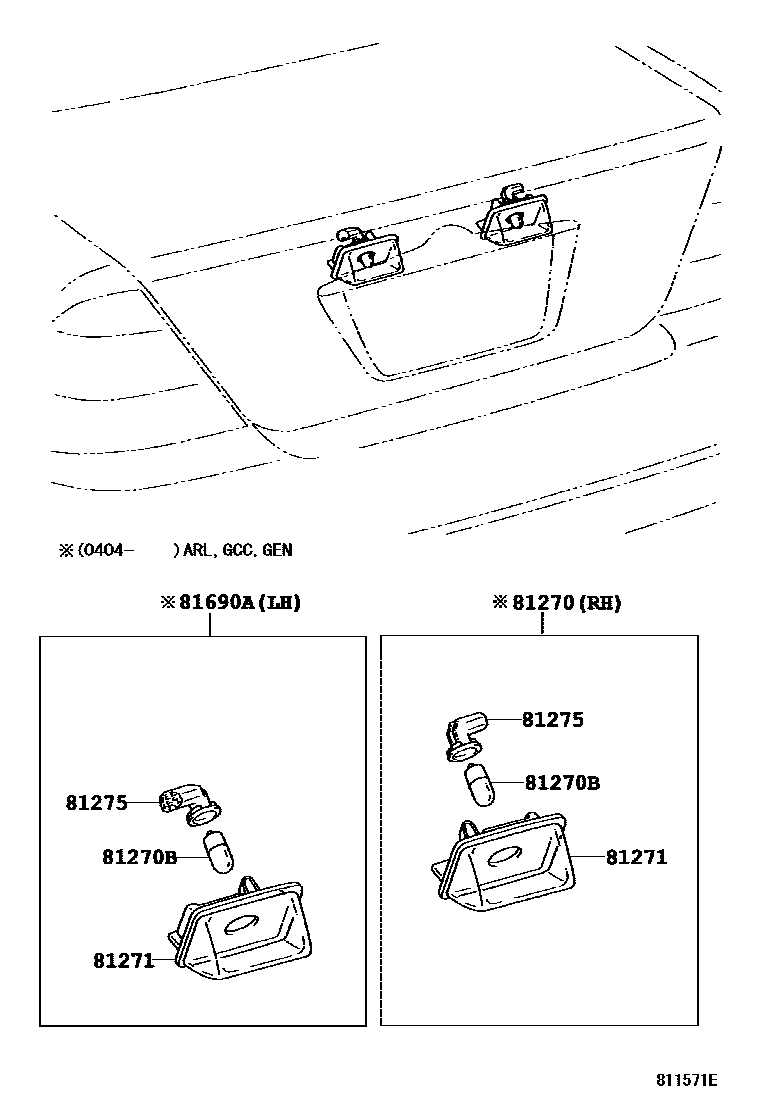

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-12501 · 81270-12502 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271 | license plate lamp shade | 81271-02040 · 81271-12501 · 81271-12502 · 81691-02030 · 81691-12131 |
| 81275 | License plate lamp holder and wiring harness | 81275-12501 |
| 81690A | Left license plate light assembly | 81690-12131 |
