Toyota COROLLA 倒车灯 — Figure 8112

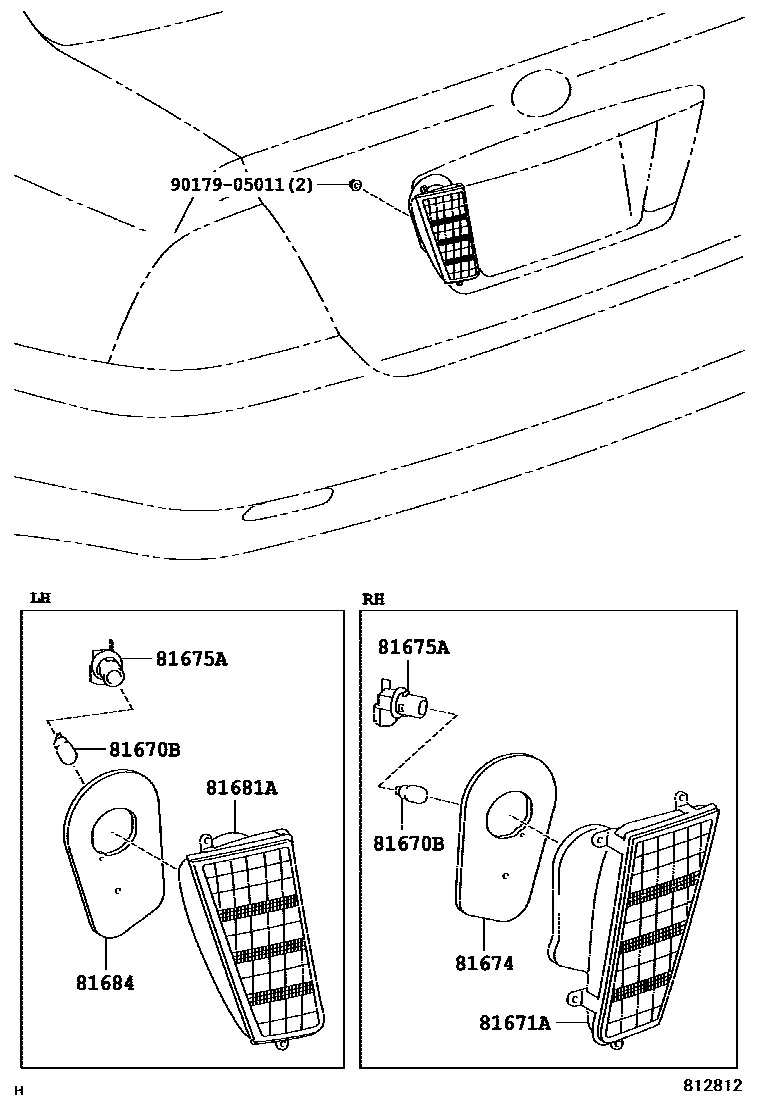

Toyota COROLLA EPC diagram 8112, 倒车灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670B | Bulb (for reversing lights) | 90981-11059 |
| 81671A | Reversing light shade and body | 81581-12080 |
| 81674 | Right reversing light body gasket | 81584-12080 |
| 81675A | Lamp holder plug (for reversing lights) | 90075-60073 |
| 81681A | Left reversing light shade and body | 81591-12070 |
| 81684 | Left reversing light body gasket | 81594-12070 |
