Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 6 images and 9 PNC and OE references.

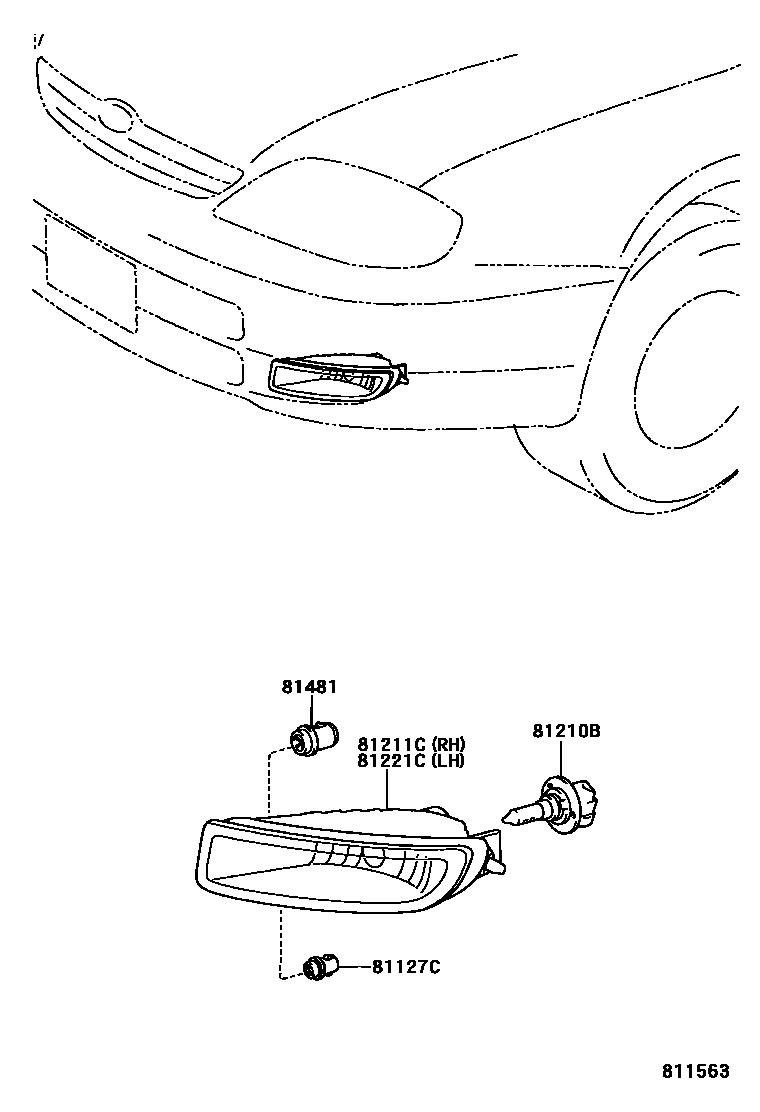

Toyota COROLLA Fog Lamp EPC diagram — 811563 — Fog Lamp — 811563 (200008 – 200404)

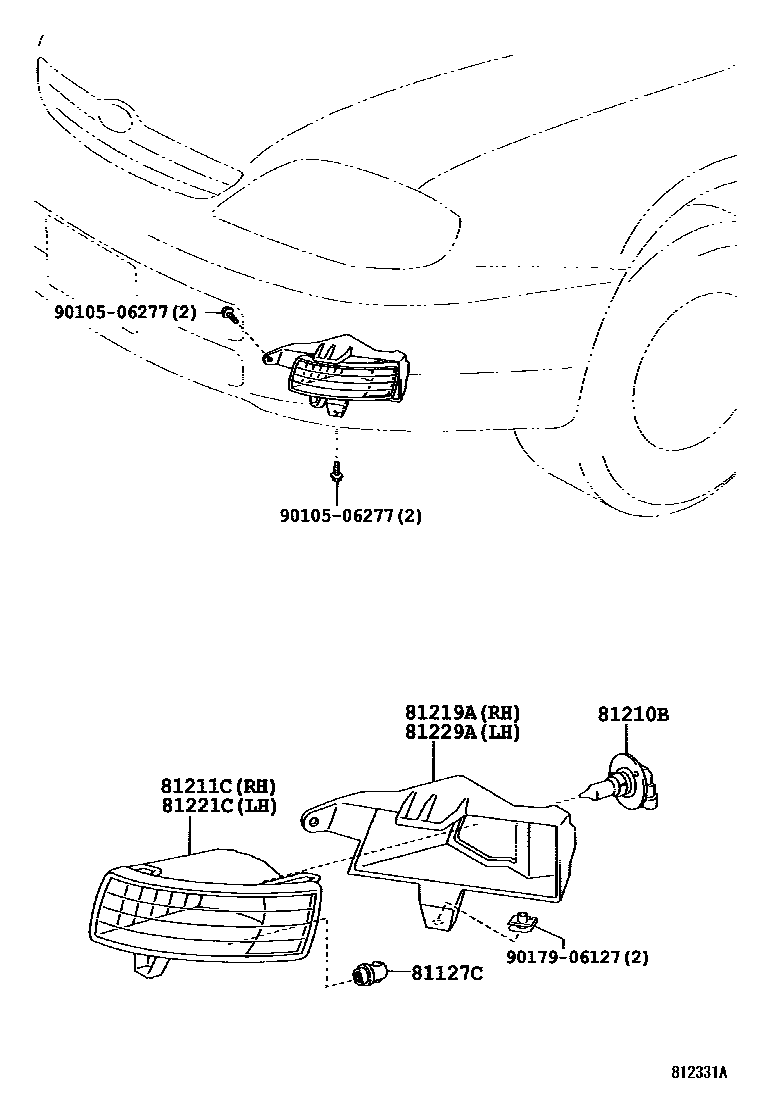

Toyota COROLLA Fog Lamp EPC diagram — 812331A — Fog Lamp — 812331A (200209 – 200404)

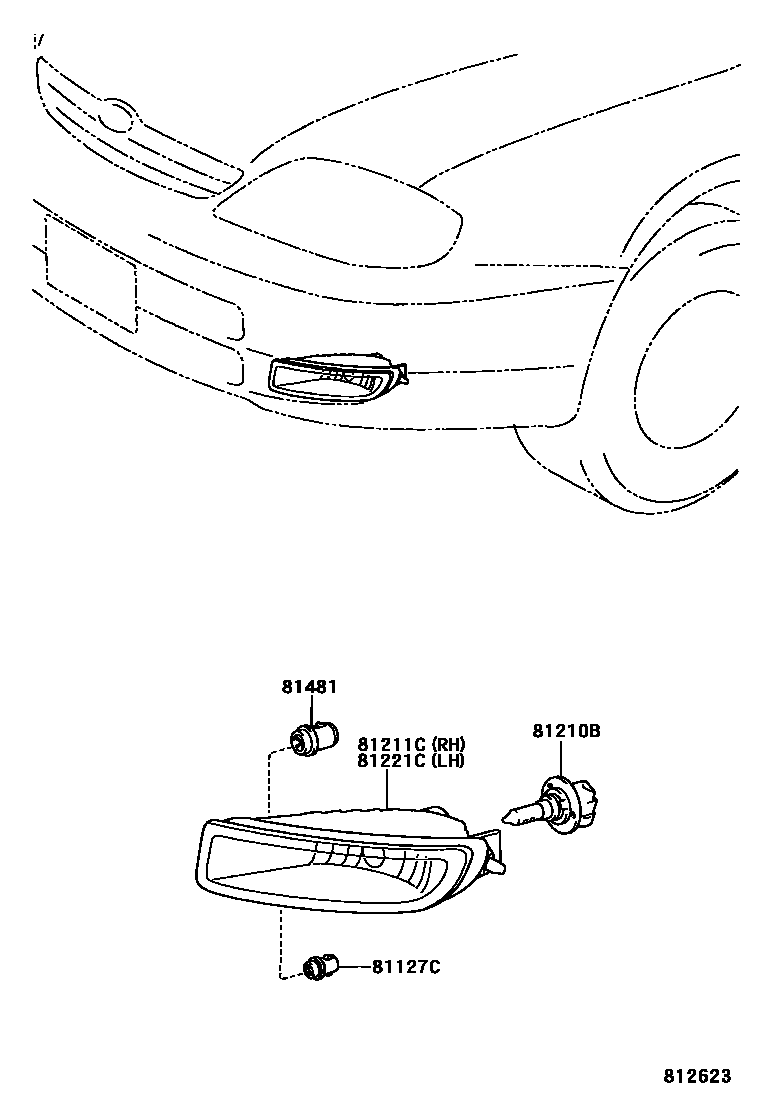

Toyota COROLLA Fog Lamp EPC diagram — 812623 — Fog Lamp — 812623 (200209 – 200404)

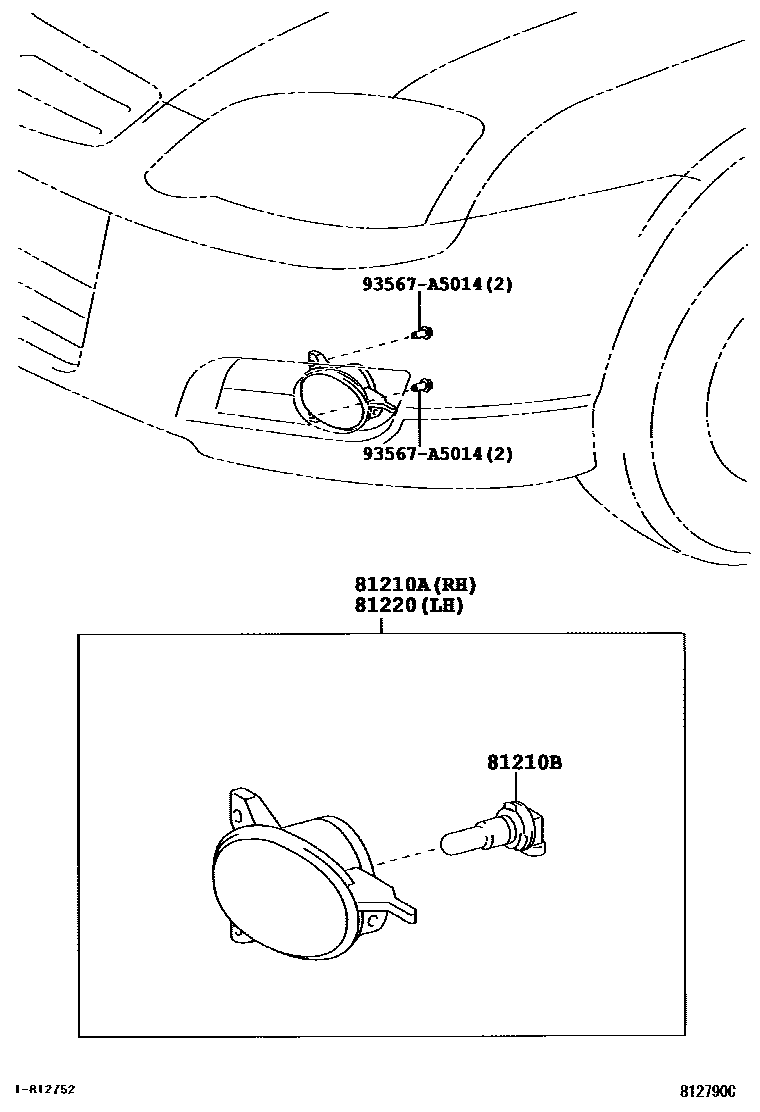

Toyota COROLLA Fog Lamp EPC diagram — 812790D — Fog Lamp — 812790D (200404 – 999999)

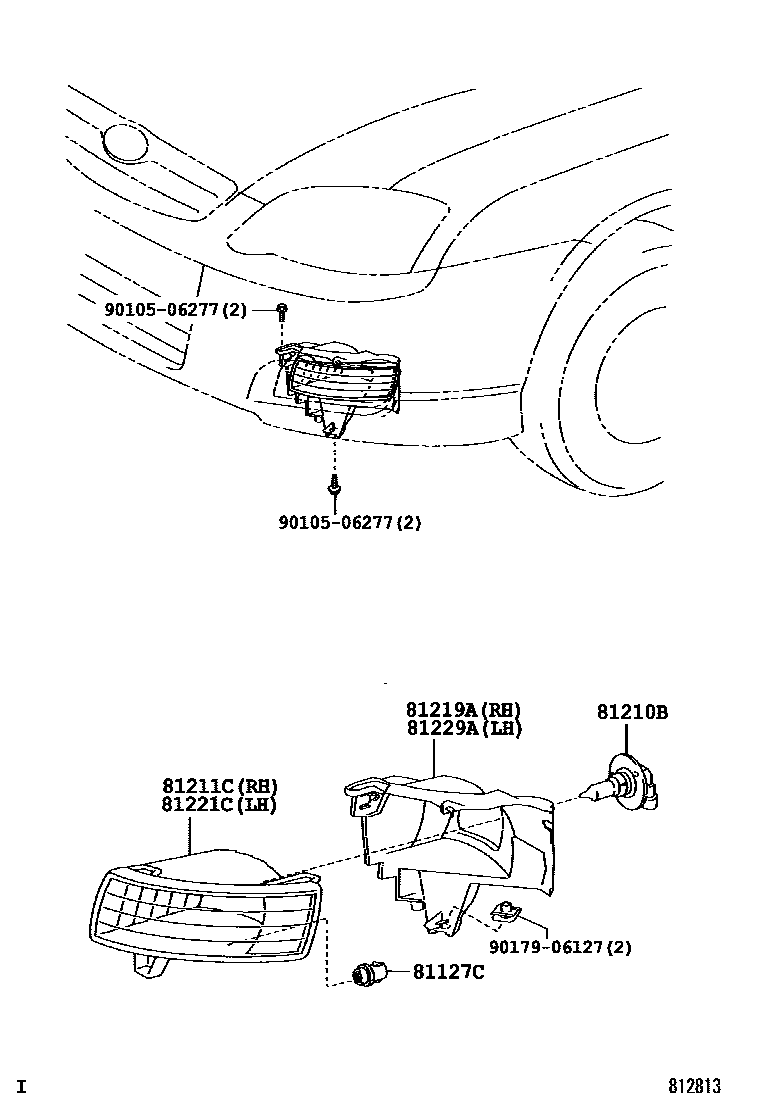

Toyota COROLLA Fog Lamp EPC diagram — 812813 — Fog Lamp — 812813 (200404 – 999999)

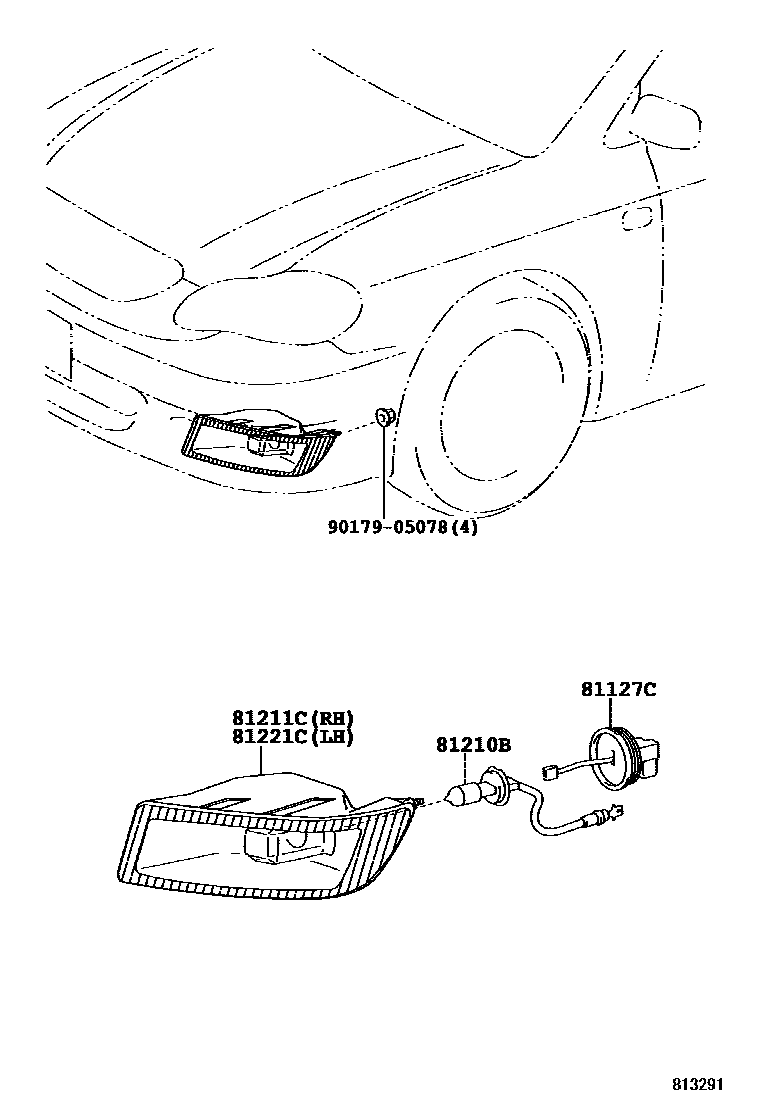

Toyota COROLLA Fog Lamp EPC diagram — 813291 — Fog Lamp — 813291 (200507 – 999999)

PNC and OE references

PNC	Part name	OE numbers
81127C	Fog light support	90075-10811 · 90075-66001
81210A	Right fog light assembly	81210-02090
81210B	fog light bulb	90981-13047 · 90981-13071 · 90981-13075 · 90981-13081 · 90981-WD011 · 90981-WD012
81211C	Right fog light assembly	81211-12150 · 81211-12180 · 81211-20450
81219A	Right fog light bracket	81219-12180 · 81219-12220
81220	Left fog light assembly	81220-02090
81221C	Left fog light assembly	81221-12160 · 81221-12180 · 81221-20440
81229A	Left fog light bracket	81229-12140 · 81229-12180
81481	Fog light bracket	81481-10030
