Toyota COROLLA Headlamp — Figure 8101

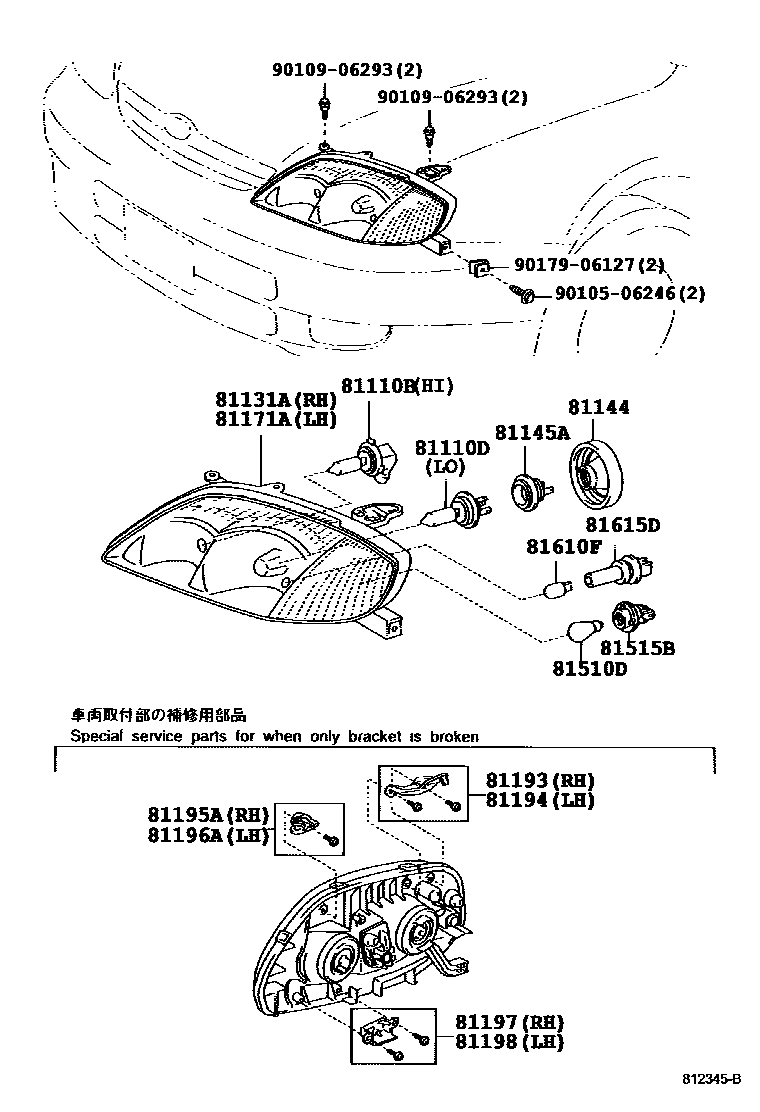

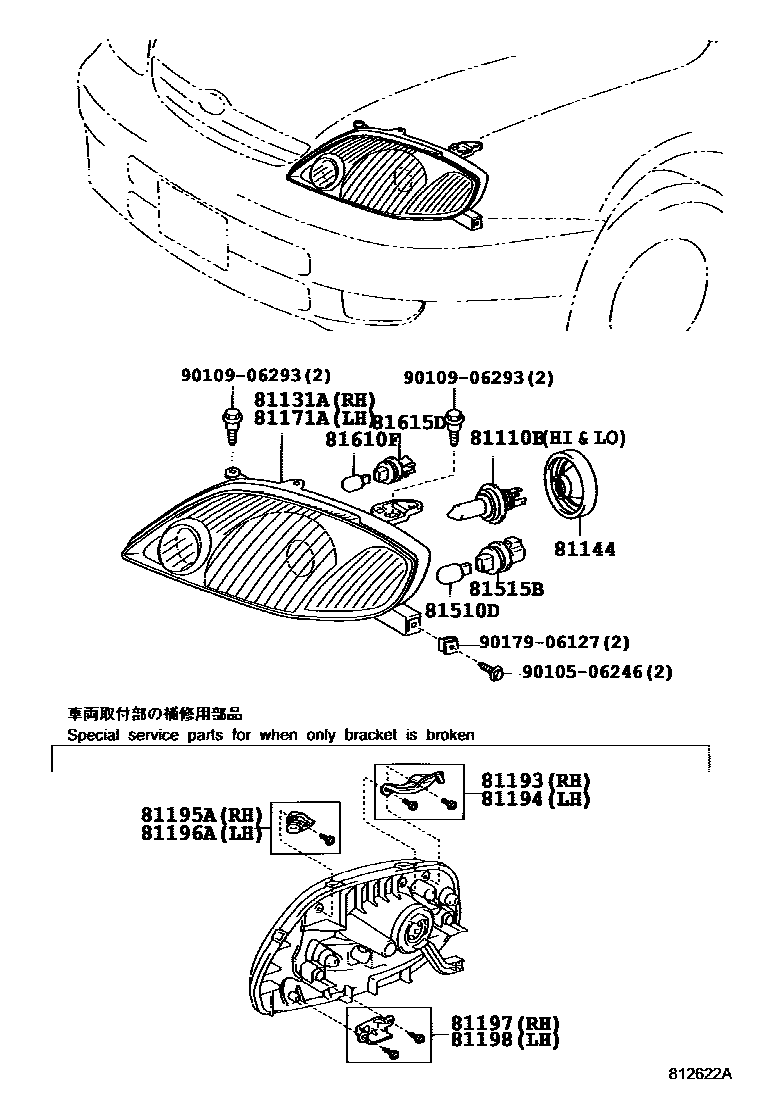

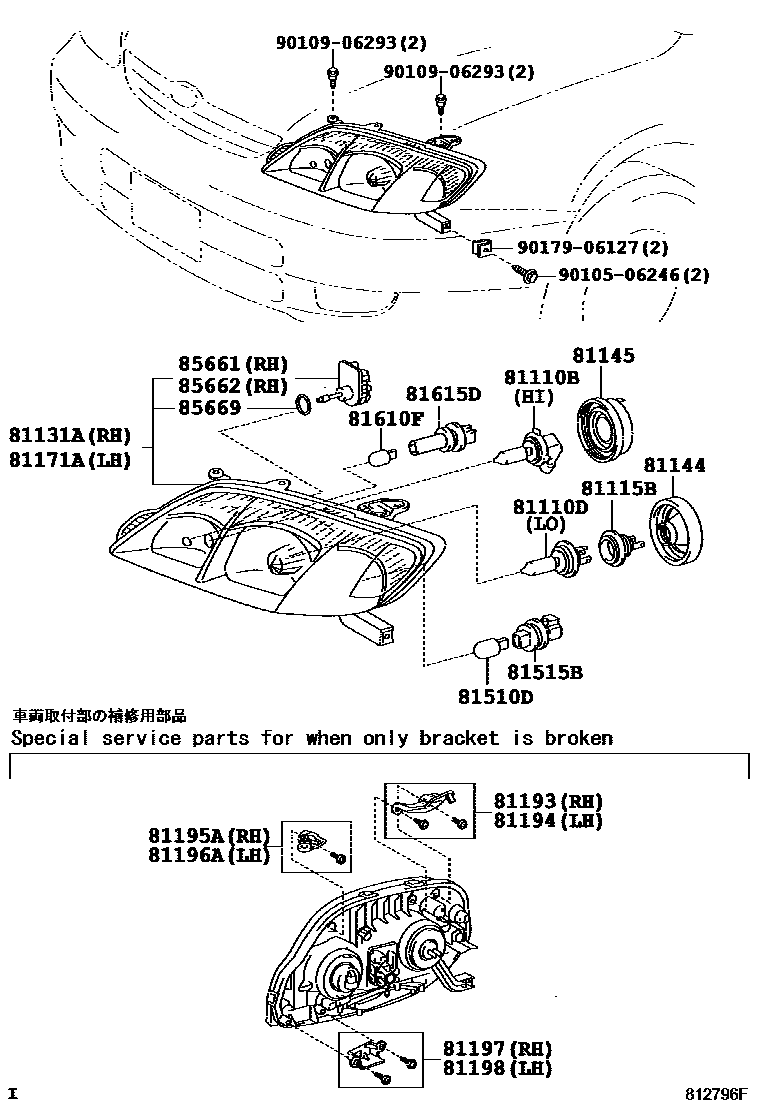

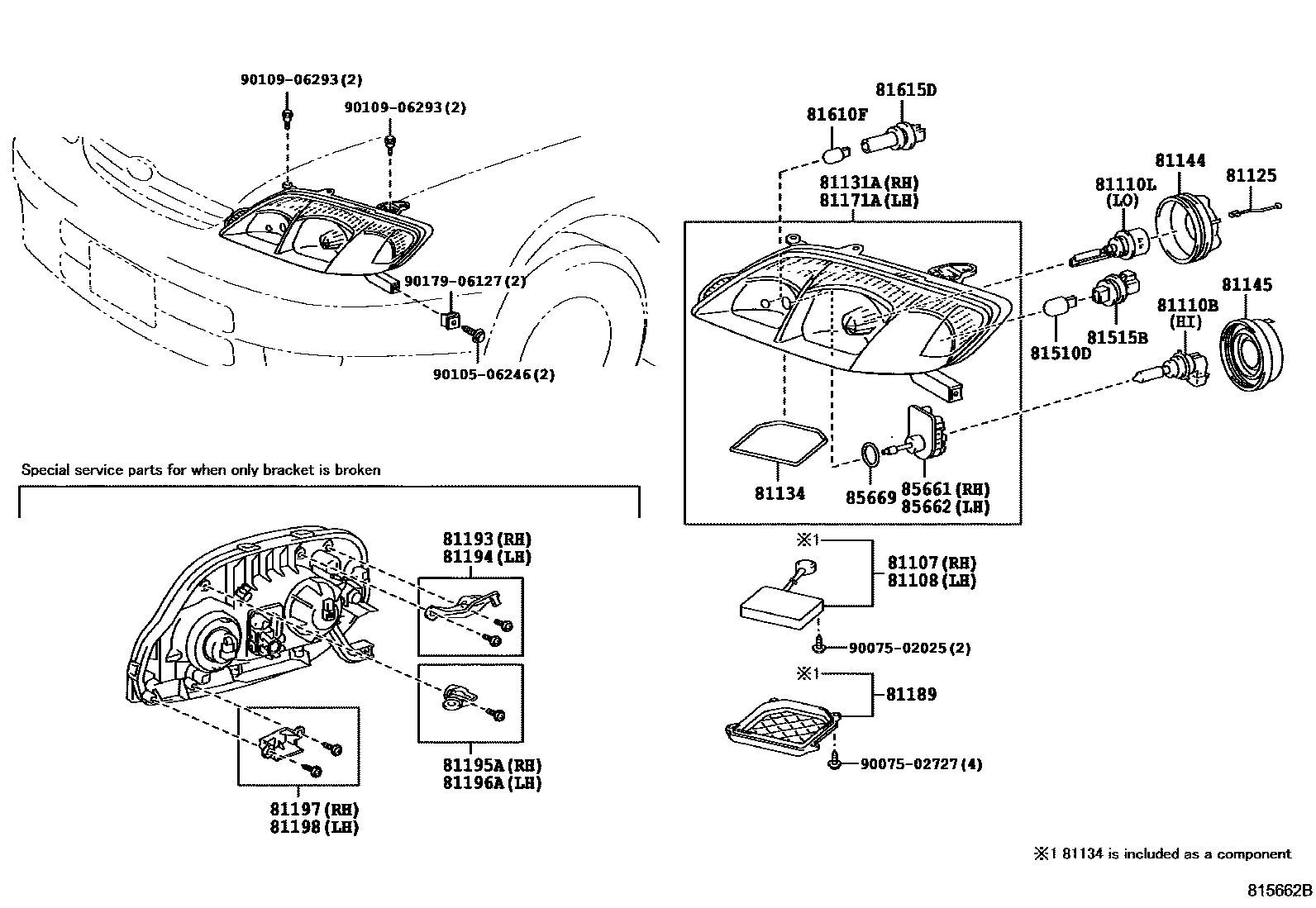

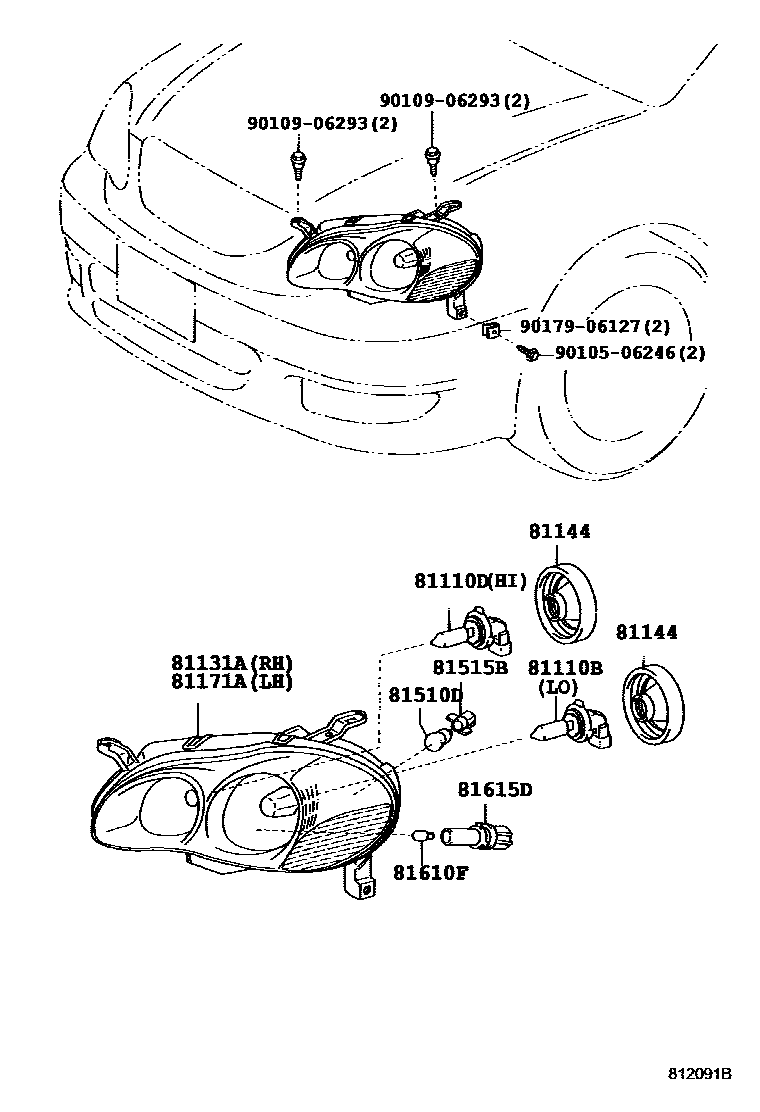

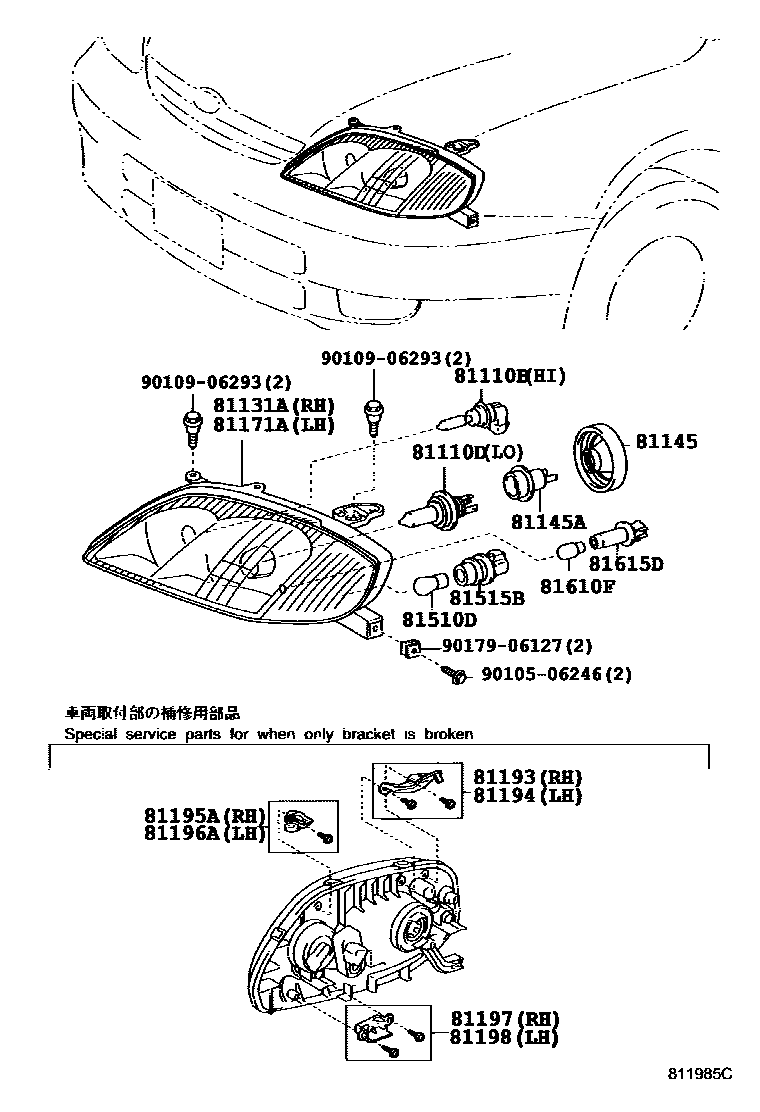

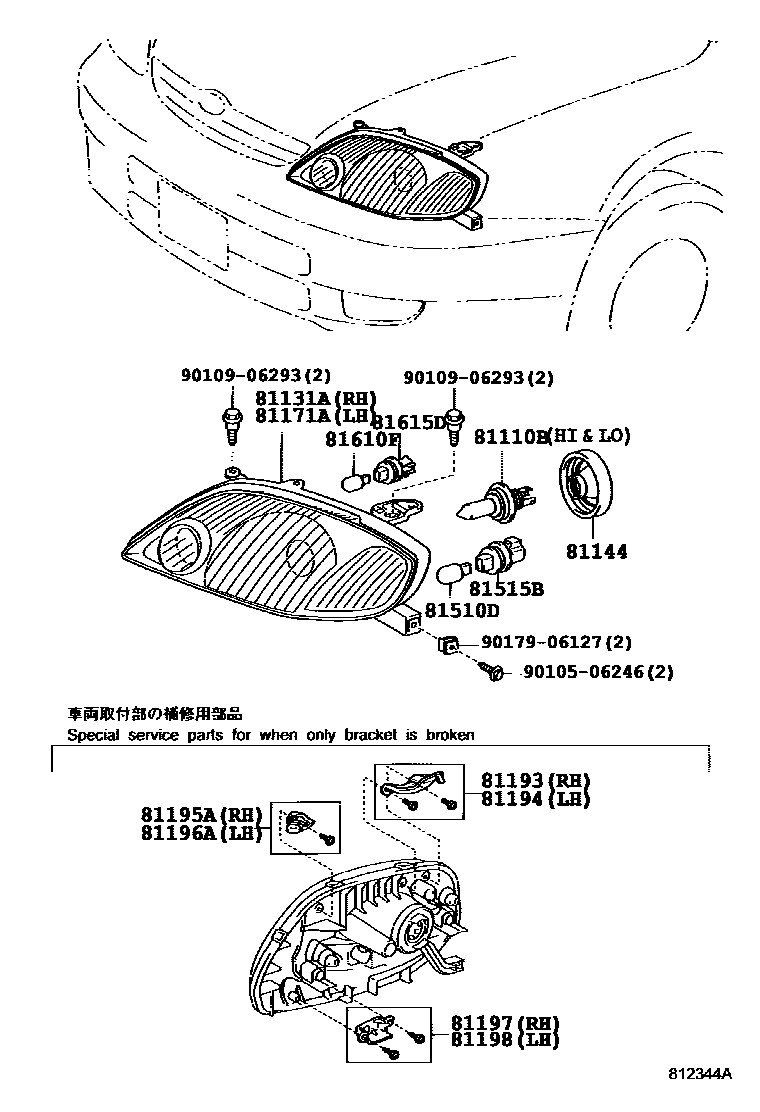

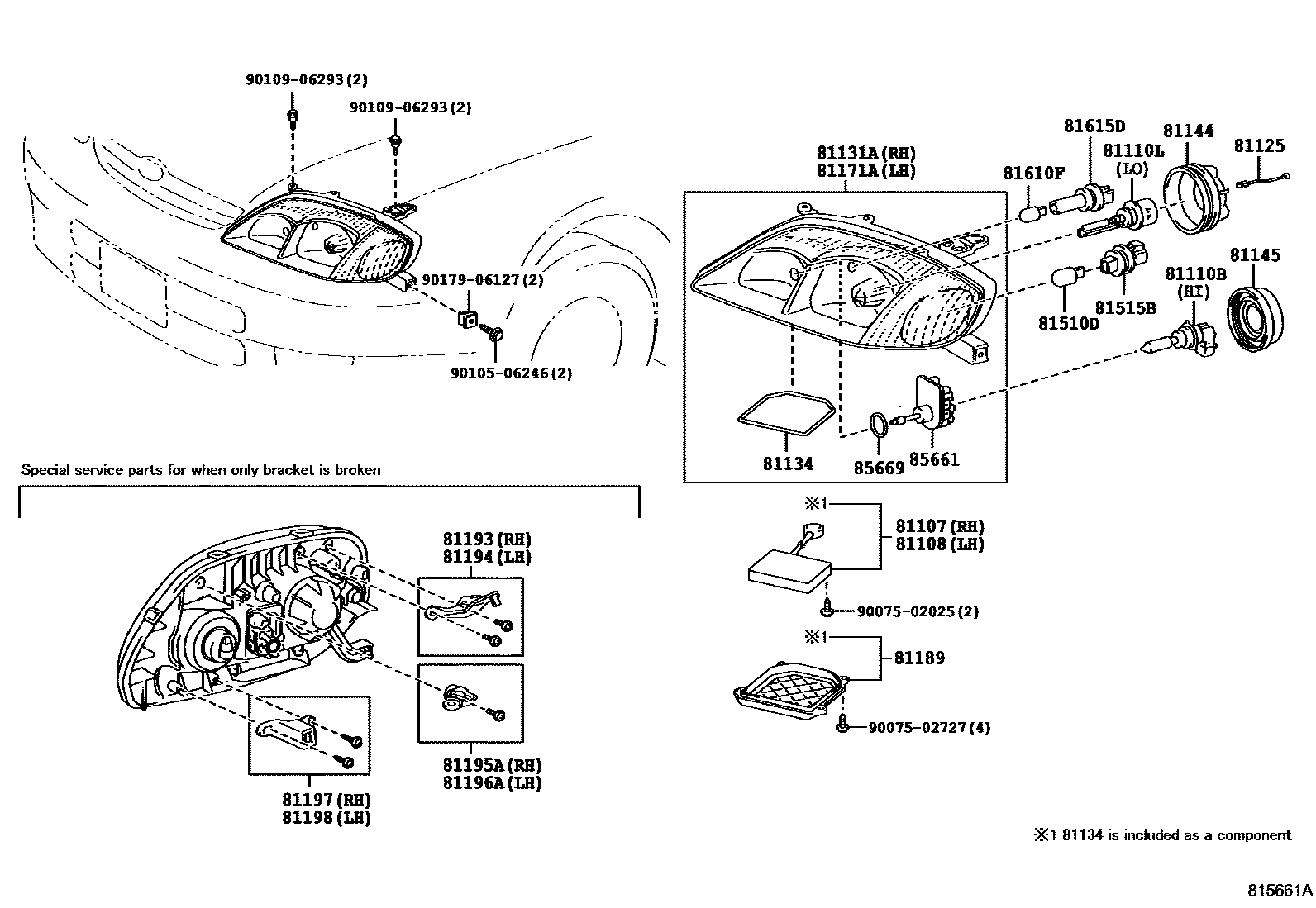

Toyota COROLLA EPC diagram 8101, Headlamp, with 8 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-1E710 |
| 81108 | Left headlight control ECU sub-assembly | 81107-1E710 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13047 · 90981-13058 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 · 90981-13063 |
| 81110L | Discharge headlight bulb | 90981-20001 · 90981-20007 |
| 81115B | No. 1 headlight lamp holder | 90075-99140 |
| 81125 | headlight wire | 81125-33460 |
| 81131A | Right headlight assembly | 81130-02120 · 81130-02121 · 81130-1E490 · 81130-1E510 · 81130-1E600 · 81130-1E610 · 81130-1E640 · 81130-1E690 · 81130-1E720 · 81130-1E730 · 81145-12A00 · 81145-1E710 |
| 81134 | headlight gasket | 90075-68001 |
| 81144 | No. 1 headlight cover | 90069-81016 · 90075-65002 · 90075-66003 |
| 81145 | No. 2 headlight cover | 90075-65002 · 90075-99054 |
| 81145A | Adapter assembly | 90075-99140 |
| 81171A | Left headlight assembly | 81170-02110 · 81170-02111 · 81170-1E360 · 81170-1E370 · 81170-1E390 · 81170-1E480 · 81170-1E490 · 81170-1E560 · 81170-1E590 · 81170-1E600 · 81185-12A00 · 81185-1E580 |
| 81189 | headlight cover | 90075-67004 |
| 81193 | Right headlight upper protective ring | 81193-12010 |
| 81194 | Left headlight upper protective ring | 81194-12010 |
| 81195A | Right headlight lower protection ring | 81195-12010 |
| 81196A | Left headlight lower protection ring | 81196-12010 |
| 81197 | Right headlight lower bracket | 81197-12010 |
| 81198 | Left headlight lower bracket | 81198-12010 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15009 · 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60006 · 90075-60028 · 90075-60069 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60001 · 90075-60004 · 90075-60046 · 90075-60077 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 · 85661-12020 · 85661-22020 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 · 85661-12020 · 85661-22020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
