Toyota COROLLA accelerator pedal connecting rod — Figure 7801

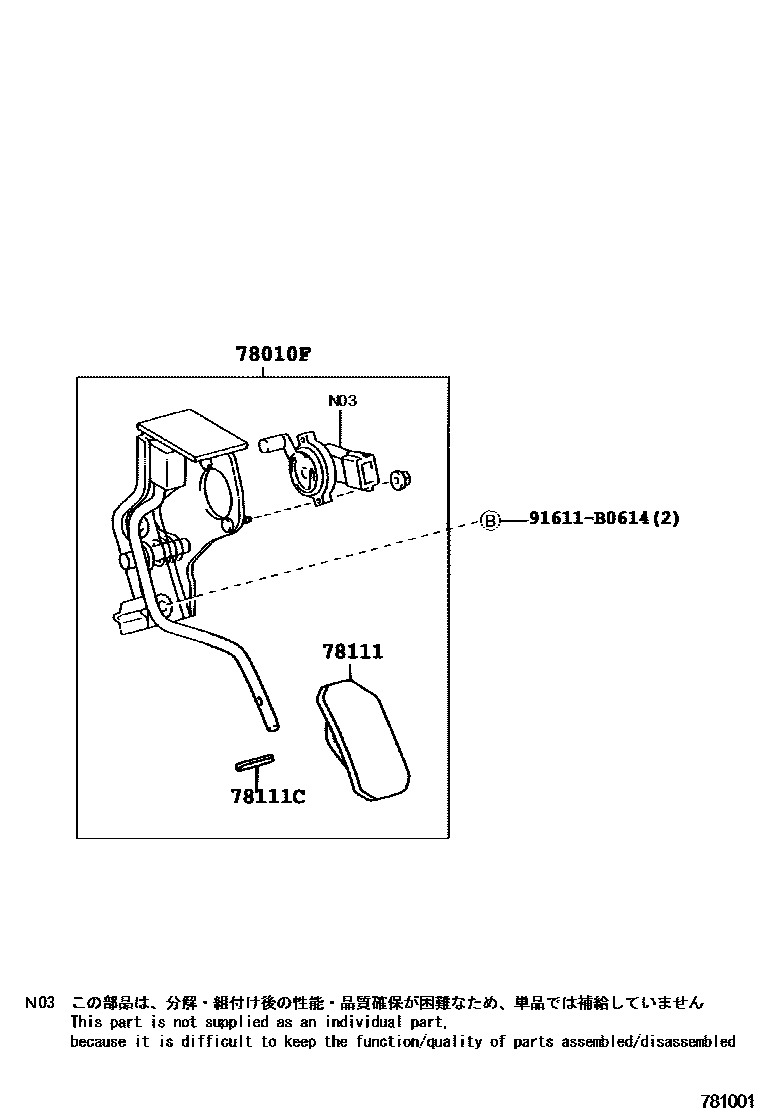

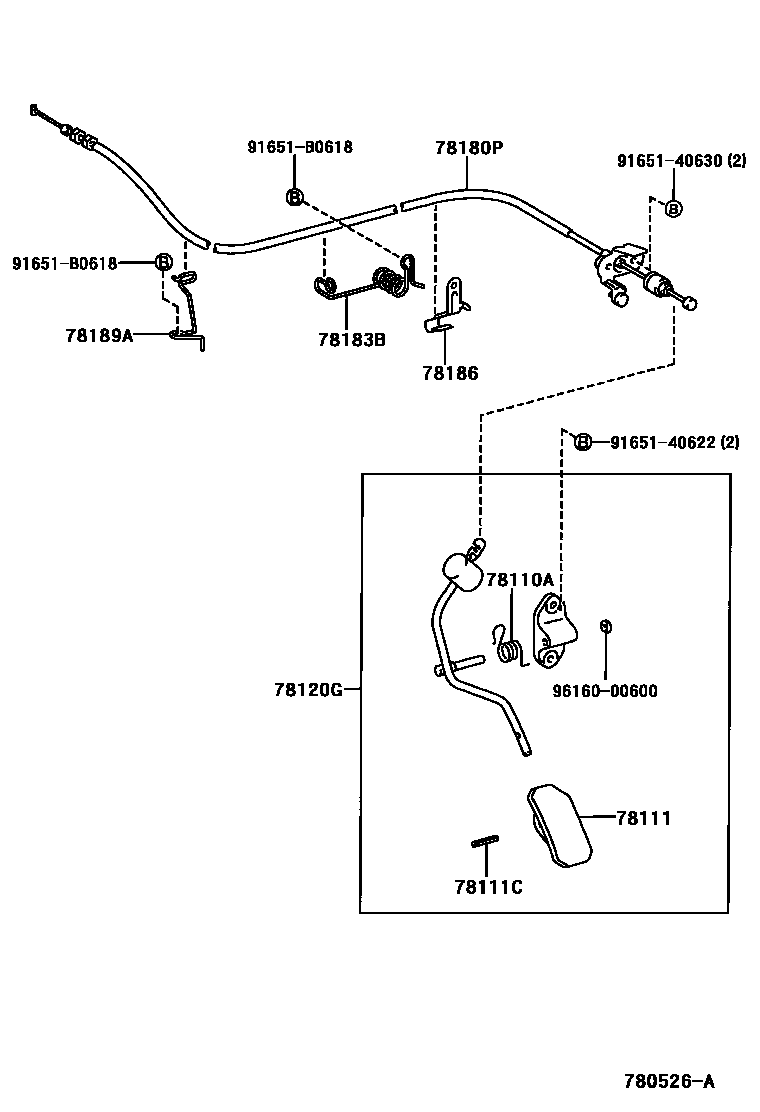

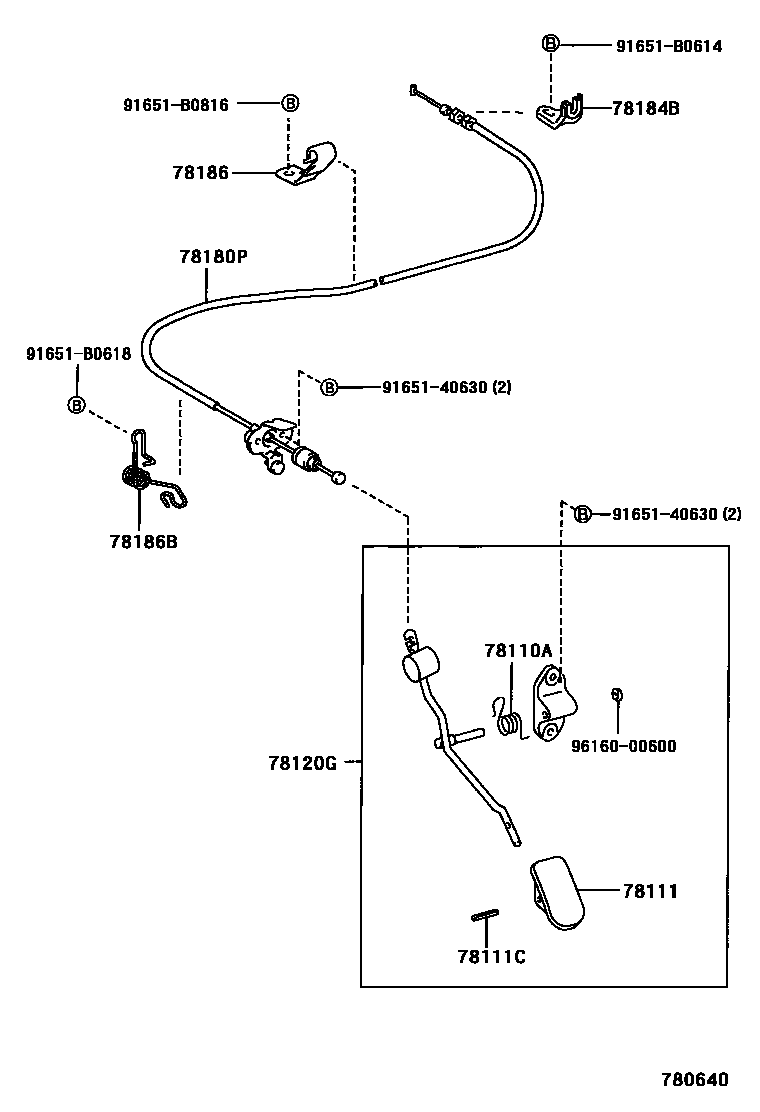

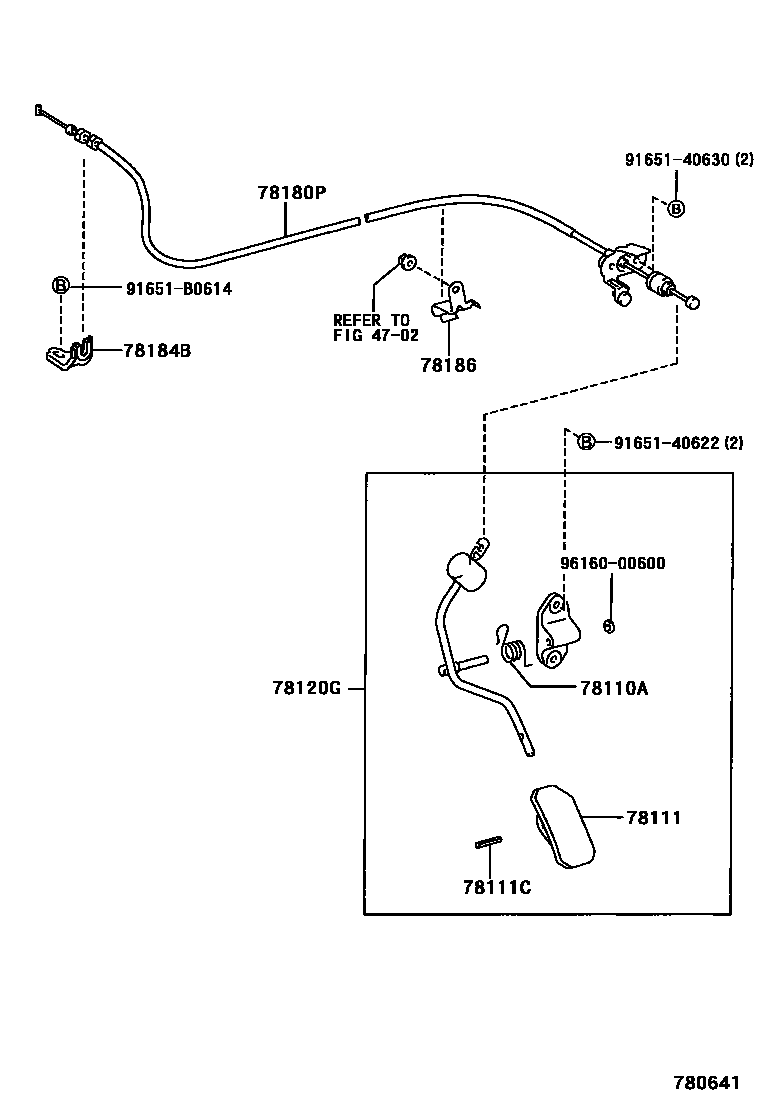

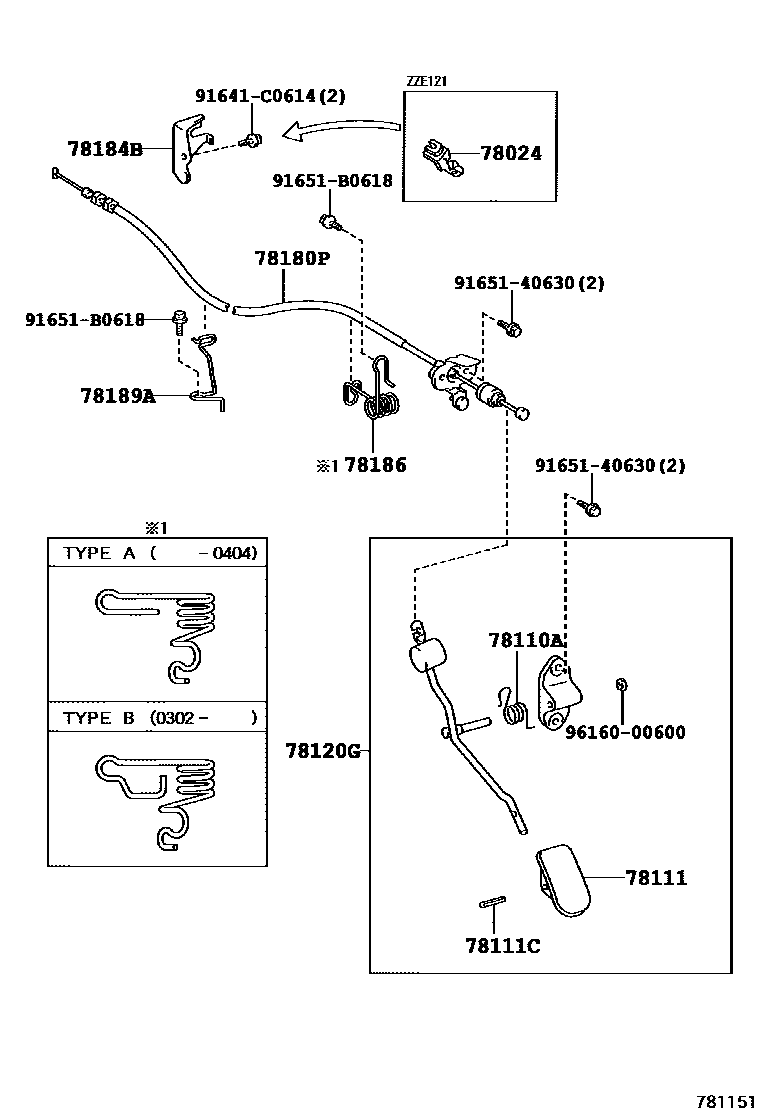

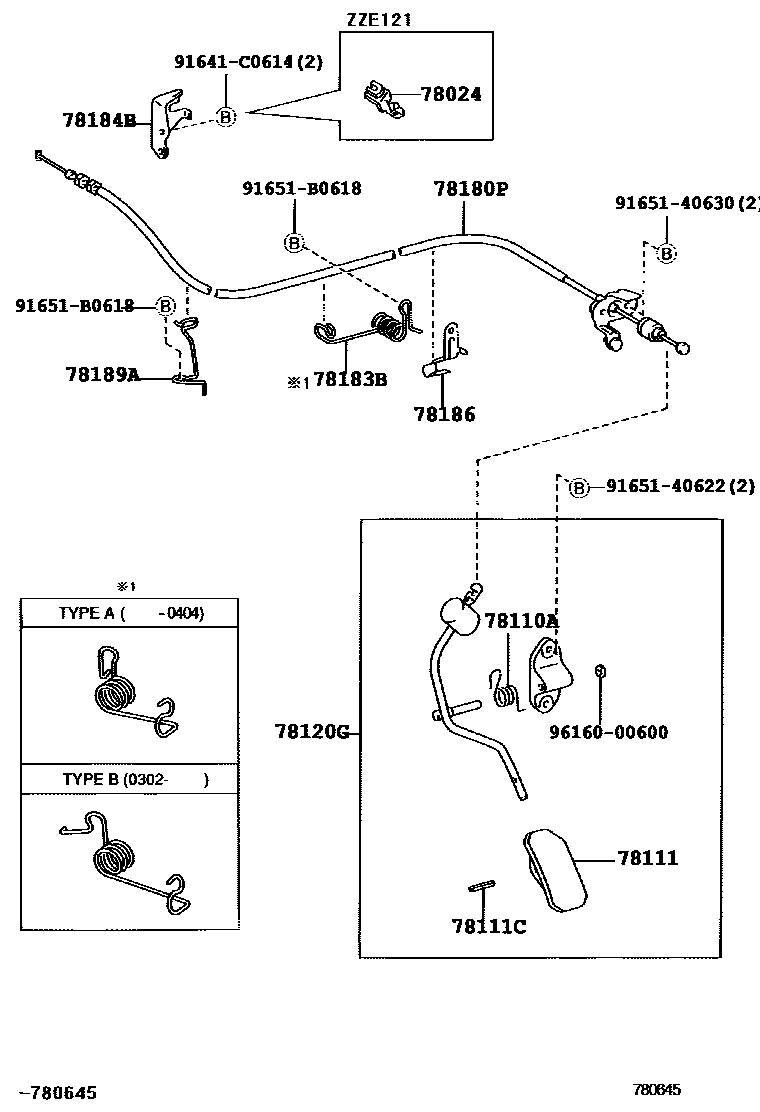

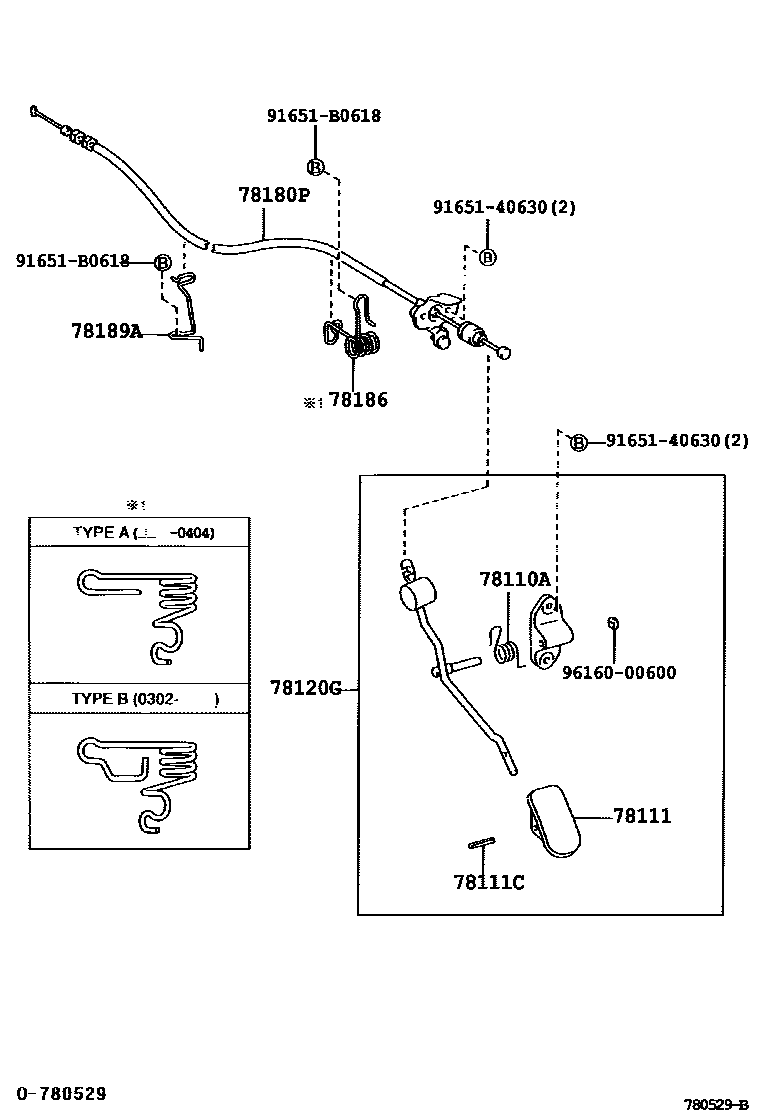

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 7 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78010-12152 |
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-12090 |
| 78110A | Spring (for accelerator pedal lever) | 90508-26036 · 90959-03307 |
| 78111 | accelerator pedal | 78111-20060 · 78111-32020 |
| 78111C | pin (for gas pedal) | 90254-04019 |
| 78120G | Accelerator pedal lever assembly | 78120-12290 · 78120-12310 · 78120-12340 |
| 78180P | Accelerator pedal control cable assembly | 78180-02200 · 78180-13020 · 78180-13021 · 78180-13030 · 78180-13040 · 78180-13041 · 78180-13050 · 78180-1A711 · 78180-1A712 · 78180-1A721 · 78180-1A751 · 78180-1A752 · 78180-1A780 · 78180-1A781 · 78180-1A800 · 78180-1A801 · 78180-1A810 · 78180-1A840 |
| 78183B | Accelerator pedal control cable clip | 78183-02090 · 78183-12240 · 78183-13010 |
| 78184B | Throttle pedal control cable bracket | 78024-32140 · 78184-12360 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12320 · 78186-12370 · 78186-12380 · 78186-12410 · 78186-13040 |
| 78186B | No. 2 accelerator pedal control cable bracket | 78186-12400 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-02010 · 78189-12100 |
