Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

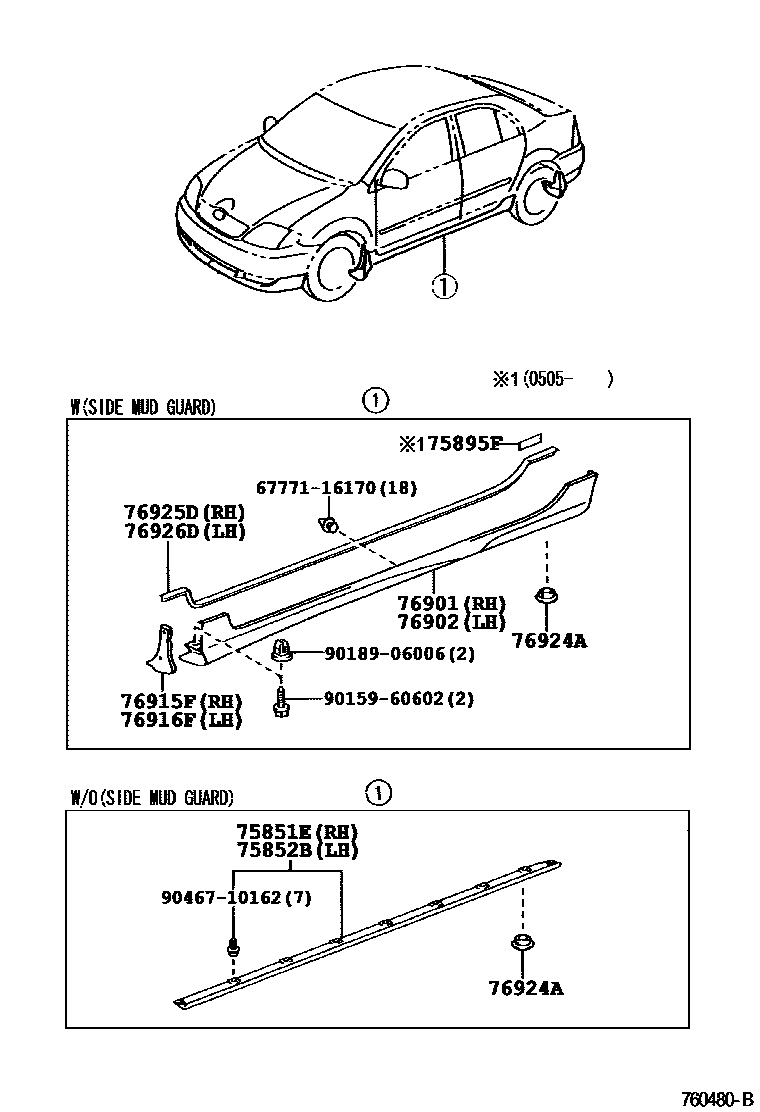

| 75851E | Right body door sill panel protection strip | 75851-12090 · 75851-12091 |
| 75852B | Left body door sill panel protection strip | 75852-12060 · 75852-12061 |
| 75895F | No. 1 protective strip tape | 75895-13010 · 75895-13020 |
| 76603 | Right front fender fender sub-assembly | 76621-02080 · 76621-12210 |
| 76604 | Left front fender fender sub-assembly | 76622-02080 · 76622-12210 |
| 76607 | Right rear side fender sub-assembly | 76625-02090 · 76625-02901 · 76625-12490 |
| 76608 | Left rear side fender sub-assembly | 76626-02090 · 76626-02901 · 76626-12490 |

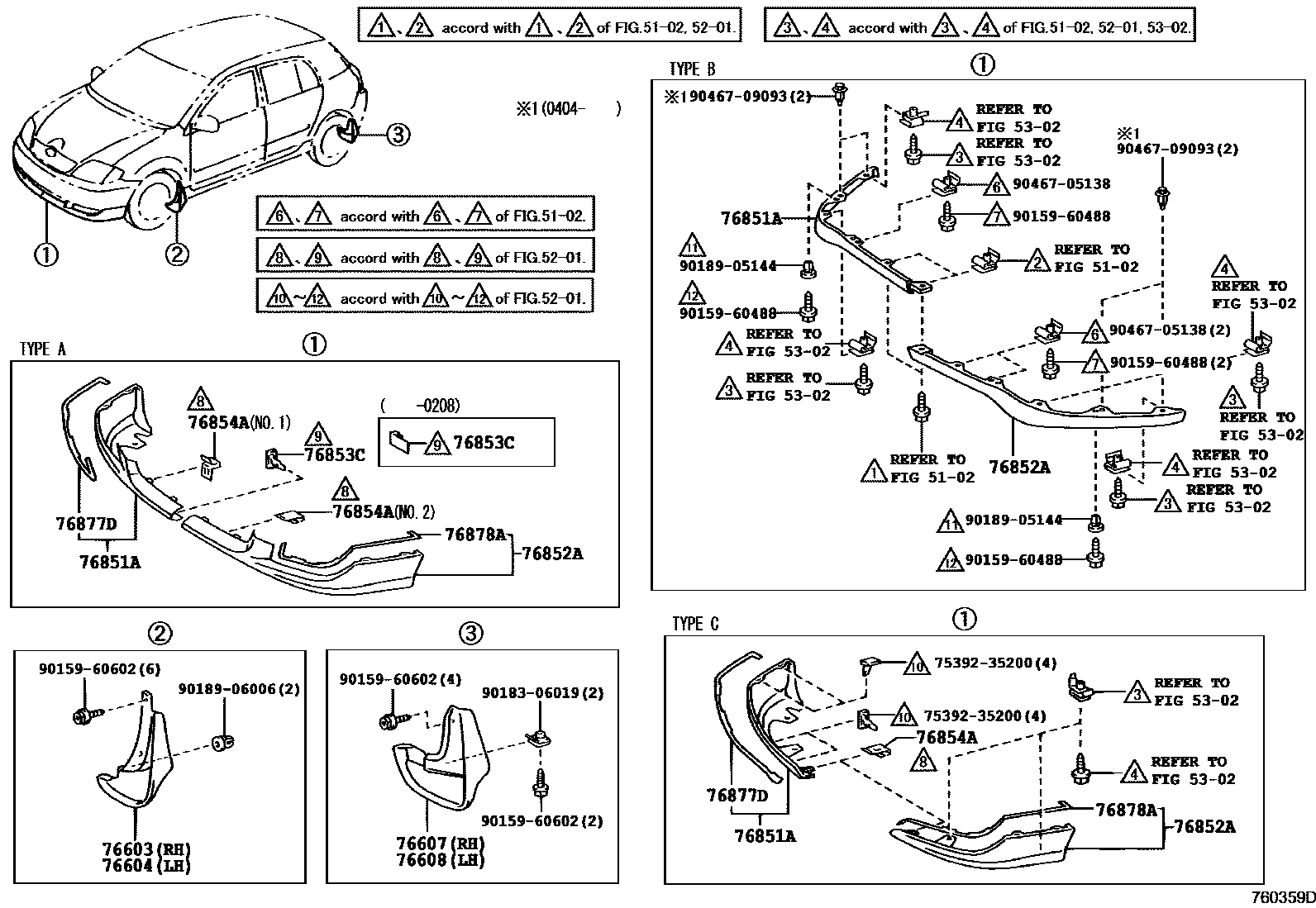

| 76851A | Right front spoiler cover | 76851-12160 · 76851-12170 |
| 76852A | Left front spoiler cover | 76852-12120 · 76852-12130 |
| 76853C | No. 1 front spoiler fixing piece | 75392-35200 · 76853-10010 |
| 76854A | No. 2 front spoiler fixing piece | 76854-13010 · 76854-44010 |

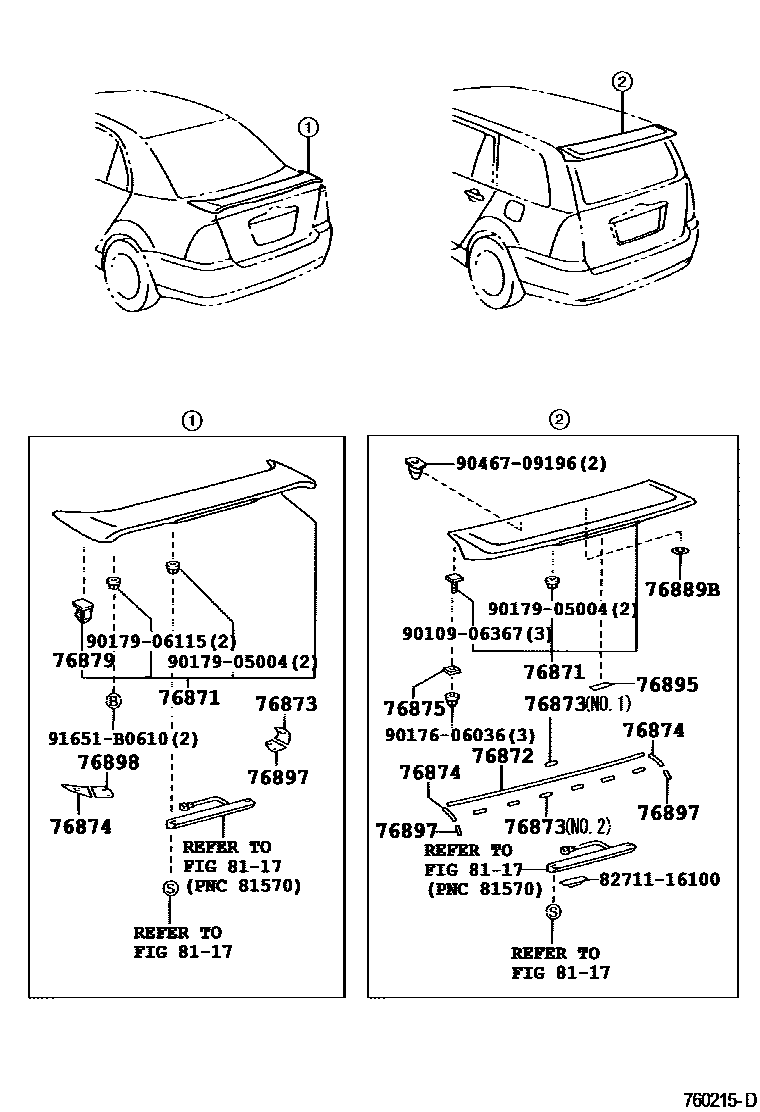

| 76872 | No. 1 rear spoiler protective strip | 76872-13050 |
| 76873 | No. 2 rear spoiler protective strip | 76783-12060 · 76873-13040 · 76896-13020 · 76896-13040 · 76896-13050 |
| 76874 | No. 3 rear spoiler protective strip | 76784-12060 · 76874-13040 |
| 76875 | No. 4 rear spoiler protective strip | 76875-13040 |
| 76879 | No. 1 rear spoiler clip | 76879-12040 |
| 76889B | No. 1 rear spoiler seal | 76889-13020 |
| 76895 | No. 5 rear spoiler protective strip | 76895-13020 |
| 76897 | Right rear spoiler protection strip | 76897-12140 · 76897-13030 |
| 76898 | Left rear spoiler protection strip | 76898-12140 |

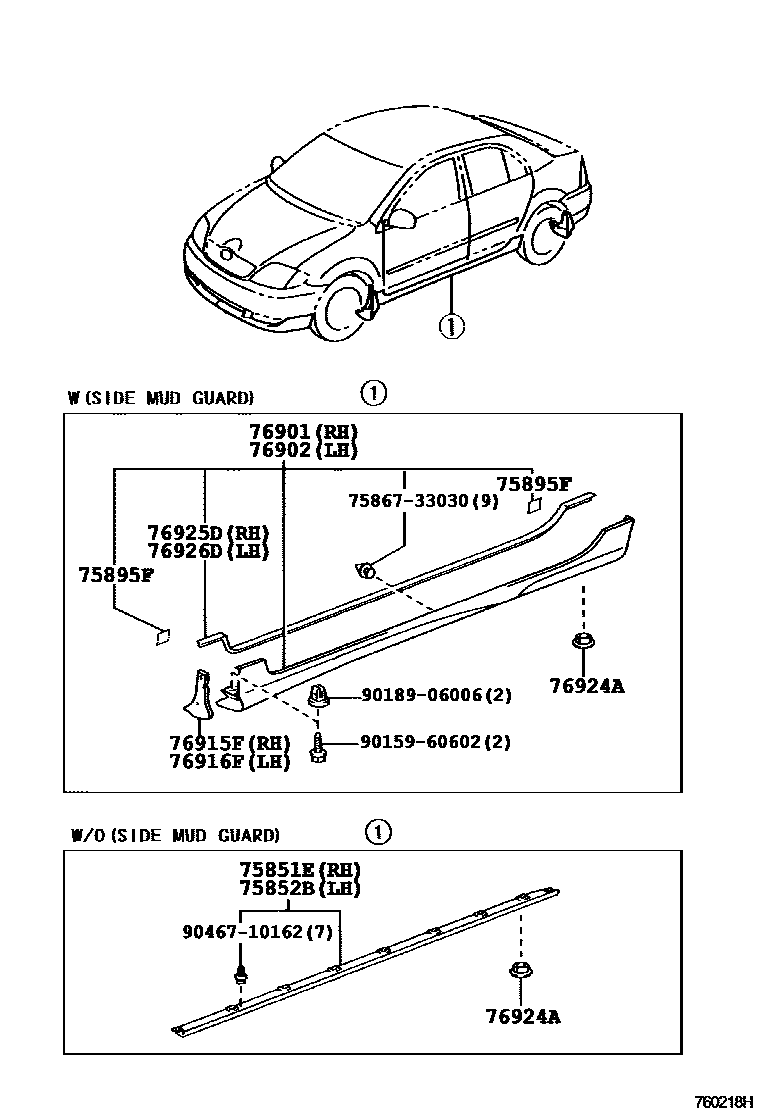

| 76901 | Right fender sub-assembly | 76911-02901 · 76911-02906 · 76911-13902 |
| 76902 | Left fender sub-assembly | 76912-02901 · 76912-02906 · 76912-13902 |
| 76915F | Right front fender | 76915-13020 |
| 76916F | Left front fender | 76916-13020 |
| 76924A | No. 2 side fender fixings | 76924-52020 · 76924-52021 |
| 76925D | Right fender protection strip | 76925-13030 |
| 76926D | Left fender protection strip | 76925-13030 |
