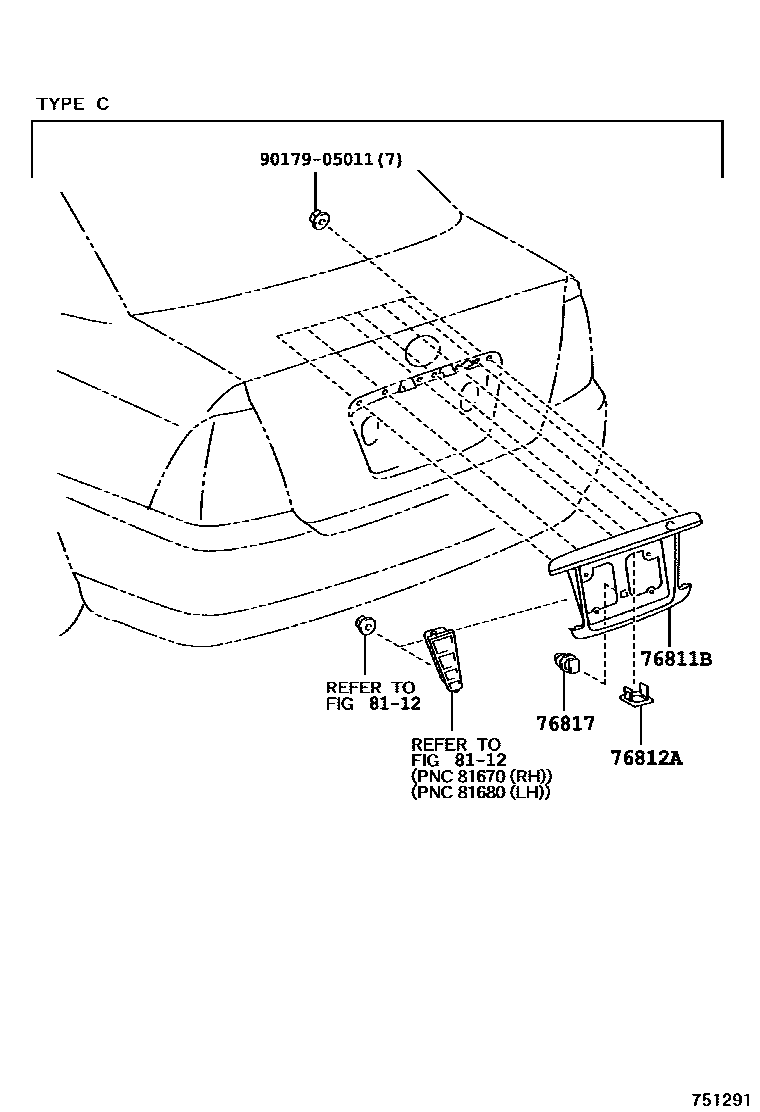

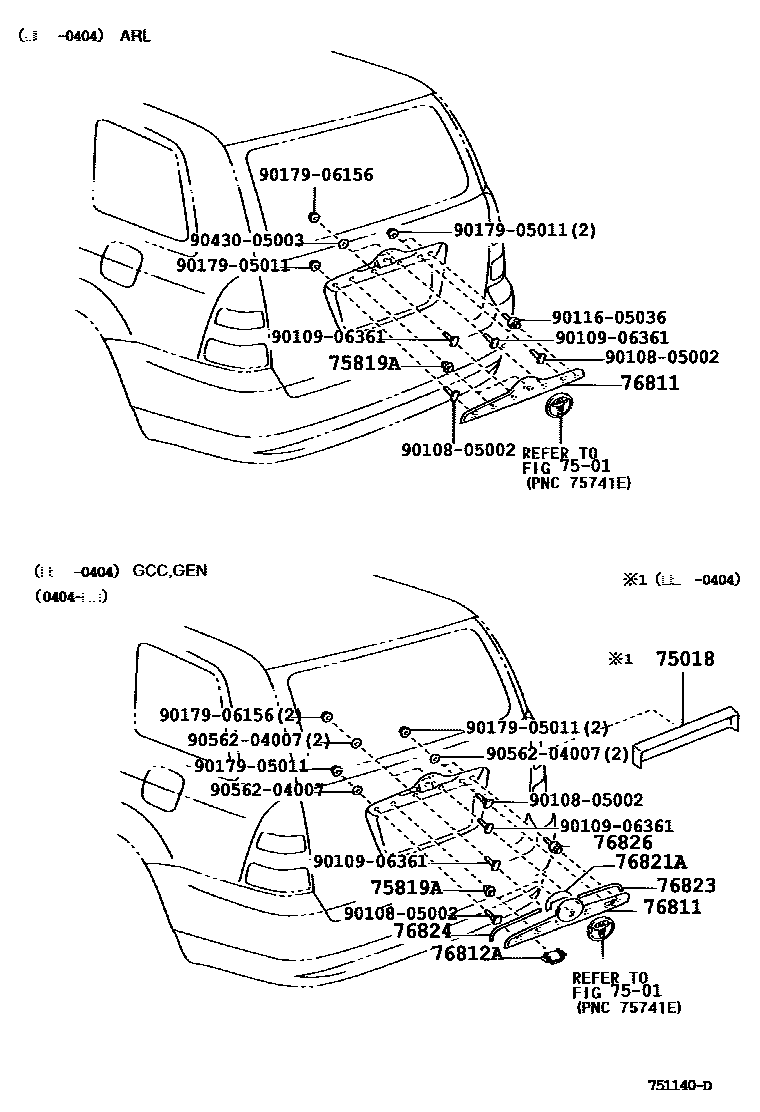

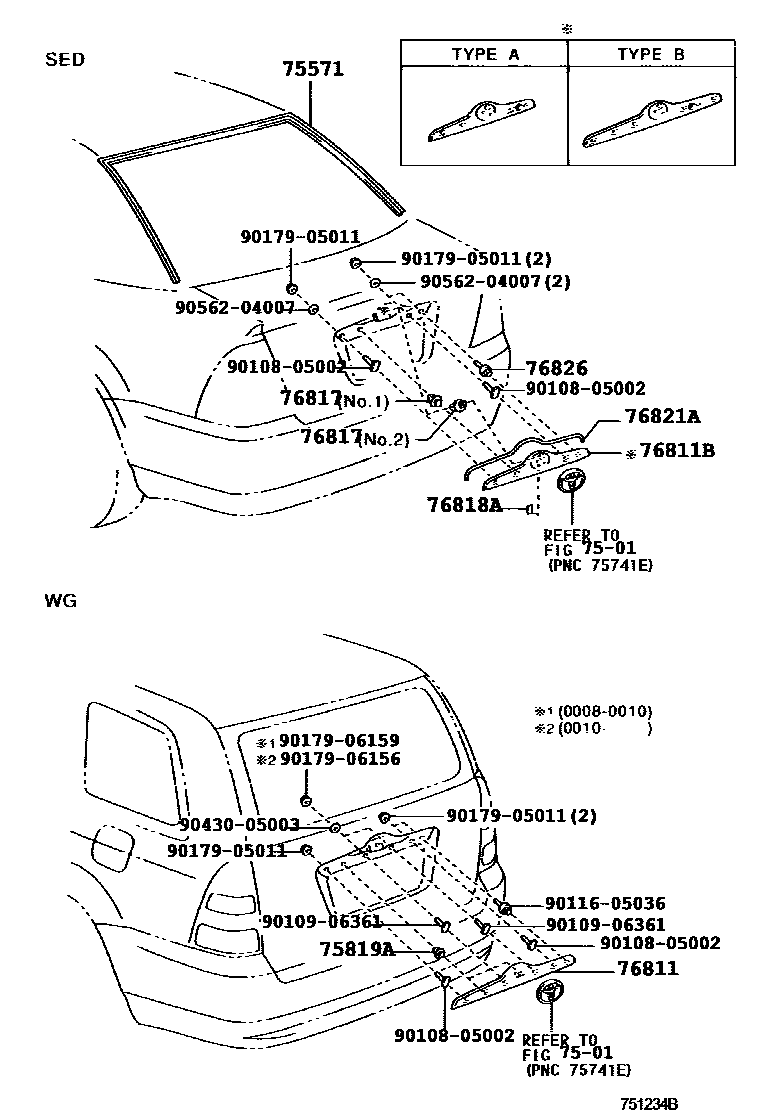

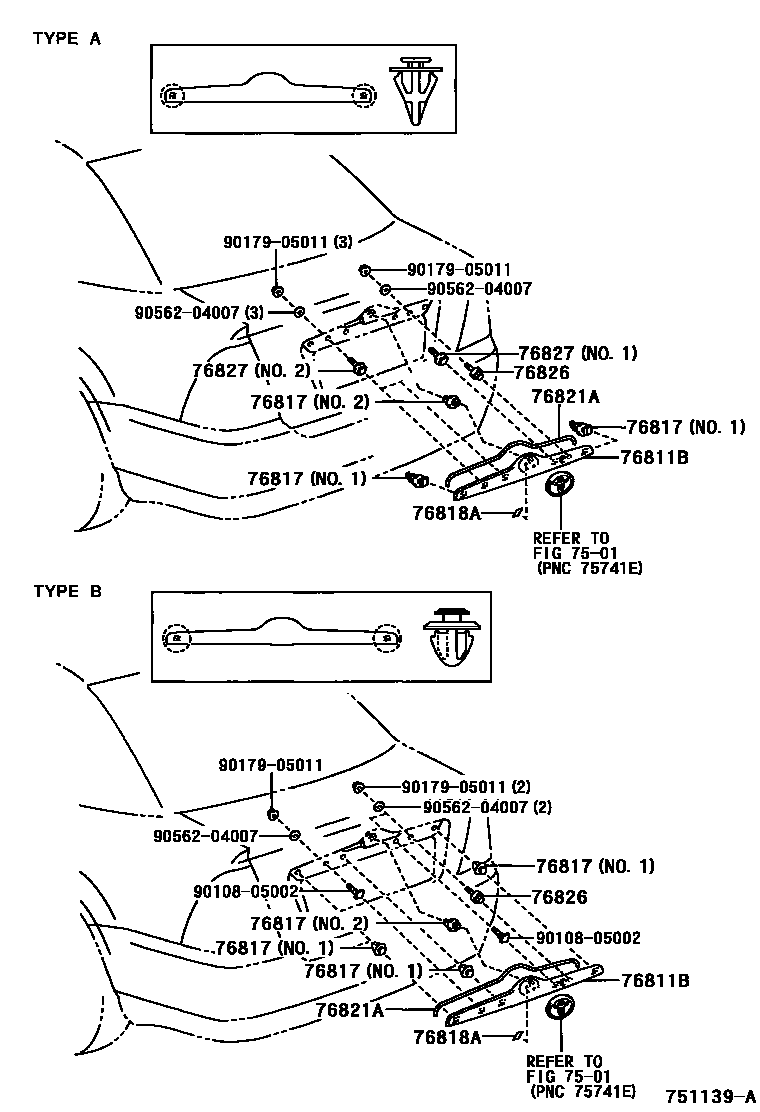

Toyota COROLLA 后防护条 — Figure 7504
Toyota COROLLA EPC diagram 7504, 后防护条, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75018 | Rear license plate frame sub-assembly | 75010-48020 |

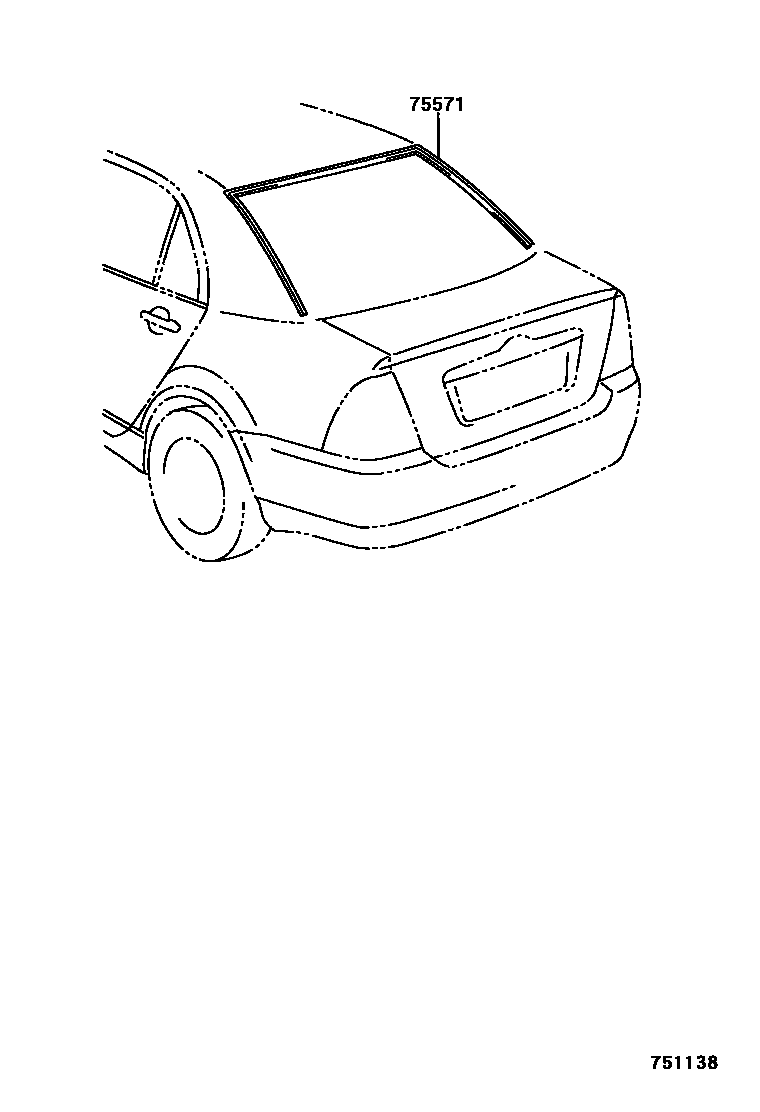

| 75571 | Protective strips on the outside of the rear window | 75571-02130 · 75571-02140 · 75571-12850 · 75571-12860 |
| 75819A | Back door protective strip clip | 75819-12040 · 90467-10077 |
| 76811 | Rear door exterior decorative strip | 76811-13060 |
| 76811B | Trunk door exterior trim strip | 76811-12640 · 76811-12641 · 76811-12650 · 76811-12680 · 76811-12710 · 76811-12901 · 76811-12906 |
| 76812A | No. 2 rear door exterior trim strip | 76812-13010 |
| 76817 | Rear door exterior decorative strip clip | 76817-12050 · 76817-12060 · 76817-12070 |
| 76818A | Luggage trim strip lining No. 1 | 76818-12160 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-12160 · 76821-12170 · 76821-12180 · 76821-12190 · 76821-13030 · 76821-13060 |
| 76823 | Rear door right side decorative strip protective cover | 76823-13010 |
| 76824 | Rear door left side decorative strip protective cover | 76824-13030 |
| 76826 | No. 1 rear door trim strip fixing | 76826-12030 |
| 76827 | No. 2 rear door trim strip fixings | 76827-12030 · 76827-12040 |
