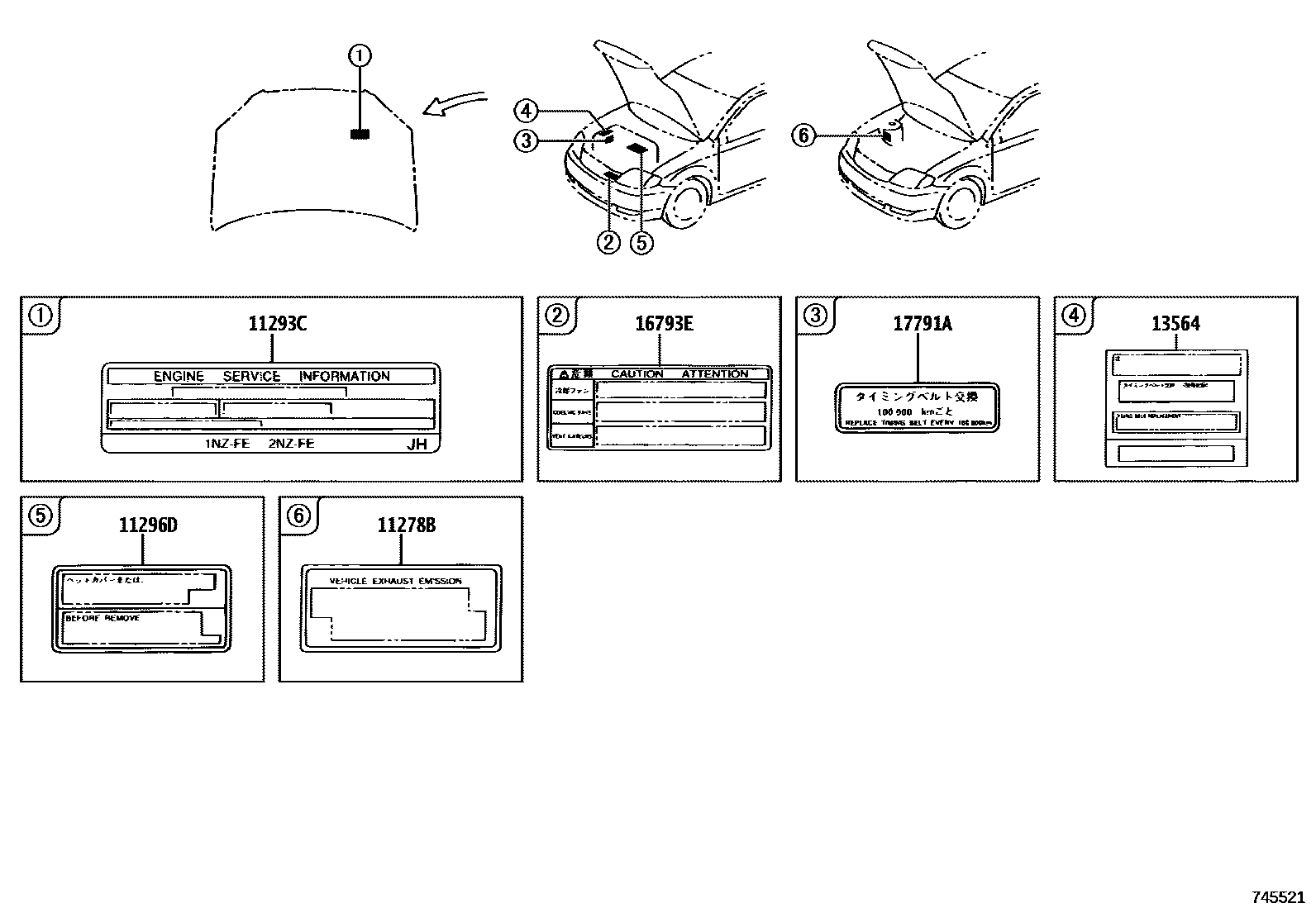

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278B | Engine emission standard information label | 11278-16050 |
| 11293C | Adjust specification information label | 11293-0M010 · 11293-21040 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 11296D | Engine maintenance information label | 11296-64010 |
| 11298B | Emission Control Information Label | 11298-22110 |
| 13564 | Timing belt replacement information label | 13564-10010 |
| 16793E | Cooling fan warning label | 16793-46010 |
| 17791A | Maintenance information label | 17791-55010 |
| 23923A | Fuel Precipitator Caution Label | 23923-64011 |
| 69339C | Child Restraint Information Label | 69339-0A010 · 69339-0A020 · 69339-12010 |
| 73794 | Rear seat belt caution label | 73794-33010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-48030 |
| 74541 | tire pressure warning plate | 42661-1E160 · 42661-1E170 · 42661-1E230 · 42661-1E250 · 42661-1E260 |
| 74559A | Fuel warning plate | 74559-14050 |
| 74571 | Brake fluid warning plate | 47287-12010 |
| 74571A | Label cover protective film | 74571-32010 |
| 74579 | Unleaded fuel warning nameplate | 74559-14030 · 74559-89101 |
| 74596A | Side air bag warning label | 74596-12020 |
| 88723E | Cooler maintenance warning label | 88723-28220 |
| 89176A | Air bag deployment information label | 89176-32010 |
