Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

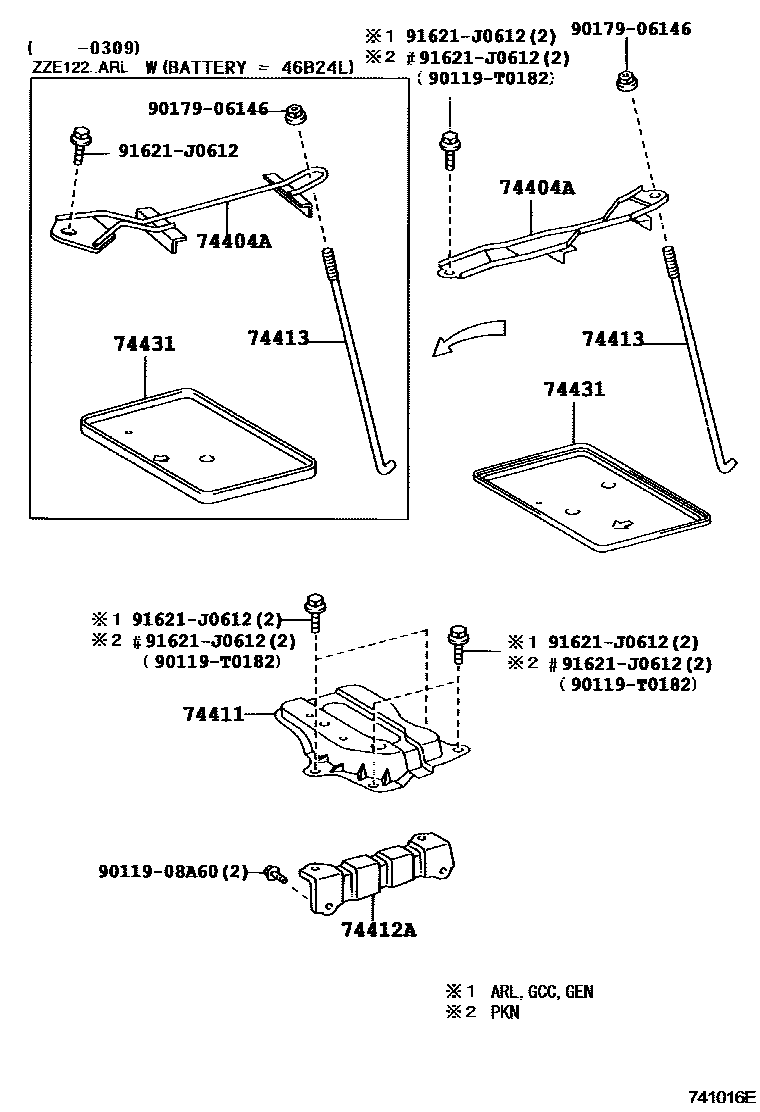

Toyota COROLLA battery holder EPC diagram — 741016E
battery holder — 741016E (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02090 · 74404-02110 · 74404-12400 · 74404-12410 · 74404-12420
74411battery holder74411-02040 · 74411-12140
74412ANo. 2 battery holder74412-02020 · 74412-12020
74413Battery clamp bolt74451-02050 · 74451-02060 · 74451-12130 · 74451-12140
74431battery tray74431-02120 · 74431-12020 · 74431-12040 · 74431-12060
