Toyota COROLLA 扶手和遮阳板 — Figure 7401

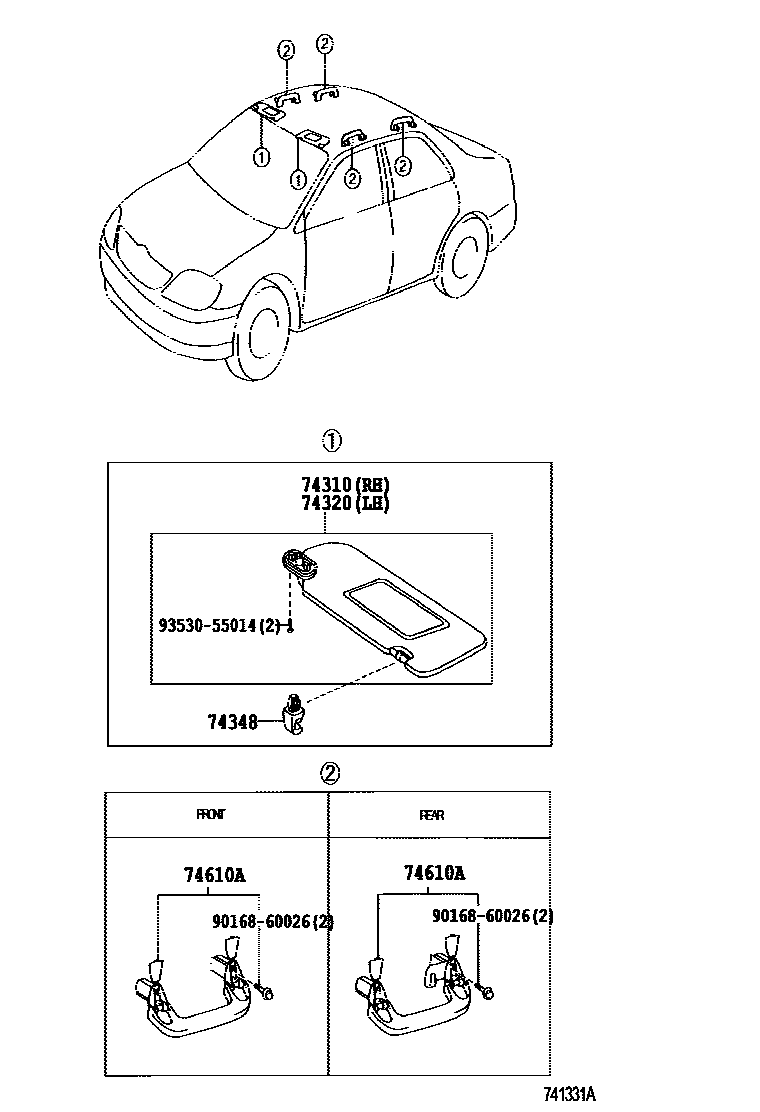

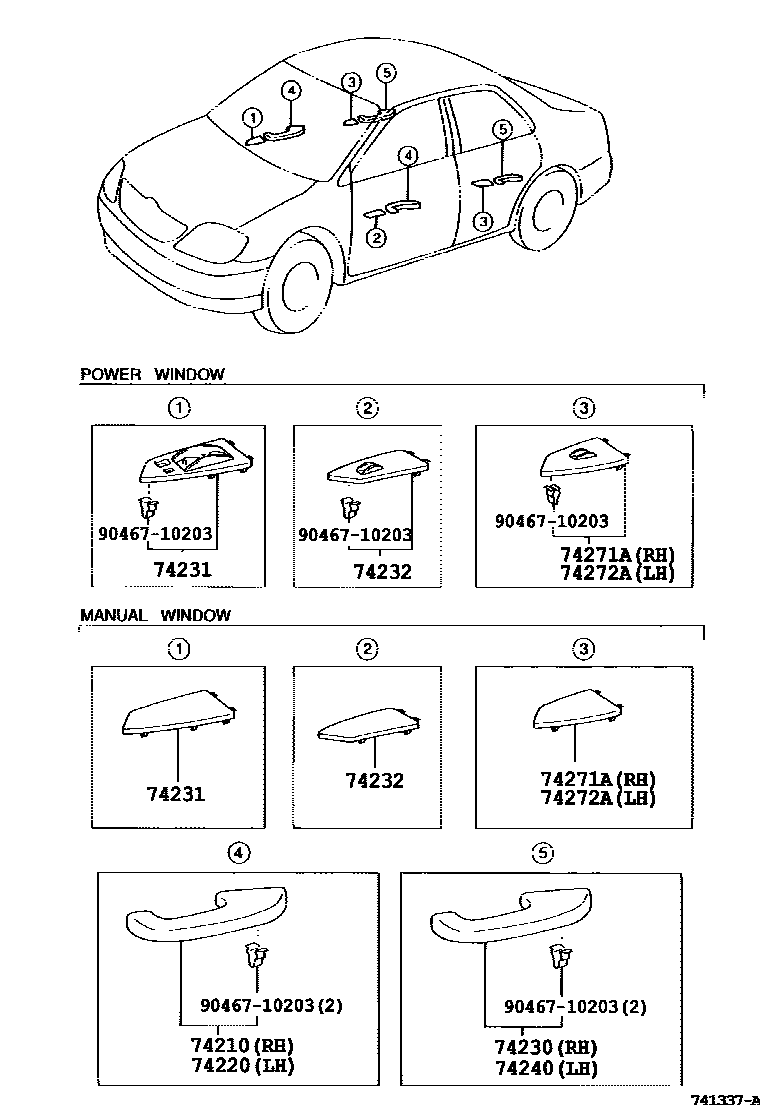

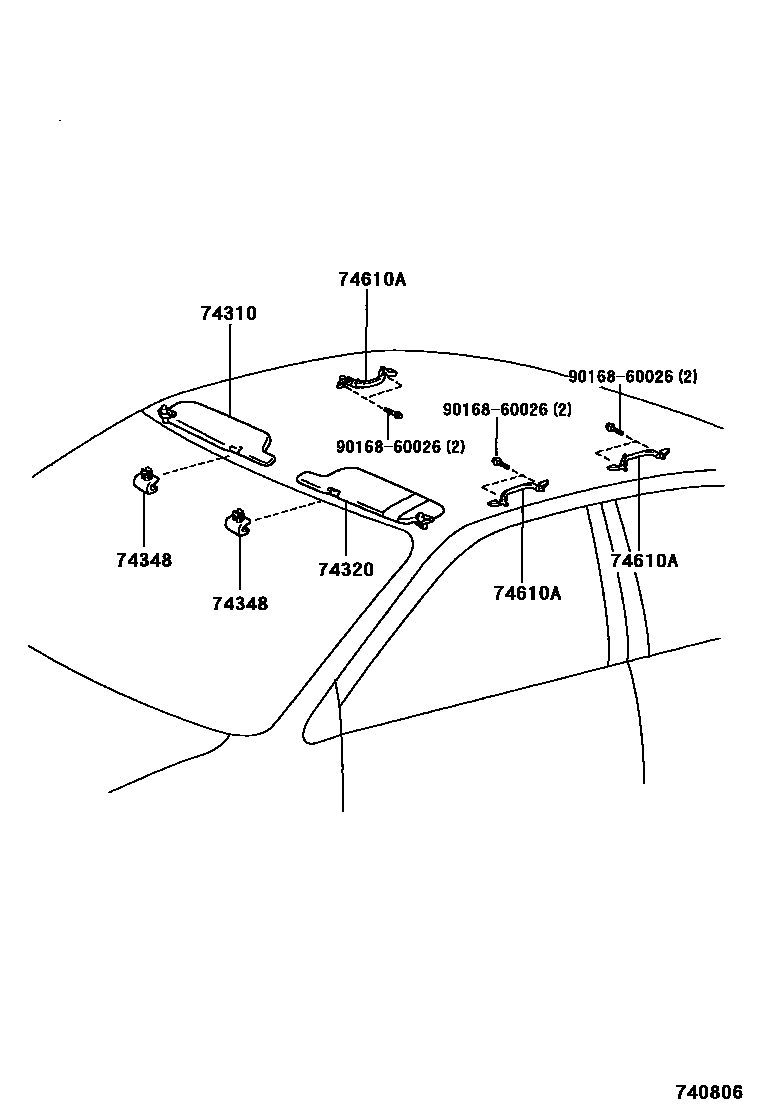

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-12440 · 74231-12470 · 74231-12620 · 74231-12630 · 74231-12680 |
| 74232 | Left front armrest upper panel | 74232-12350 · 74232-12380 · 74232-12450 · 74232-12460 · 74232-12510 |
| 74271A | Right rear door armrest upper panel | 74271-12020 · 74271-12030 · 74271-12090 · 74271-12100 · 74271-12160 |
| 74272A | Left rear door armrest upper panel | 74272-12020 · 74272-12030 · 74272-12090 · 74272-12100 · 74272-12160 |
