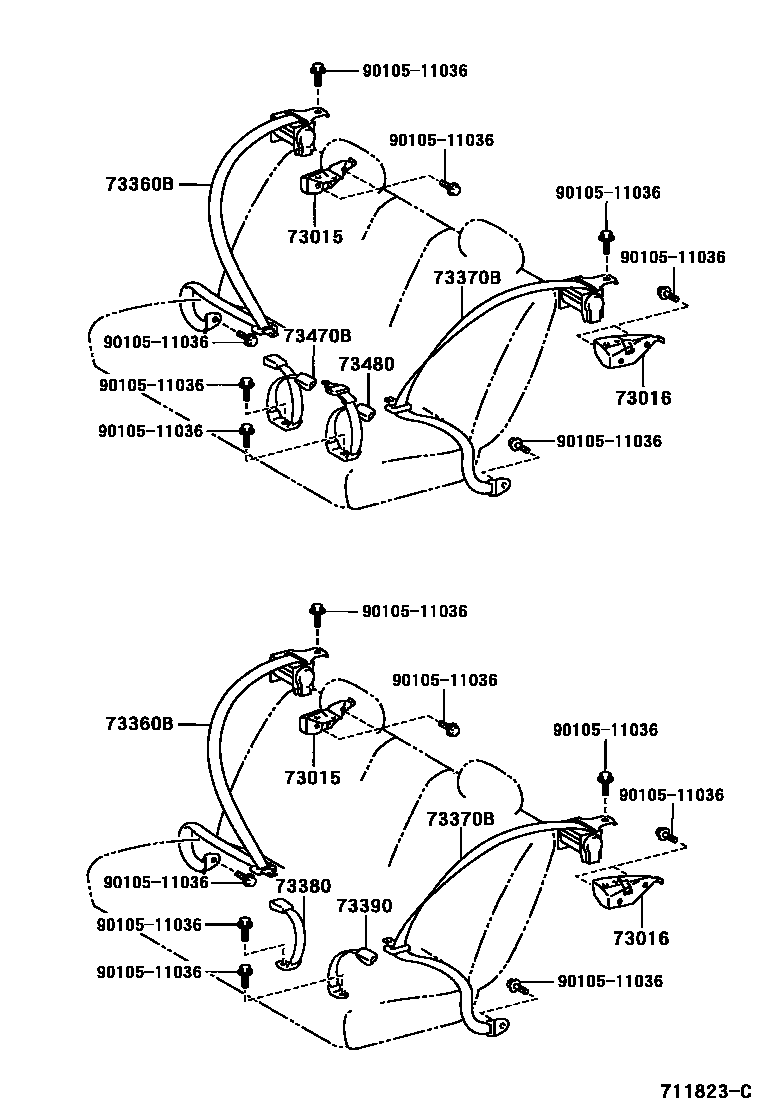

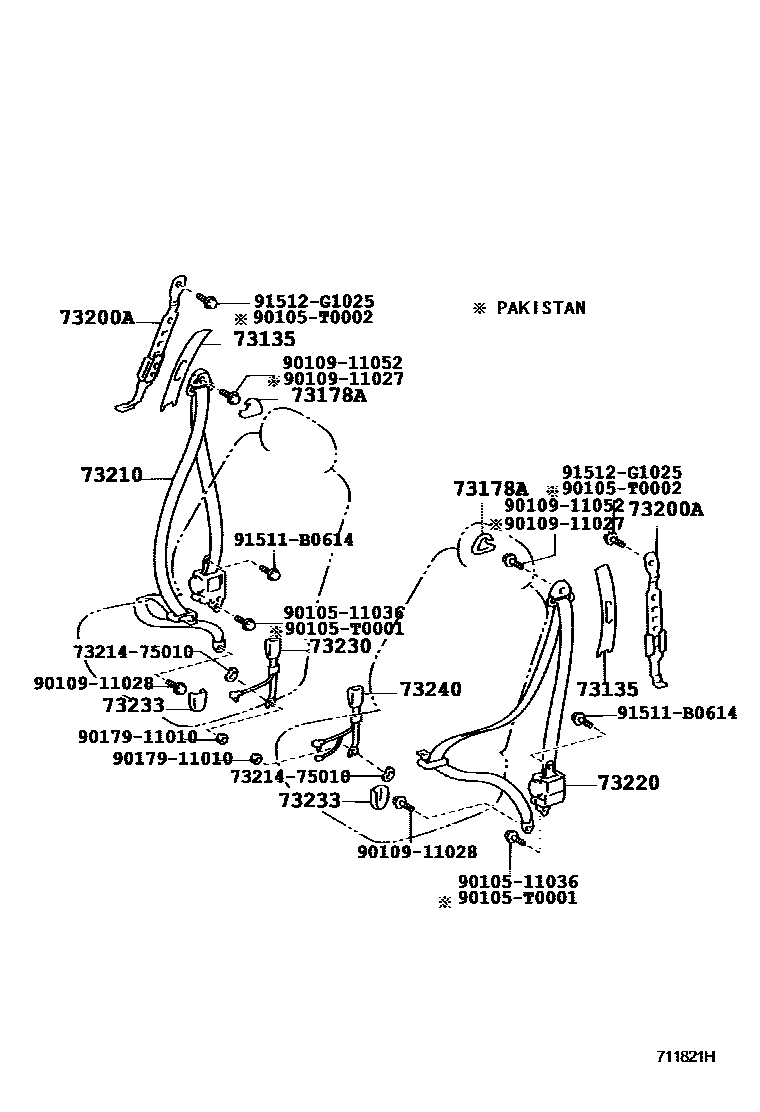

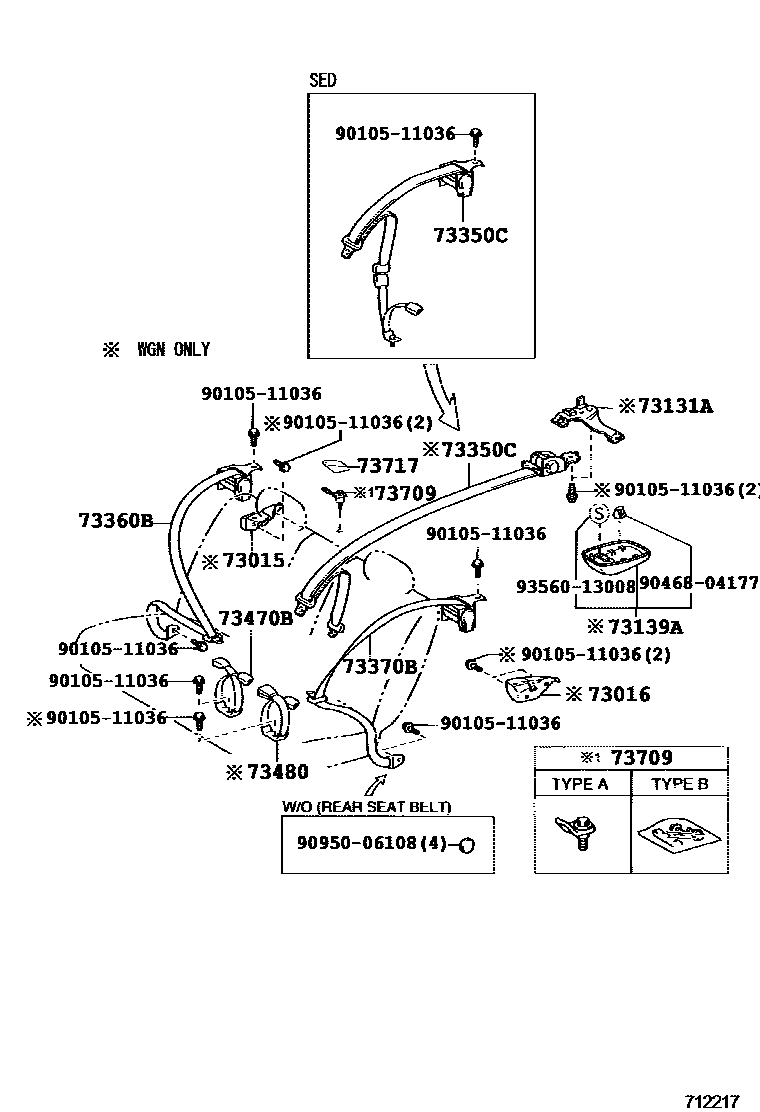

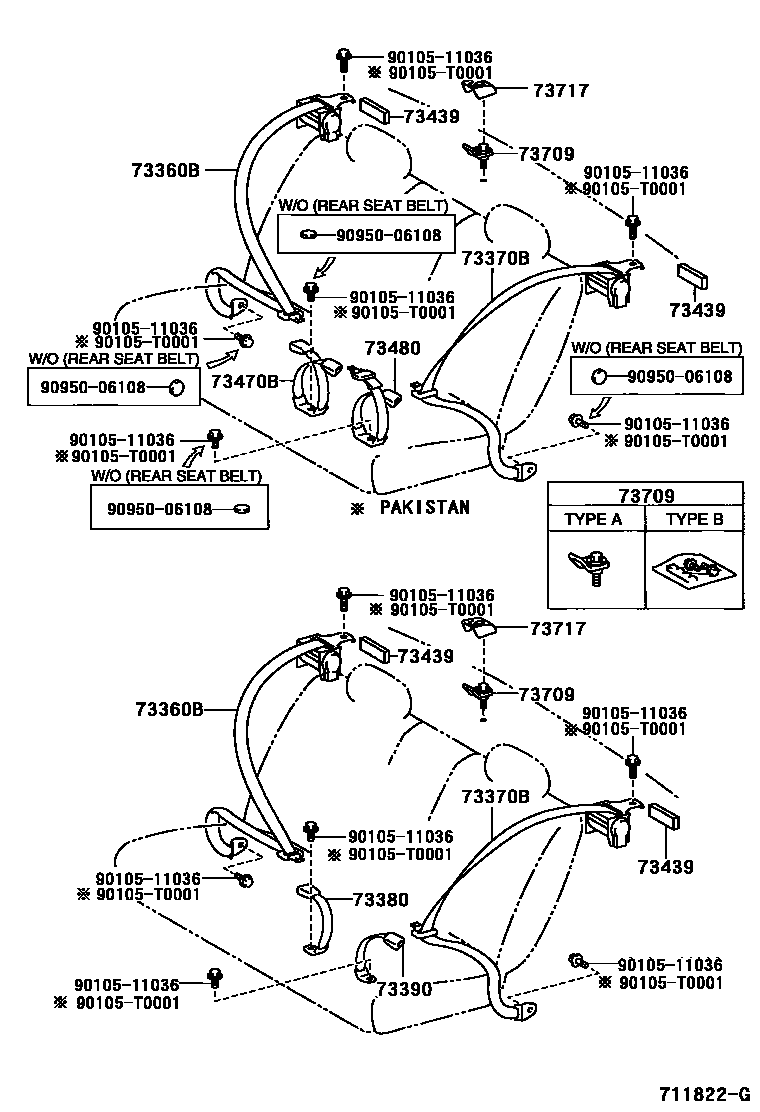

Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104
Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015 | Right seat belt outer anchor bracket sub-assembly | 73015-13010 |
| 73016 | Left side seat belt outer anchor bracket sub-assembly | 73016-13010 |
| 73131A | seat belt bracket | 73131-13010 |
| 73135 | Shoulder belt anchor plate cover | 73237-02020 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-52040 |
| 73210 | Front right seat outer seat belt assembly | 73210-1A310 |
| 73220 | Front left seat outer seat belt assembly | 73220-1A140 |
| 73439 | Rear seat belt retractor cushion | 73439-02040 · 73439-12040 |
| 73709 | Tie anchor bracket sub-assembly | 73708-12091 · 73708-12100 · 73708-13010 |
