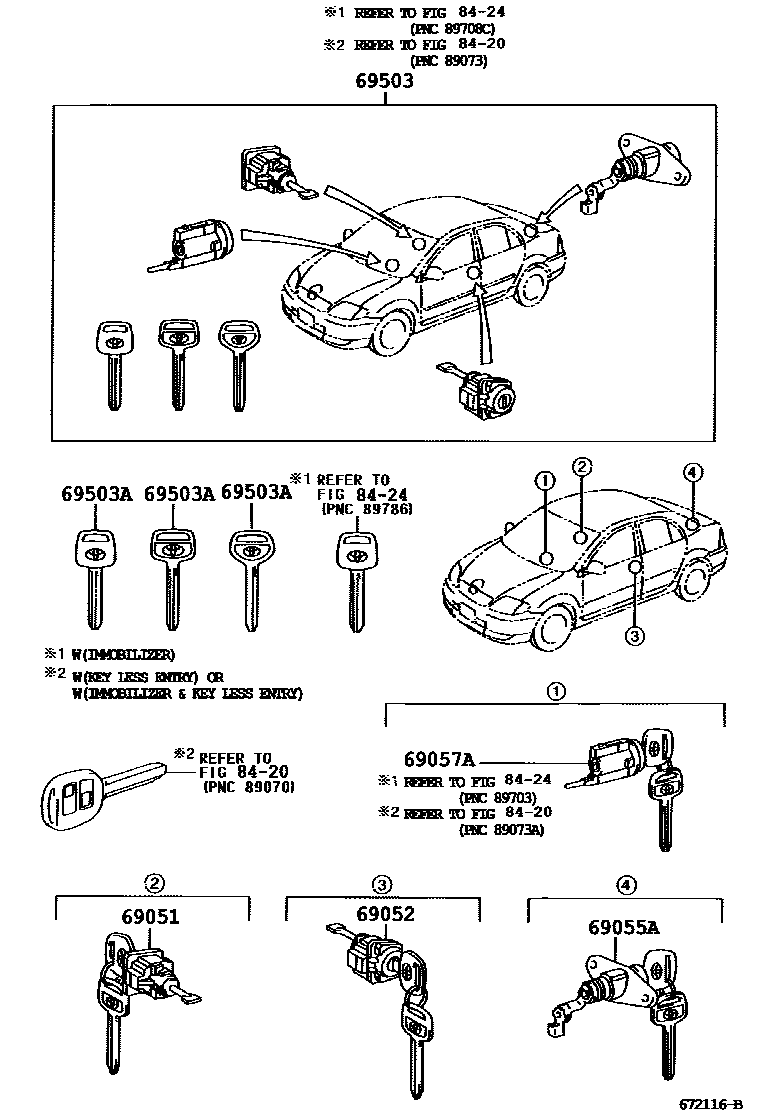

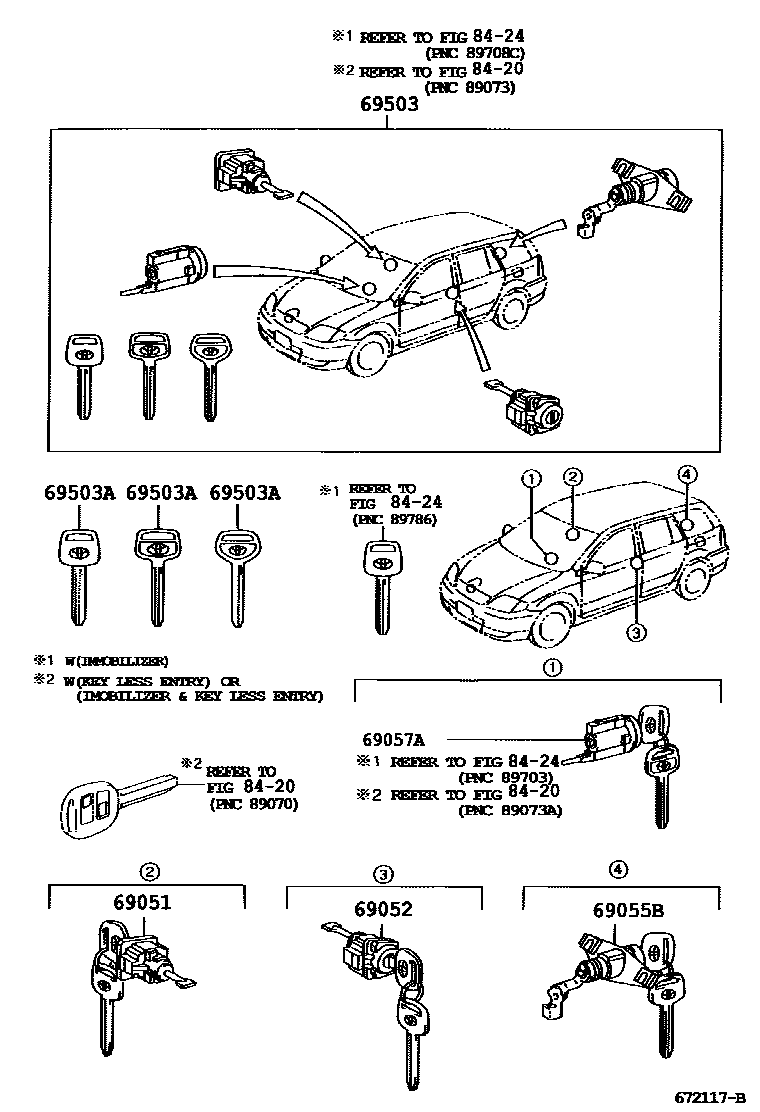

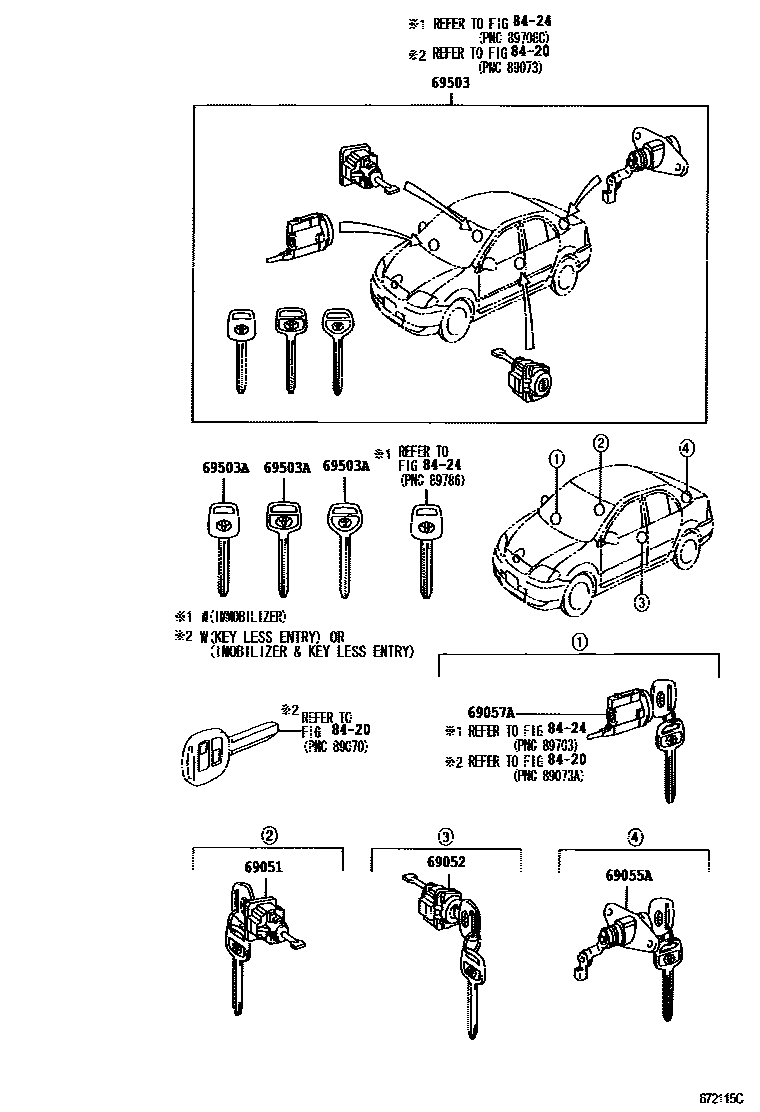

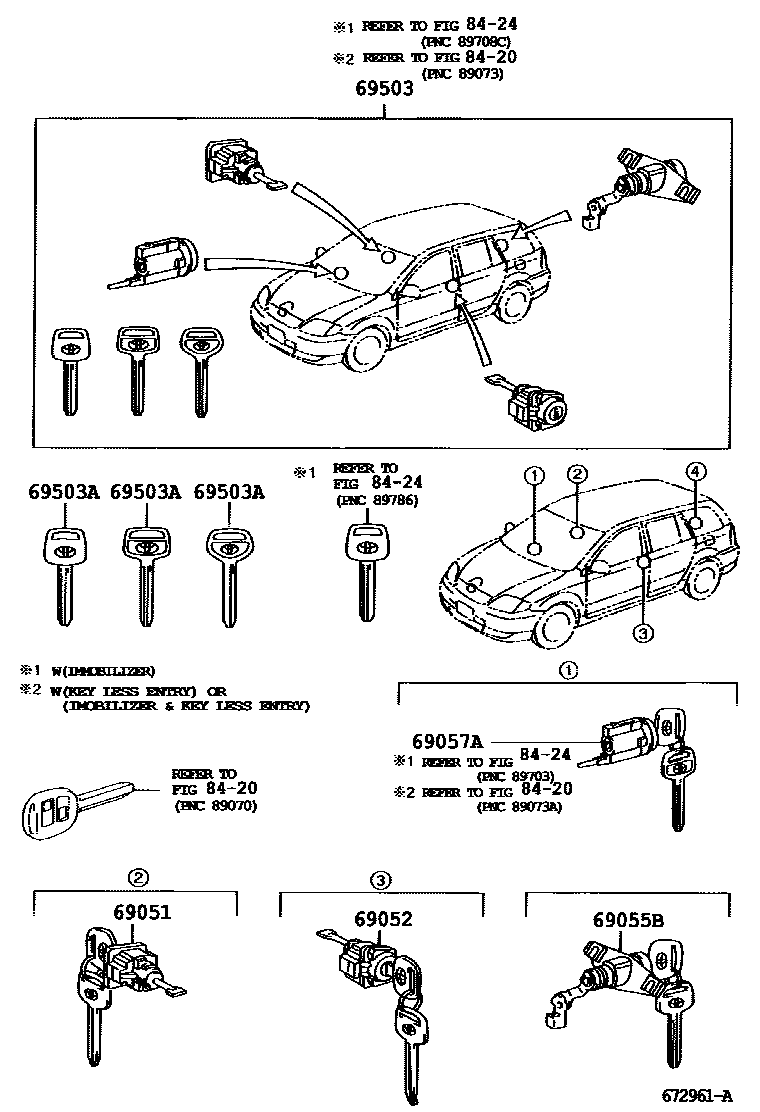

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02040 · 69051-12600 · 69051-12610 · 69051-12640 · 69051-13230 |
| 69052 | Left door lock cylinder and key assembly | 69052-02030 · 69052-12590 · 69052-12600 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02030 · 69055-1A400 · 69055-1A410 · 69055-1A440 |
| 69055B | Rear door lock cylinder and key assembly | 69055-13280 · 69055-13290 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02030 · 69057-12530 · 69057-12540 · 69057-12640 · 69057-52201 |
| 69503 | Door lock cylinder components | 69005-02020 · 69005-02110 · 69005-12A00 · 69005-12A40 · 69005-13580 · 69005-13810 · 69005-1E500 · 69005-1E750 |
| 69503A | external tooth key | 90999-00186 · 90999-00188 · 90999-00199 |
