Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 9 PNC and OE references.

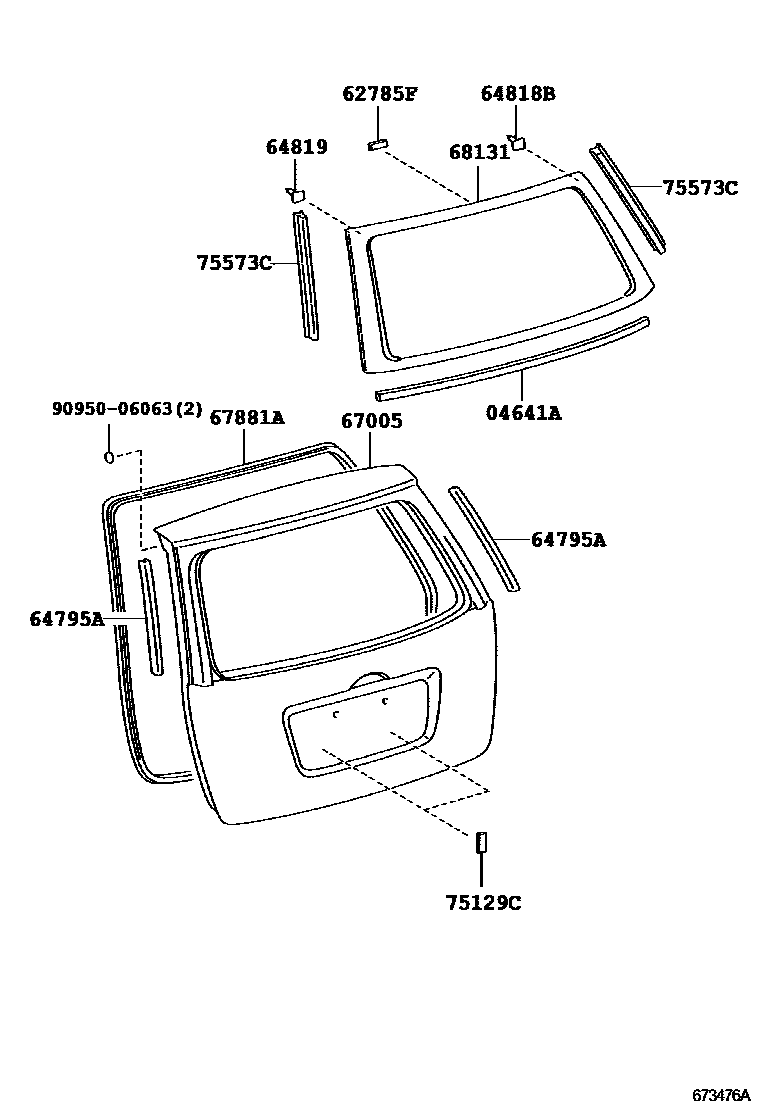

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 56117-47010 |
| 62785F | Back door glass spacer | 62785-16030 |
| 64818B | No. 1 back door glass spacer | 64818-13040 |
| 64819 | No. 2 back window glass spacer | 64819-13030 |
| 67005 | Rear door panel sub-assembly | 67005-1F620 · 67005-1F621 · 67005-1F630 · 67005-1F631 · 67005-1F810 · 67005-1F811 · 67005-1F840 · 67005-1F841 · 67005-1F850 · 67005-1F860 |
| 67881A | Back door seal | 67881-13230 · 67881-13231 |
| 68131 | back door glass | 68131-13520 · 68131-13521 |
| 75129C | rear license plate cushion | 75129-13020 |
| 75573C | Protective strip for rear window | 75573-13050 |
