Toyota COROLLA 后门板和后门玻璃 — Figure 6705

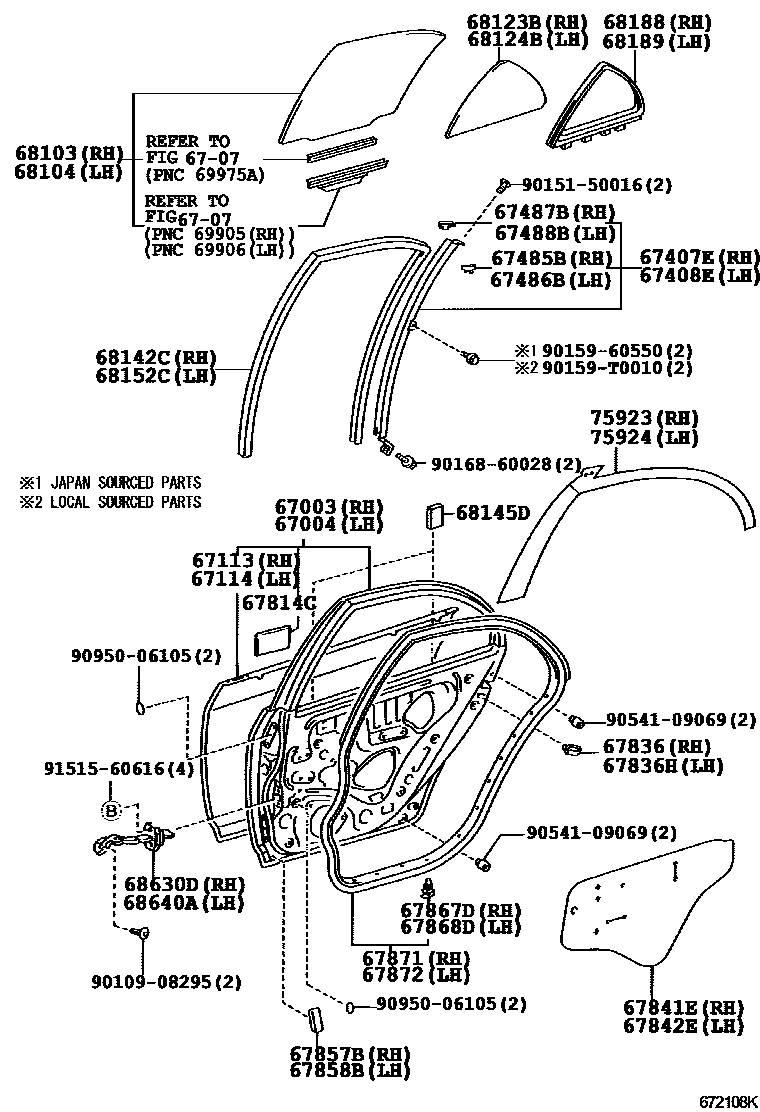

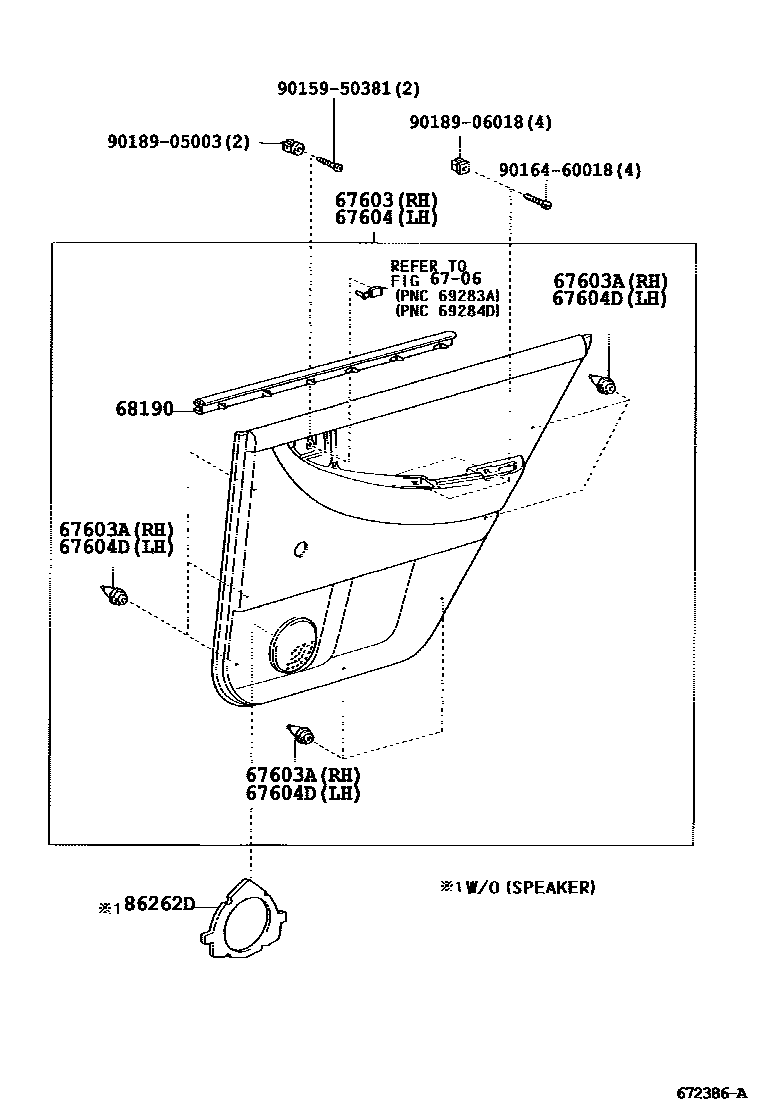

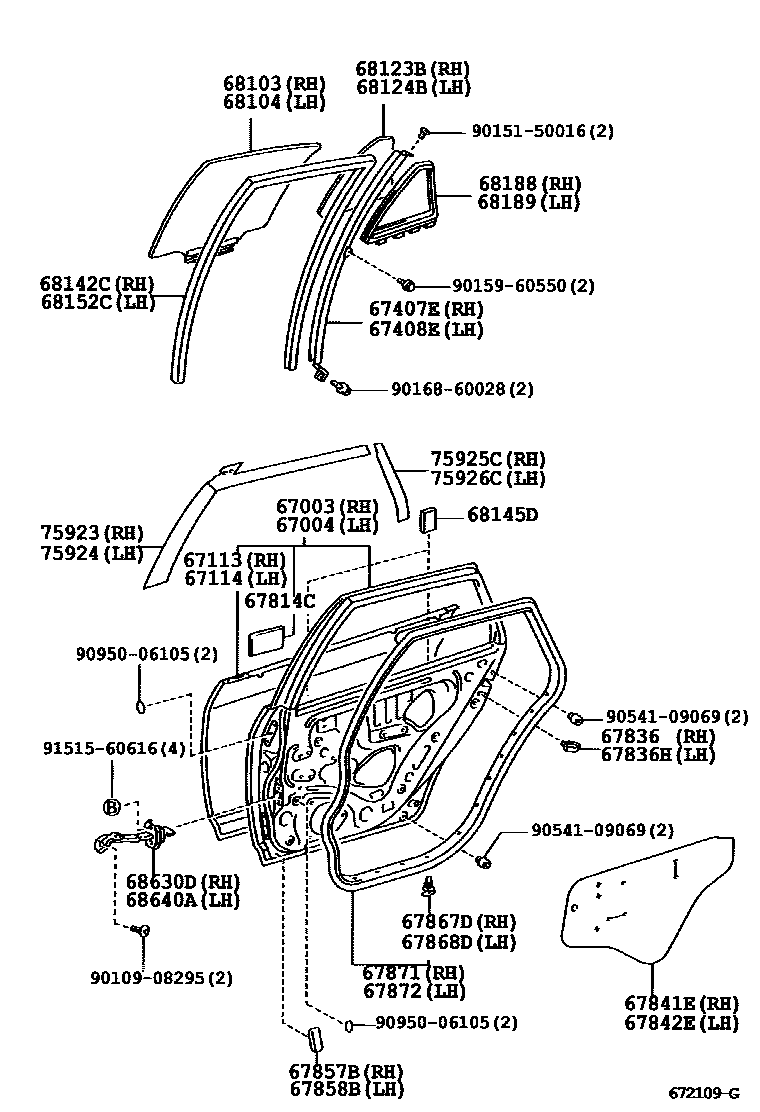

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12840 · 67003-12850 · 67003-13270 · 67003-13280 · 67003-1A010 · 67003-1A020 |
| 67004 | Left rear door panel sub-assembly | 67004-12840 · 67004-12850 · 67004-12890 · 67004-13270 · 67004-13280 · 67004-1A010 |
| 67113 | Right rear door outer panel | 67113-12270 |
| 67114 | Left rear door outer panel | 67114-12270 |
| 67407E | Right rear door window divider sub-assembly | 67407-12260 · 67407-13060 |
| 67408E | Left rear door window divider sub-assembly | 67408-12260 · 67408-13060 |
| 67485B | Right rear door divider inner seal | 67485-53010 |
| 67486B | Left rear door divider inner seal | 67486-53010 |
| 67487B | Right rear door divider seal | 67487-53010 |
| 67488B | Left rear door divider seal | 67488-53010 |
| 67603A | Fixings (for rear door trim) | 67771-12050 |
| 67604D | Left rear door trim panel fixing | 67771-12050 |
| 67814C | door guard seals | 67817-47010 |
| 67836 | Right rear door lock child restraint cover | 67836-02030 · 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-02030 · 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-12310 |
| 67842E | Left rear door access hole cover | 67841-12310 |
| 67857B | Right rear door panel protector | 67857-12090 |
| 67858B | Left rear door panel protector | 67858-12080 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-02050 · 67871-12500 · 67871-13140 |
| 67872 | Left rear door sealing strip | 67872-02050 · 67872-12500 · 67872-13130 |
| 68103 | Right rear door glass sub-assembly | 68113-12680 · 68113-12690 · 68113-12720 · 68113-13230 · 68113-13310 |
| 68104 | Left rear door glass sub-assembly | 68114-12680 · 68114-12690 · 68114-12720 · 68114-13230 · 68114-13310 |
| 68123B | Right rear door corner window glass | 68123-12720 · 68123-12730 · 68123-12760 · 68123-13210 · 68123-13290 |
| 68124B | Left rear door corner window glass | 68124-12720 · 68124-12730 · 68124-12760 · 68124-13200 · 68124-13280 |
| 68142C | Right rear door glass lift slot | 68142-02050 · 68142-12240 · 68142-13110 |
| 68145D | Rear door window cushion | 69759-12060 · 69759-12110 |
| 68152C | Left rear door glass lift slot | 68152-02050 · 68152-12150 · 68152-13070 |
| 68188 | Right rear door corner window seal | 68188-12280 · 68188-13080 |
| 68189 | Left rear door corner window seal | 68189-12280 · 68189-13080 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-12270 · 68173-12290 · 68174-12130 · 68174-12150 |
| 68630D | Right rear door opening limiter assembly | 68630-12070 · 68630-12071 |
| 68640A | Left rear door opening limiter assembly | 68640-12040 · 68640-12041 |
| 75923 | No. 2 right side light-shielding film | 75923-12010 · 75923-12011 · 75923-12012 · 75923-13010 · 75923-13011 · 75923-13012 |
| 75924 | No. 2 left shading film | 75924-12010 · 75924-12011 · 75924-12012 · 75924-13010 · 75924-13011 · 75924-13012 |
| 75925C | No. 3 right side light-blocking film | 75925-13010 · 75925-13011 |
| 75926C | No. 3 left shading film | 75926-13010 · 75926-13011 |
| 86262D | Rear door speaker cover | 86262-12010 |
