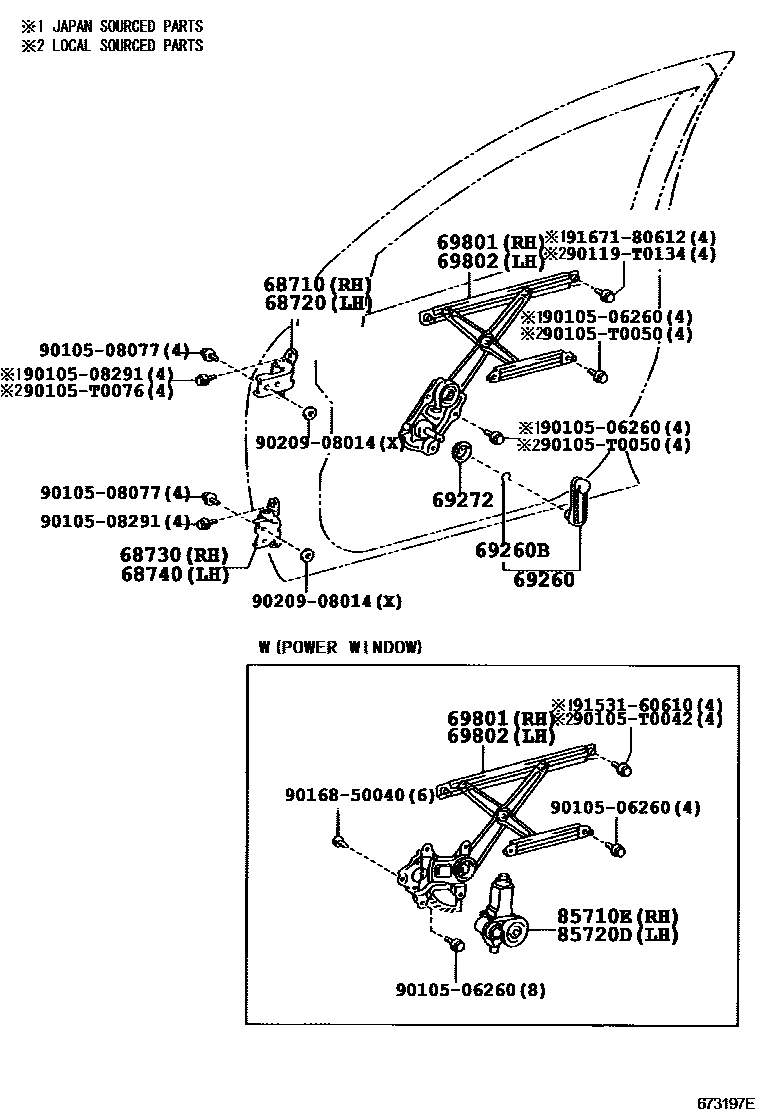

Toyota COROLLA 前门车窗升降器和合页 — Figure 6704
Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-0D030 · 68710-12150 · 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-0D030 · 68720-12150 · 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-52010 |
| 68740 | Left front door lower hinge assembly | 68740-52010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01274 |
| 69272 | Front door window lift inner handle plate | 69268-12020 · 69285-22010 |
| 69801 | Right front door window lifter sub-assembly | 69801-12190 · 69810-12520 |
| 69802 | Left front door window lifter sub-assembly | 69802-12190 · 69820-12510 |
| 85710E | Right power window lift motor assembly | 85710-12190 · 85710-12230 · 85710-12320 · 85710-52110 |
| 85720D | Left electric window lift motor assembly | 85720-12210 · 85720-12230 · 85720-12310 · 85720-52110 |
